Precious Metal Electrolyte
Rhodium, gold, silver, platinum, palladium. Whether to use ready to use baths or concentrates to dissolve with distilled water.
You can find here a lot of electrolytes containing precious metals. And if you are not sure how to use the electrolytes, you will also find the product descriptions and safety data sheets for each electrolyte here.

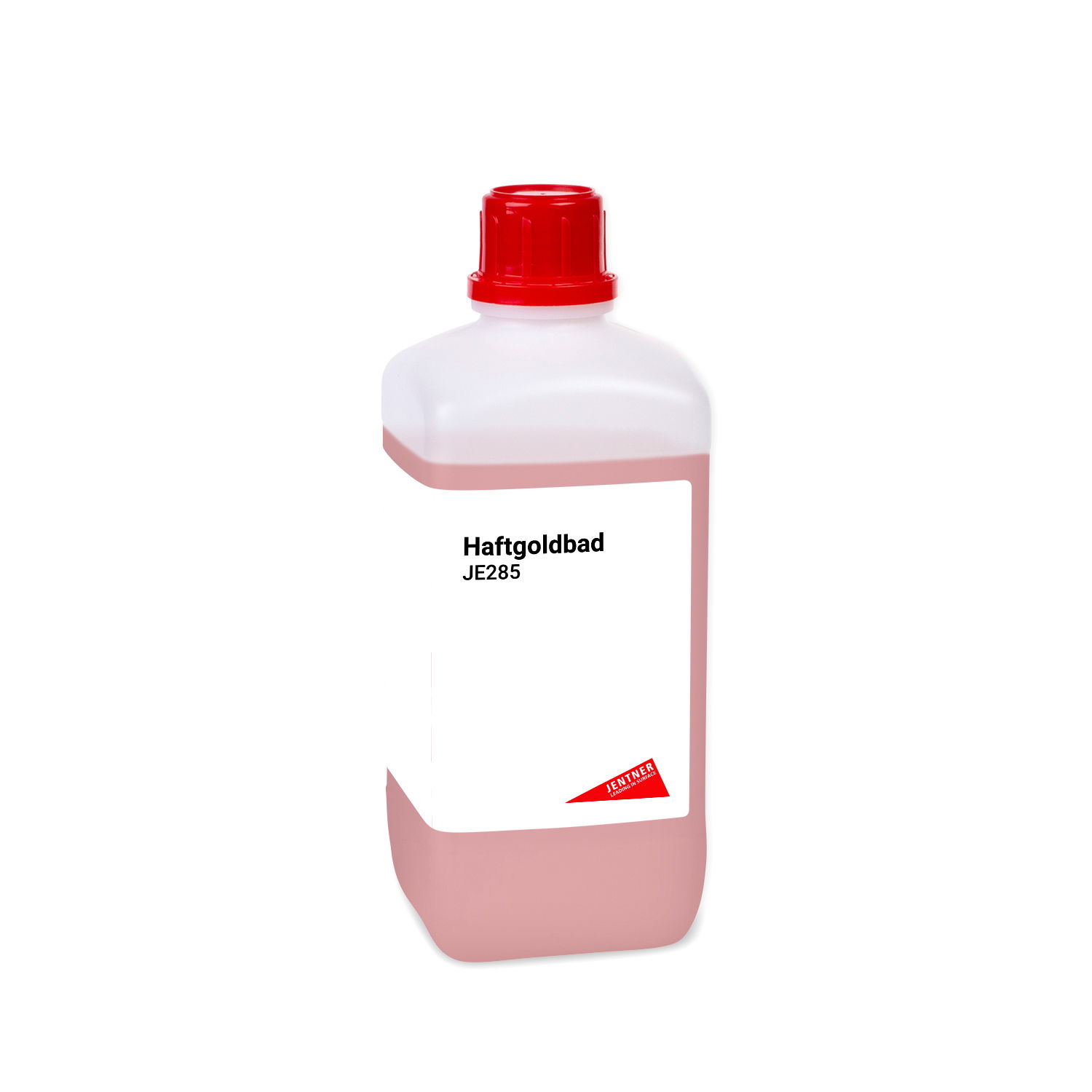

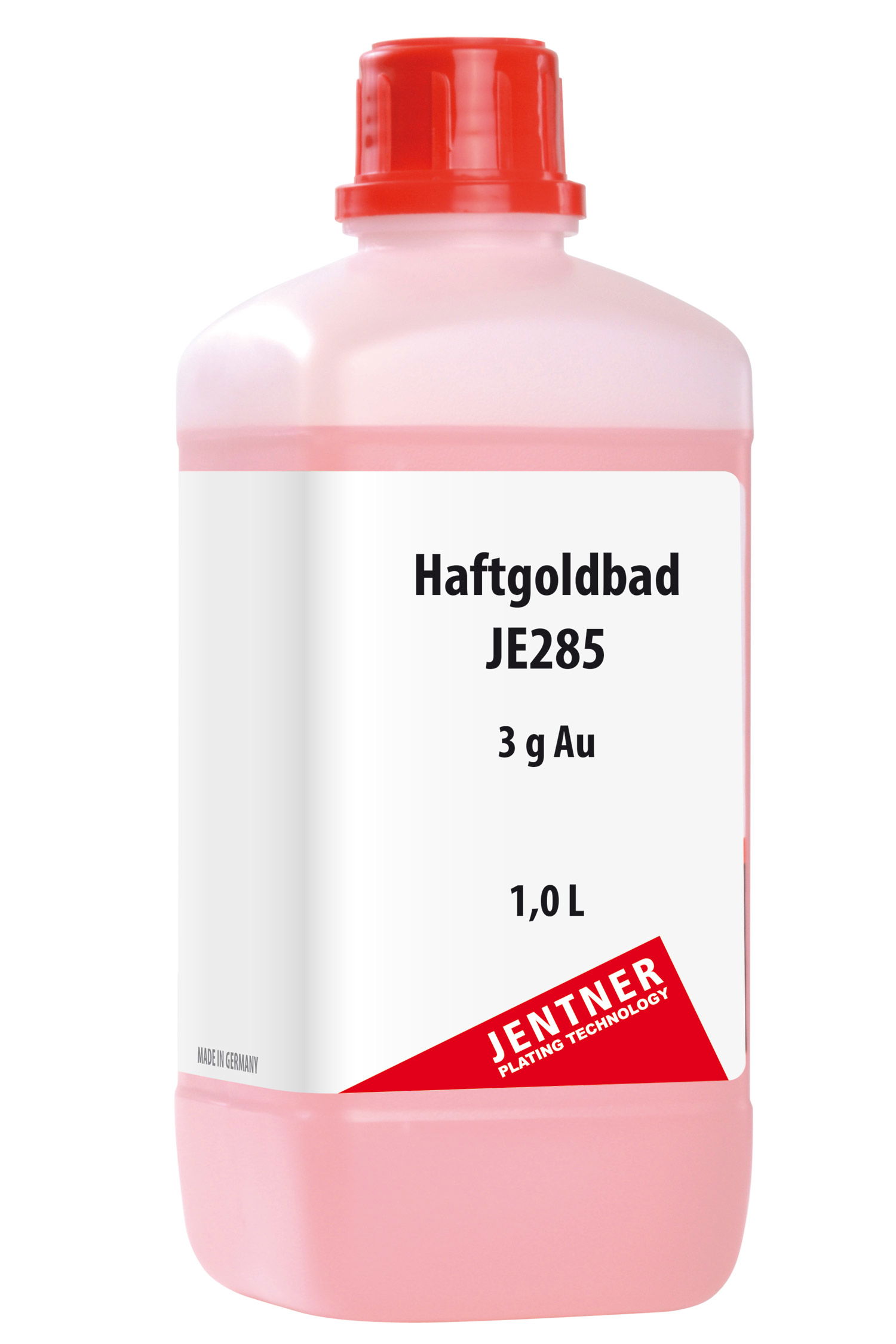

Pre-Gold Bath JE285 - 3 g/L Au
€276.27*
Content:
1 liter
The pre-gold bath JE285 is ideal to plate gold directly on stainless steels, molybdenum containing steel and nickel-base alloys which are hard to activate. Because of it's highly activative impact it can be used successfully for passive material which is difficult to plate. The gold electrolyte generally improves the adhesive properties between base material and galvanic surface.Operating data:Gold content: 3 g/LSulfuric acid content: 25 g/L (20-30)
Deposition data:Hardness: approx. 165 HVLayer thickness: until 3 µmFineness of the gold coating: >99% AuOperating conditions:Voltage: 2 - 3 VBath temperature: 20 - 30 °CExposition time: 2 - 5 min. (max. 45 min.)
Anode material: Mixed oxide (MOX)
Goods movement: required
Bath filtration: From 10 liter
Anode/Cathode surface: 1 : 1Current density: 2 - 6 A/dm2
Rhodium Bath JE23-1 GO! (black)
€405.29*
Content:
1 liter
The black rhodium bath JE23-1 deposits dark anthracite-grey, particular decorative rhodium coatings. The layers are very abrasion resistant, colour consistent and uniform. The electrolyte is preferably used for decorative coatings in the jewellery and eyewear industry. JE23-1 is characterized by it's easy handling and usability. It works at room temperature so a time and energy intensive heating-up can be omitted. Coatings up to 0,5 µm can be deposited.Rhodium content: 2g Rh/lVoltage: 2-3 VoltBath temperature: 20-27°CExposition time: 2 min. (1-5 min.)Anodes: Platinized titanium, mixed-metal-oxide

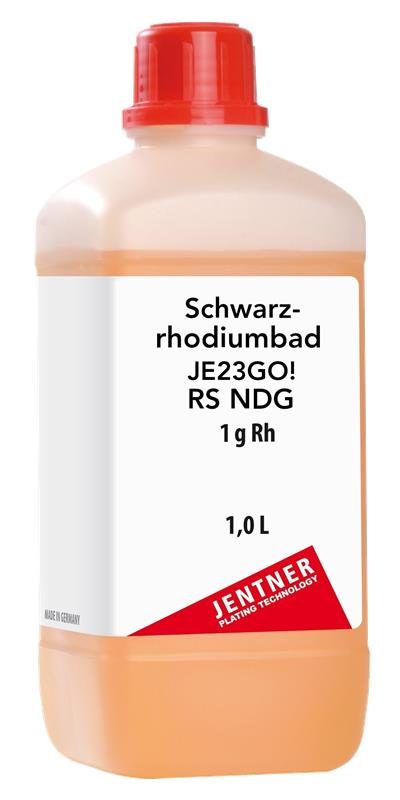

Black Rhodium Bath JE23GO! RS NDG - 1 g/L Rh
€203.65*
Content:
1 liter
The JE23GO! RS NDG black rhodium bath is an innovative development in electroplating. Its decisive advantage of not having to be declared as dangerous goods should be emphasized, which enables smooth worldwide shipping. Another advantage is that it can be used at room temperature, which minimizes the effort required for heating.The product is particularly suitable for decorative coatings in the jewelry and eyewear industry. It produces dark anthracite-grey coatings with remarkable abrasion resistance, color consistency and uniformity. The black rhodium electrolyte JE23GO! RS NDG black rhodium electrolyte enables simple bath management and user-friendly handling. Precise layers of up to 0.5 µm can be deposited, which enables versatile application in various electroplating processes. Operating Data Rhodium content: 1,0 g/L Rh pH-Value: <1 Density: 1,02 – 1,07 g/cm3 Deposition Data Color, L-Value: 48 - 50 Hardness: 300 – 370 HV Layer thickness: max. 0,5 μm Layer density: ca. 10,5 g/cm3 Working conditions Voltage: 2,5– 3,5 Volt Bath temperature: Ca. 20°C (RT) Exposition time: 5 min. (3 – 15) Anodes: Platinised titanium or mixed-metal-oxide Anode/ Cathode: 1 : 1 Current density: 1,0 – 1,5 A/dm2 Agitation: advantageous Bath filtration: ab 10 Liter Deposition rate: 6 – 8mg/Amin Form of delivery Ready for use 1 g/L
Black Rhodium Bath JE23GO! RS NDG - 2 g/L Rh
€407.29*
Content:
1 liter
The JE23GO! RS NDG black rhodium bath is an innovative development in electroplating. Its decisive advantage of not having to be declared as dangerous goods should be emphasized, which enables smooth worldwide shipping. Another advantage is that it can be used at room temperature, which minimizes the effort required for heating.The product is particularly suitable for decorative coatings in the jewelry and eyewear industry. It produces dark anthracite-grey coatings with remarkable abrasion resistance, color consistency and uniformity. The black rhodium electrolyte JE23GO! RS NDG black rhodium electrolyte enables simple bath management and user-friendly handling. Precise layers of up to 0.5 µm can be deposited, which enables versatile application in various electroplating processes.Operating DataRhodium content: 2,0 g/L RhpH-Value: <1Density: 1,02 – 1,07 g/cm3Deposition DataColor, L-Value: 48 - 50Hardness: 300 – 370 HVLayer thickness: max. 0,5 μmLayer density: ca. 10,5 g/cm3Working conditionsVoltage: 2,5– 3,5 VoltBath temperature: Ca. 20°C (RT)Exposition time: 5 min. (3 – 15)Anodes: Platinised titanium or mixed-metal-oxideAnode/ Cathode: 1 : 1Current density: 1,0 – 1,5 A/dm2Agitation: advantageousBath filtration: ab 10 LiterDeposition rate: 6 – 8mg/AminForm of deliveryReady for use 2 g/L

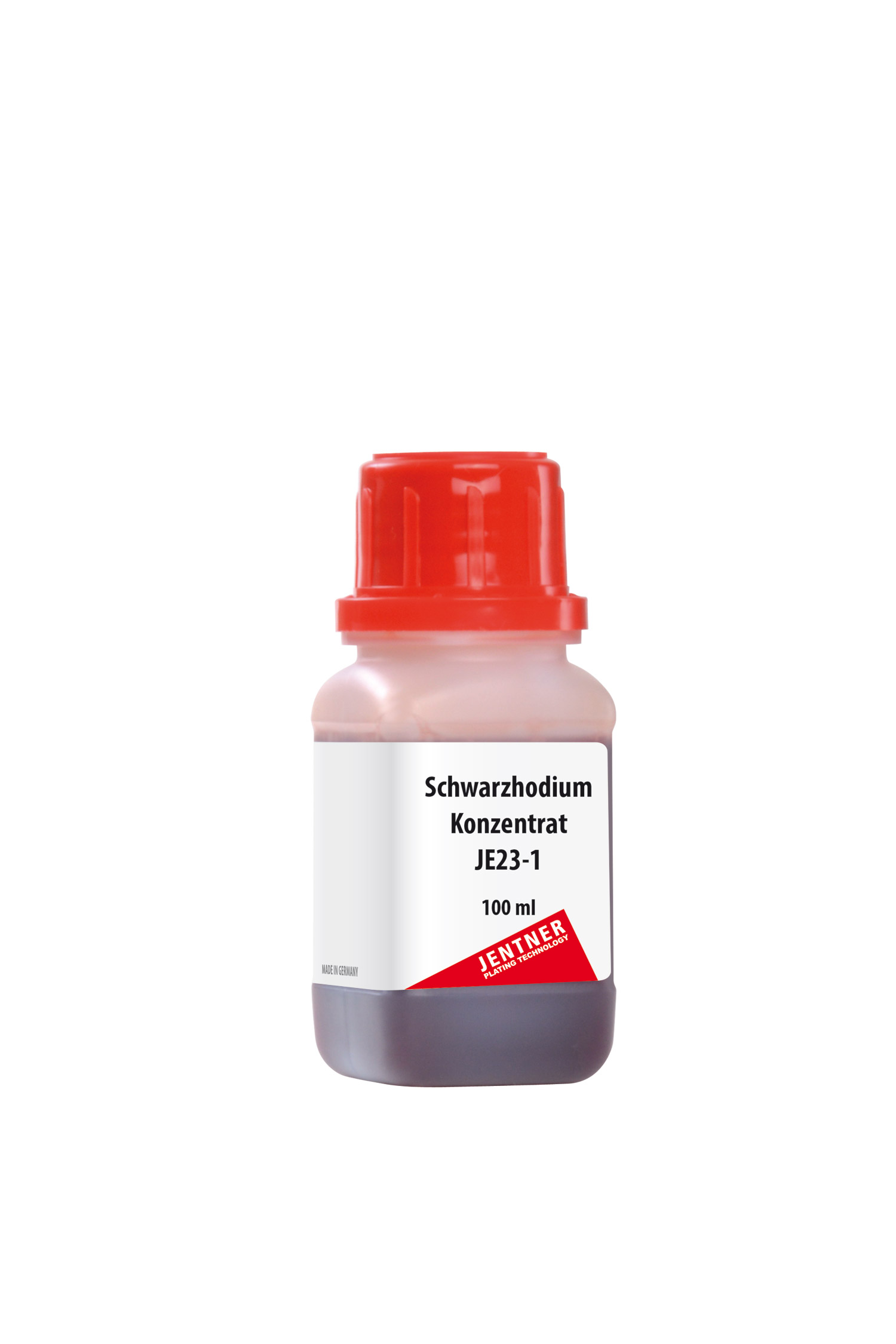

Black Rhodium Concentrate JE23-1
€400.39*
The black rhodium bath JE23-1 deposits dark anthracite-grey, particular decorative rhodium coatings. The layers are very abrasion resistant, colour consistent and uniform. The electrolyte is preferably used for decorative coatings in the jewellery and eyewear industry. JE23-1 is characterized by it's easy handling and usability. It works at room temperature so a time and energy intensive heating-up can be omitted. Coatings up to 0,5 µm can be deposited.Rhodium content: 2g Rh/100 mlVoltage: 2-3 VoltBath temperature: 20-27°CExposition time: 2 min. (1-5 min.)Anodes: Platinized titanium, mixed-metal-oxide
Black Ruthenium Bath JE12-1 - 5 g/L Ru
€194.10*
Content:
1 liter
The black ruthenium bath JE12-1 deposits dark up to grey-black ruthenium coatings. The ruthenium electrolyte preserves the brightness and it can be obtained a high colour consistency. The layers have a good grip and impress through their decorative colour. Coatings up to max 0,2-0,5 µm can be deposited. When plating non-precious metals it is recommended to use a pre-gold layer or a pre-palladium layer.Operating data:Ruthenium content: 5.0 g/L RupH-value: 1.0 – 1.6Density: 1.036 g/cm3Operating conditions:Voltage: 2,2-3 VoltBath temperature: 65°C (60-70°C)Exposition time: 2 min. (2-4 min.)Anodes: Platinized titanium, mixes metal oxideAgitation: required, low speedCurrency density: 0.5 – 3 A/dm2Bath filtration: from 10 LiterDeposit rate: 1 – 3 mg/AminDeposit speed: 0.02 µm/min at 1.5 A/dm2Deposition data:Hardness: approx. 800 HVLayer thickness: max. 0.5 µmLayer density: approx. 12 g/cm3
Bright Silver Bath JE36 (1 Liter)
€64.73*
Content:
1 liter
The brightening silver bath JE 36 grants extremely white fine silver plating results and is ideal for silver plating in the field of decoration and technique.
Operating data:Fine Silver Concentration 36 g/L AgPotassium cyanide concentration 150 g/L
Operating conditions:Voltage approx. 0.5-1.2 VoltBath temperature 20 - 30°CExposure time approx. 2 min.Anodes Fine silver Anode/Cathode surface 1:1Agitation necessaryCurrent density 0,1 – 3 A/dm²Bath filtration from 10 litresExposure time Approx. 0,5 μm/min at 1A/dm²Deposition rate 65 mg/Amin
Deposition data:Hardness approx. 110 HVLayer thickness 99,5 – 99,9 % AgLayer density approx. 10,4 g/cm3
Form of delivery:- Ready to use- salt form from 100 liters (salt form + brightener solution)
Please note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration.Therefore we kindly ask you to send us the business registration in advance.

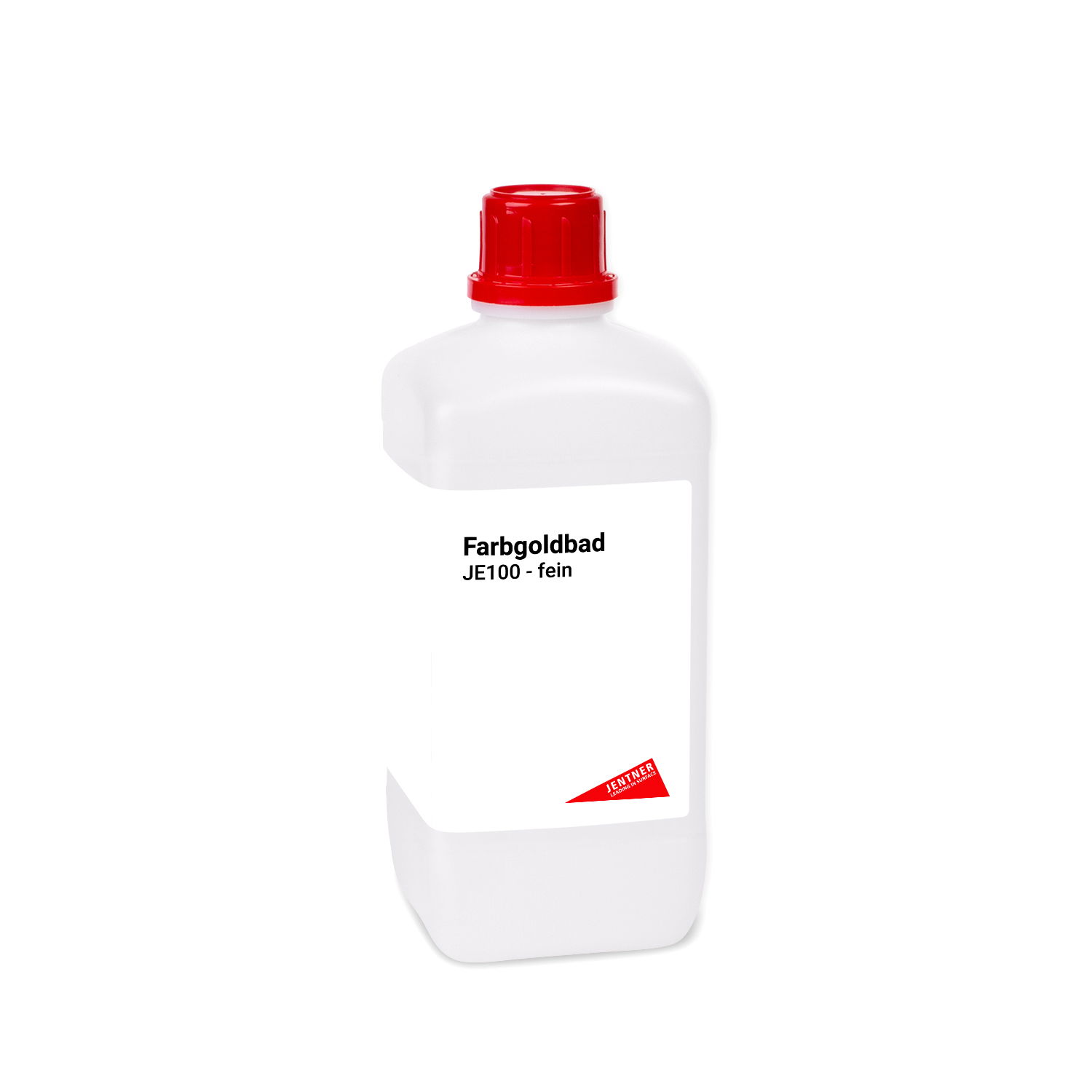

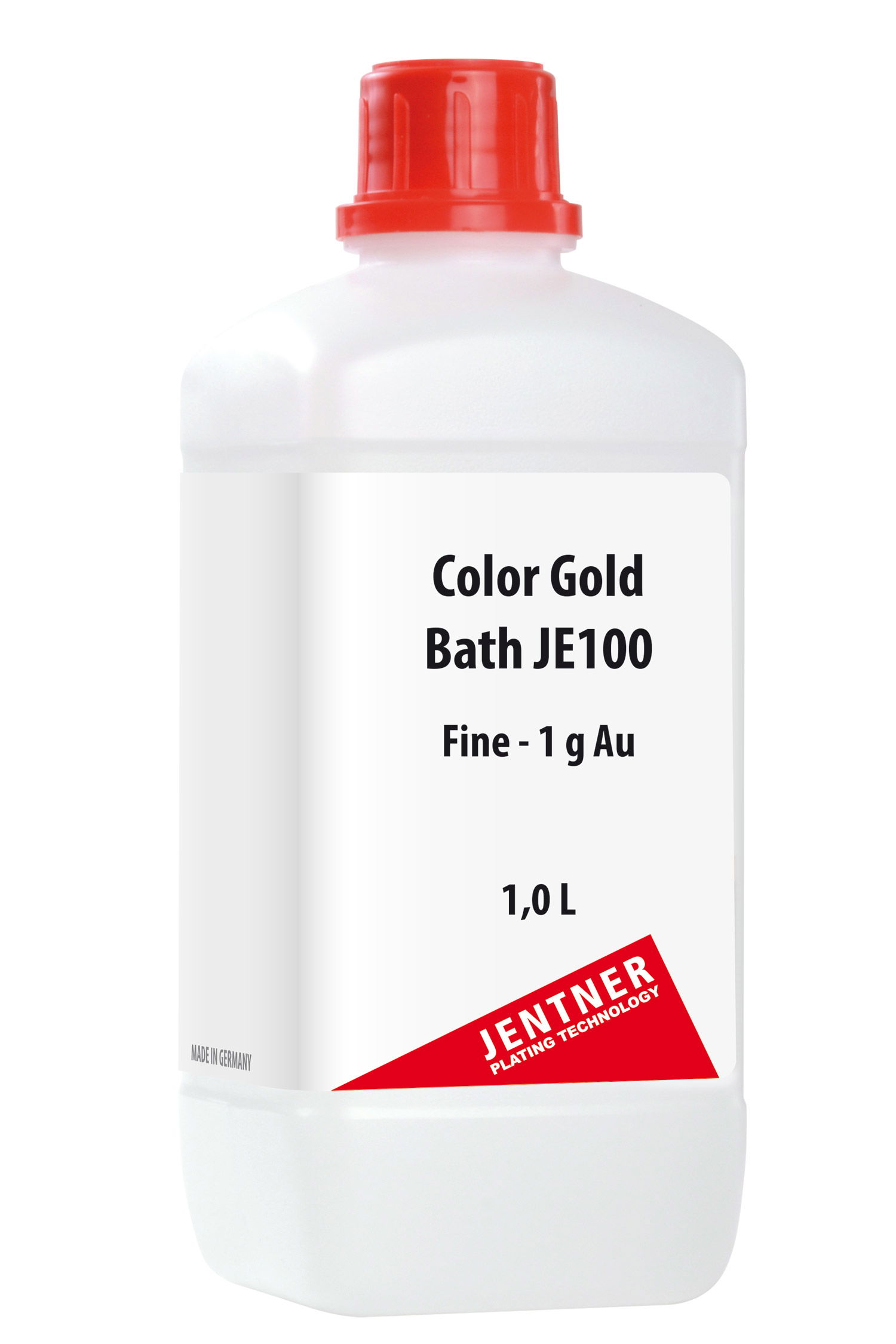

Colour Gold Bath JE100 - fine - 1 g/L Au
€101.06*
Content:
1 liter
The color gold bath JE100 - fine deposits decorative gold layers in fine gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au-Concentrate form 1 g/100ml Au for 1 litre bath

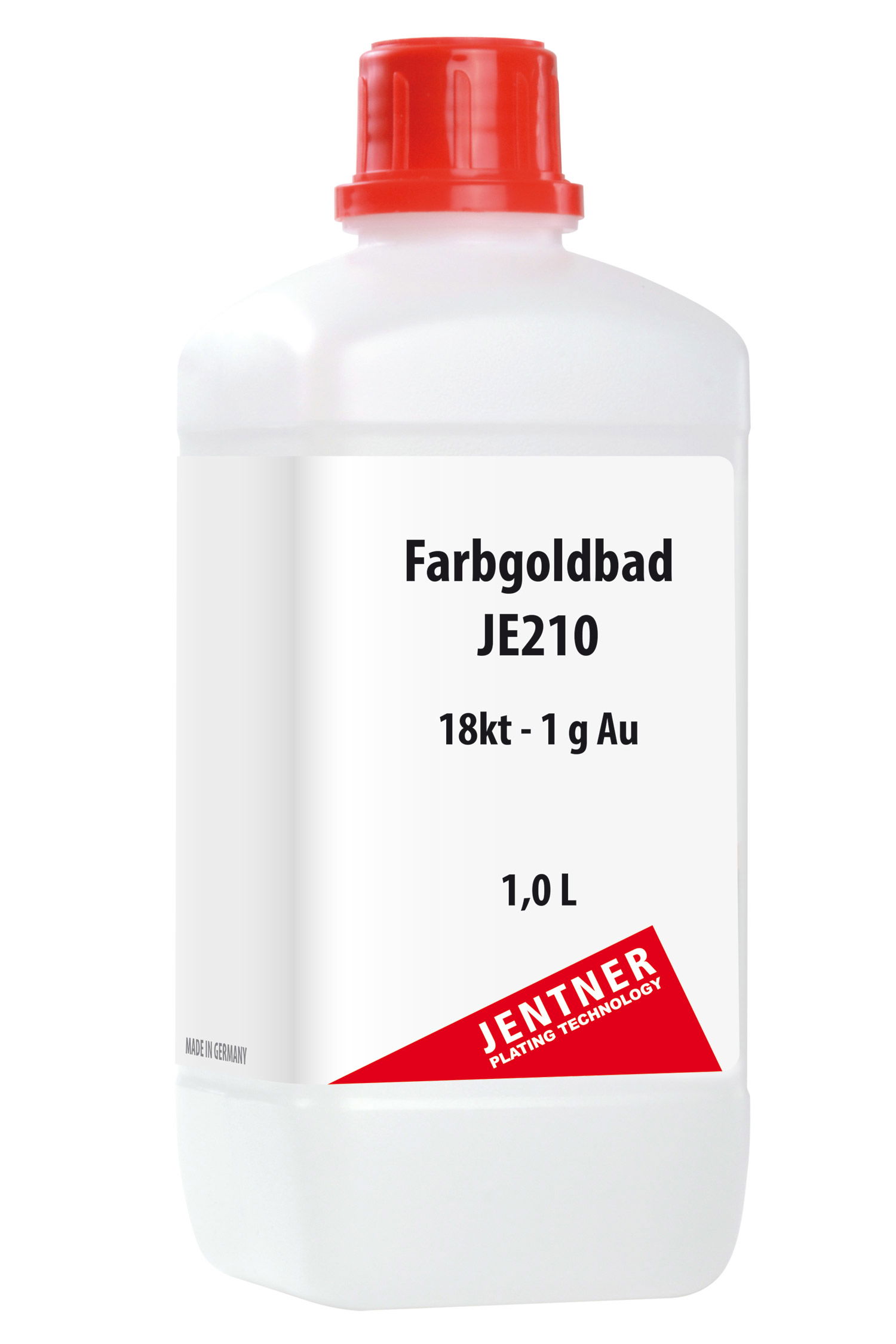

Colour Gold Bath JE210 - 18ct - 1 g/L Au
€101.06*
Content:
1 liter
The color gold bath JE210 - 18ct deposits decorative gold layers in 18ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au-Concentrate form 1 g/100ml Au for 1 litre bath

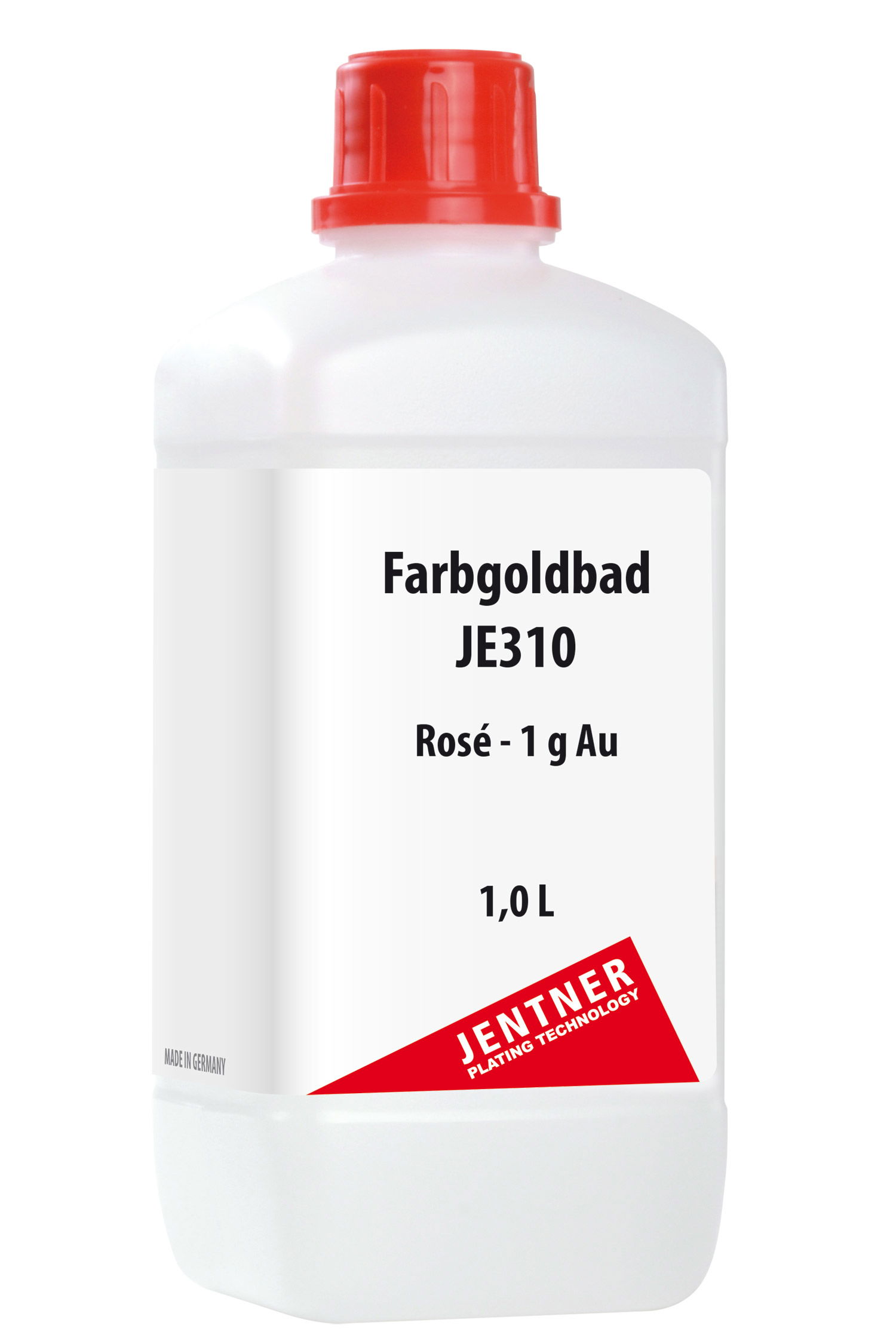

Colour Gold Bath JE310 - rosé -1 g/L Au
€101.06*
Content:
1 liter
The color gold bath JE310 - rosé deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au-Concentrate form 1 g/100ml Au for 1 litre bath

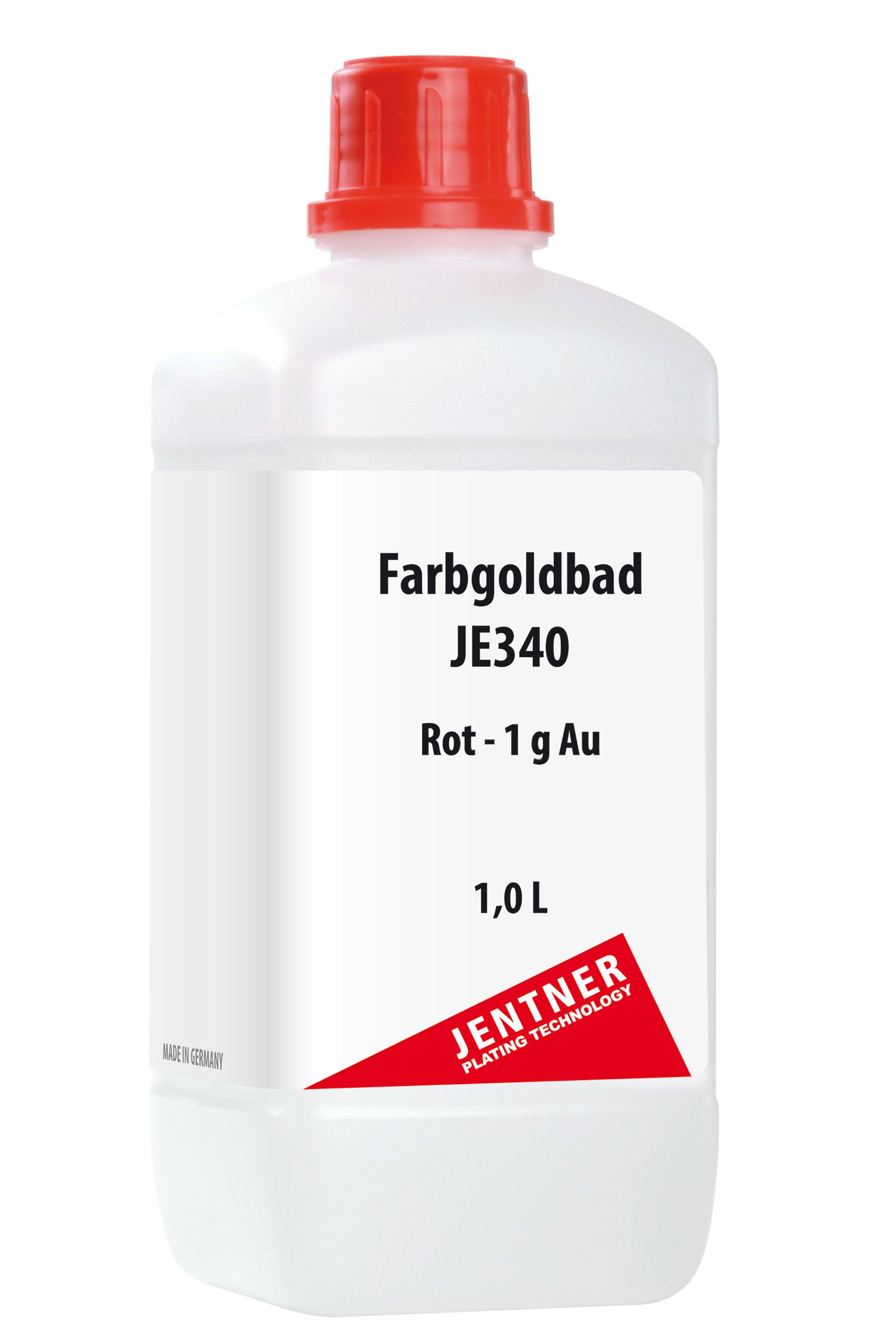

Colour Gold Bath JE340 - red - 1 g/L Au
€101.06*
Content:
1 liter
The color gold bath JE340 deposits decorative gold layers in red gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au-Concentrate form 1 g/100ml Au for 1 litre bath

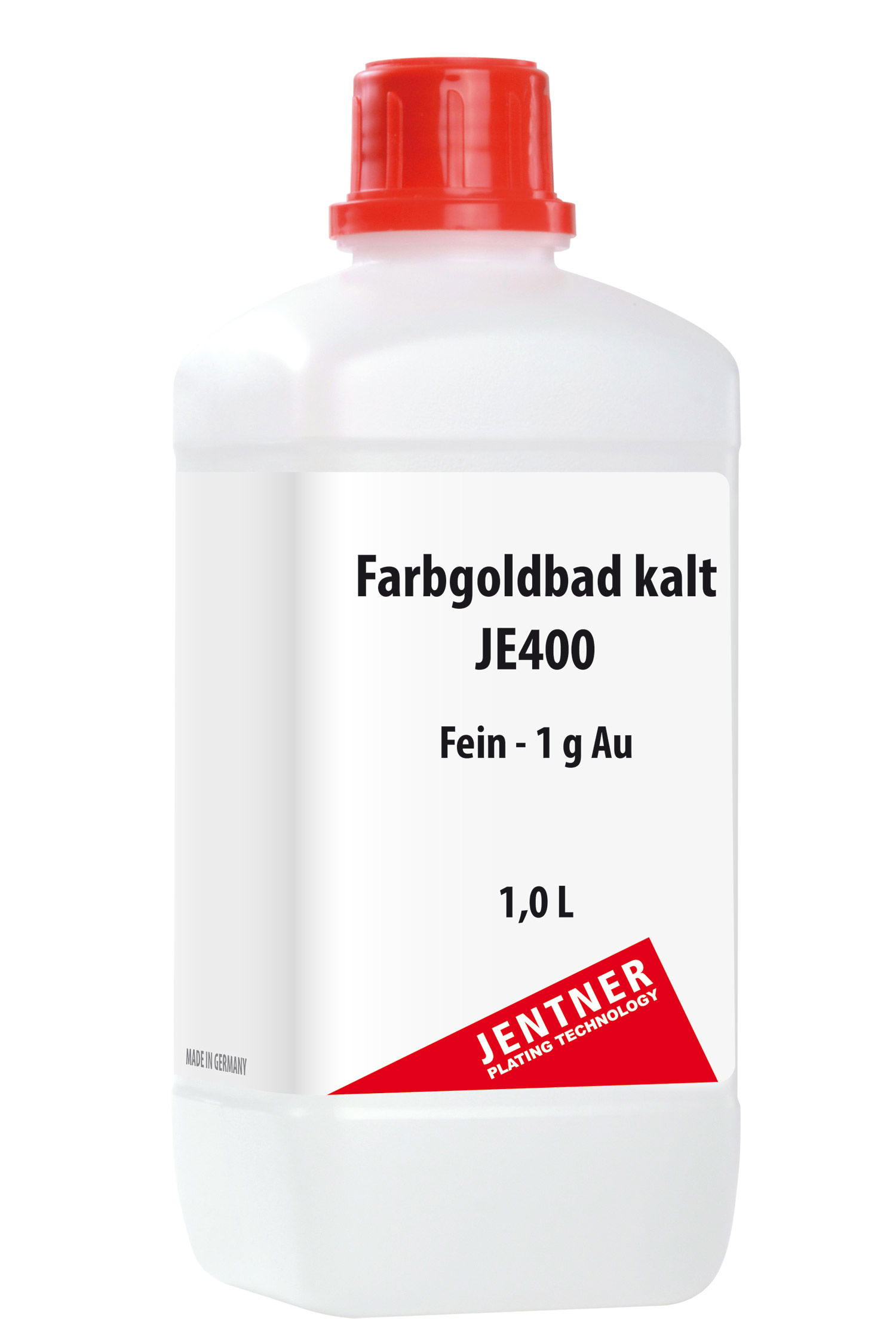

Colour Gold Bath cold JE400 - fine - 1 g/L Au
€112.46*
Content:
1 liter
The color gold bath cold JE400 - fine deposits decorative gold layers in fine gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant colour. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11-12)Density: 1,065 g/ml (1,060-1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au
Colour Gold Bath cold JE411 - 14ct - 1 g/L Au
€112.46*
Content:
1 liter
The colour gold bath cold JE411 - 14ct deposits decorative gold layers in 14ct colour. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant colour. The colour gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11-12)Density: 1,065 g/ml (1,060-1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

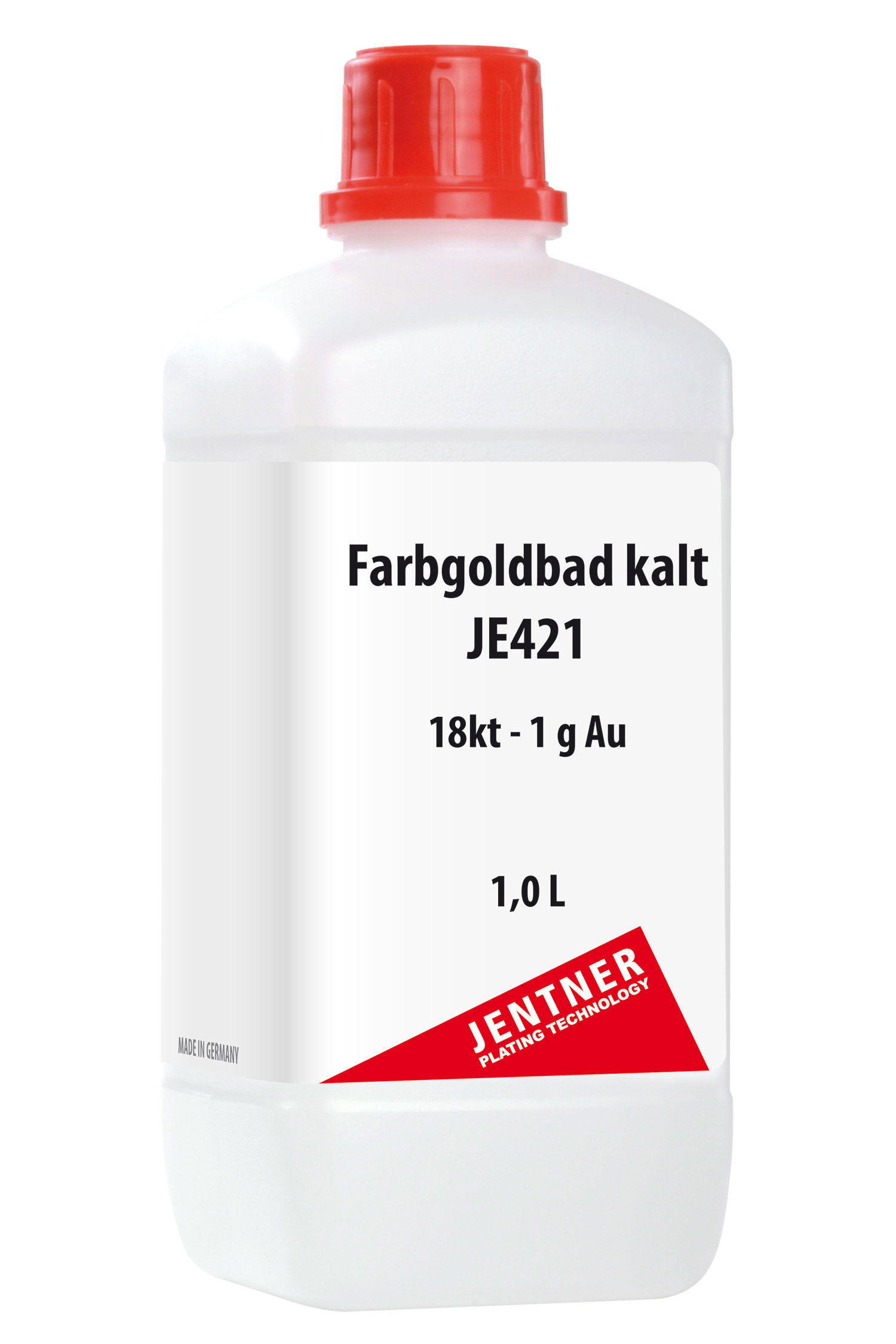

Colour Gold Bath cold JE421-18ct - 1 g/L Au
€112.46*
Content:
1 liter
The color gold bath cold JE421 - 18ct deposits decorative gold layers in 18ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11-12)Density: 1,065 g/ml (1,060-1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

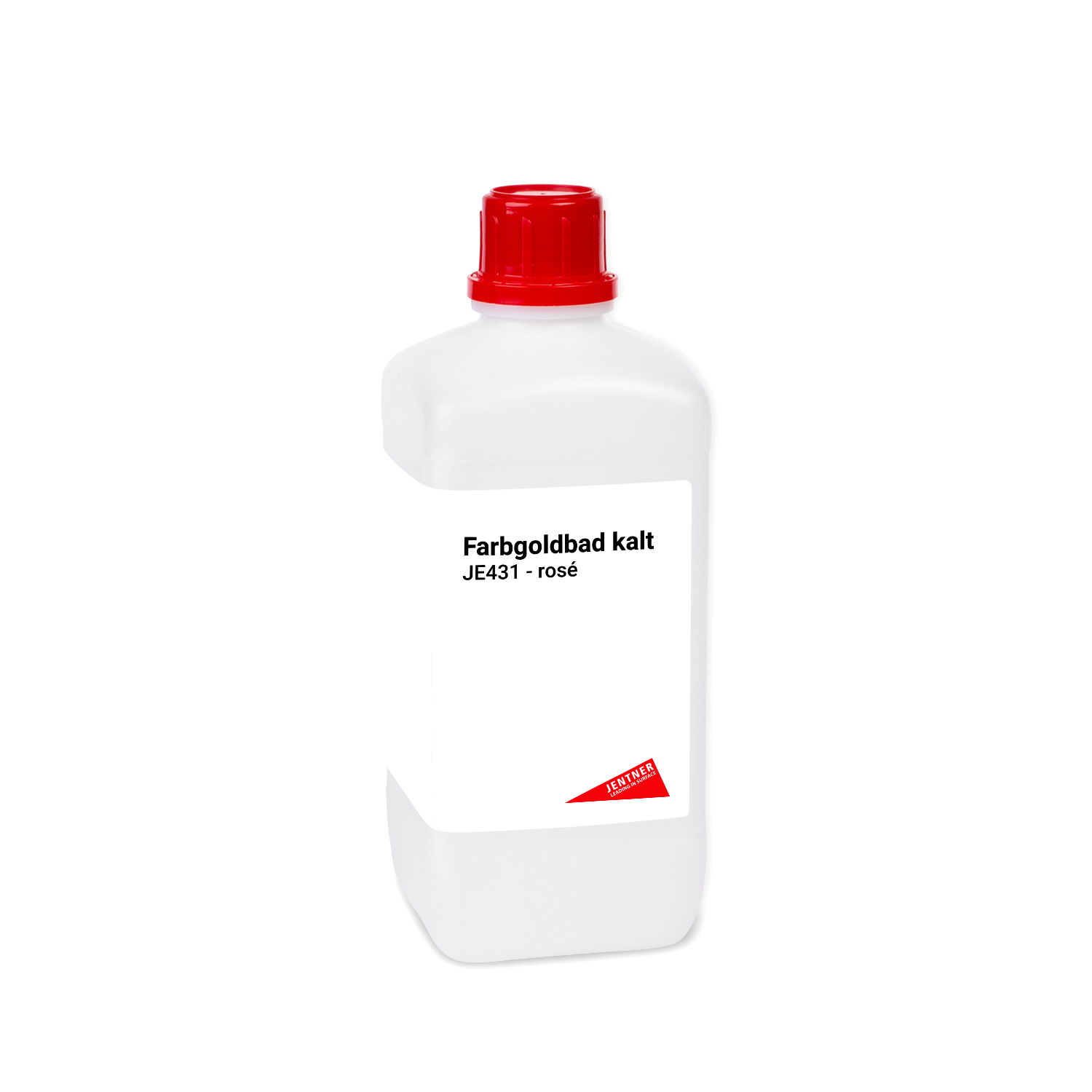

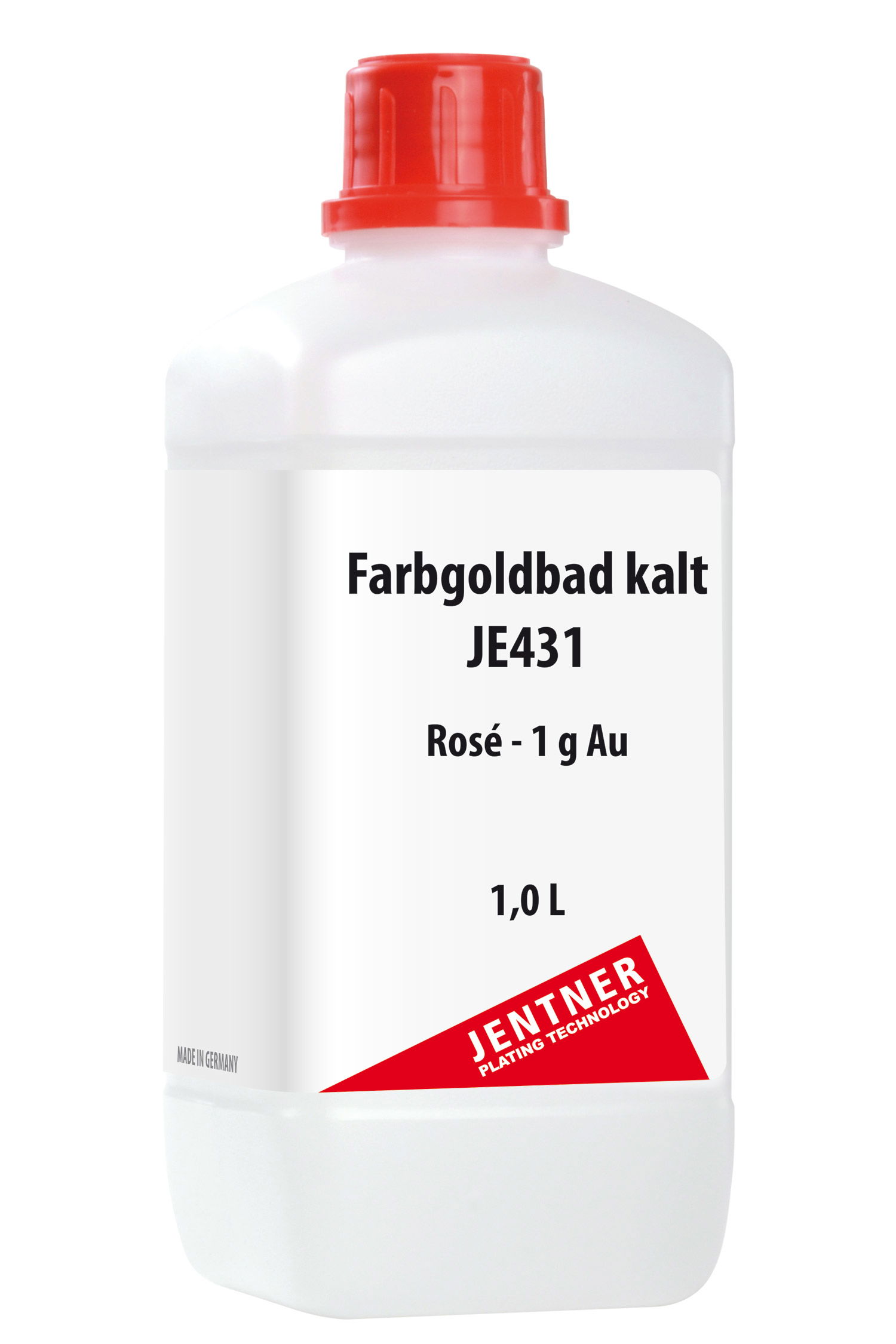

Colour Gold Bath cold JE431 - rosé - 1 g/L Au
€112.46*
Content:
1 liter
The color gold bath cold JE431 - rosé deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/lpH-value: 11.5 (11-12)Density: 1.065 g/ml (1.060-1.070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1
The color of the deposite may change due to deviations in the working conditions.
Form of delivery:Ready for use 1 g/L Au
Colour Gold Bath JE434 - red - 1 g/L Au
€112.46*
Content:
1 liter
The color gold bath cold JE434 - red deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11.5 (11-12)Density: 1.065 g/ml (1.060-1.070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

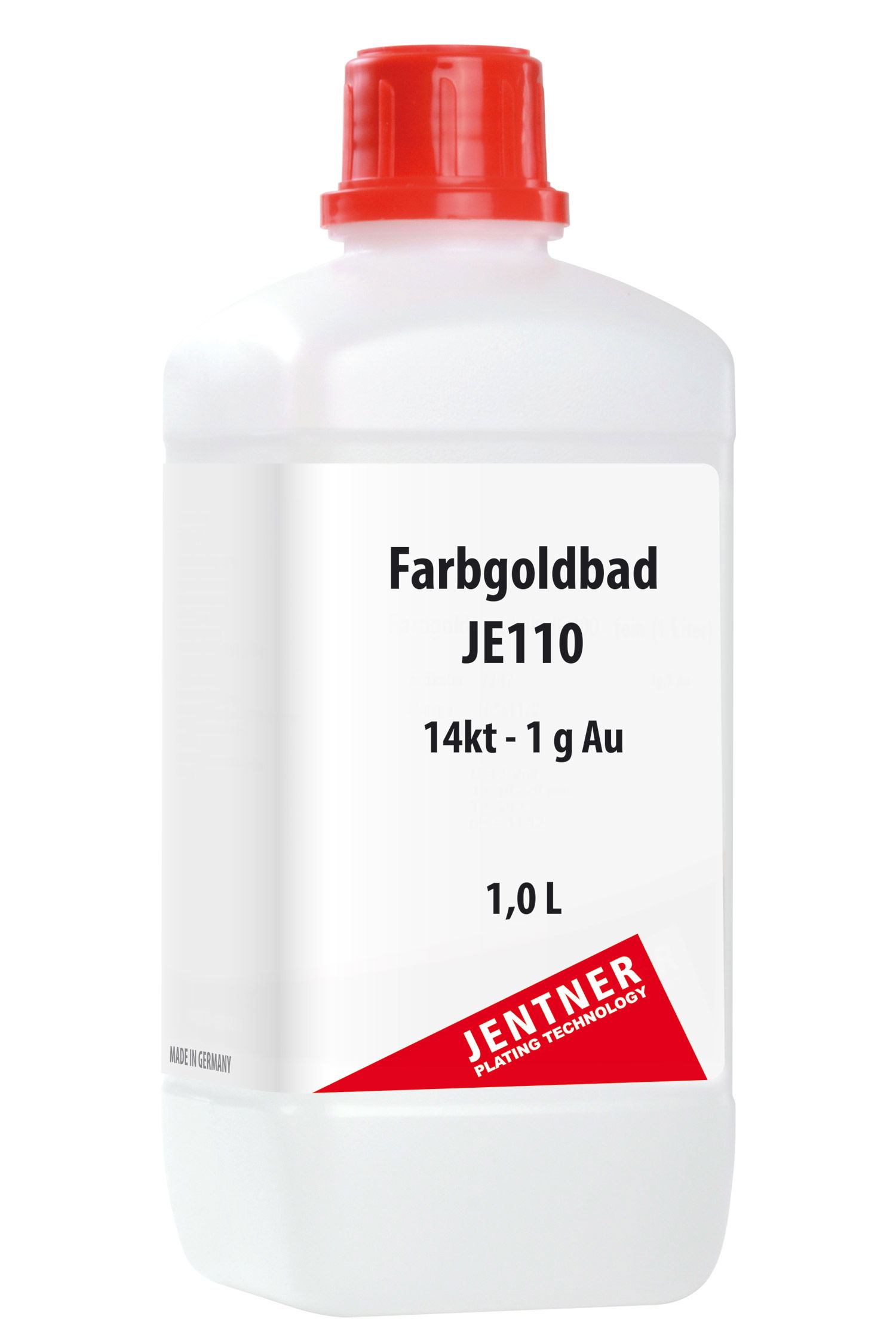

Colour Gold Bath JE110 - 14ct - 1 g/L Au
€101.06*
Content:
1 liter
The color gold bath JE110 - 14ct deposits decorative gold layers in 14ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au-Concentrate form 1 g/100ml Au for 1 litre bath

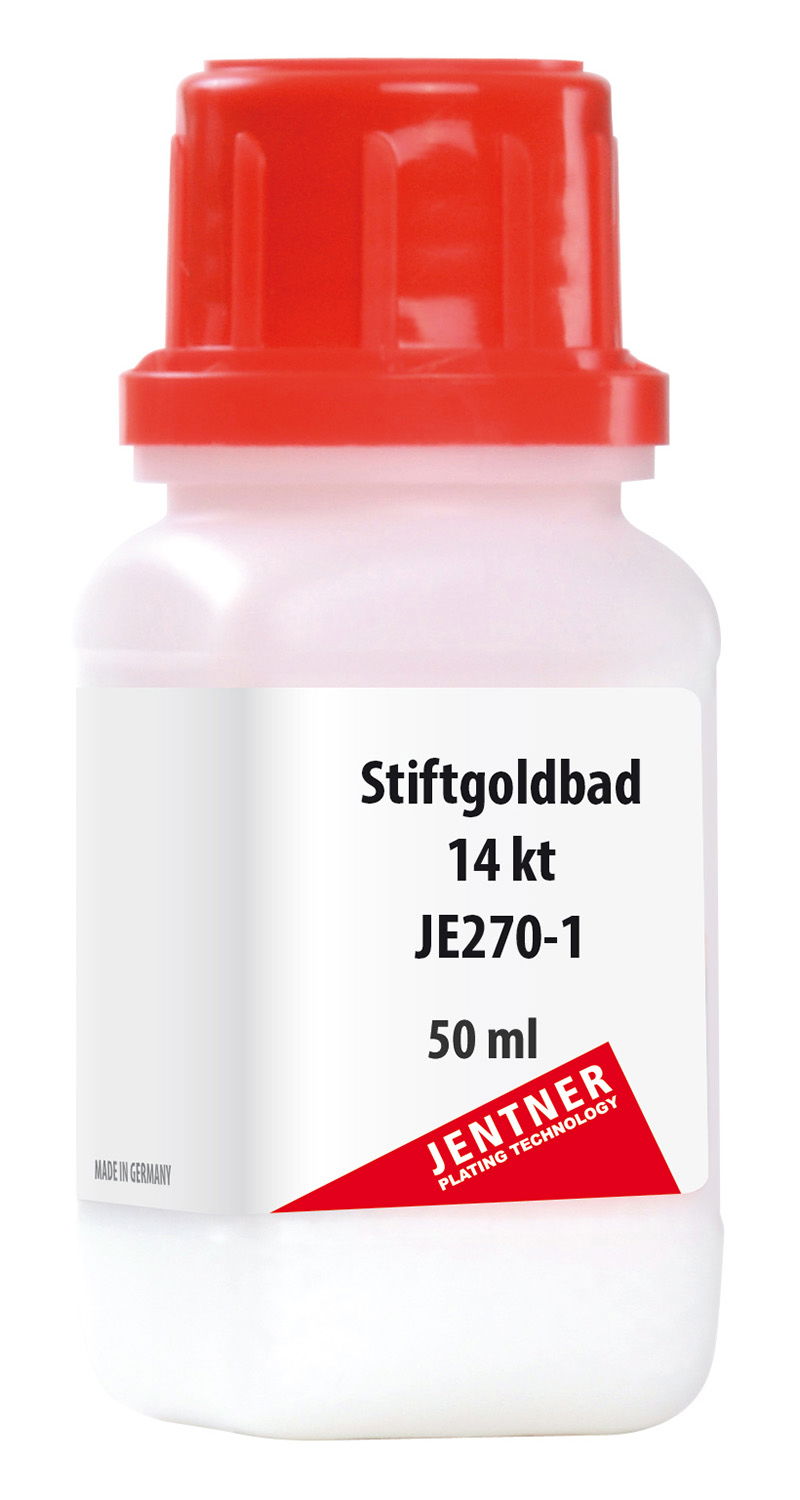

Gold Bath 14ct JE270-1 for pen (1 g/50ml)
€101.06*
The 50ml bottle of the gold bath JE270-1 - 14ct is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a nice 14ct gold colour. JE270-1 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 1g Au/50 mlVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration. Therefore we kindly ask you to send us the business registration in advance.

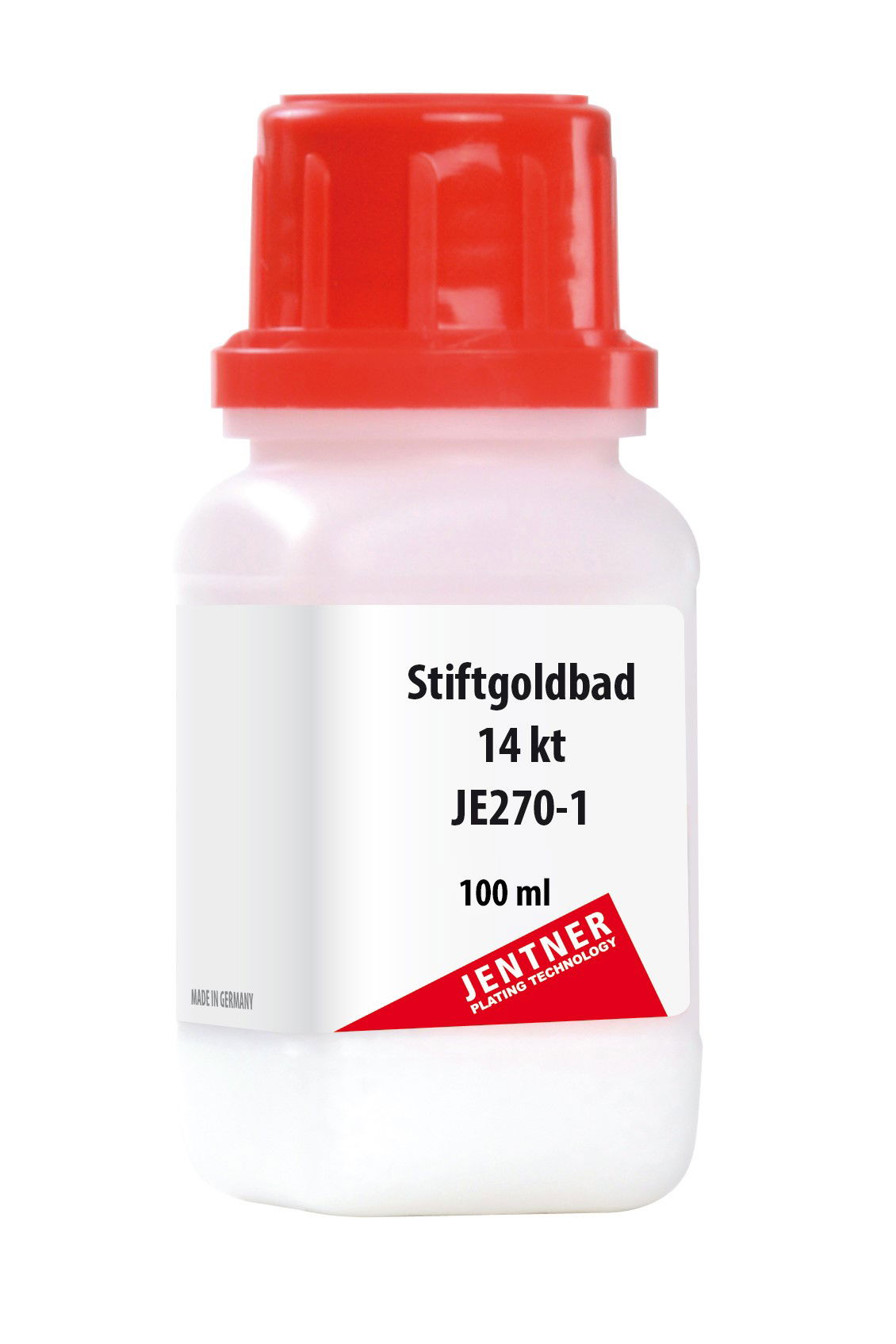

Gold Bath 14ct JE270-1 for pen (2 g/100ml)
€182.91*
Das Stiftgoldbad JE270-1 eignet sich hervorragend zur partiellen Beschichtung mittels Stiftgalvanik, für Multicolor-Arbeiten und für Reparatur- bzw. Restaurierungsarbeiten. Die erzeugten Schichten haben eine schöne 14kt Goldfarbe. Der Elektrolyt überzeugt außerdem durch eine schnelle und gleichmäßige Abscheidung und durch seine Farbintensität.Die durch Stiftgalvanisieren erzeugte Auflageschicht ist sehr dünn. Sollten Sie eine stärkere Auflage wünschen, empfehlen wir Ihnen, die Ware im normalen galvanischen Tauchbad zu behandeln. Schmuckteile, die nicht galvanisch behandelt werden sollen, müssen Sie dann mit einem entsprechenden Lack abdecken.Goldgehalt: 2 g/100ml AuSpannung: 6-8 VoltBadtemperatur: RaumtemperaturBitte beachten Sie, dass dieses Produkt nur an Wiederverkäufer, berufsmäßige Verwender oder öffentliche Forschungs-, Untersuchungs- oder Lehranstalten abgeben werden darf.Aus diesem Grund benötigen wir vorab eine Kopie Ihrer Gewerbeanmeldung oder des HR-Auszugs.

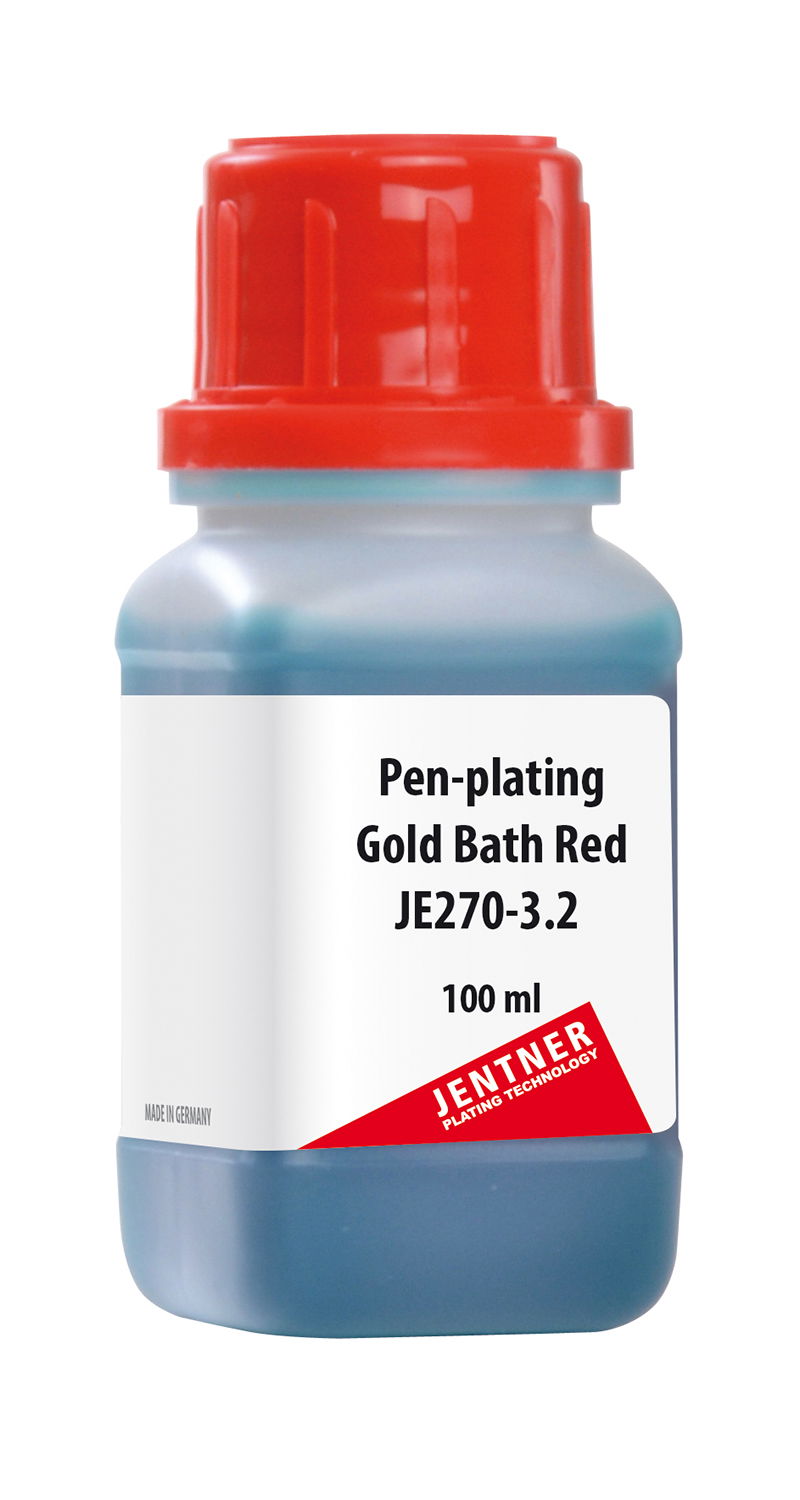

Gold Bath red JE270-3.2 for pen (2 g/100ml)
€199.71*
The gold bath red JE270 - 3.2 for pen is especially suitable for partial plating, for multi-colour processing and reparation or restoration. The deposited coatings have a nice red gold colour. JE270-3.2 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 2 g/100ml AuVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration. Therefore we kindly ask you to send us the business registration in advance.

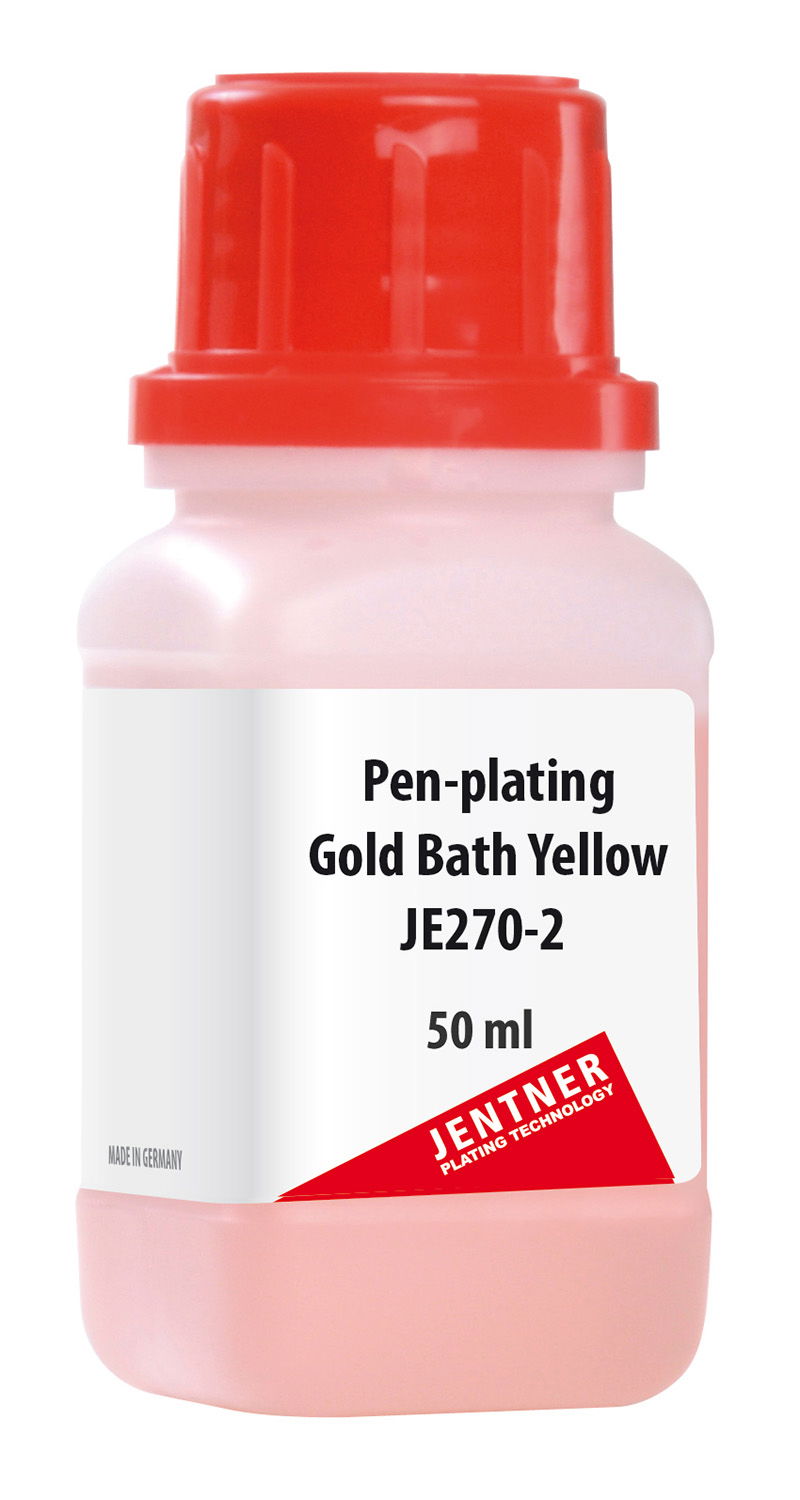

Gold Bath yellow JE270-2 for pen (1 g/50ml)
€101.06*
The gold bath JE270-2 is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a nice yellow gold colour. JE270-2 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 1g/50 ml Au 2g/100ml AuVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration.Therefore we kindly ask you to send us the business registration in advance.

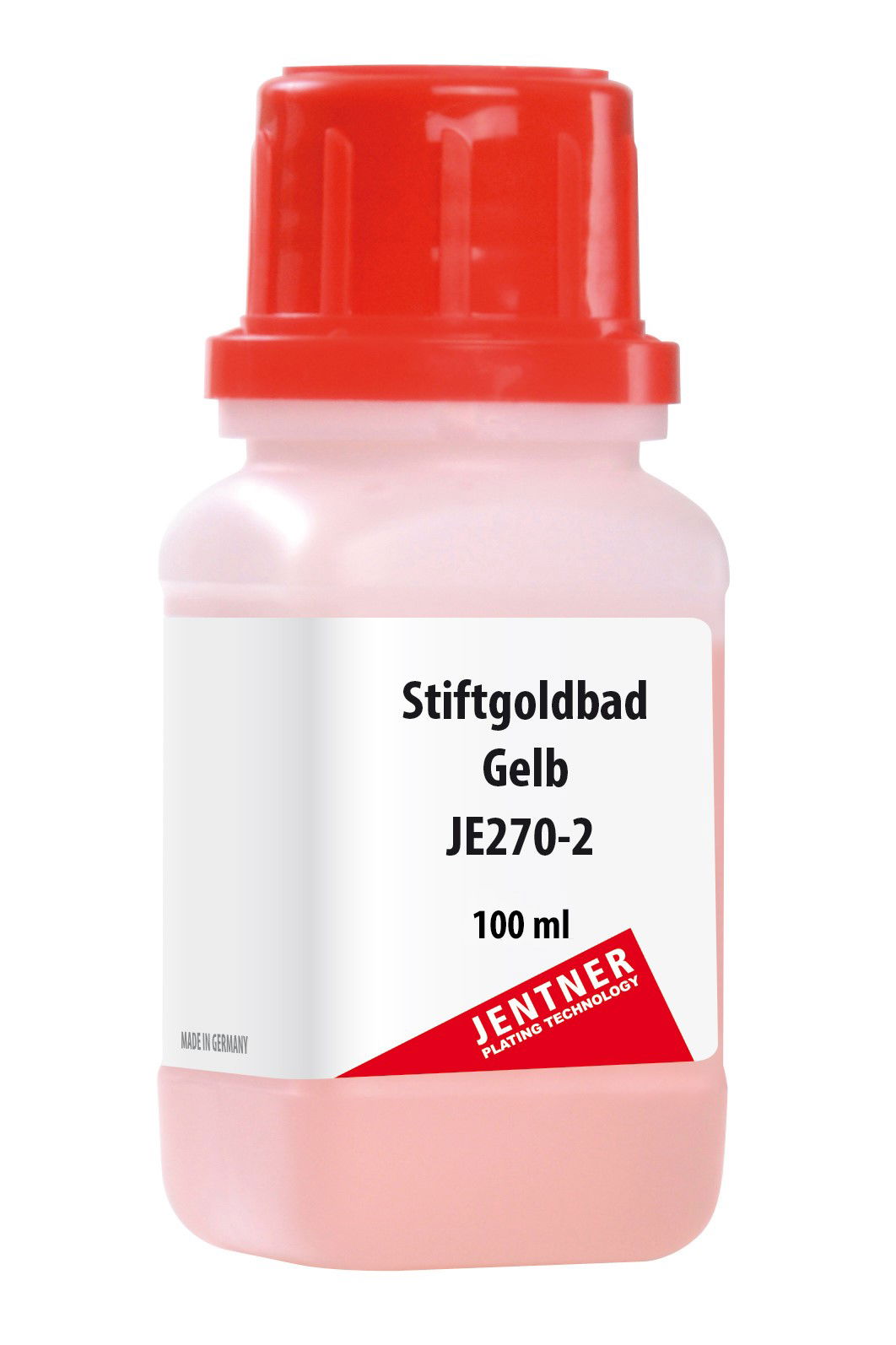

Gold Bath yellow JE270-2 for pen (2 g/100ml)
€182.91*
The gold bath JE270-2 is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a nice yellow gold colour. JE270-2 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 1g/50 ml Au 2g/100ml AuVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration.Therefore we kindly ask you to send us the business registration in advance.

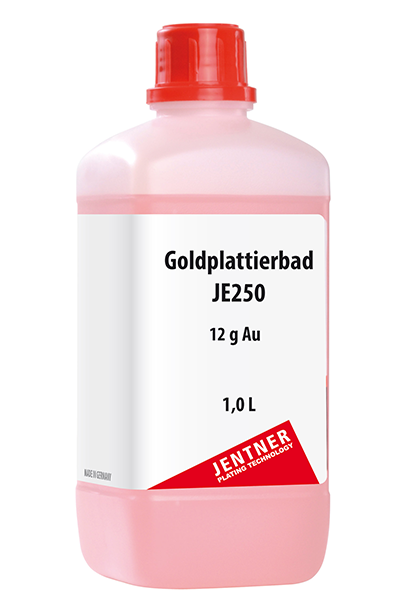

Gold Plating Bath JE250 - 12 g/L Au
€1,012.66*
Content:
1 liter
The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 10 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 12 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 10 µmFineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: requiredPower density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 literDeposition rate: approx. 22 mg/Amin
Gold Plating Bath JE250 - 3 g/L Au
€275.97*
Content:
1 liter
The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 10 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 3 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050)
Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 10 µm
Fineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: required
Power density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 liter
Deposition rate: approx. 22 mg/Amin
