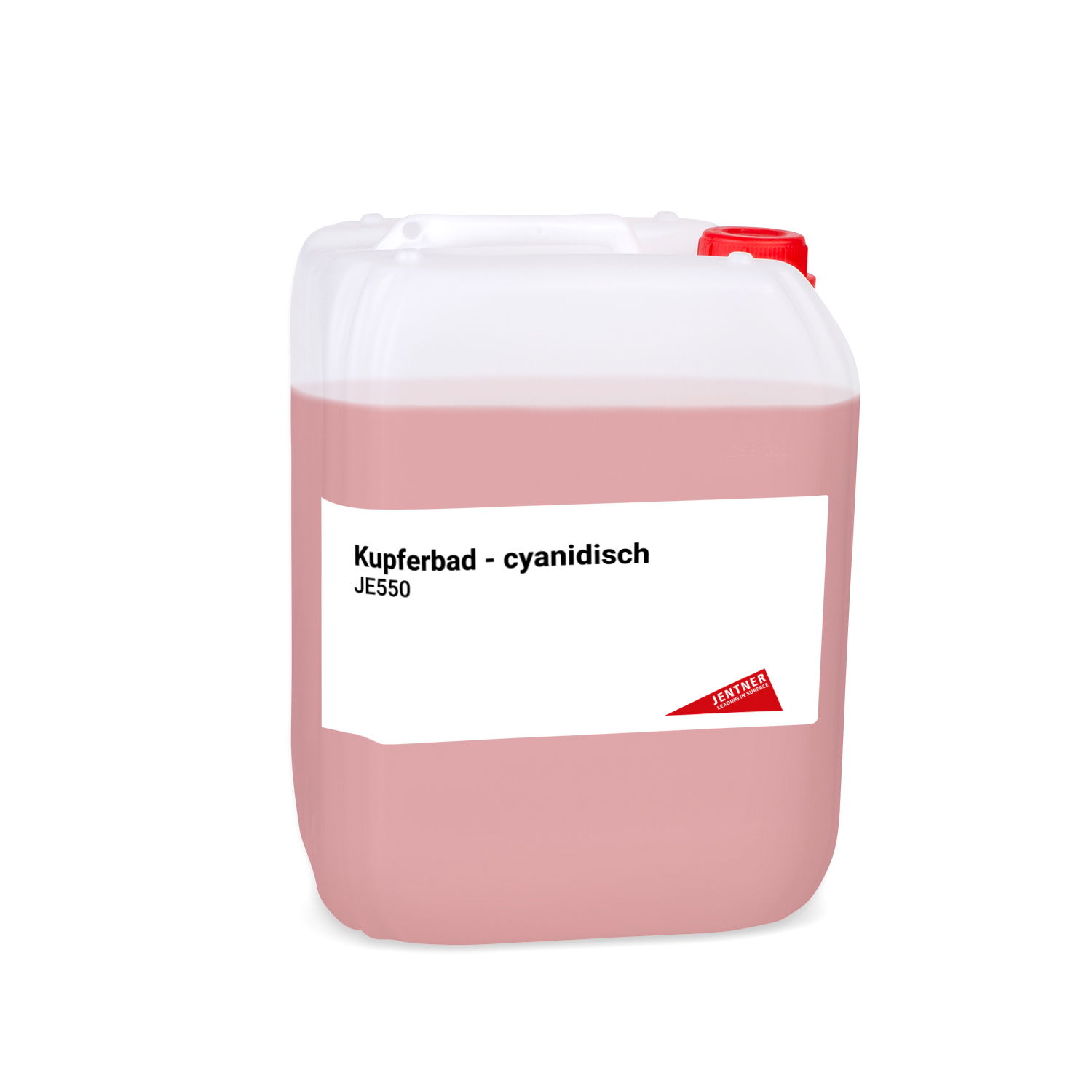

Cyanide Copper Bath JE550
Product number:
594.1000
Product information "Cyanide Copper Bath JE550"
The Cyanide Copper Bath JE550 is suitable for frame and barrel plating. Because of its excellent throwing power and adehesive strength the electolyte is often used as an under coat before further electroplating processes. The copper layers are fine-grained and slightly bright and create a very good adhesion between base material and final layer.
Operating data:
Copper: 35 g/l Cu
Potassium cyanide: 25-35 g/L KCN free
pH-value: 11 - 12
Operating conditions:
Voltage: 0,5-3 Volt
Bath temperature: 50-60 °C
Exposition time: 2-15 min.
Anodes: copper
Anode/Cathode surface: 1 : 1
Operating data:
Copper: 35 g/l Cu
Potassium cyanide: 25-35 g/L KCN free
pH-value: 11 - 12
Operating conditions:
Voltage: 0,5-3 Volt
Bath temperature: 50-60 °C
Exposition time: 2-15 min.
Anodes: copper
Anode/Cathode surface: 1 : 1
Agitation: required
Current density: 1 - 3 A/dm2
Bath filtration: from 10 liters
