Precious and base metal coatings with
small electroplating
With our small electroplating units, we offer you the option of electroplating chains and rings yourself. Regardless of whether you want to rhodium, gold, silver or platinum plate.

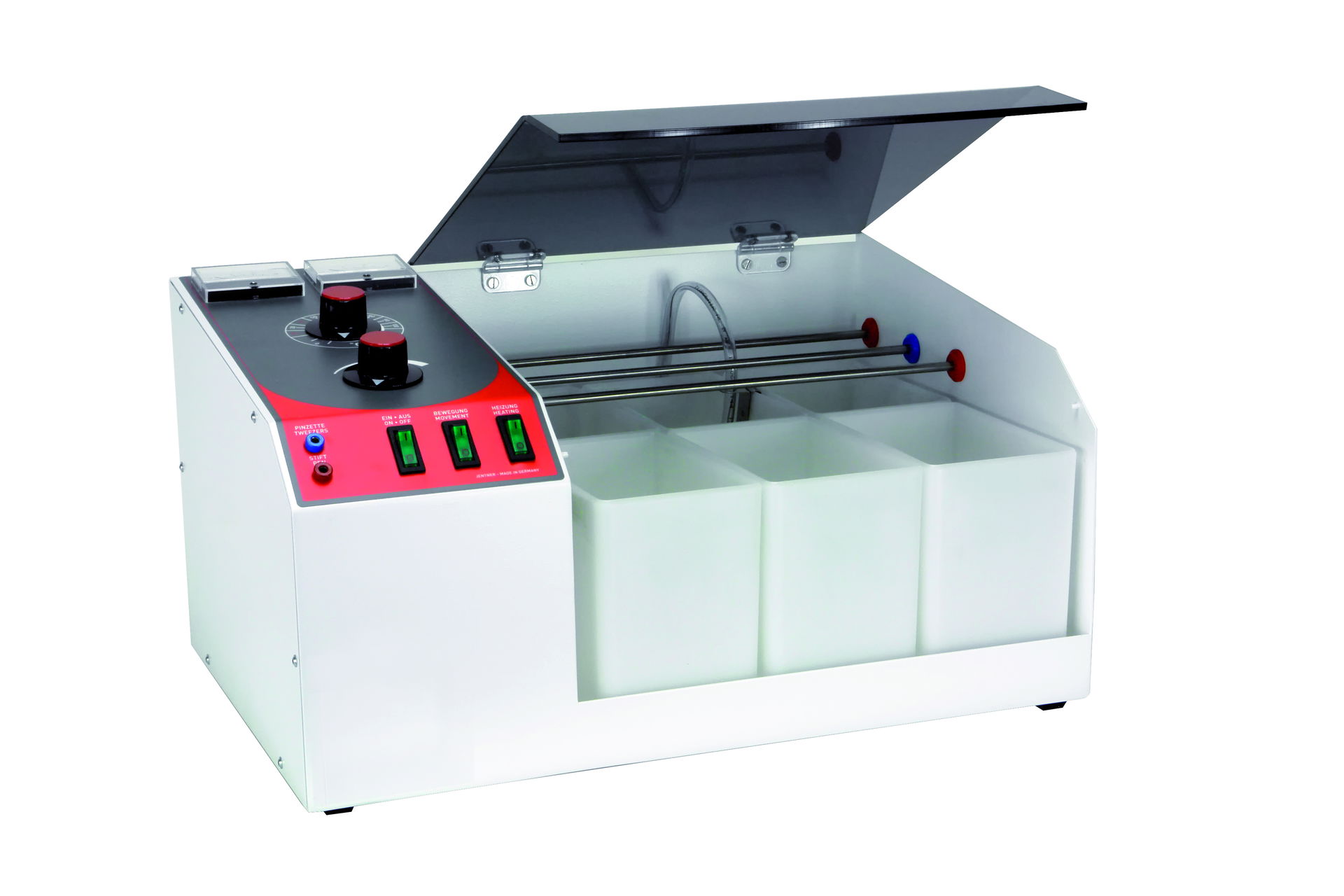

Electroplating Unit Comfort II
€1,861.92*
The small-size electroplating unit Comfort II can be used for all current plating solutions. The machine guarantees an easy, efficient and secure processing. Furthermore, the Comfort II has an integrated thermostatic control unit and integrated goods movement. Additionally, it has a pen plating connection. The cover plate is transparent and can be closed all around.
Technical data:Dimensions (WxDxH): 480x300x260 mmWeight: 16 kgRectifier: 15V/ 15ABath volume: 3x 1,5 l working tanks + 3x 1,5 l rinsing tanks Bath dimensions: 150x100x150mmControlled heating: 200WSupply voltage: 230V/ 50HzOptional equipment:1x connectable heater (200W)

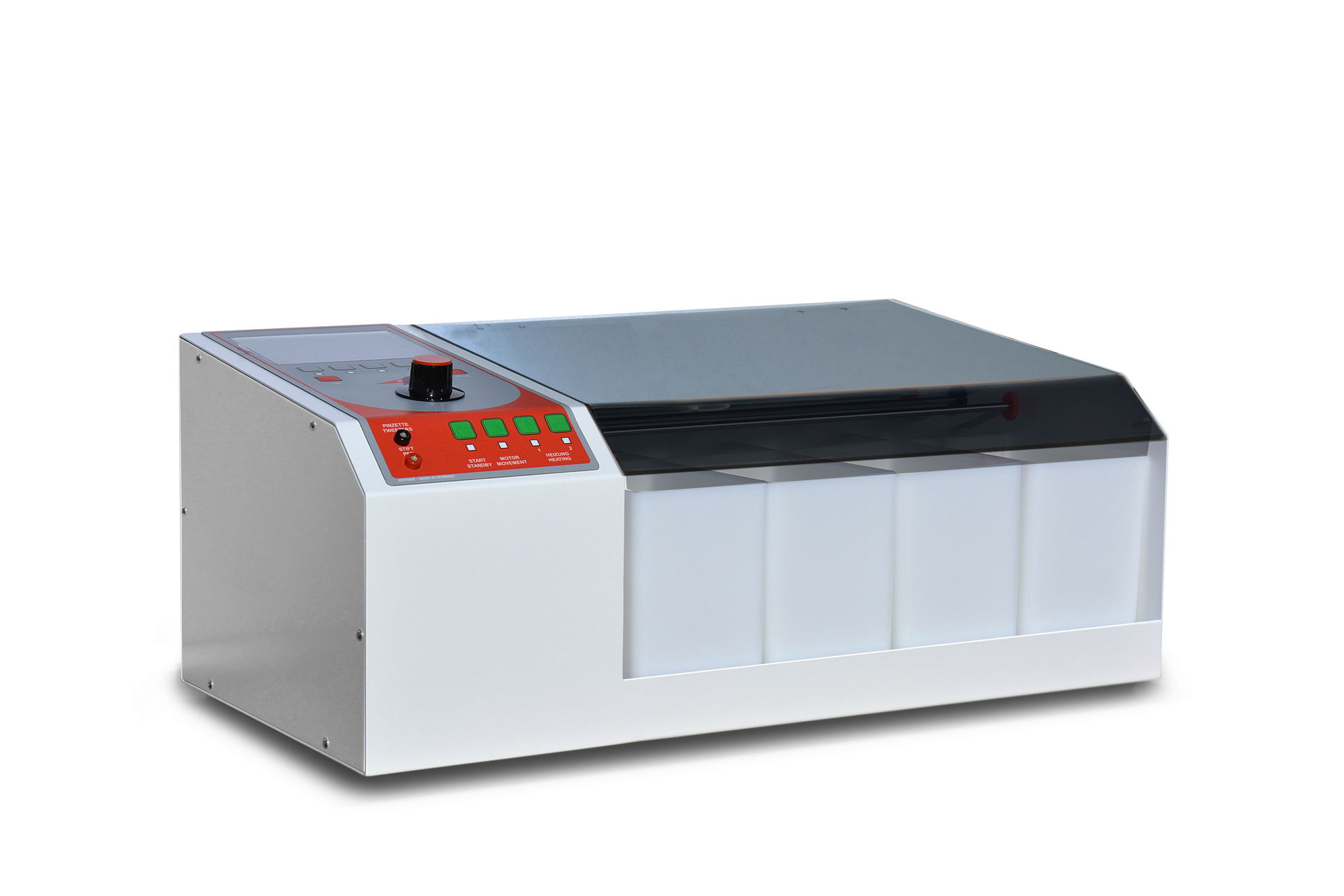

Electroplating Unit DIGITAL II version 2.0
€3,153.60*
The Digital II version 2.0 is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre installed plating programs, new programs can be installed. The machine menu is available in several european languages. Digital II version 2.0 has an integrated goods movement and a pen plating connection.Technical data:Dimensions (WxDxH): 700x320x250 mmWeight: 18 kgBath volume: 4x1,5 l working tanks + 4x 1,5 l rinsing tanksBath dimensions: 150x100x150 mmRectifier: 15V/ 15AControlled heating: 2x200WSupply voltage: 230V/ 50Hz, 120V/ 60HzMain fuse: 2,5A slow-blow, 250V ~, 5*20 mmOptional equipment: 2x connectable heater (2x200W)

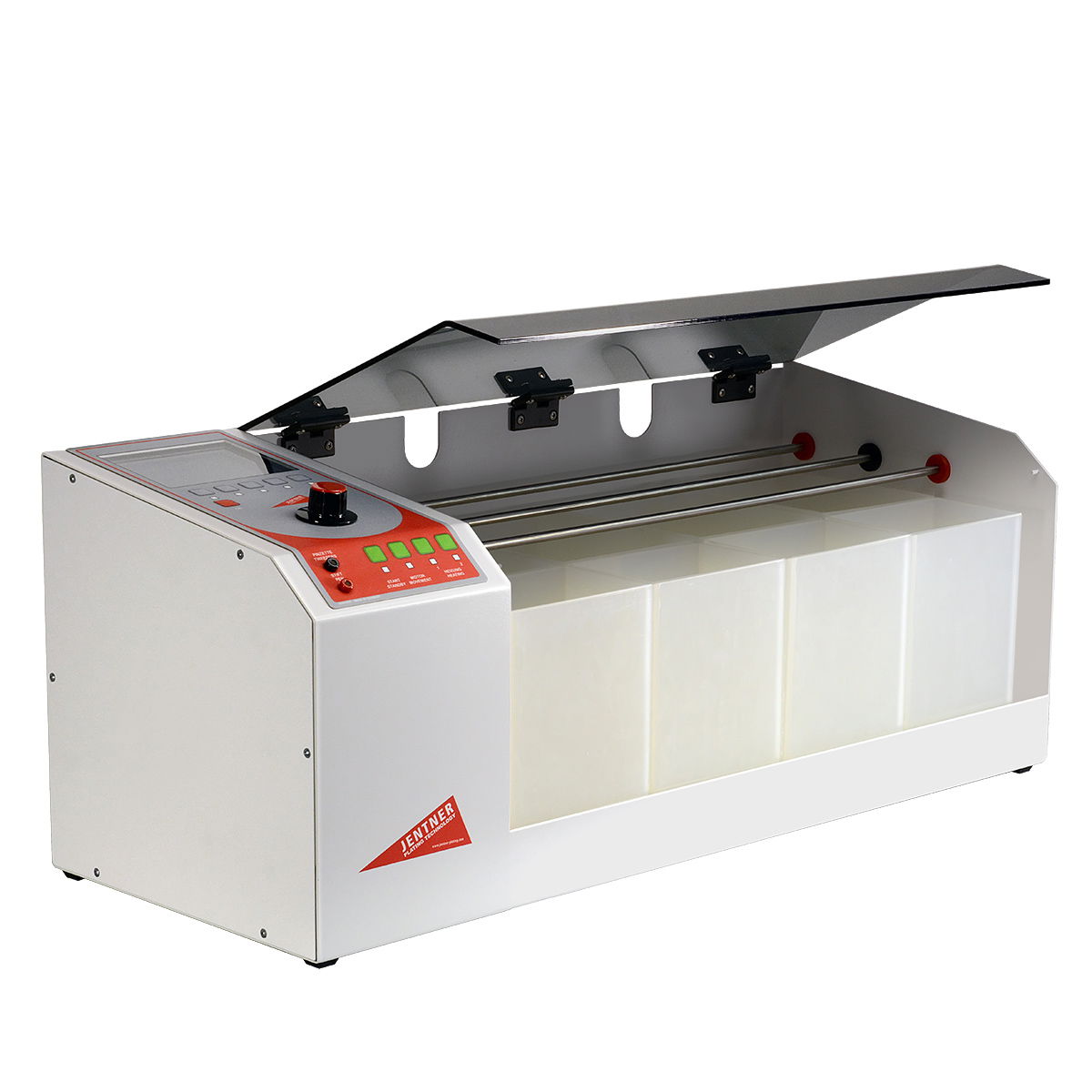

Electroplating Unit Digital V
€4,612.68*
The Digital V is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre-installed plating programs, new programs can be installed. The machine menu is available in several european languages. Digital V has an integrated goods movement and a pen plating connection.Technical data:Dimensions (WxDxH): 820x350x260Weight: 30 kgBath volume: 4x5 l, 4x2 lBath dimensions: 190x150x220 mmRectifier: 15V/ 15ASupply voltage: 230V/ 50Hz, 120V/ 60HzOptional equipment: 2x connectable heater (2x 315W)
The Comfort machines are analogue and the voltage must be set manually using a rotary knob. The machines do not have a display, only an ammeter and voltmeter. In contrast, the digital machines are digital. With pre-set programmes, the machine automatically adjusts the voltage depending on the programme and regulates the amperes in the bath according to the quantity.
