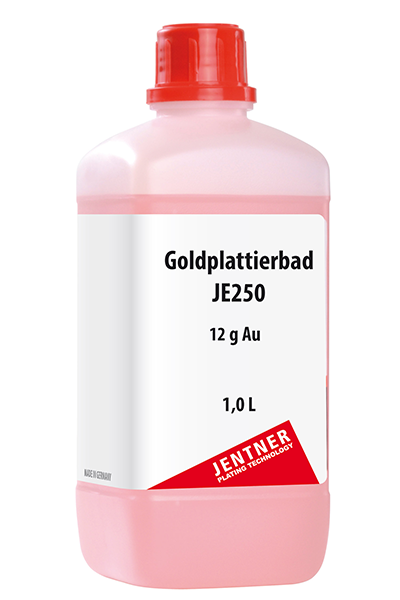

Gold Plating Bath JE250 - 12 g/L Au

Product information "Gold Plating Bath JE250 - 12 g/L Au"

The JE250 gold plating bath is ideal for depositing shiny and robust gold alloy layers up to a thickness of 10 µm. It is suitable for both technical and decorative applications, making it very versatile.

Operating data:
Gold content: 12 g/L Au
pH value: 4.0 (3.8 - 4.2)
Density: 1.035 g/ml (1.030 - 1.050)

Precipitation data:
Hardness: 150 - 220 HV
Layer thickness: Max. 10 µm
Fineness of the gold layer approx. 99.5 % Au

Working conditions:
Voltage: 2.5 - 4 V
Bath temperature: 20 - 40°C
Anode material: Platinized titanium
Anode/cathode area: approx. 1 : 1
Fabric movement: required
Current density: approx. 1 - 2.5 A/dm2
Bath filtration: from 10 liters
Deposition rate: approx. 22 mg/AMin
Hazard warnings

H300 Fatal if swallowed.

H312 Harmful in contact with skin.

H350i Kann bei Einatmen Krebs erzeugen.

H360F May damage fertility.

H412 Harmful to aquatic life with long lasting effects.

Safety instructions

P201 Obtain special instructions before use.

P202 Do not handle until all safety precautions have been read and understood.

P261 Avoid breathing dust/fume/gas/mist/vapours/spray.

P270 Do not eat, drink or smoke when using this product.

P271 Use only outdoors or in a well-ventilated area.

P273 Avoid release to the environment.

P280 Wear protective gloves/protective clothing/eye protection/face protection.

P301+P310 IF SWALLOWED: Immediately call a POISON CENTER/doctor/…

P321 Besondere Behandlung (siehe … auf diesem Kennzeichnungsetikett).

P330 Rinse mouth.

P302+P352 IF ON SKIN: Wash with plenty of water

P312 Call a POISON CENTRE/ if you feel unwell.

P361+P364 Take off immediately all contaminated clothing and wash it before reuse.

P304+P340 IF INHALED: Remove person to fresh air and keep comfortable for breathing.

P312 Call a POISON CENTRE/ if you feel unwell.

P308+P313 IF exposed or concerned: Get medical advice/attention.

P405 Store locked up.
