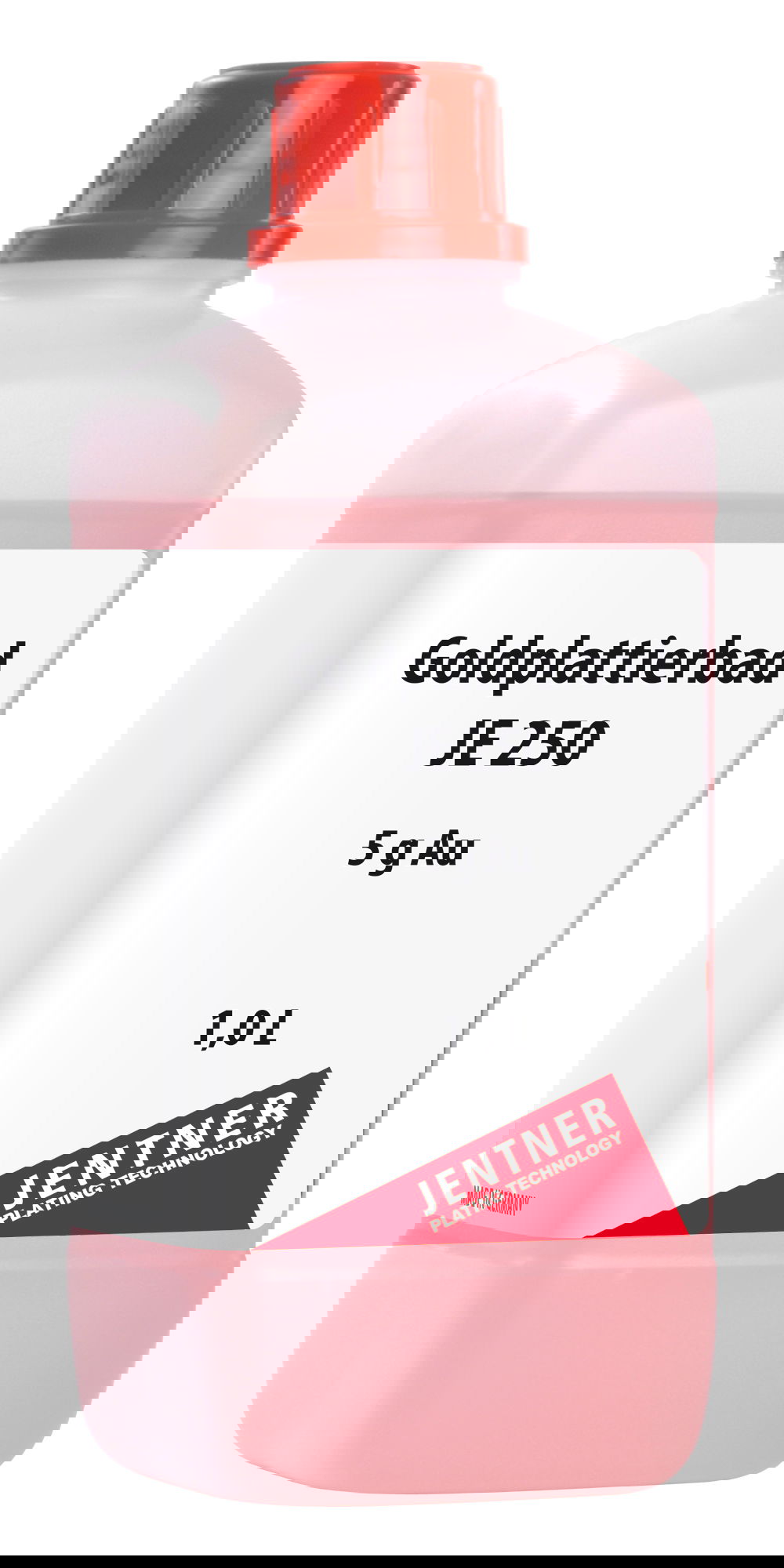

Product information "Gold Plating Bath JE250 - 5 g/L Au"
The JE250 gold plating bath offers excellent properties for the deposition of shiny and hard gold alloy layers. It is ideal for technical and decorative applications and achieves layer thicknesses of up to 10 µm. This versatility makes it the perfect choice for various surface finishing requirements.
Operating data:
Gold content: 5 g/L Au
pH value: 4.0 (3.8 - 4.2)
Density: 1.035 g/ml (1.030 - 1.050)
Precipitation data:
Hardness: 150 - 220 HV
Layer thickness: Max. 10 µm
Fineness of the gold layer approx. 99.5 % Au
Working conditions:
Voltage: 2.5 - 4 V
Bath temperature: 20 - 40°C
Anode material: Platinized titanium
Anode/cathode area: approx. 1 : 1
Fabric movement: required
Current density: approx. 1 - 2.5 A/dm2
Bath filtration: from 10 liters
Deposition rate: approx. 22 mg/AMin
Operating data:
Gold content: 5 g/L Au
pH value: 4.0 (3.8 - 4.2)
Density: 1.035 g/ml (1.030 - 1.050)
Precipitation data:
Hardness: 150 - 220 HV
Layer thickness: Max. 10 µm
Fineness of the gold layer approx. 99.5 % Au
Working conditions:
Voltage: 2.5 - 4 V
Bath temperature: 20 - 40°C
Anode material: Platinized titanium
Anode/cathode area: approx. 1 : 1
Fabric movement: required
Current density: approx. 1 - 2.5 A/dm2
Bath filtration: from 10 liters
Deposition rate: approx. 22 mg/AMin
