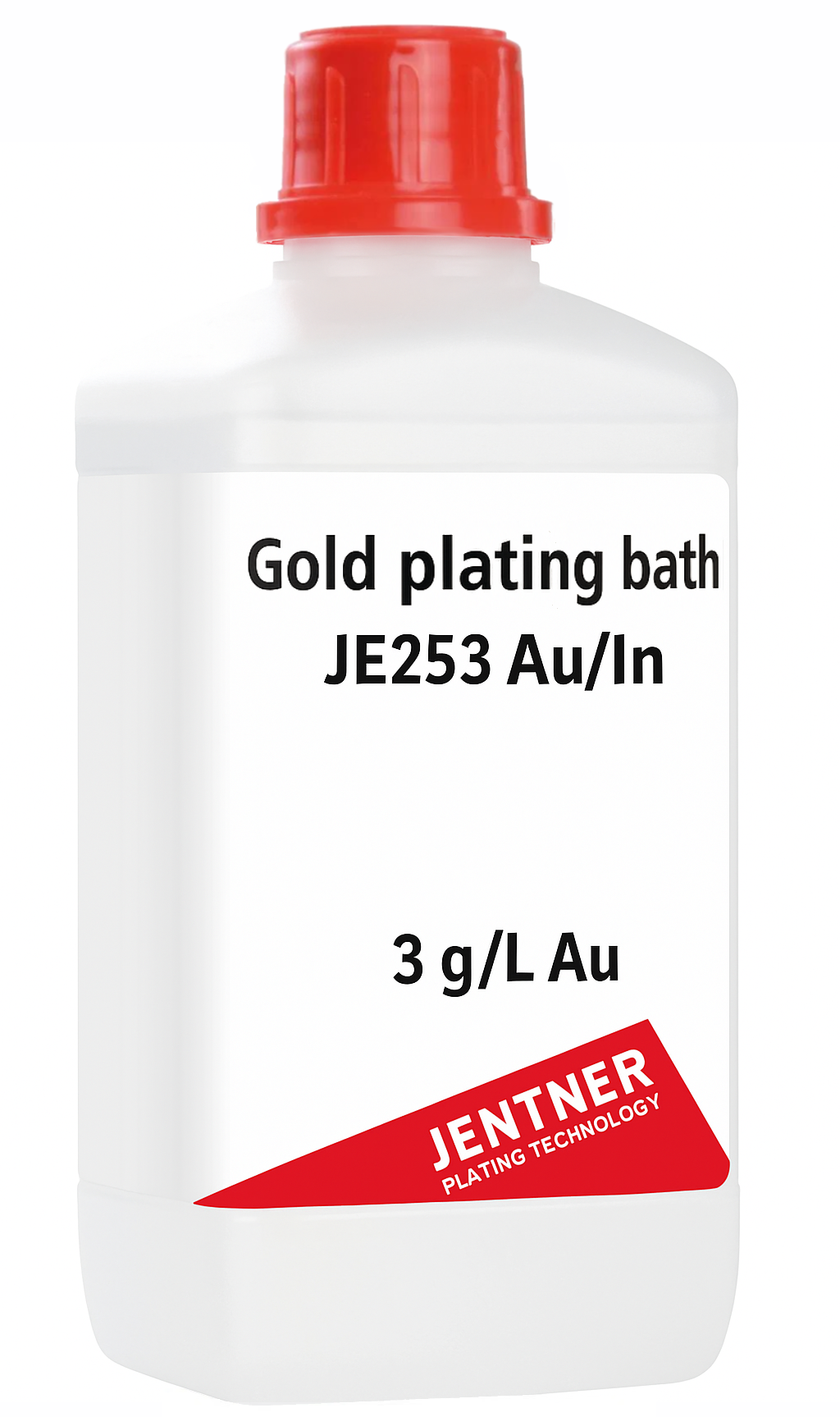

Gold plating bath JE253 Au/In - 3 g/L Au
Our payment methods:
Product number:
7257.1000
Delivery time:
1-3 days
Your advantages with Jentner
- Fast shipping
- Made in Germany
- Secure DHL shipping
Product information "Gold plating bath JE253 Au/In - 3 g/L Au"
Gold Plating Bath JE253 is a mildly acidic gold electrolyte that deposits light yellow, uniformly shiny gold coatings. It is suitable for both technical and decorative applications, as the deposited layers have high corrosion and abrasion resistance. Under optimal conditions, highly glossy and adhesive gold layers up to a maximum thickness of 5 μm can be achieved.
Cobalt and nickel-free!
Operating Data:
Gold content: 3 g/L Au
pH value: 2.8 (2.5 - 3.2)
Density: 1.065 g/ml (1.060 - 1.070)
Deposition Data:
Layer thickness: max. 5 µm
Fine gold content of the layer: approx. 95.0% Au
Layer thickness: max. 5 µm
Fine gold content of the layer: approx. 95.0% Au
Working Conditions:
Voltage: 2.5 V (2.5 - 3.0)
Bath temperature: 20 - 35°C
Anode material: Platinized titanium / MOX
Anode/cathode area: approx. 1:1
Workpiece movement: required
Deposition rate: approx. 18 mg/Amin
Current density: approx. 1 - 2.5 A/dm²
Bath filtration: from 10 liters
Delivery Form:
Ready-to-use with 3 g/L Au
Ready-to-use with 3 g/L Au
Hazard warnings
H315 Causes skin irritation.
H319 Causes serious eye irritation.
H412 Harmful to aquatic life with long lasting effects.
Safety instructions
P264.1 jentner.statements.P264.1
P273 Avoid release to the environment.
P280 Wear protective gloves/protective clothing/eye protection/face protection.
P302 IF ON SKIN:
P352 Wash with plenty of water
P305 IF IN EYES:
P351 Rinse cautiously with water for several minutes.
P338 Remove contact lenses, if present and easy to do. Continue rinsing.
Available downloads
