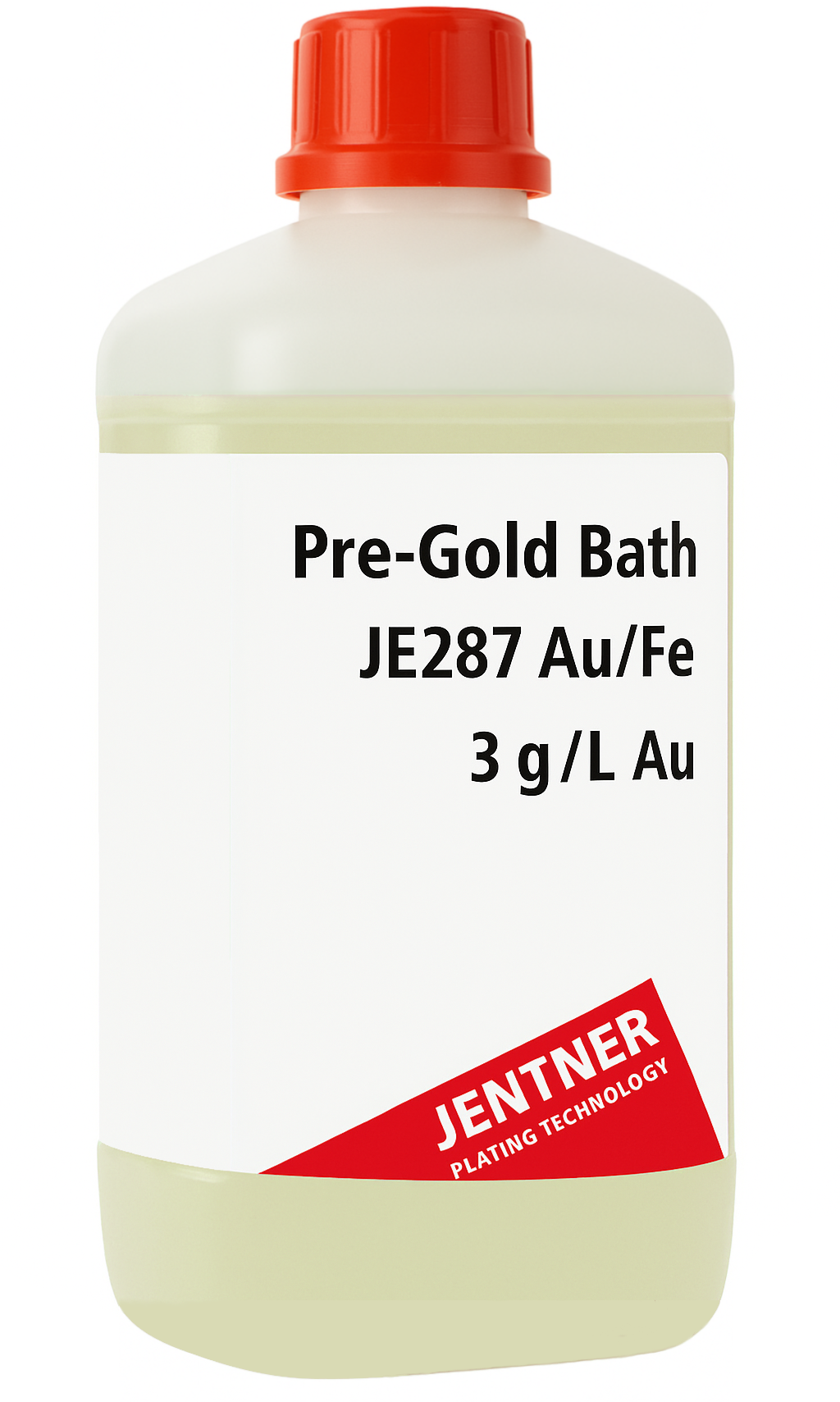

Pre-Gold Bath JE287 Au/Fe - 3 g/L Au
Our payment methods:
Product number:
272.1000
Delivery time:
1-3 days
Your advantages with Jentner
- Fast shipping
- Made in Germany
- Secure DHL shipping
Product information "Pre-Gold Bath JE287 Au/Fe - 3 g/L Au"
The used ready-to-use adhesion gold bath JE287 is a strongly acidic gold electrolyte required for gilding precious steels. The coatings are crack-free, ductile, corrosion-protective, and low-porosity.
The bath is excellent for direct gilding of chrome-nickel steel, molybdenum-containing steel, and difficult-to-activate nickel-based alloys. The coating consists of a gold/iron alloy. Layer thicknesses of up to 3 µm are possible.
The bath is excellent for direct gilding of chrome-nickel steel, molybdenum-containing steel, and difficult-to-activate nickel-based alloys. The coating consists of a gold/iron alloy. Layer thicknesses of up to 3 µm are possible.
Cobalt and nickel-free!
Operating data:
Gold content: 3 g/L
Sulfuric acid content: 25 g/L (20 - 30)
Deposition data:
Hardness: approx. 165 HV
Layer thickness: until 3 µm
Fineness of the gold coating: > 99% Au
Operating conditions:
Voltage: 2 volt (2 - 3,5)
Bath temperature: 20 - 30 °C
Exposition time: 1 min. (max. 30 min.
Hardness: approx. 165 HV
Layer thickness: until 3 µm
Fineness of the gold coating: > 99% Au
Operating conditions:
Voltage: 2 volt (2 - 3,5)
Bath temperature: 20 - 30 °C
Exposition time: 1 min. (max. 30 min.
Anode material: Mixed oxide (MOX)
Goods movement: required
Anode/Cathode surface: 1:1
Current density: 2 - 6 A/dm2
Current density: 2 - 6 A/dm2
Bath filtration: From 10 liter
Form of delivery:
Ready for use 3 g/L Au
Ready for use 3 g/L Au
Hazard warnings
H311 Toxic in contact with skin.
H314 Causes severe skin burns and eye damage.
H318 Causes serious eye damage.
H412 Harmful to aquatic life with long lasting effects.
Safety instructions
P273 Avoid release to the environment.
P280 Wear protective gloves/protective clothing/eye protection/face protection.
P304 IF INHALED:
P340 Remove person to fresh air and keep comfortable for breathing.
P305 IF IN EYES:
P351 Rinse cautiously with water for several minutes.
P338 Remove contact lenses, if present and easy to do. Continue rinsing.
P310 Immediately call a POISON CENTER/doctor/…
P501.1 jentner.statements.P501.1
