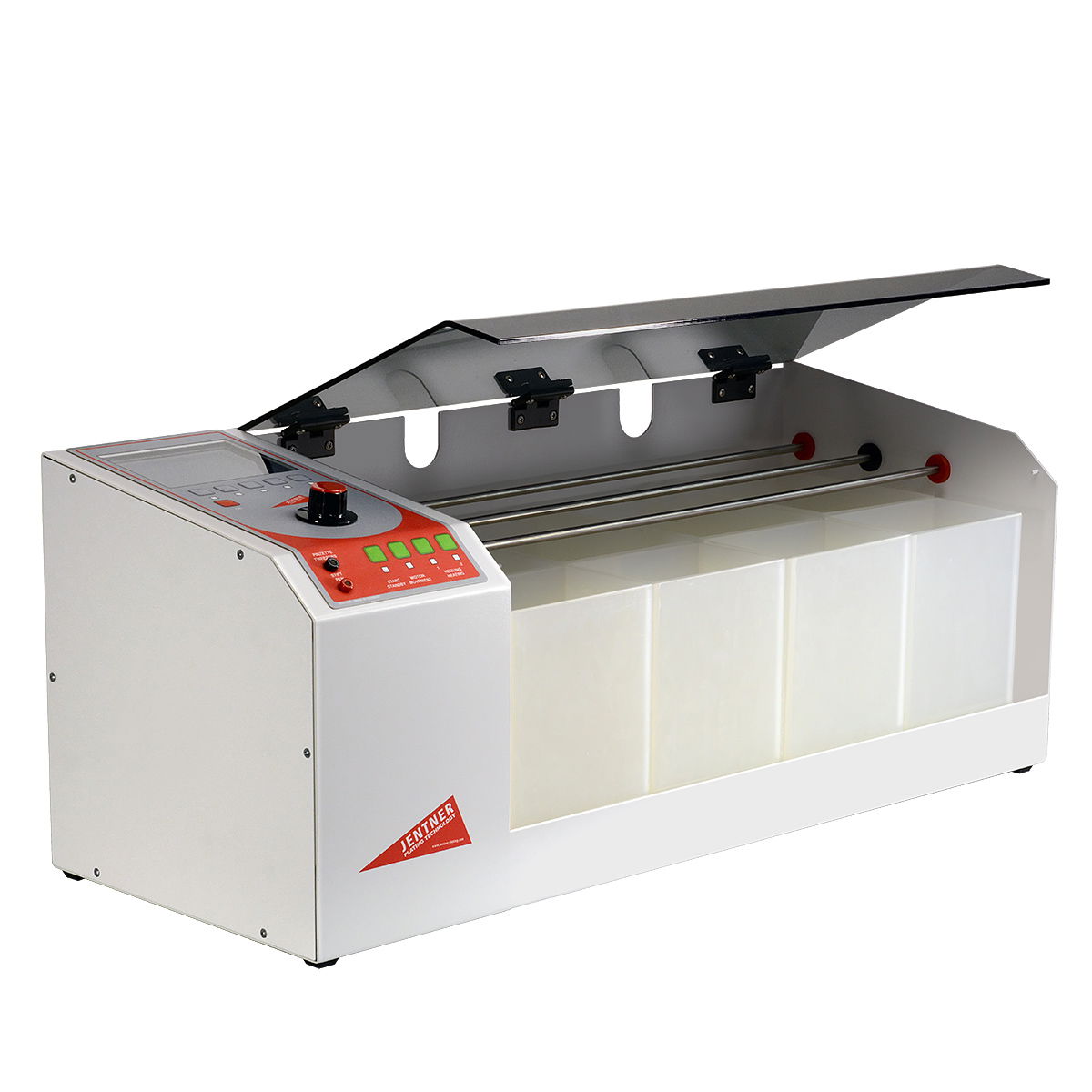

Electroplating Unit Digital V

Product information "Electroplating Unit Digital V"
The Digital V is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre-installed plating programs, new programs can be installed. The machine menu is available in several european languages. Digital V has an integrated goods movement and a pen plating connection.

Technical data:
Dimensions (WxDxH): 820x350x260
Weight: 30 kg
Bath volume: 4x5 l, 4x2 l
Bath dimensions: 190x150x220 mm
Rectifier: 15V/ 15A
Supply voltage: 230V/ 50Hz, 120V/ 60Hz

Optional equipment: 2x connectable heater (2x 315W)
Available downloads

Zubehör

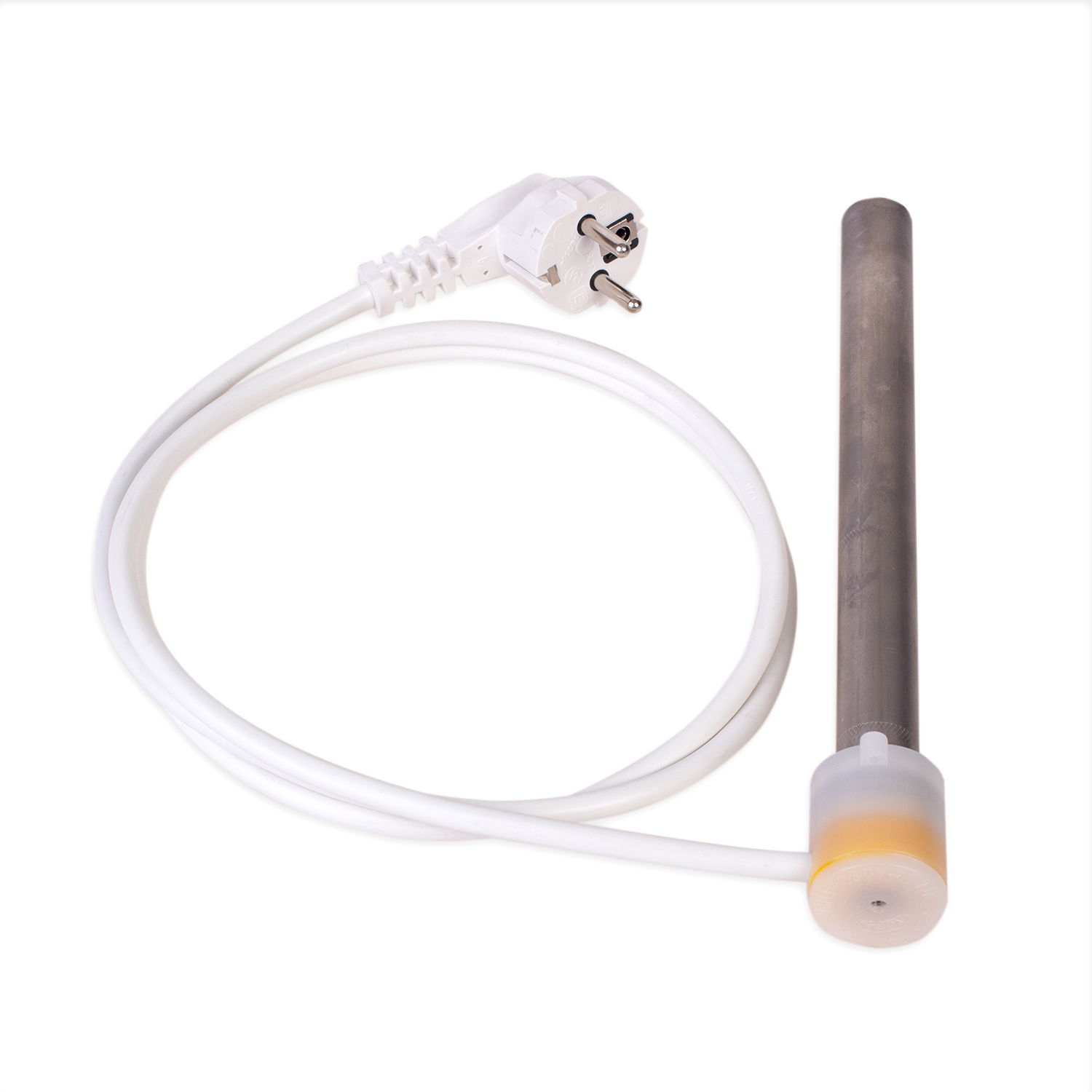

Immersion titan heater, 315W/230V
The 315 Watt/230V titanium immersion heater is suitable for heating e.g. rhodium, ruthenium and nickel baths. Suitable for the 5 liter tubs of our Digital V small electroplating units.Please note that the immersion heater holders must be purchased separately.Dimensions:Length 150 mm.Installation depth min. 200 mm, Ø 20 mm.

€210.00*

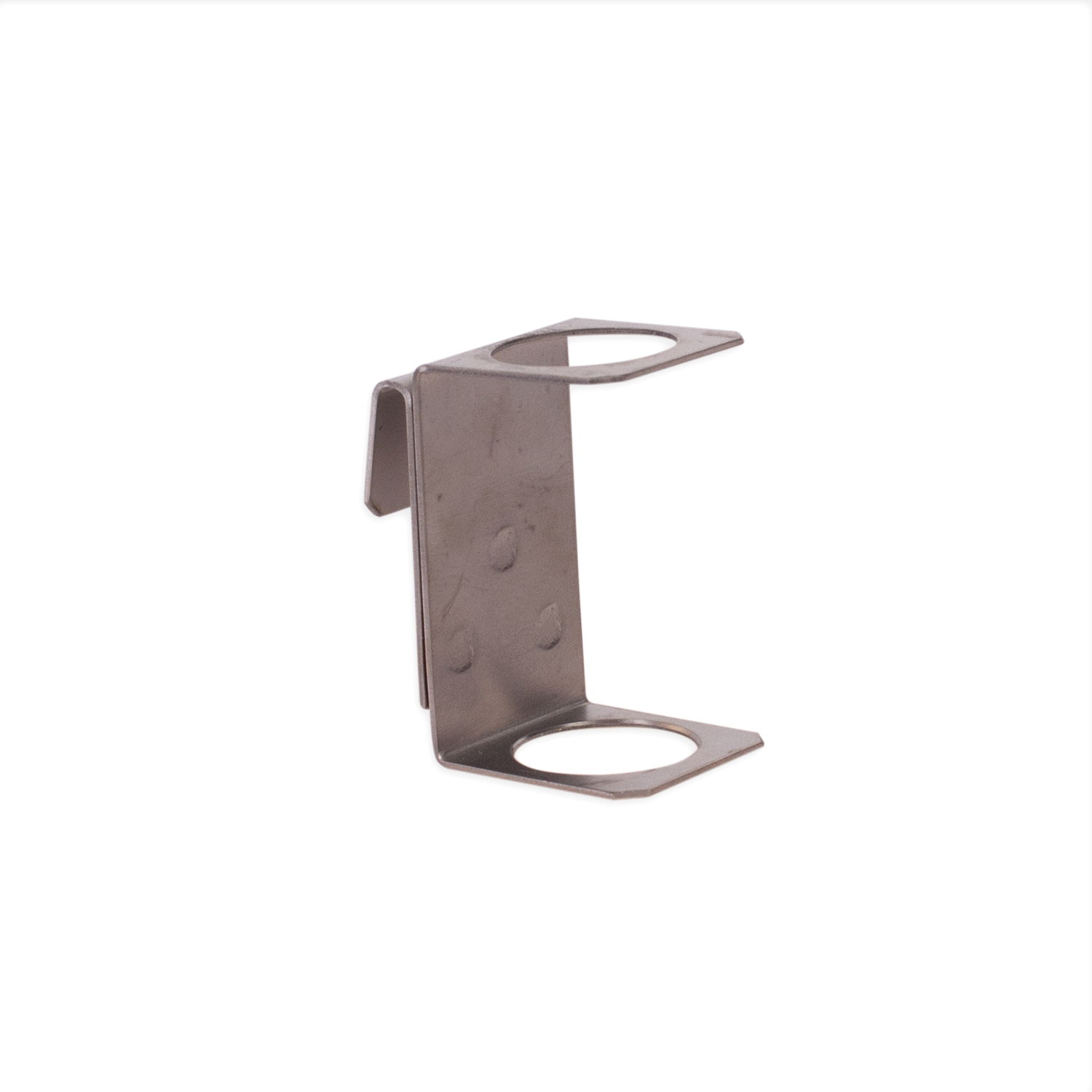

Titan Fixation for heater 200W
The titanium holder is for mounting the immersion heater 315 W/230V. V. It is suitable for the Digital V.

€25.90*

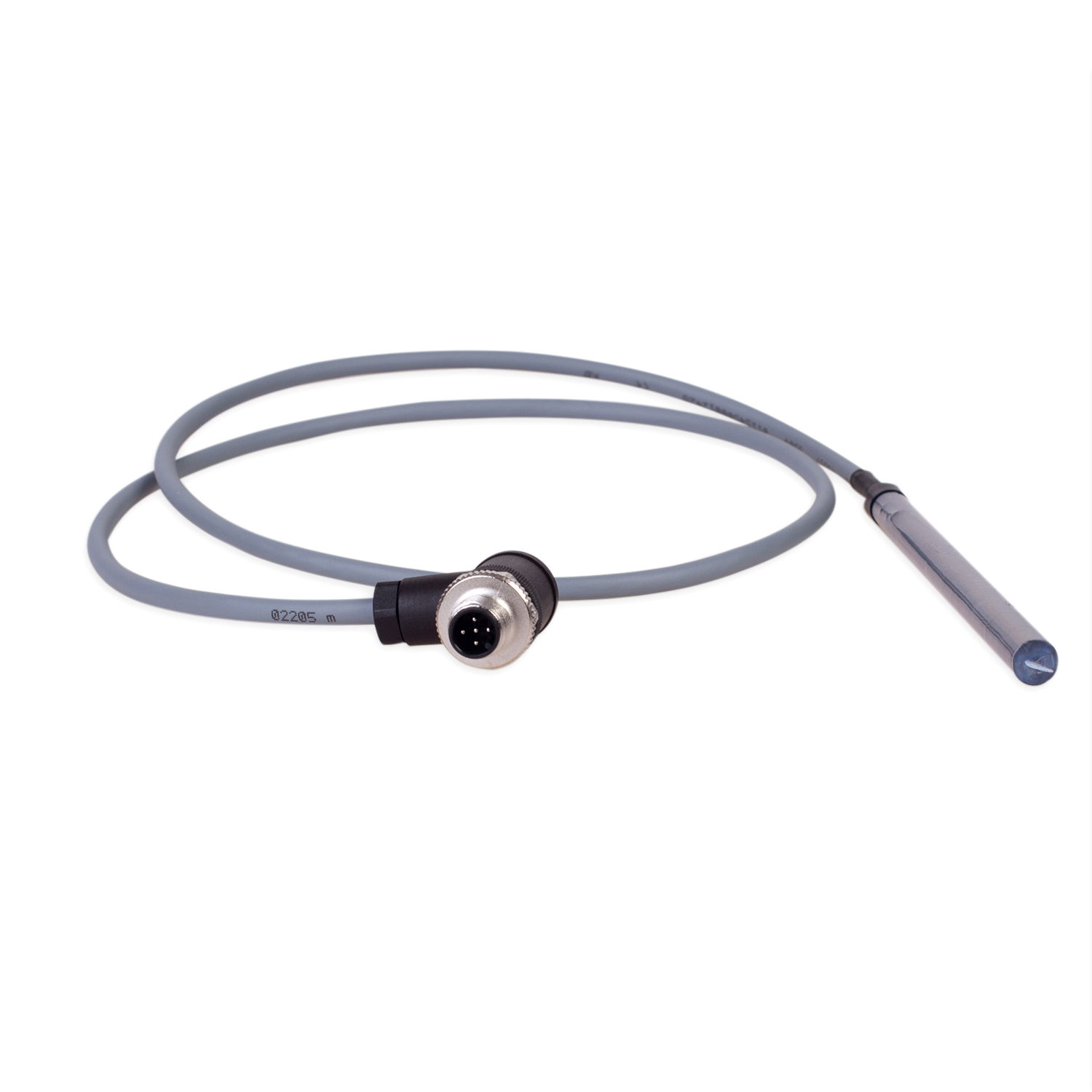

Temperature sensor for DIGITAL II + V
Sensor for temperature and level measurement.For small electroplating unit Digital II Version 2.0 and Digital V.

€174.30*

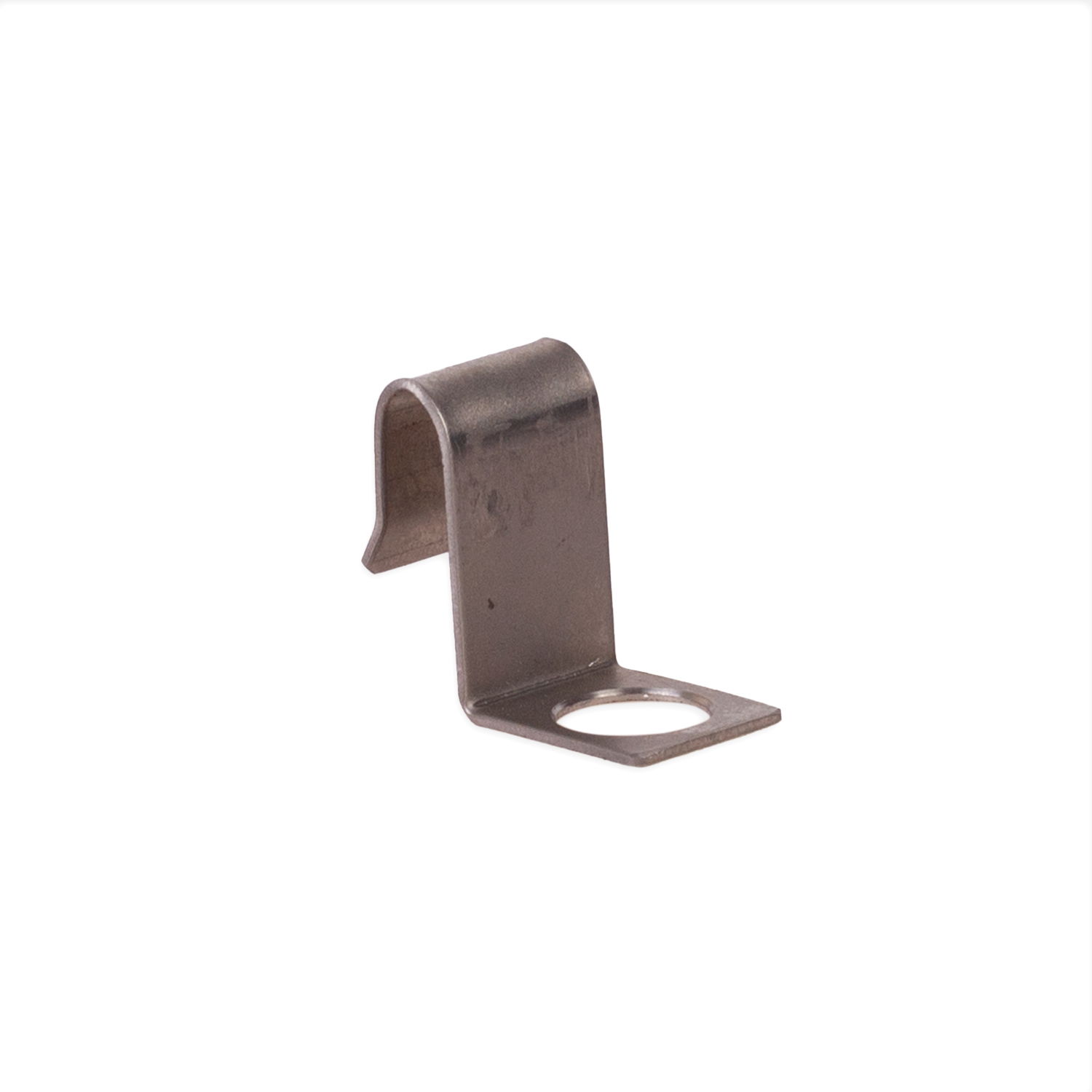

Titan fixation for temperature sensor
Matching titanium holder for attaching the temperature sensor.

€16.30*

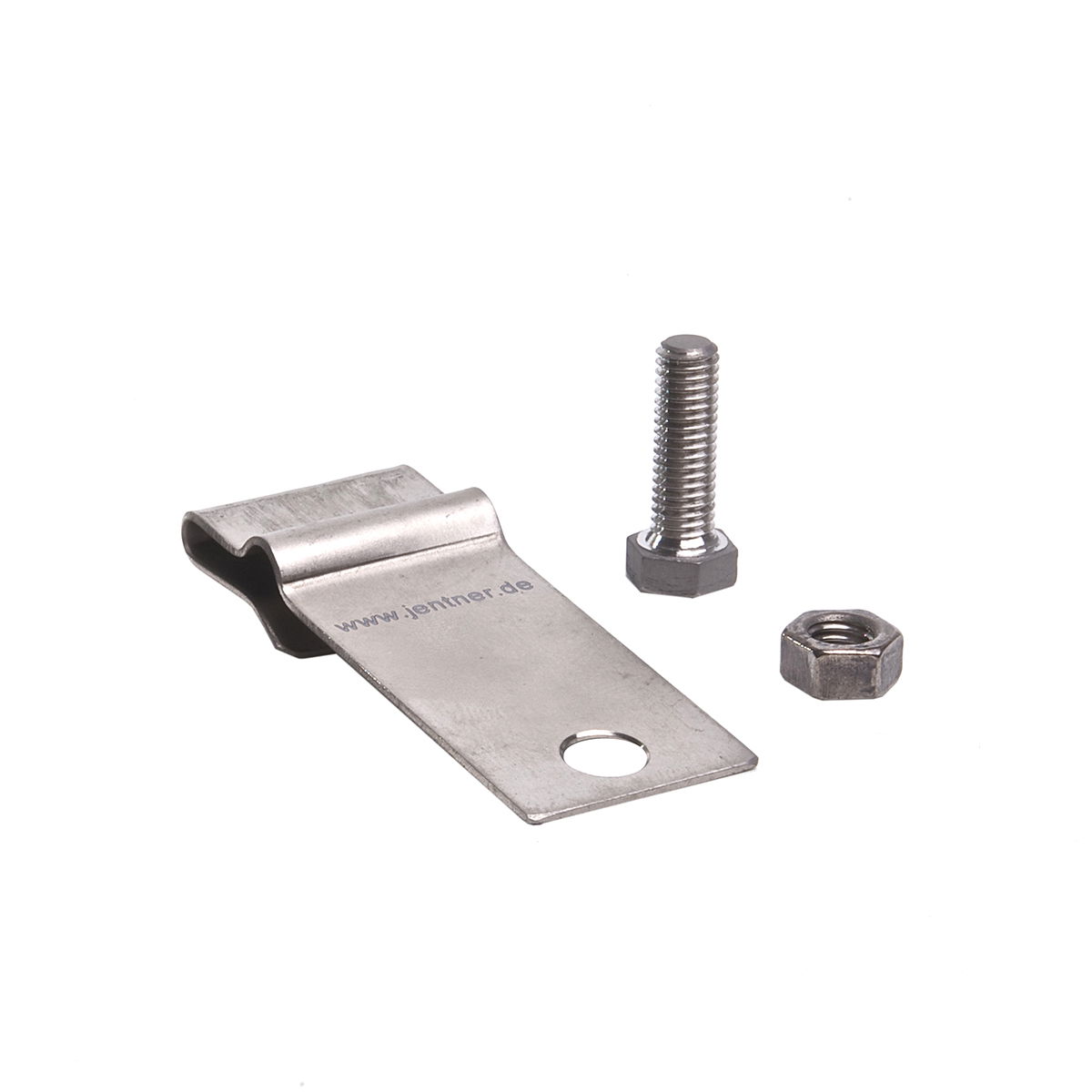

Titanium-fixation for anodes 80x20 mm with screws
Titanium-fixation for anodes, 80x20 mm with screws is ideal to fixate silver, nickel or copper anodes.It is suitable for Digital V or 5 liter tanks.Dimensions:80x20 mm

€28.10*
Stainless steel anode, 200 x 50 x 0.5 mm
Stainless steel anode 200x50x0.5 mm suitable for Digital V or 5 liter tanks. Stainless steel anodes can be used e.g. for degreasing baths or flashgold baths.

€17.40*

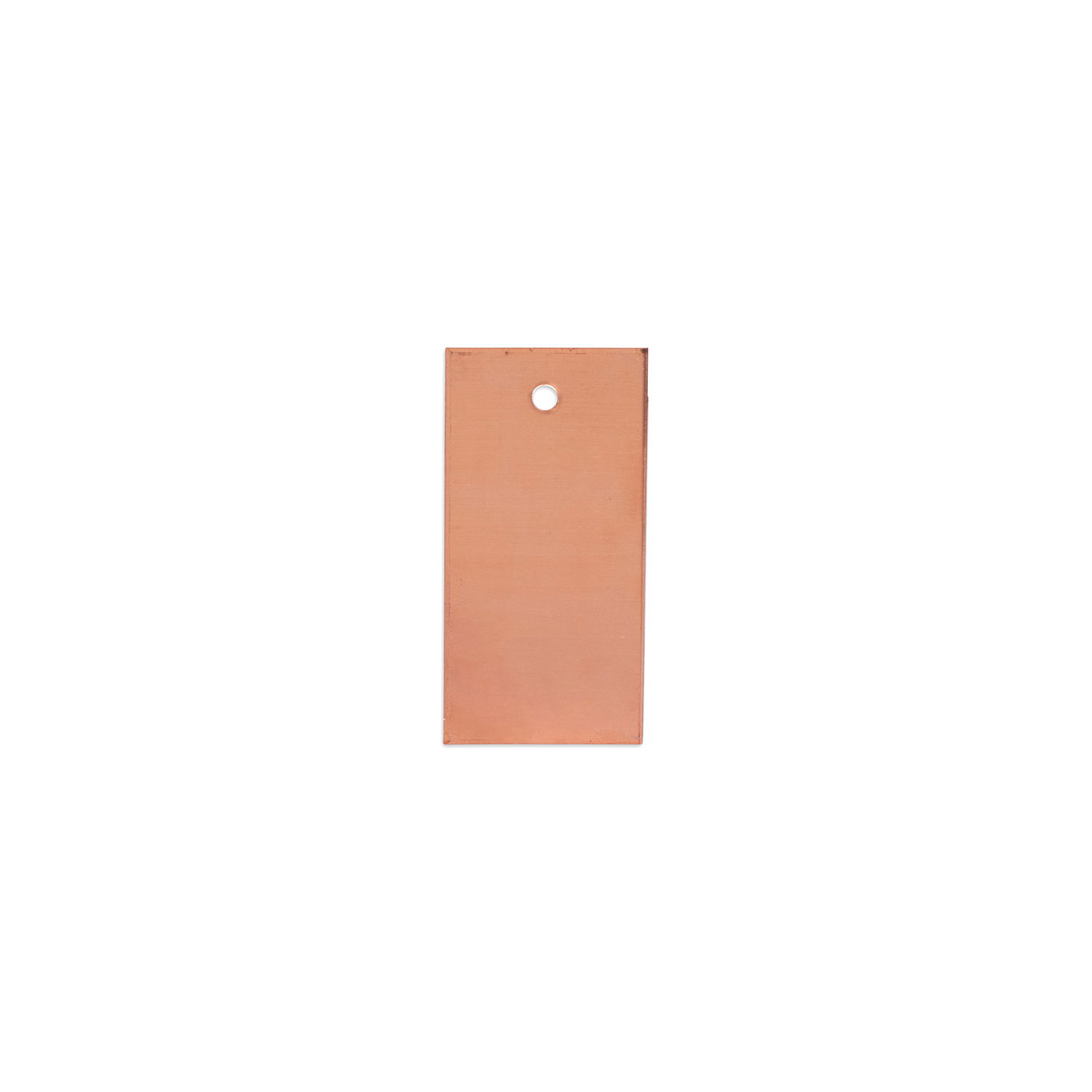

Copper anode 150x50x3 mm
Copper anode 150x50x3 mm for Digital V or 5 liter tanks. These anodes are suitable for copper baths. Please note that the fixation is not included in the delivery. They have to be ordered separately.

€76.80*

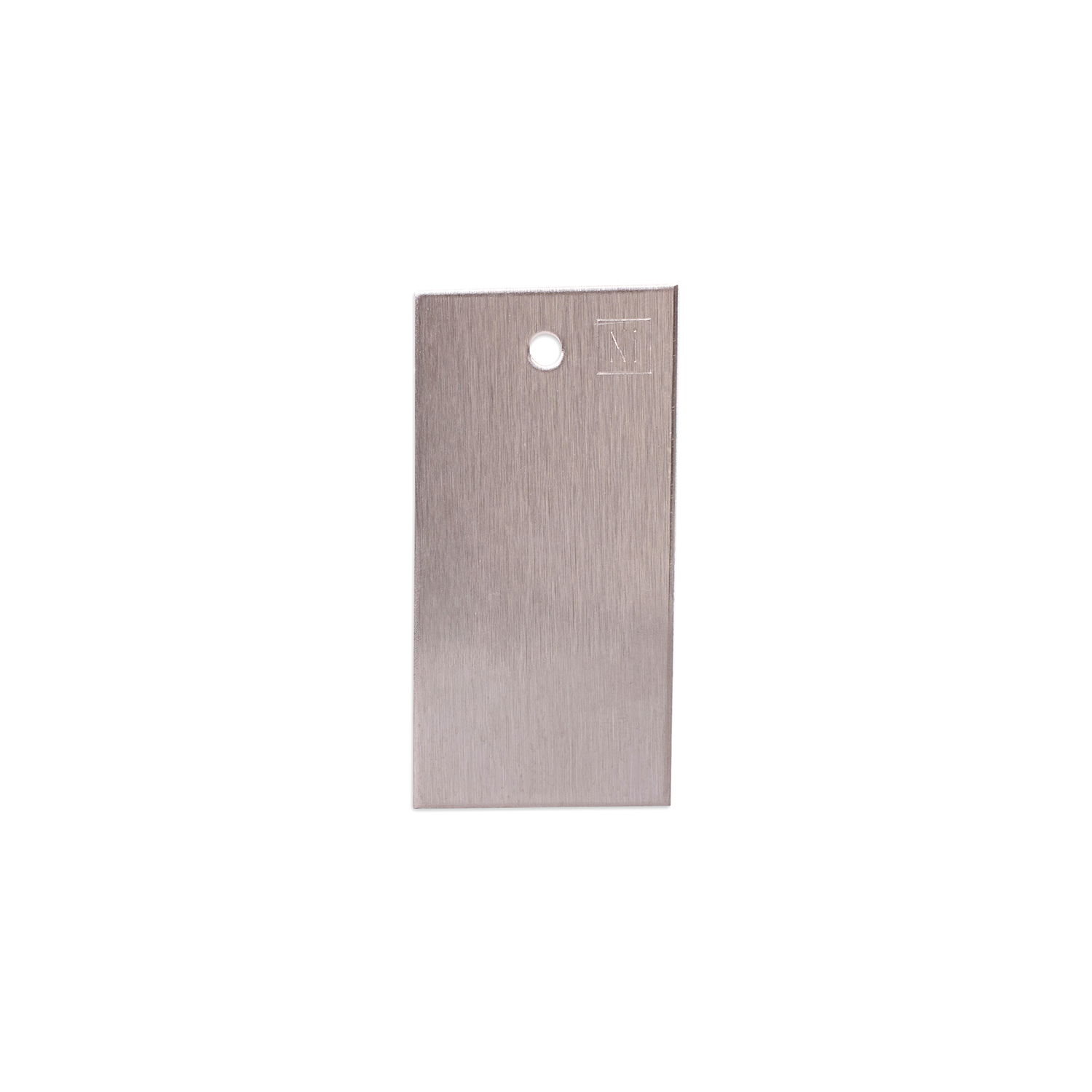

Nickel anode 150x50x2 mm
Suitable nickel anode 150x50x2 mm for Digital V or 5 liter tanks. These anodes are suitable for nickel baths. Please note that the fixation is not included in the delivery. They have to be ordered separately.

€56.70*

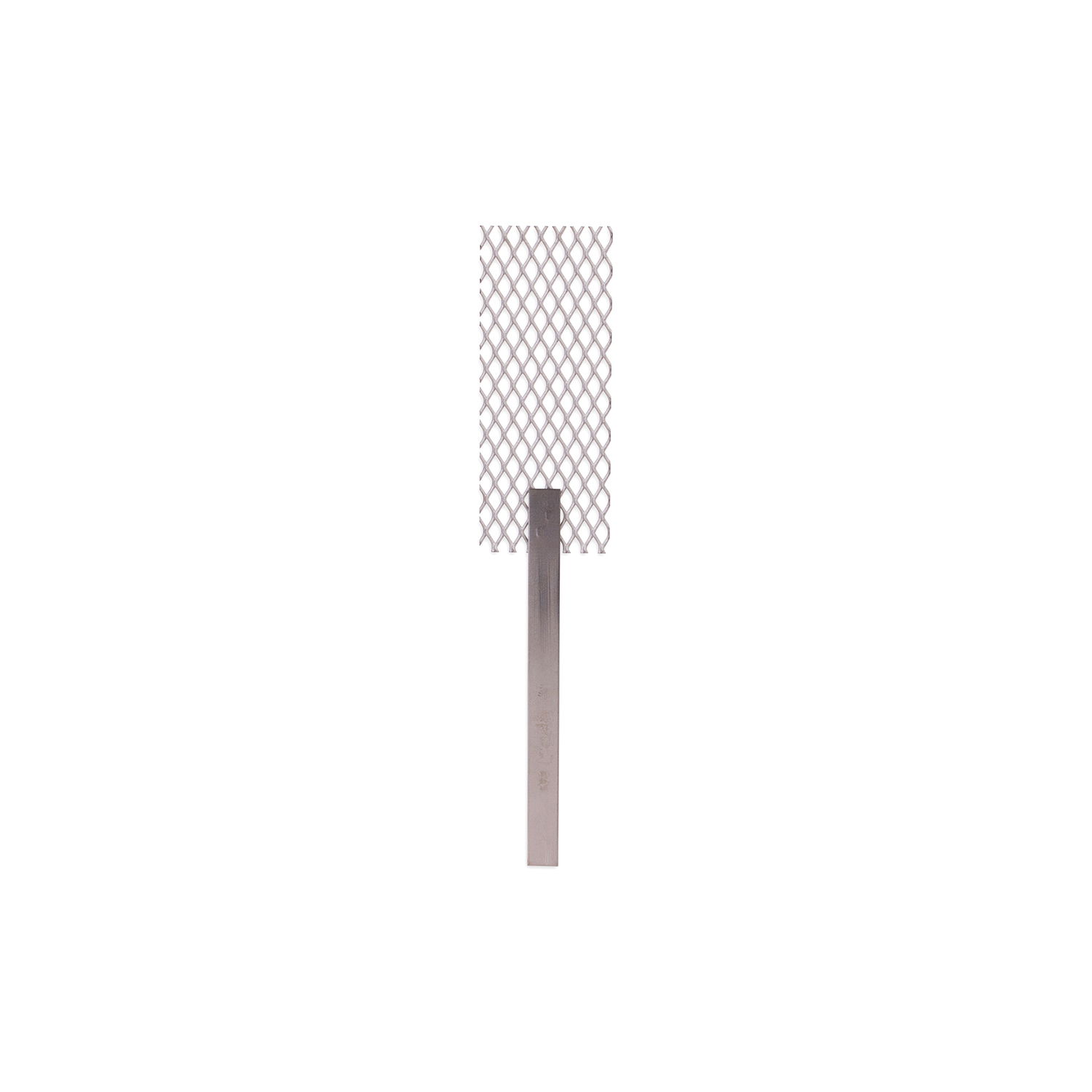

Platinized titanium anode 150x40 mm (2,5µm Pt)
Suitable platinized titanium anode 150x40 mm (2,5µm Pt) for Digital V or 5 liter tanks. These anodes can be used e.g. for rhodium, platinum and gold plating baths.

€94.10*

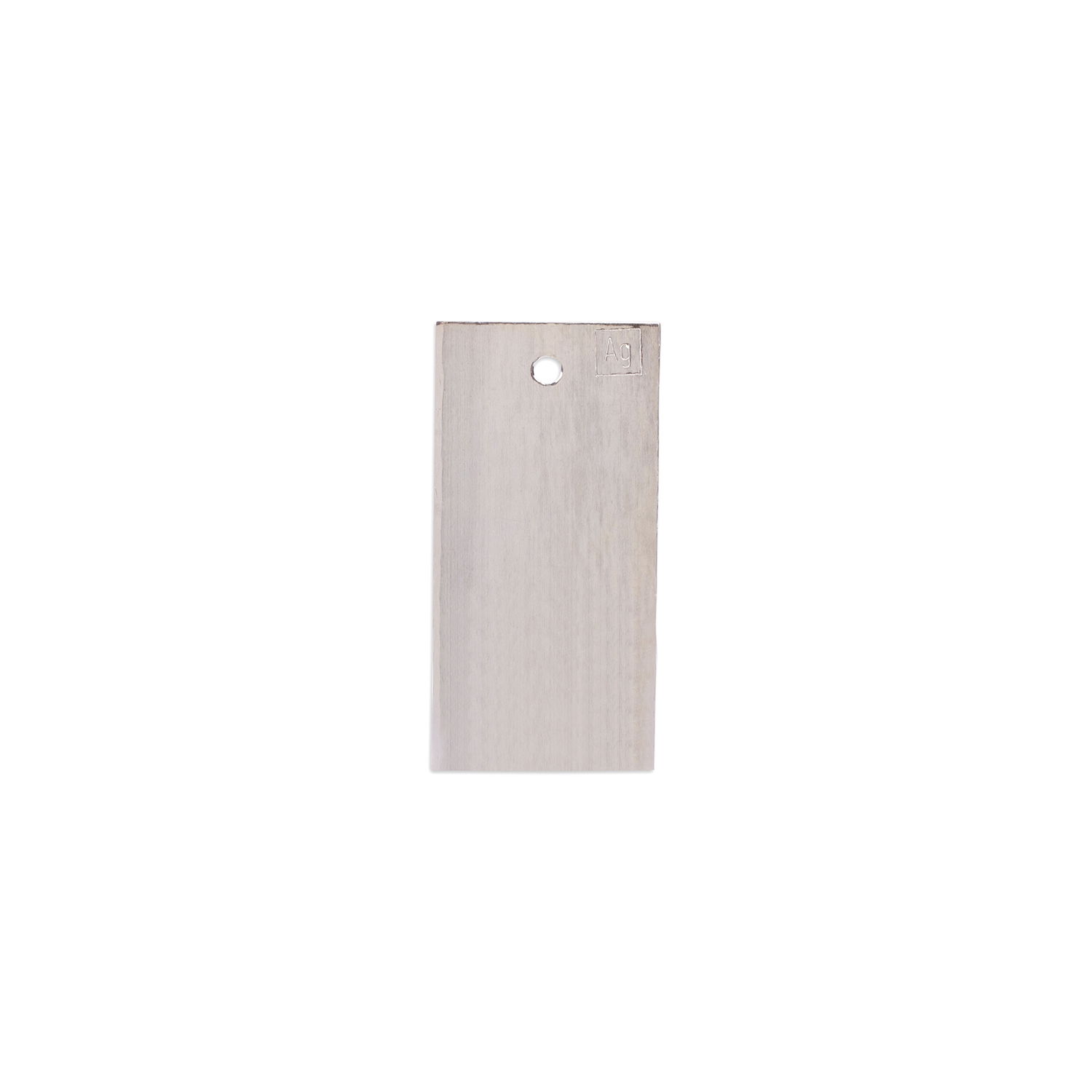

Fine-Silver anode 150x50x2 mm
Suitable fine-silver anode 150x50x2 mm for Digital V or 5 liter tanks. These anodes are suitable for silver baths. Please note that the fixation is not included in the delivery. They have to be ordered separately.

€219.34*

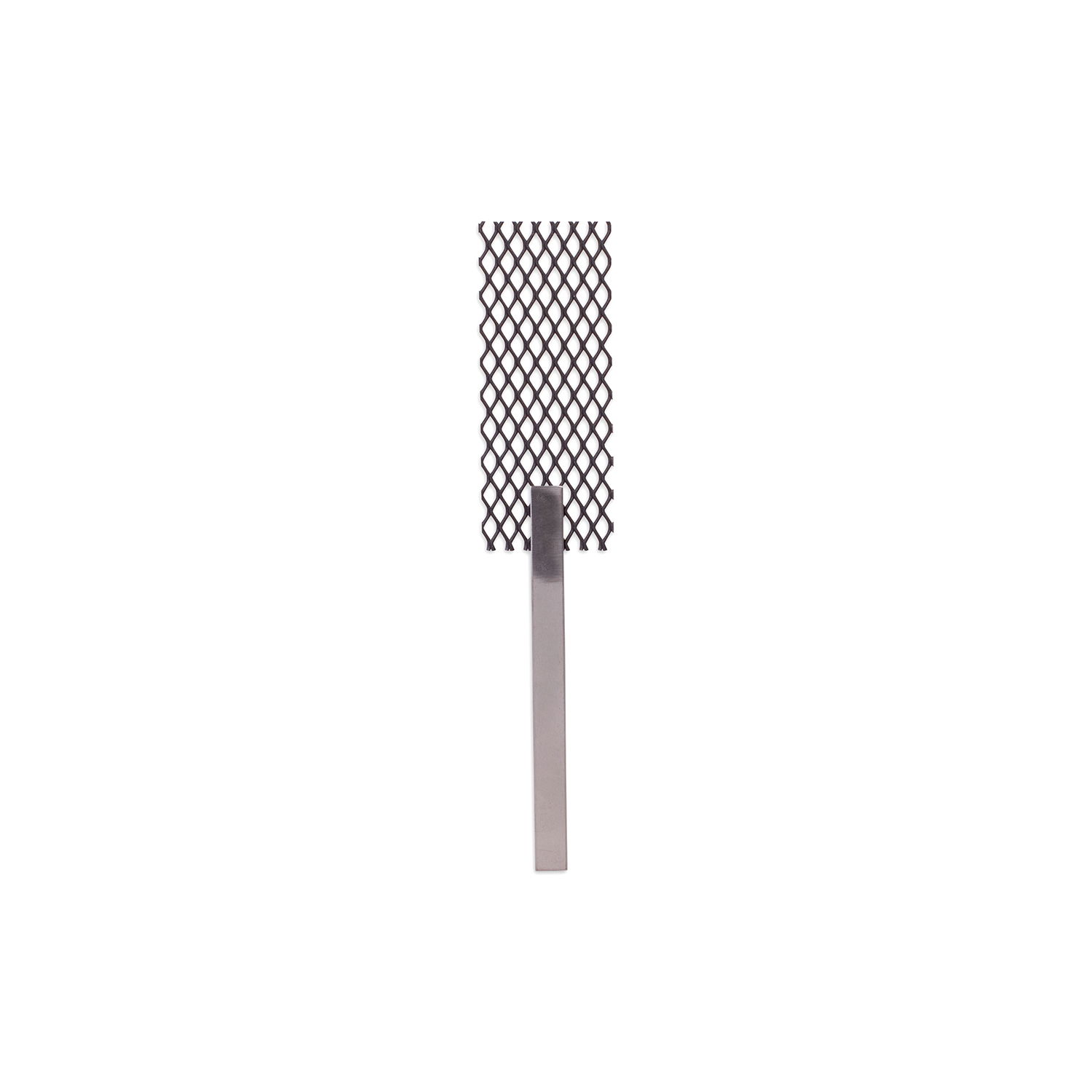

Mixed oxid anode MOX (Ir/MMO) 150x40 mm
Suitable mixed oxid anode MOX (Ir/MMO) 150x40 mm for Digital V or 5 liter tanks. These anodes can be used e.g. for pre-gold and palladium baths.

€80.00*

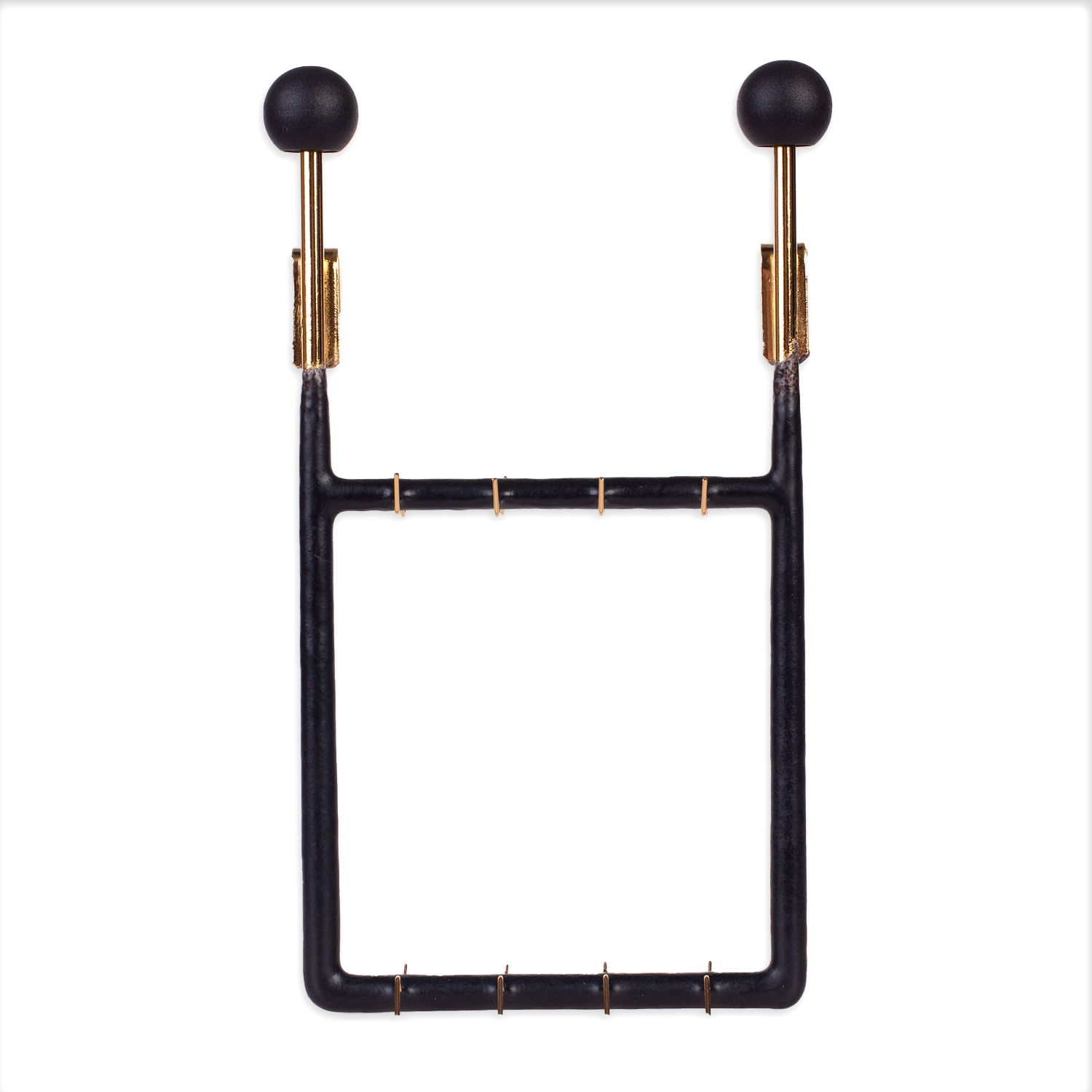

Jig with 16 hooks for chains 120x180mm
Jig with 16 hooks for chains 160x100 mm, which is perfectly suitable for Digital V and 5 liter tanks.

€99.50*

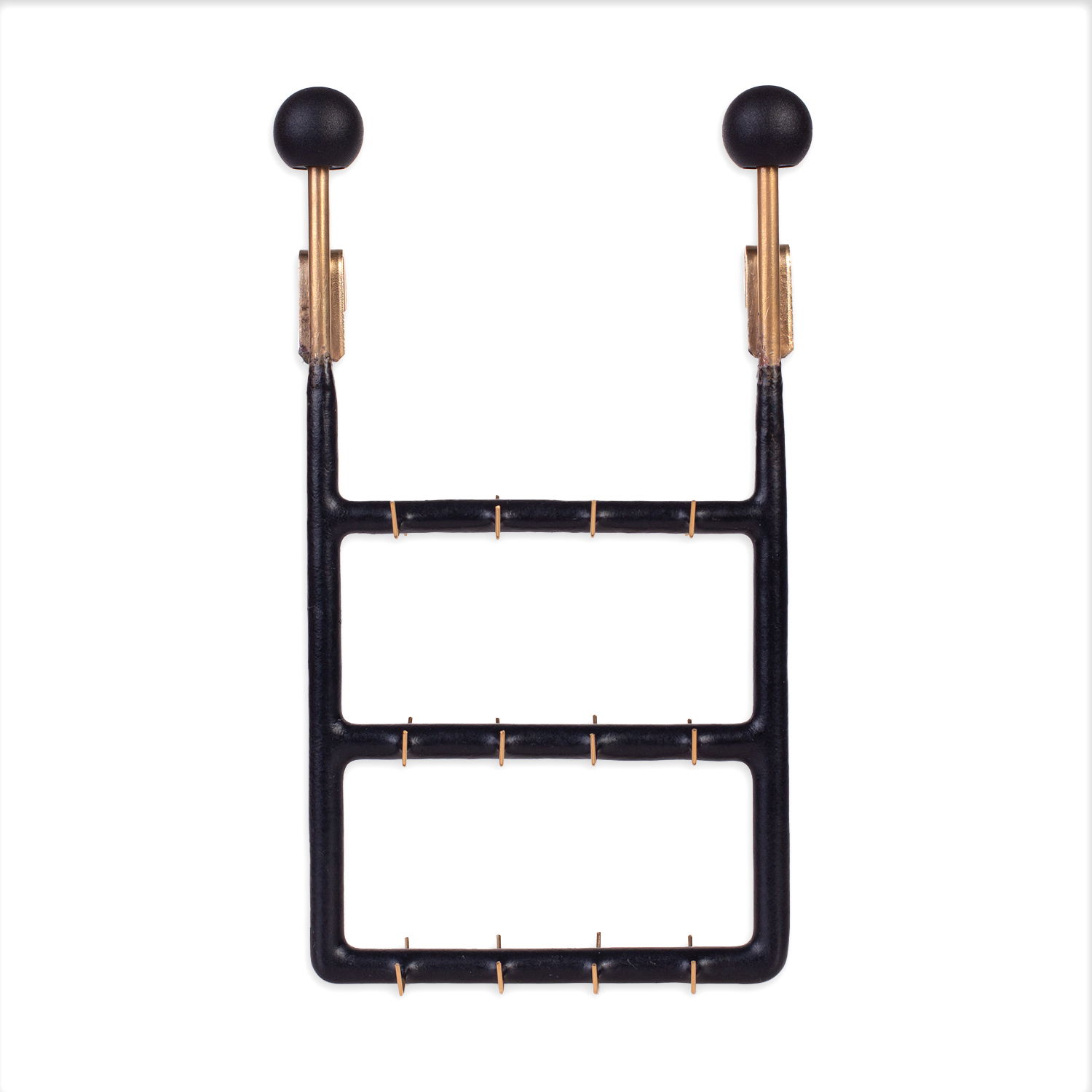

Jig with 24 hooks for rings 160x100mm
Jig with 24 hooks for rings 160x100mm, which is perfectly suitable for  Digital V.

€119.00*
Jig with 16 hooks for chains 200x100mm
Jig with 16 hooks for chains 200x100 mm, which is perfectly suitable for Digital V.

€103.80*

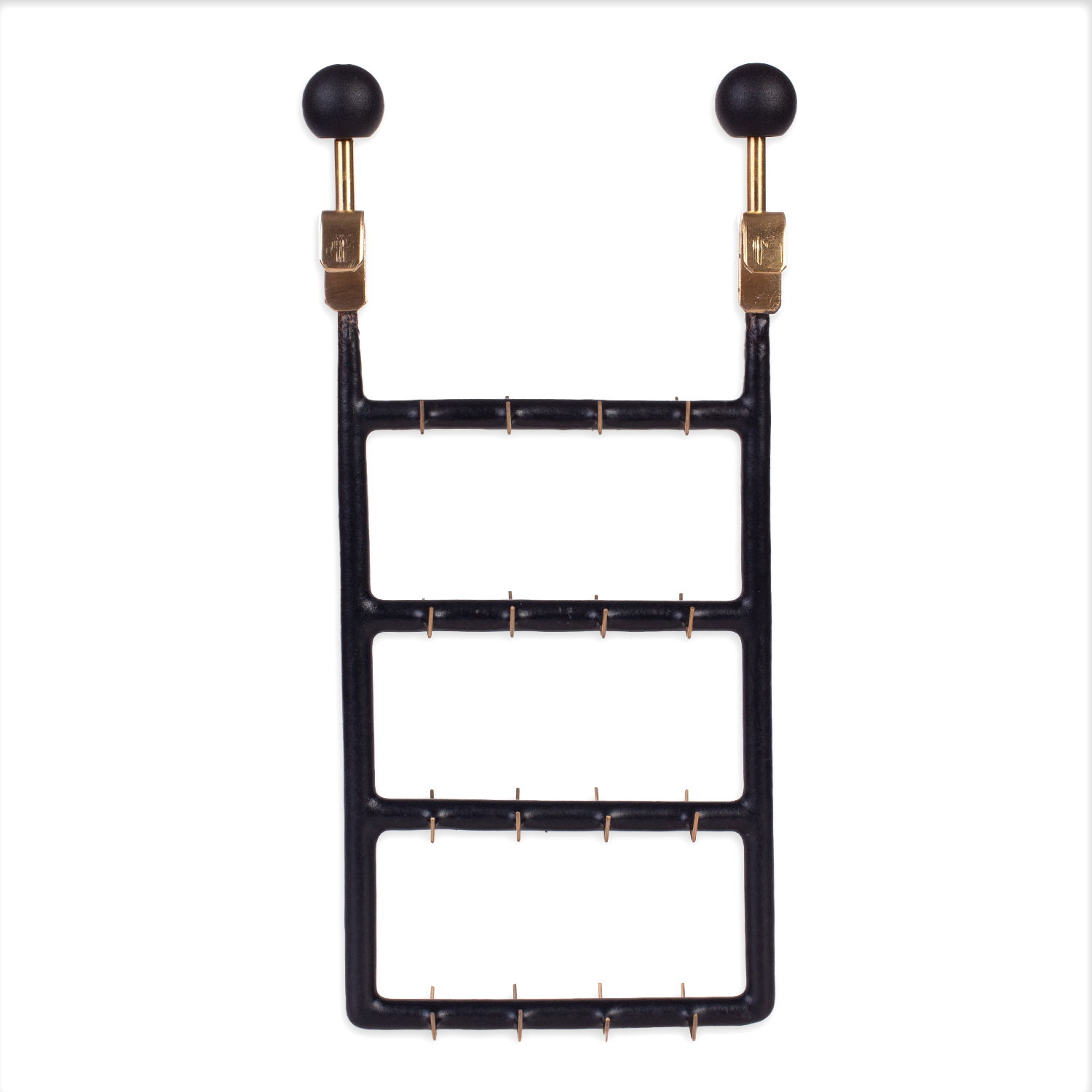

Jig with 32 hooks for rings 200x100mm (5 litre)
Jig with 32 hooks for rings 200x100 mm, which is perfectly suitable for Digital V.

€140.60*

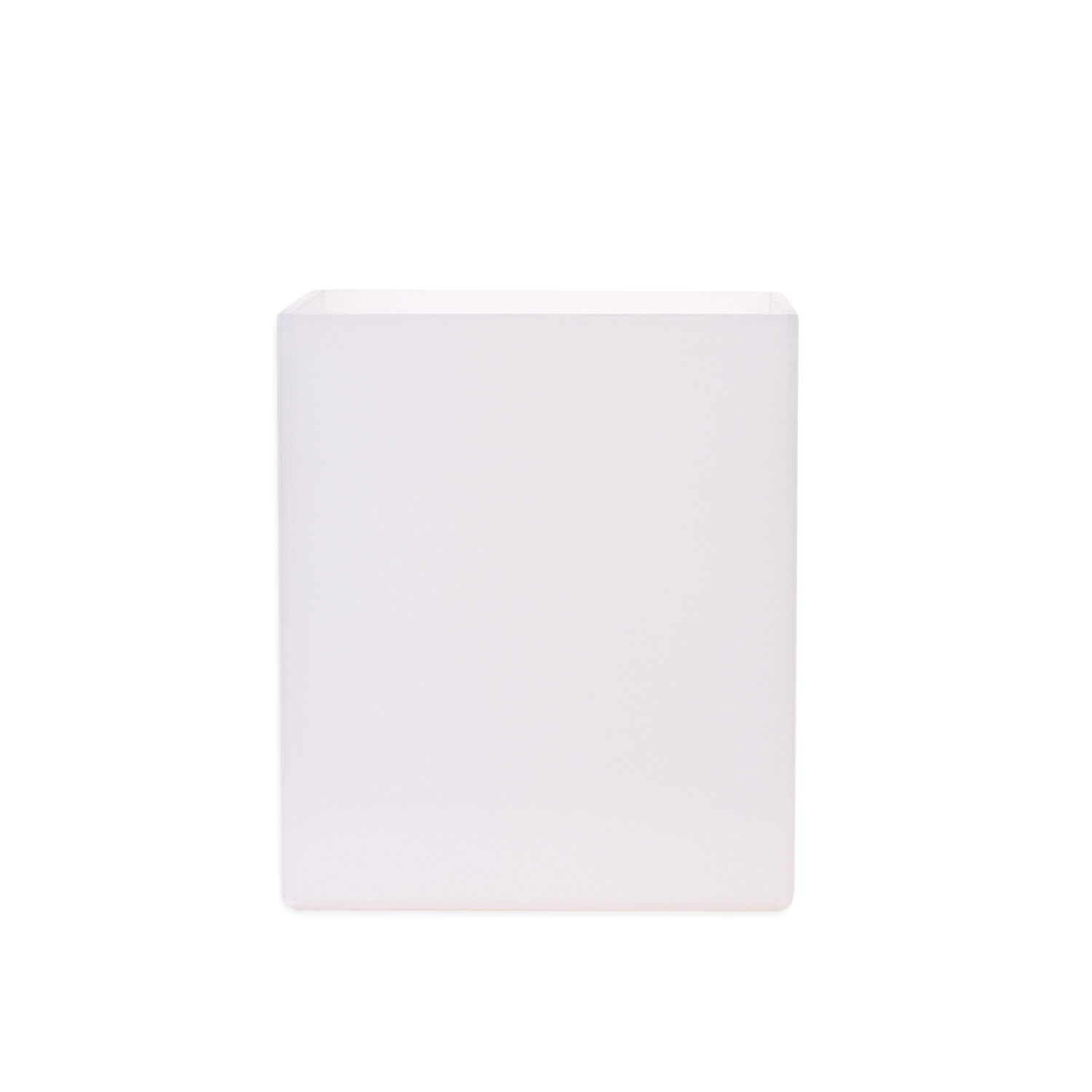

Tank PPH for 5 litres 190x150x220mm
This PPH Tank 190x150x220 mm with 5 liter volume is perfectly suitable for Digital V.

€108.70*

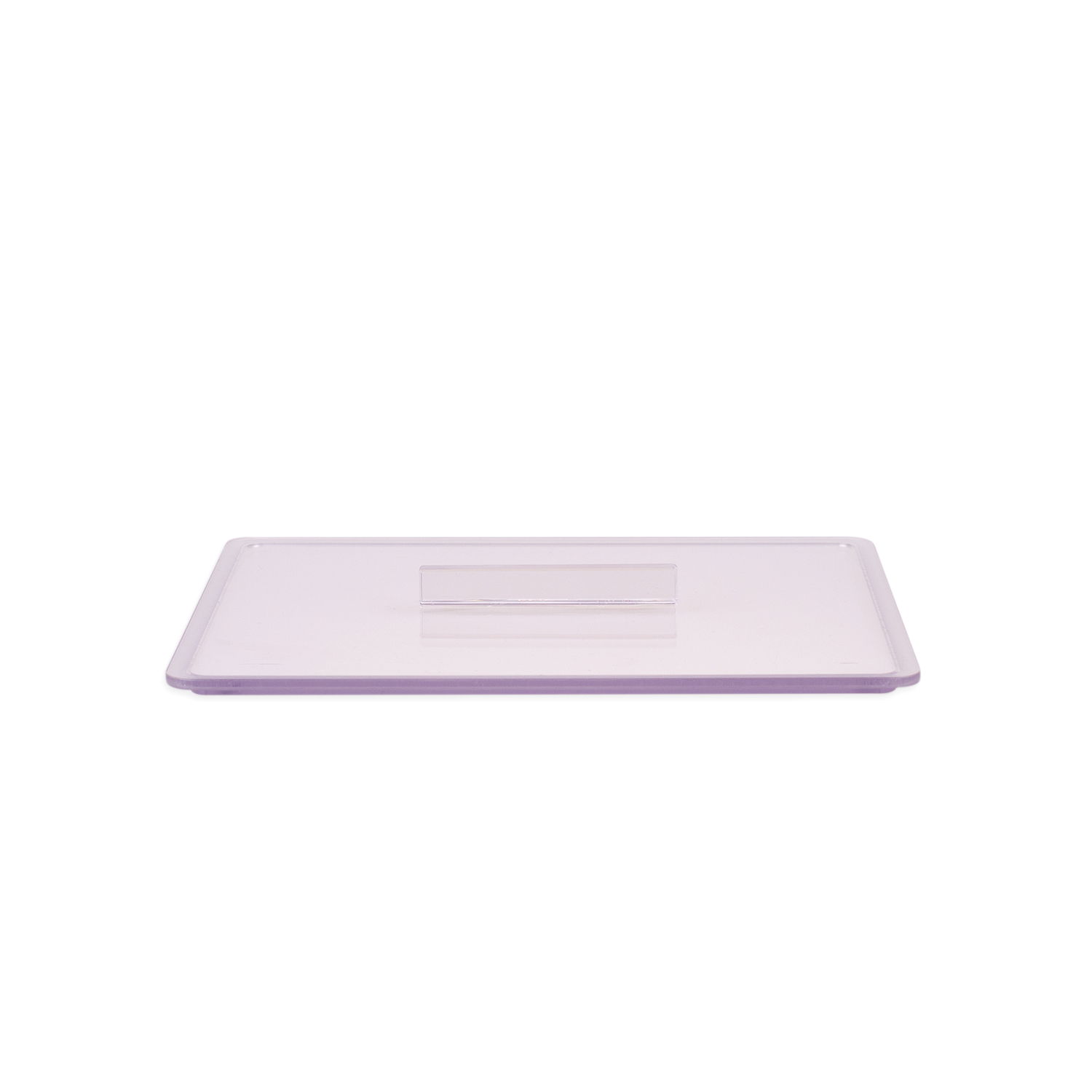

Tank lid, PP for 3/5 litre tank
Plastic tank lid for 3 and 5 liter PPH tanks suitable for our small-size electroplating unit Digital V.

€33.00*
