Platinized titanium anode
Our payment methods:
Product number:
260.100
Delivery time:
1-3 days
Your advantages with Jentner
- Fast shipping
- Made in Germany
- Secure DHL shipping

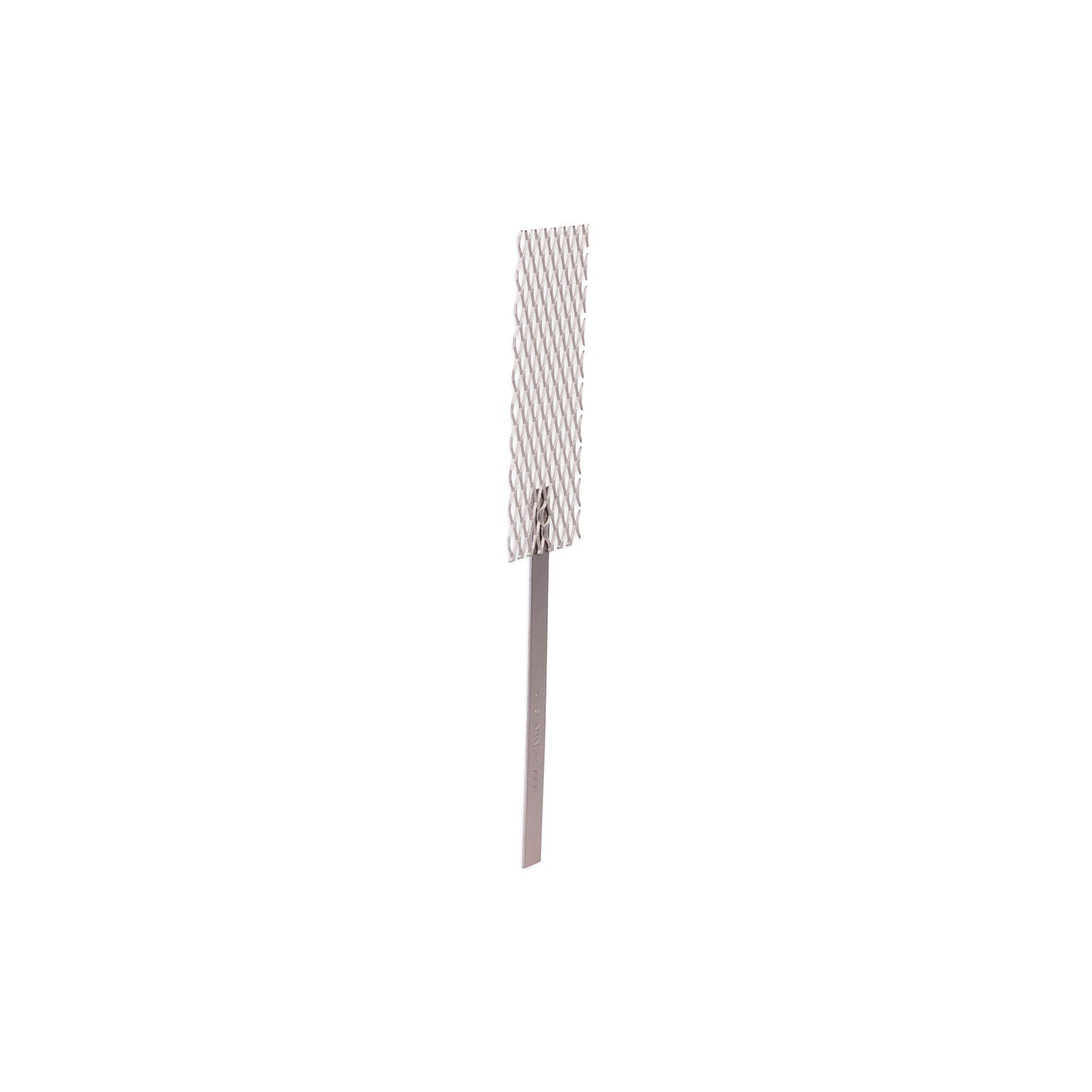

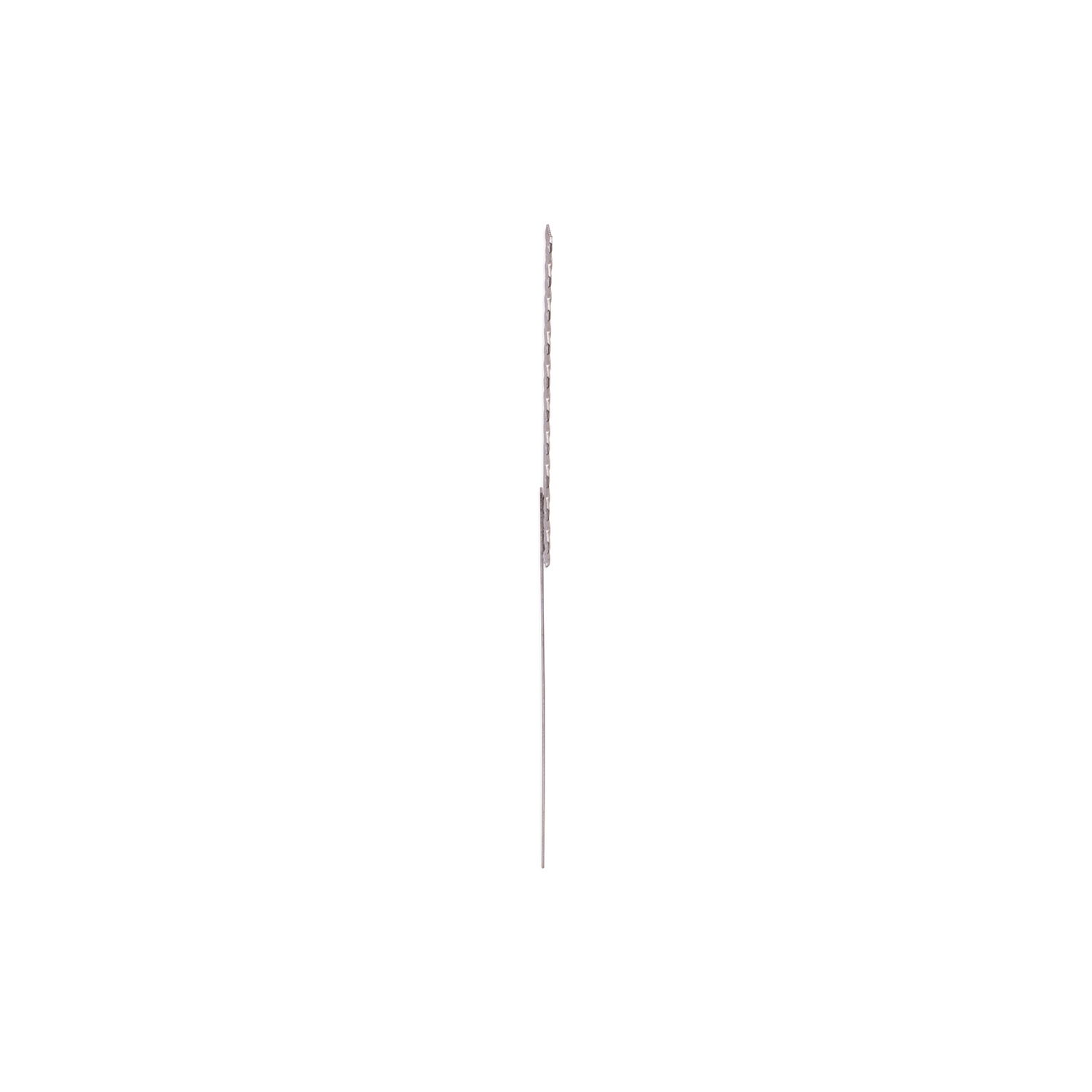

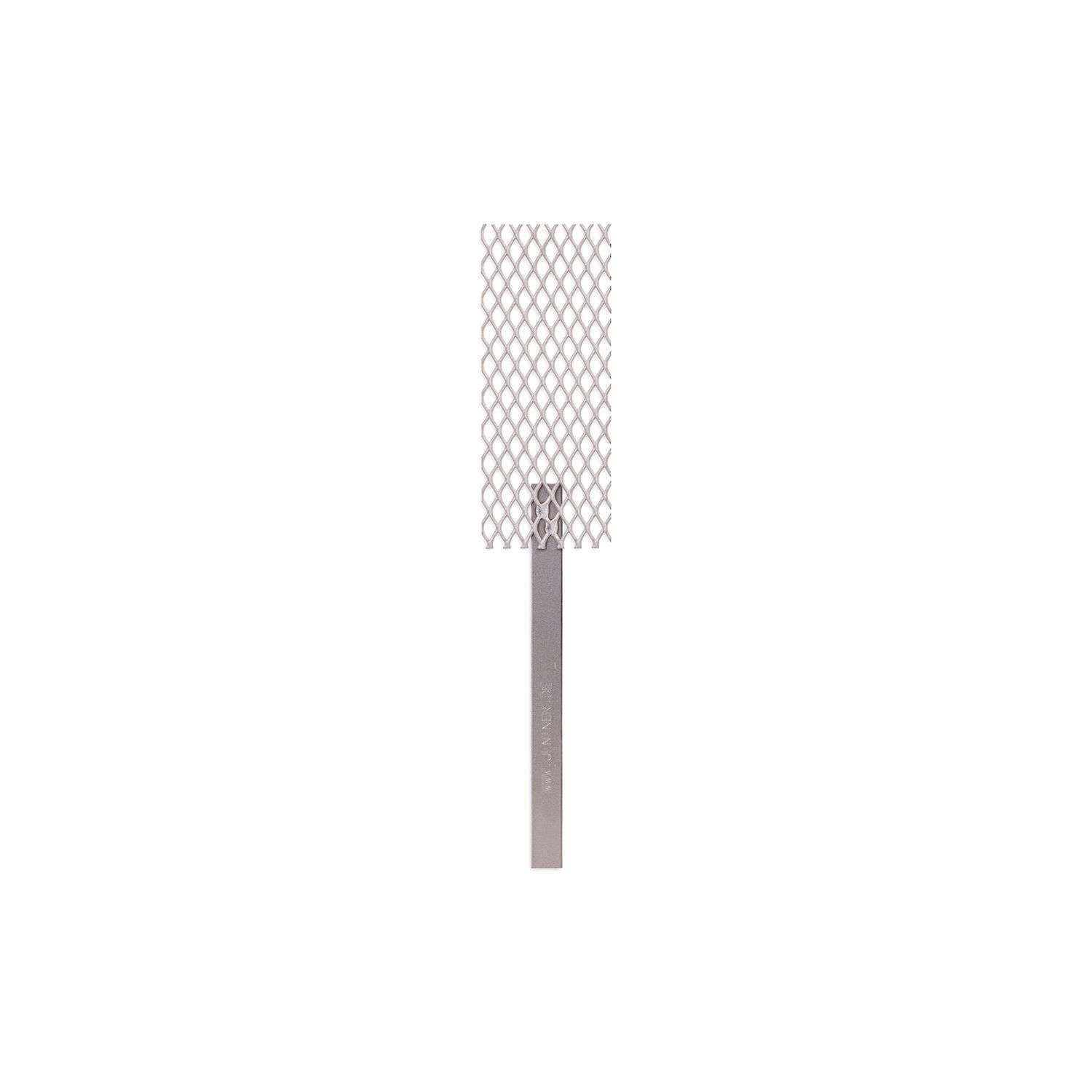

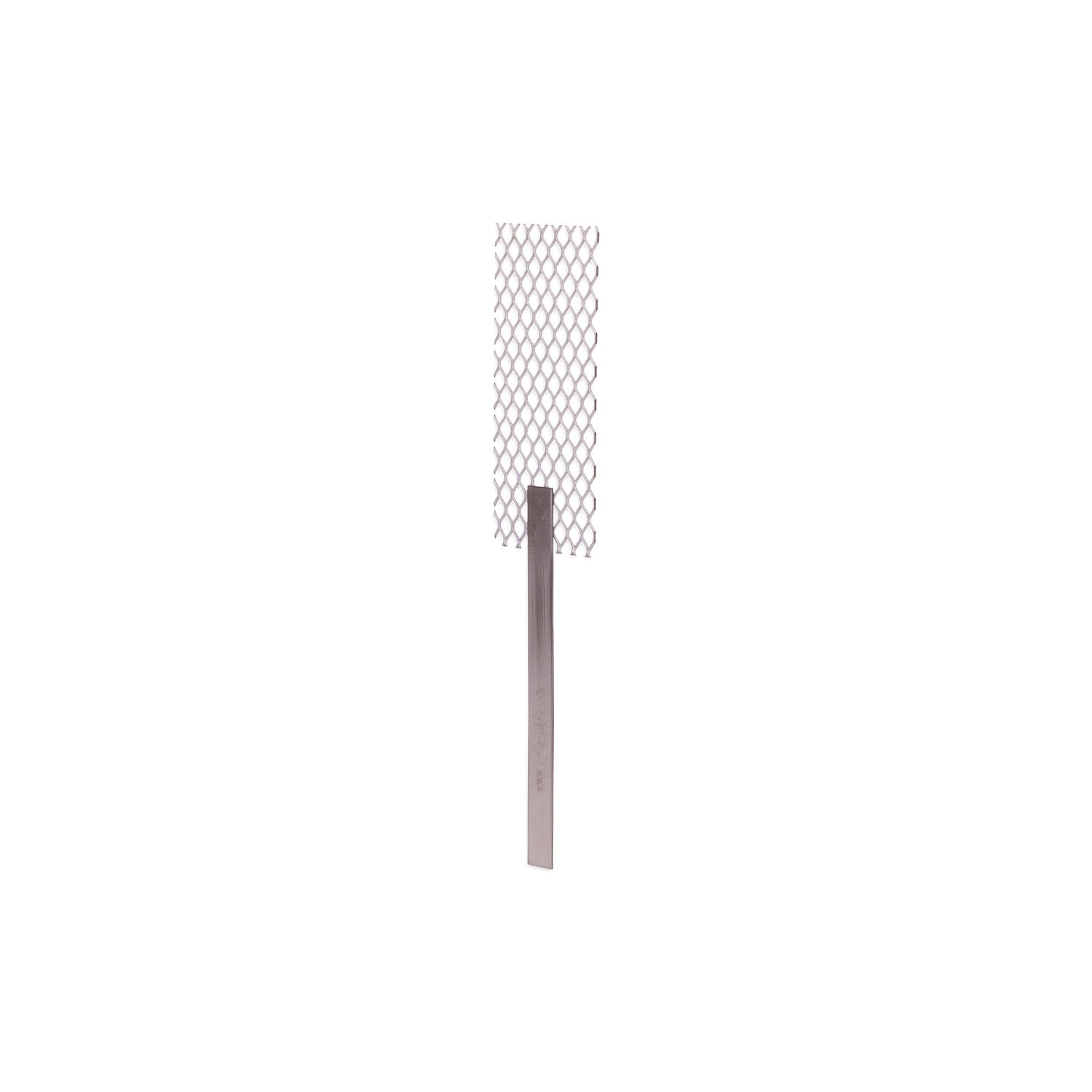

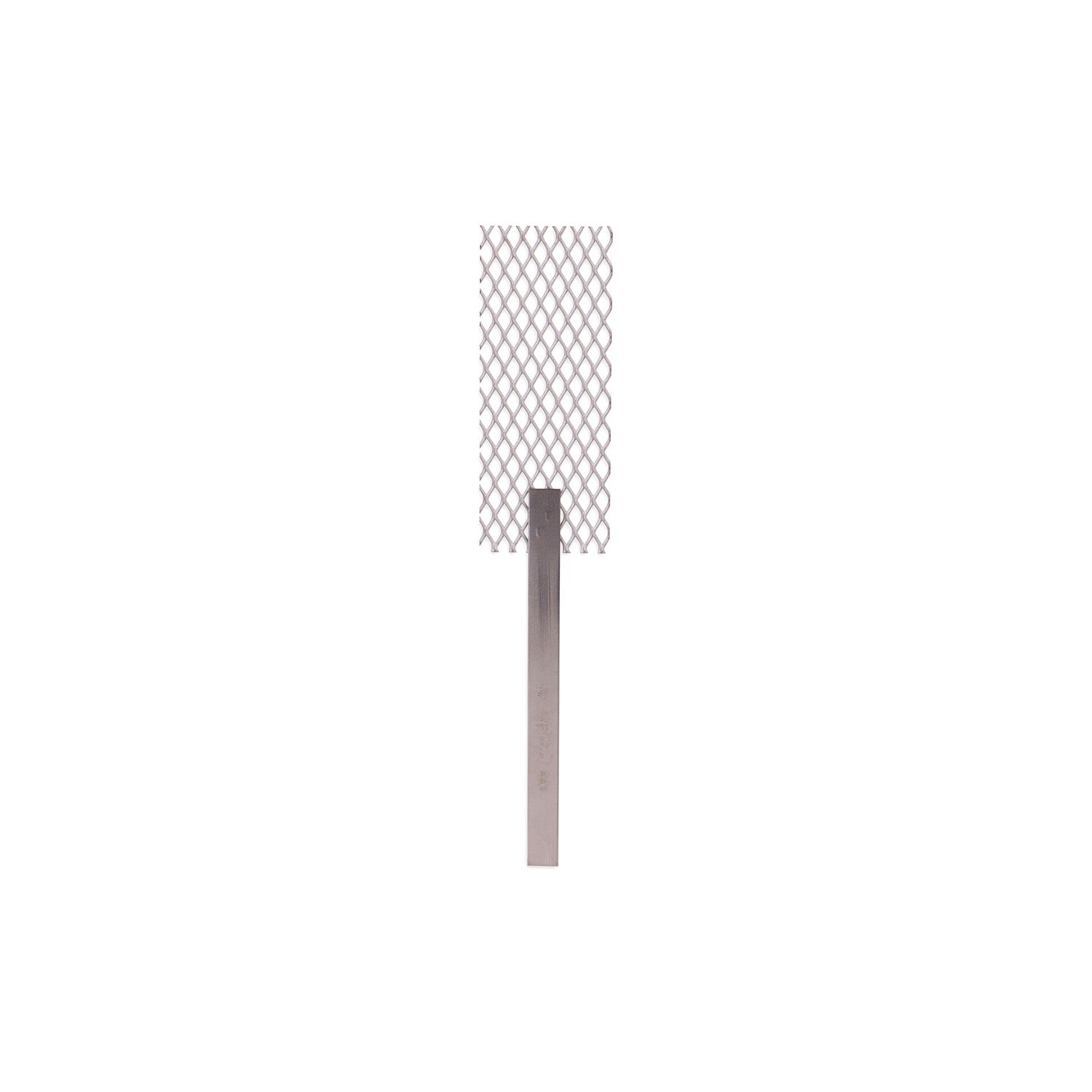

Product information "Platinized titanium anode"
Suitable platinized titanium anode, 100x40 mm (2.5 µm Pt) for Comfort II, Digital II Version 2.0 or 1,5 liter tanks. These anodes can be used e.g. for rhodium, platinum and gold plating baths.
Skip product gallery
Accessories
Electroplating Unit Comfort II
€1,861.92*
The small-size electroplating unit Comfort II can be used for all current plating solutions. The machine guarantees an easy, efficient and secure processing. Furthermore, the Comfort II has an integrated thermostatic control unit and integrated goods movement. Additionally, it has a pen plating connection. The cover plate is transparent and can be closed all around.
Technical data:Dimensions (WxDxH): 480x300x260 mmWeight: 16 kgRectifier: 15V/ 15ABath volume: 3x 1,5 l working tanks + 3x 1,5 l rinsing tanks Bath dimensions: 150x100x150mmControlled heating: 200WSupply voltage: 230V/ 50HzOptional equipment:1x connectable heater (200W)
Electroplating Unit DIGITAL II version 2.0
€3,153.60*
The Digital II version 2.0 is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre installed plating programs, new programs can be installed. The machine menu is available in several european languages. Digital II version 2.0 has an integrated goods movement and a pen plating connection.Technical data:Dimensions (WxDxH): 700x320x250 mmWeight: 18 kgBath volume: 4x1,5 l working tanks + 4x 1,5 l rinsing tanksBath dimensions: 150x100x150 mmRectifier: 15V/ 15AControlled heating: 2x200WSupply voltage: 230V/ 50Hz, 120V/ 60HzMain fuse: 2,5A slow-blow, 250V ~, 5*20 mmOptional equipment: 2x connectable heater (2x200W)

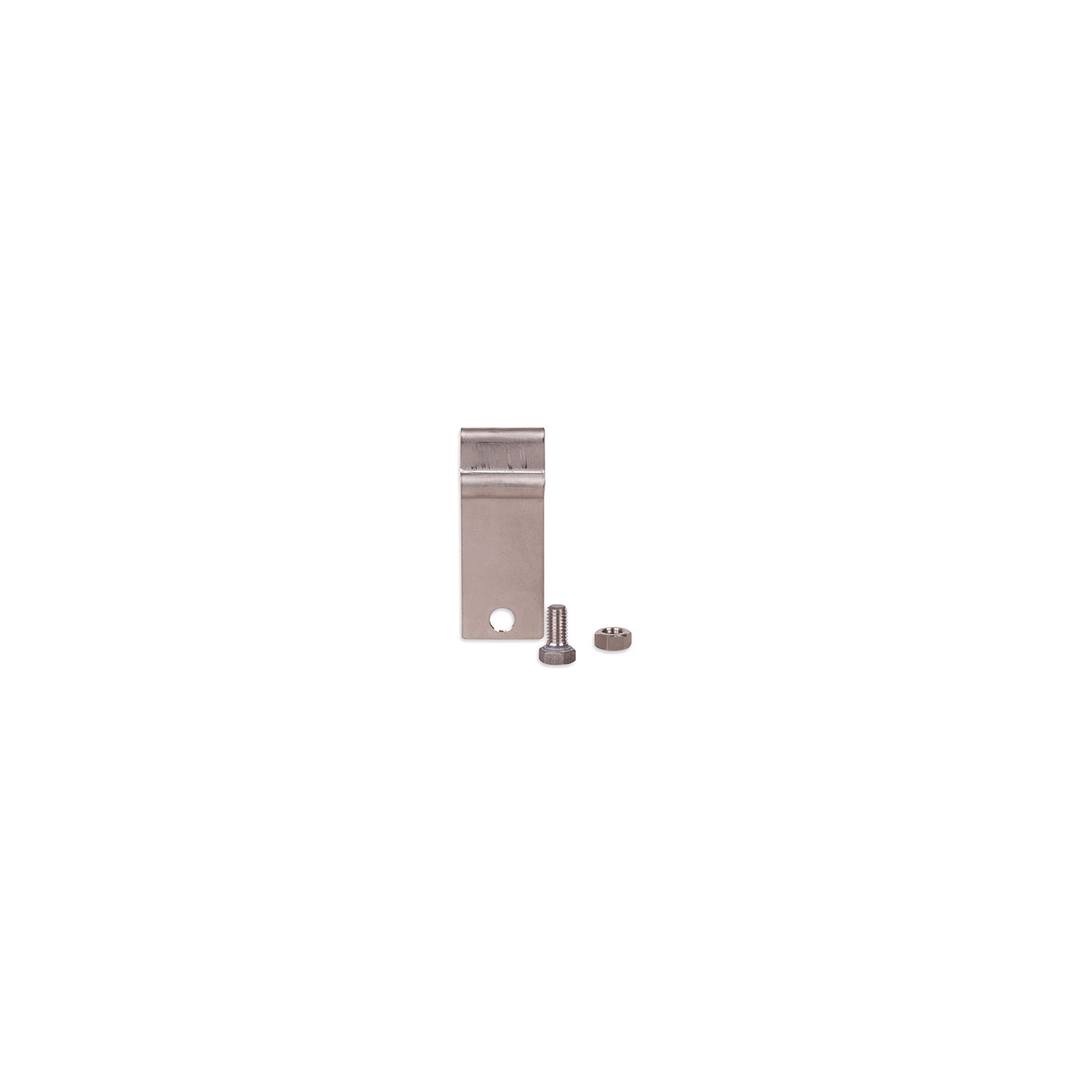

Titanium-fixation for anodes 39x20 mm with screws
€24.52*
Titanium-fixation for anodes, 39x20 mm with screws is ideal to fixate silver, nickel or copper anodes. It is suitable for Comfort II, Digital II or 1,5 liter tanks. Dimensions:39x20 mm
Platinum Bath JE18 - 2 g/L Pt
€138.18*
The acid platinum electrolyte JE18 deposits shiny, bright and hard platinum layers. It is used for decorative as well as technical applications. The layers are highly resistant to corrosion and abrasion.Operating data:Platinum content: 2,0 g/LpH-value: <1Density: 1,08 g/ml, increasingOperating conditions:Voltage: 2 VoltBath temperature: 30 - 40 °CExposition time: 2 - 4 min.Anodes: Platinized titanium, Mixed oxideAnode/Cathode surface: 1 : 1Goods movement: requiredDeposition rate: ca. 11 mg/Amin;
Current density: ca. 0,5-1,5 A/dm2Bath filtration: from 10 litresDeposition data:Hardness: Not measurable, approx.500 HVLayer thickness: max. 1,0 µmPt content: 99,9%Form of delivery:Ready for use 2 g/L Pt
Content:
1 liter
Gold Plating Bath JE250 - 3 g/L Au
€357.04*
The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 8 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 3 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050)
Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 8 µm
Fineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: required
Power density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 liter
Deposition rate: approx. 22 mg/Amin
Content:
1 liter
Gold Plating Bath JE250 - 8 g/L Au
€897.46*
The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 8 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 8 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 8 µmFineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: requiredPower density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 literDeposition rate: approx. 22 mg/Amin
Content:
1 liter

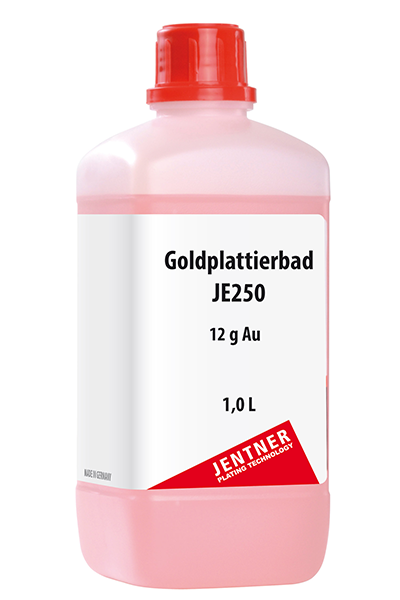

Gold Plating Bath JE250 - 12 g/L Au
€1,329.78*
The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 8 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 12 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 8 µmFineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: requiredPower density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 literDeposition rate: approx. 22 mg/Amin
Content:
1 liter

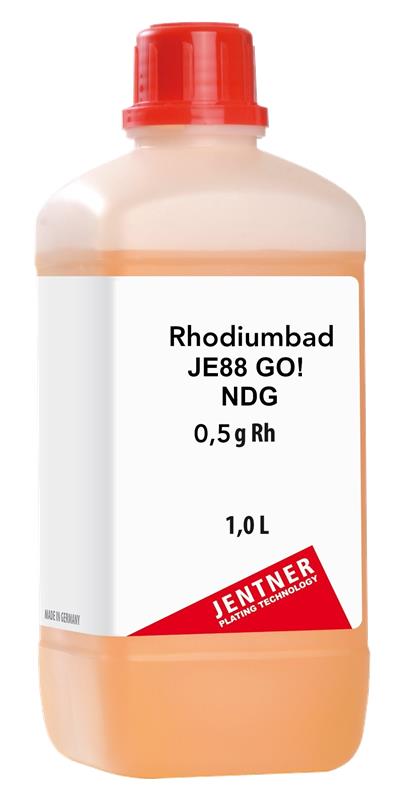

Rhodium Bath JE88 GO! NDG - 0,5 g/L Rh
€120.66*
The JE88! GO NDG rhodium bath represents a significant innovation in electroplating technology. It is the first rhodium that is not classified as a hazardous material during transportation, allowing for safe and easy worldwide shipping.This advanced rhodium is ideal for decorative coatings in the jewelry, eyeglass frame and watch industries. It also provides effective tarnish protection for silverware. With the ability to precisely deposit layers down to 1.0 µm, the JE88! GO NDG rhodium bath ensures exceptional brilliance and durability. Its versatility makes it the ideal choice for various electroplating applications.Operating Data: Rhodium content: 0,5 g/L pH-Value: <1 Working conditions: Voltage: 2,5 – 3,5 Volt Bath temperature: 20 - 30° C Exposition time: 2 min. (1 max. 10 min) Anodes: Platiniertes Titan oder Mischoxid MOX Anode/ Cathode: 1 : 1 Current density: 0,5 – 2,0 A/dm2 Agitation: advantageous Bath filtration: from 10 Liter Deposition rate: 6 – 8mg/Amin Form of Delivery: Ready for use 0,5 g/L
Content:
1 liter
Rhodium Bath JE88 GO! NDG - 1 g/L Rh
€212.49*
The JE88! GO NDG rhodium bath offers a decisive advantage: it is the first rhodium that does not have to be declared as dangerous goods during transportation. This innovation enables problem-free and safe worldwide shipping.The revolutionary rhodium is ideal for decorative coatings with a small electroplating process in the jewelry, eyeglass frame and watch industries. It is also frequently used as effective tarnish protection for silverware. The precise deposition of layers of up to 1.0 µm enables outstanding brilliance and durability. The versatile application makes the JE88! GO NDG rhodium bath the ideal choice for various electroplating processes.Operating Data:Rhodium content: 1,0 g/LpH-Value: <1Working conditions:Voltage: 2,5 – 3,5 VoltBath temperature: 20 - 30° CExposition time: 2 min. (1 max. 10 min)Anodes: Platiniertes Titan oder Mischoxid MOXAnode/ Cathode: 1 : 1Current density: 0,5 – 2,0 A/dm2Agitation: advantageousBath filtration: from 10 LiterDeposition rate: 6 – 8mg/AminForm of Delivery:Ready for use 1,0 g/L
Content:
1 liter

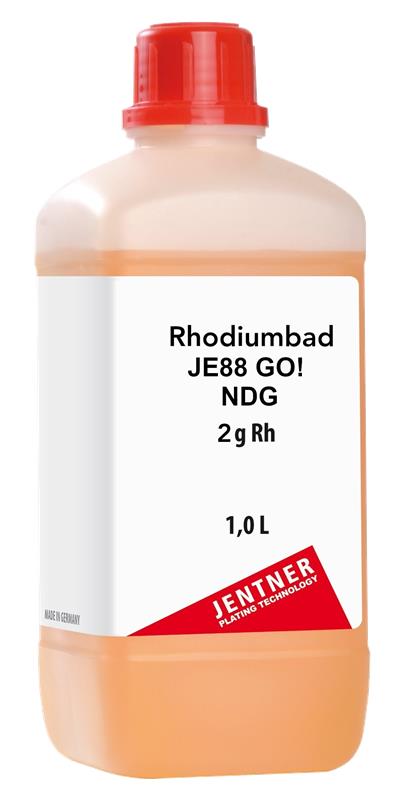

Rhodium Bath JE88 GO! NDG - 2 g/L Rh
€420.22*
The JE88! GO NDG rhodium bath offers a decisive advantage: it is the first rhodium that does not have to be declared as dangerous goods during transportation. This innovation enables problem-free and safe worldwide shipping.The revolutionary rhodium is ideal for decorative coatings with a small electroplating process in the jewelry, eyeglass frame and watch industries. It is also frequently used as effective tarnish protection for silverware. The precise deposition of layers of up to 1.0 µm enables outstanding brilliance and durability. The versatile application makes the JE88! GO NDG rhodium bath the ideal choice for various electroplating processes.Operating Data:Rhodium content: 2,0 g/LpH-Value: <1Working conditions:Voltage: 2,5 – 3,5 VoltBath temperature: 20 - 30° CExposition time: 2 min. (1 max. 10 min)Anodes: Platiniertes Titan oder Mischoxid MOXAnode/ Cathode: 1 : 1Current density: 0,5 – 2,0 A/dm2Agitation: advantageousBath filtration: from 10 LiterDeposition rate: 6 – 8mg/AminForm of Delivery:Ready for use 2,0 g/L
Content:
1 liter

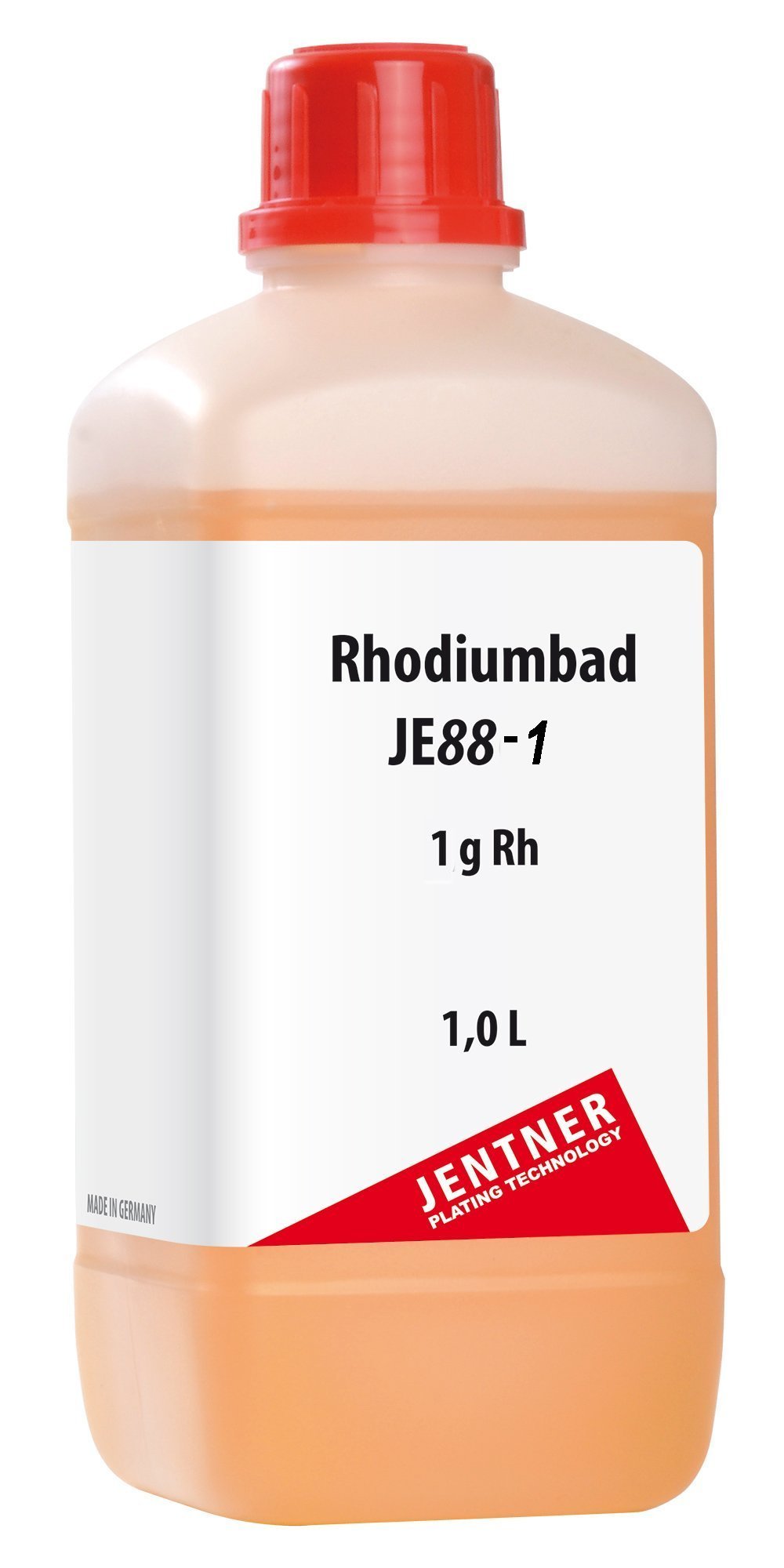

Rhodium bath JE88-1 GO! - 1 g/L Rh
€212.49*
The rhodium bath JE88-1 deposits mirror shining, brilliant white, magnificent hard and abrasion resistant rhodium layers. It is preferably used for decorative coatings in the jewellery industry. In many cases the rhodium electrolyte is used as tarnish protection for silver products. Coatings up to 0,5 µm can be deposited.Operating data:Rhodium content: 1,0 g/L RhpH-Value: < 1Operating conditions:Voltage: 2 - 3 VoltBath temperature: 20 - 40 °CExposition time: 2 min. (1 - max. 10 min.)Anodes: platinized titanium or mixed metal oxideAnode/Cathode surface: 1 : 1Agitation: advantageousCurrent density: 0,5 - 2 A/dm2Bath filtration: from 10 litersDeposition data:Hardness: 800 - 900 HVLayer thickness: max. 0,5 µmLayer density: approx. 12,4 g/cm3Form of delivery:- Ready for use 1 g/L Rh- Concentrate form 1 g/100ml Rh for 1 litre bath
Content:
1 liter
Rhodium Bath JE88 GO! - 2 g/L Rh
€420.22*
The rhodium bath JE88 deposits mirror shining, brilliant white, magnificent hard and abrasion resistant rhodium layers. It is preferably used for decorative coatings in the jewellery industry. In many cases the rhodium electrolyte is used as tarnish protection for silver products. Coatings up to 1 µm can be deposited.Operating data:Rhodium content: 2,0 g/L RhpH-Value: <1Operating conditions:Voltage: 2 - 3 VoltBath temperature: 20 - 40 °CExposition time: 2 min. (1 - max. 10 min.)Anodes: platinized titanium or mixed metal oxideAnode/Cathode surface: 1:1Agitation: advantageousCurrent density: 0,5 - 2 A/dm2Bath filtration: from 10 litersDeposition data:Hardness: 800 - 900 HVLayer thickness: max. 1,0 µmLayer density: approx. 12,4 g/cm3Form of delivery:- Ready for use 2 g/L Rh- Concentrate form 2 g/100ml Rh for 1 litre bath
Content:
1 liter
Rhodium bath JE88-1 CLEAN - 1 g/L Rh
€212.49*
The rhodium bath JE88-1 deposits mirror shining, brilliant white, magnificent hard and abrasion resistant rhodium layers. The color of the electrolyte in the bottle may vary slightly, as the product is made exclusively from recycled rhodium. However, this does not affect the color of the deposited rhodium layer.
In many cases the rhodium electrolyte is used as tarnish protection for silver products. Coatings up to 0,5 µm can be deposited. Operating data:Rhodium content: 1,0 g/L Rh pH-Value: < 1 Operating conditions:Voltage: 2 - 3 VoltBath temperature: 20 - 40 °CExposition time: 2 min. (1 - max. 10 min.)Anodes: platinized titanium or mixed metal oxideAnode/Cathode surface: 1 : 1Agitation: advantageousCurrent density: 0,5 - 2 A/dm2Bath filtration: from 10 litersDeposition data:Hardness: 800 - 900 HV Layer thickness: max. 0,5 µm Layer density: approx. 12,4 g/cm3 Form of delivery:- Ready for use 1 g/L Rh - Concentrate form 1 g/100ml Rh for 1 litre bath
Content:
1 liter
Black rhodium bath JE23-1 GO! - 2 g/L Rh
€431.88*
The black rhodium bath JE23-1 deposits dark anthracite-grey, particular decorative rhodium coatings. The layers are very abrasion resistant, colour consistent and uniform. The electrolyte is preferably used for decorative coatings in the jewellery and eyewear industry. JE23-1 is characterized by it's easy handling and usability. It works at room temperature so a time and energy intensive heating-up can be omitted. Coatings up to 0,5 µm can be deposited.
Operating Data:Rhodium content: 2,0 g/L RhpH-Value: <1Density: 1,02 – 1,07 g/cm3
Working conditions:Voltage: 2 - 3 VoltBath temperature: 20 - 27°CExposition time: 2 min. (1 - 5 min.)Anodes: Platinized titanium, mixed-metal-oxideAnode/ Cathode: 1:1Current density: 1,0 - 1,5 A/dm2Agitation: required
Deposition rate: 6 - 8mg/AminBath filtration: ab 10 LiterDeposition Data:Hardness: 300 - 370 HVLayer thickness: max. 0,5 μmLayer density: ca. 10,5 g/cm3Form of delivery:Ready for use
Content:
1 liter
