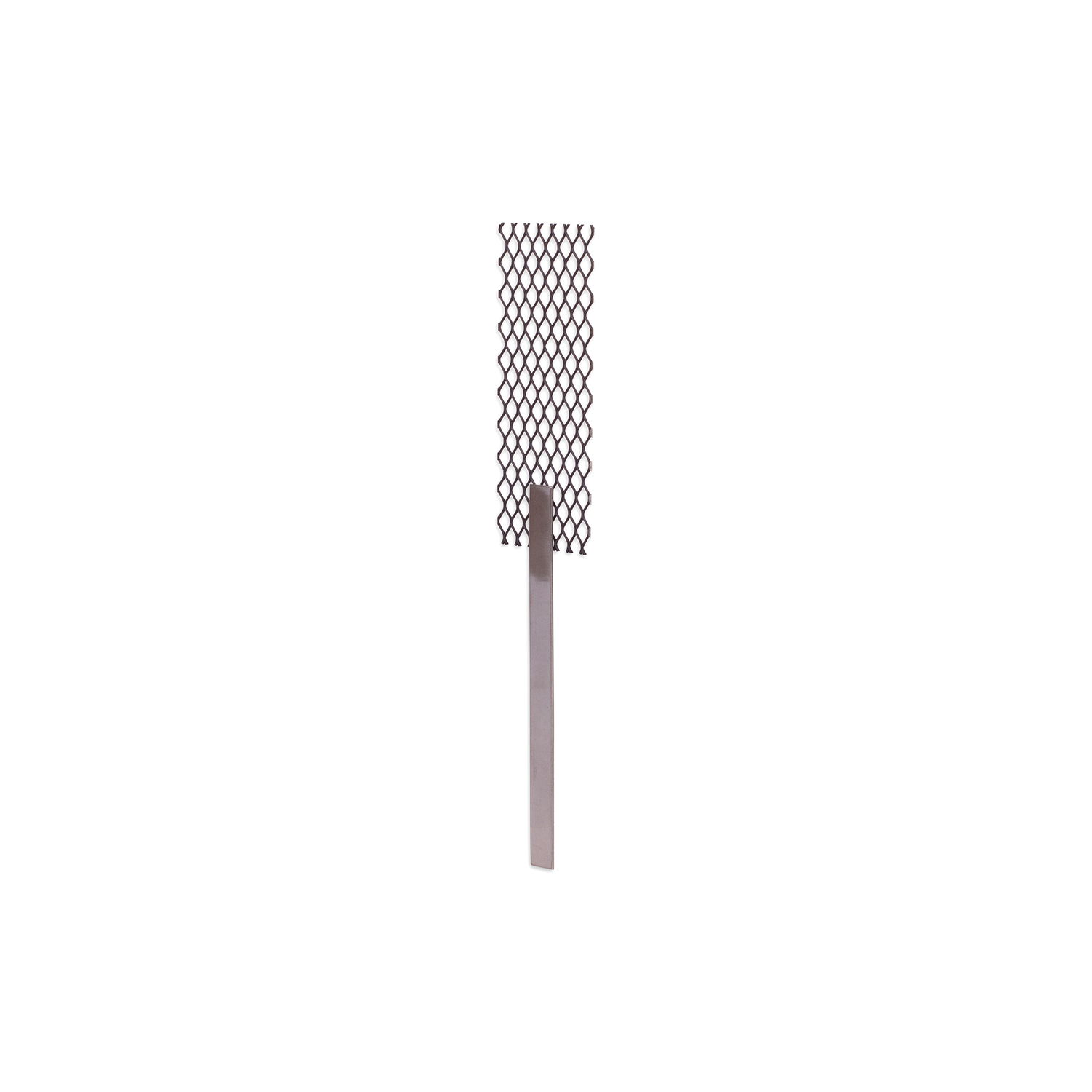

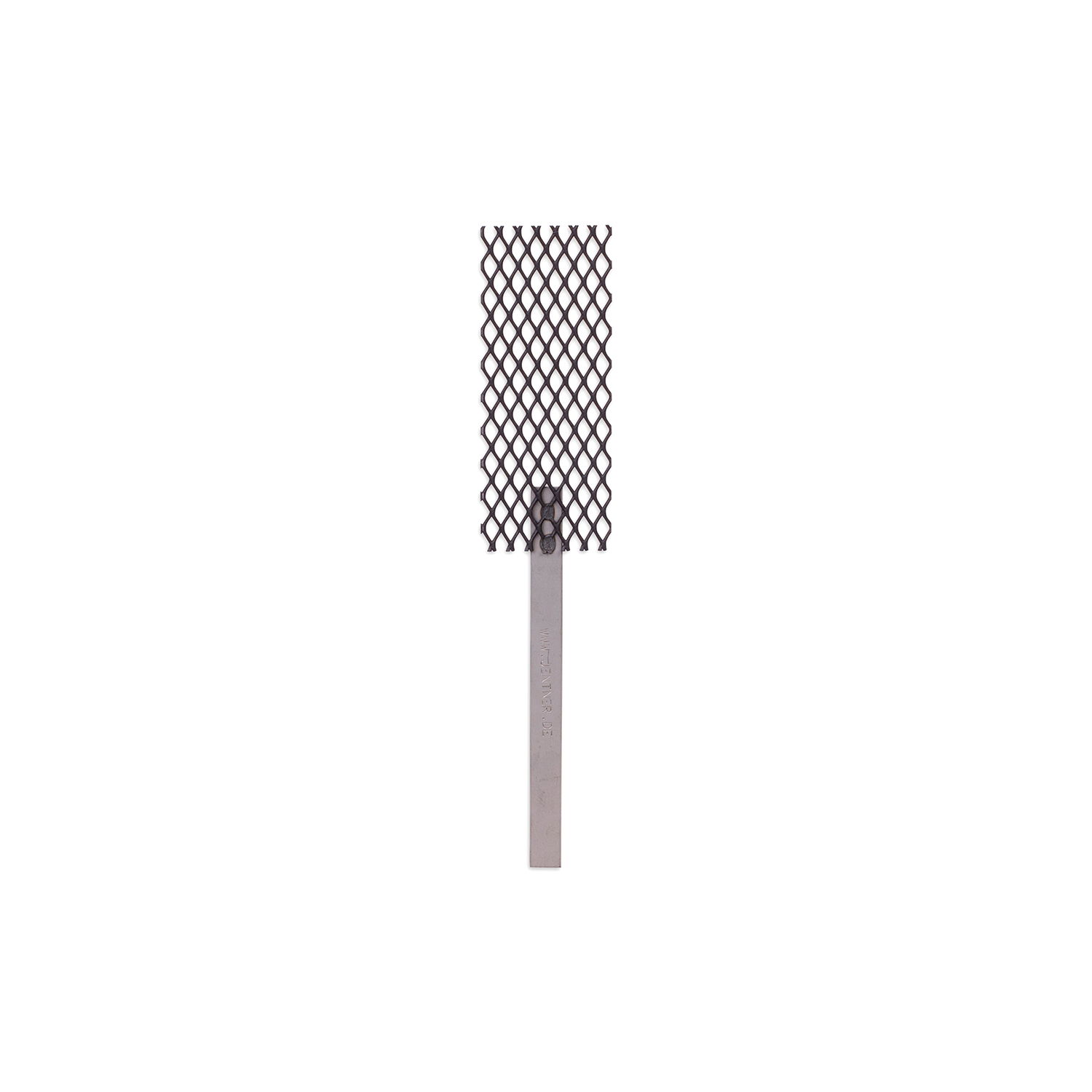

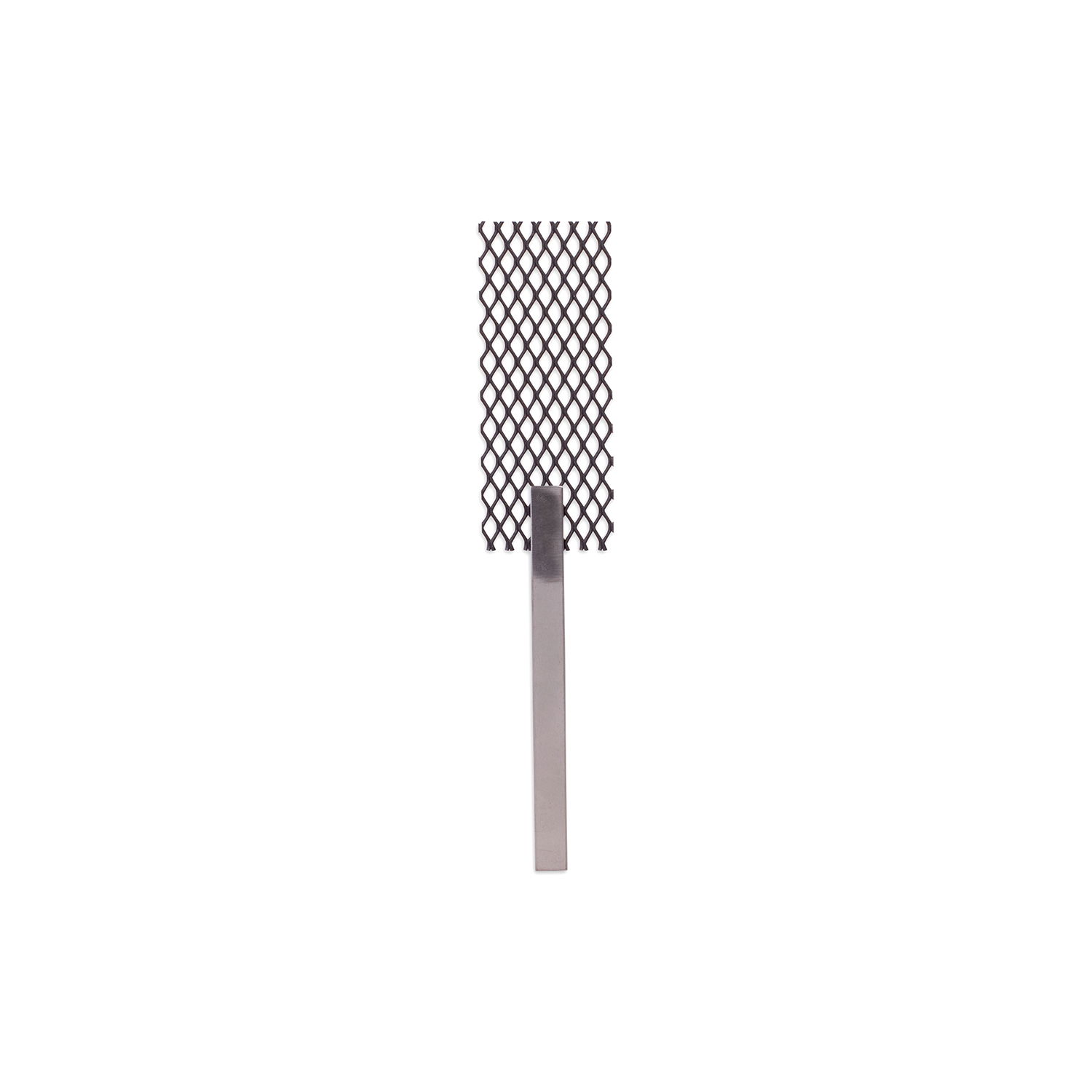

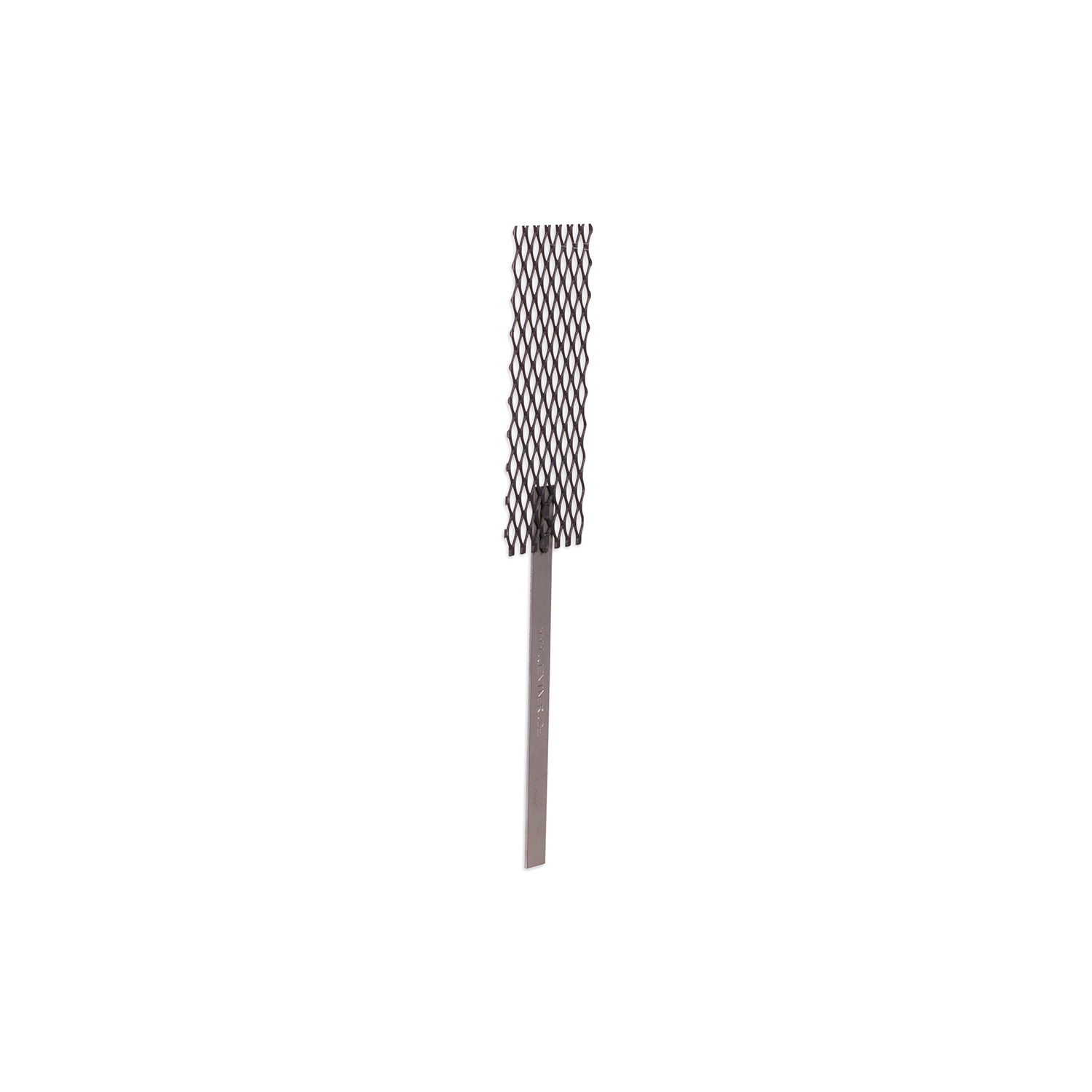

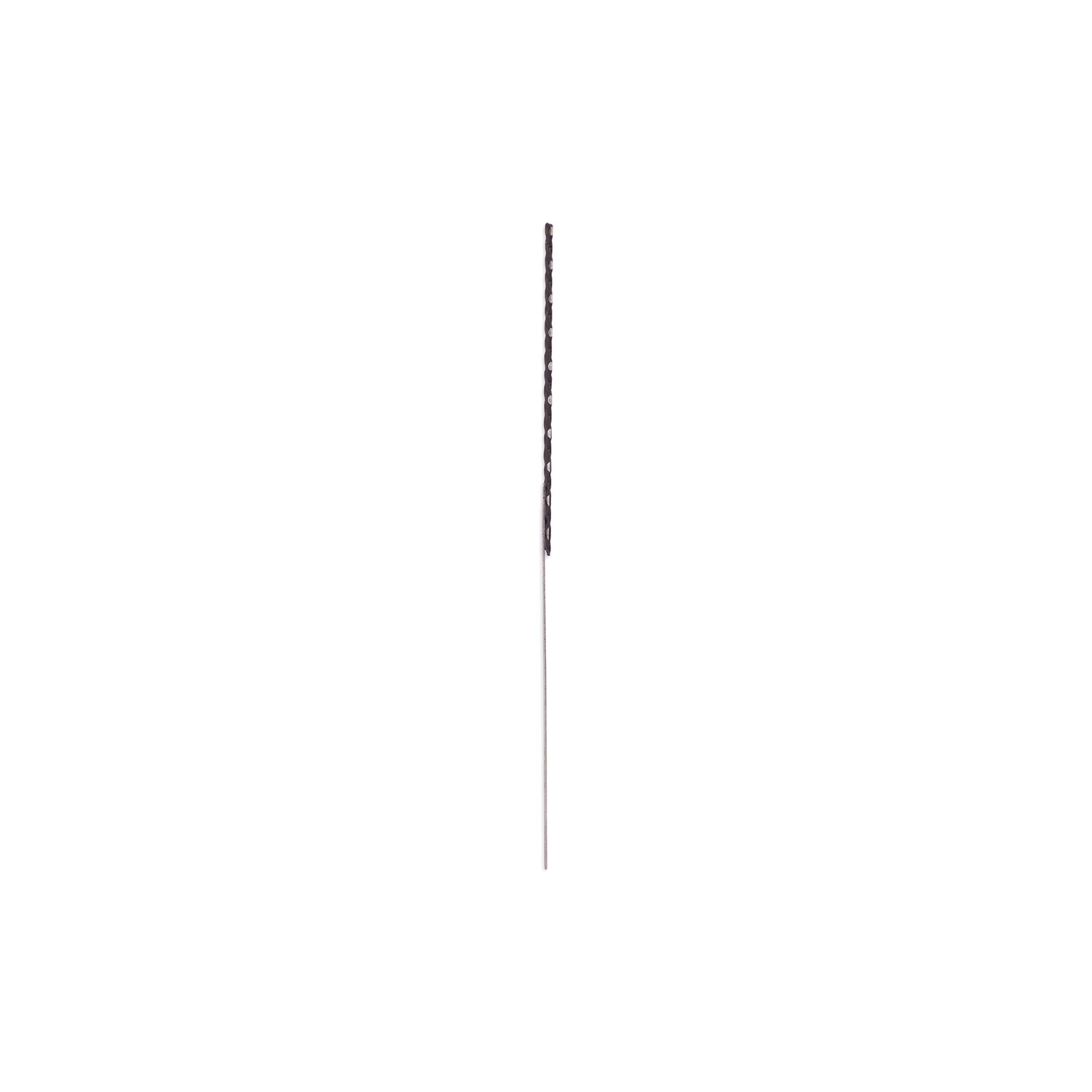

Mixed oxid anode MOX (Ir/MMO)
Our payment methods:
Product number:
7346.100
Delivery time:
1-3 days
Your advantages with Jentner
- Fast shipping
- Made in Germany
- Secure DHL shipping
Product information "Mixed oxid anode MOX (Ir/MMO)"
Suitable mixed oxid anode MOX (Ir/MMO) 100x40 mm for Digital II Version 2.0 or 1,5 liter tanks. These anodes can be used e.g. for pre-gold and palladium baths.
Skip product gallery
Accessories

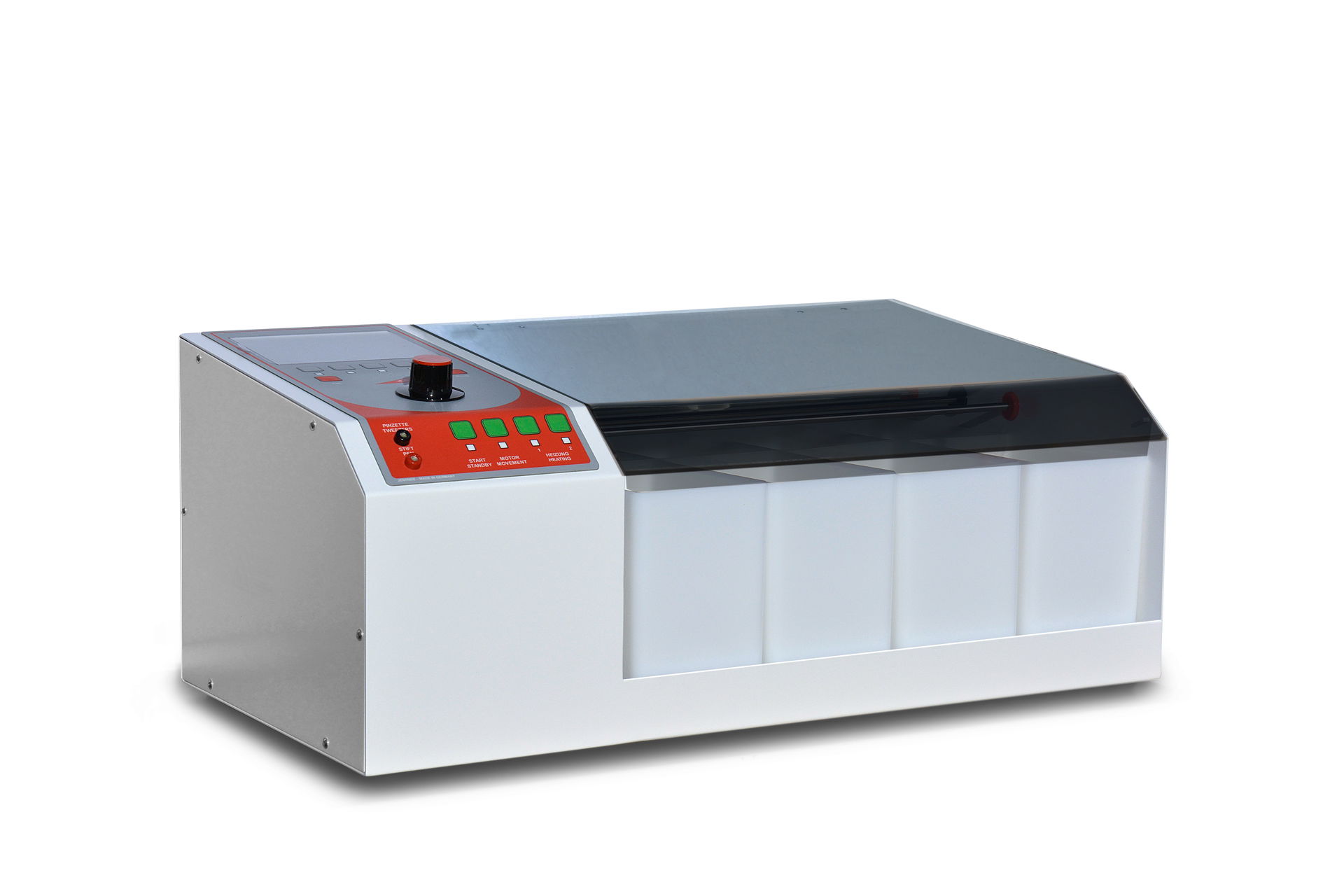

Electroplating Unit DIGITAL II version 2.0
€3,153.60*
The Digital II version 2.0 is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre installed plating programs, new programs can be installed. The machine menu is available in several european languages. Digital II version 2.0 has an integrated goods movement and a pen plating connection.Technical data:Dimensions (WxDxH): 700x320x250 mmWeight: 18 kgBath volume: 4x1,5 l working tanks + 4x 1,5 l rinsing tanksBath dimensions: 150x100x150 mmRectifier: 15V/ 15AControlled heating: 2x200WSupply voltage: 230V/ 50Hz, 120V/ 60HzMain fuse: 2,5A slow-blow, 250V ~, 5*20 mmOptional equipment: 2x connectable heater (2x200W)

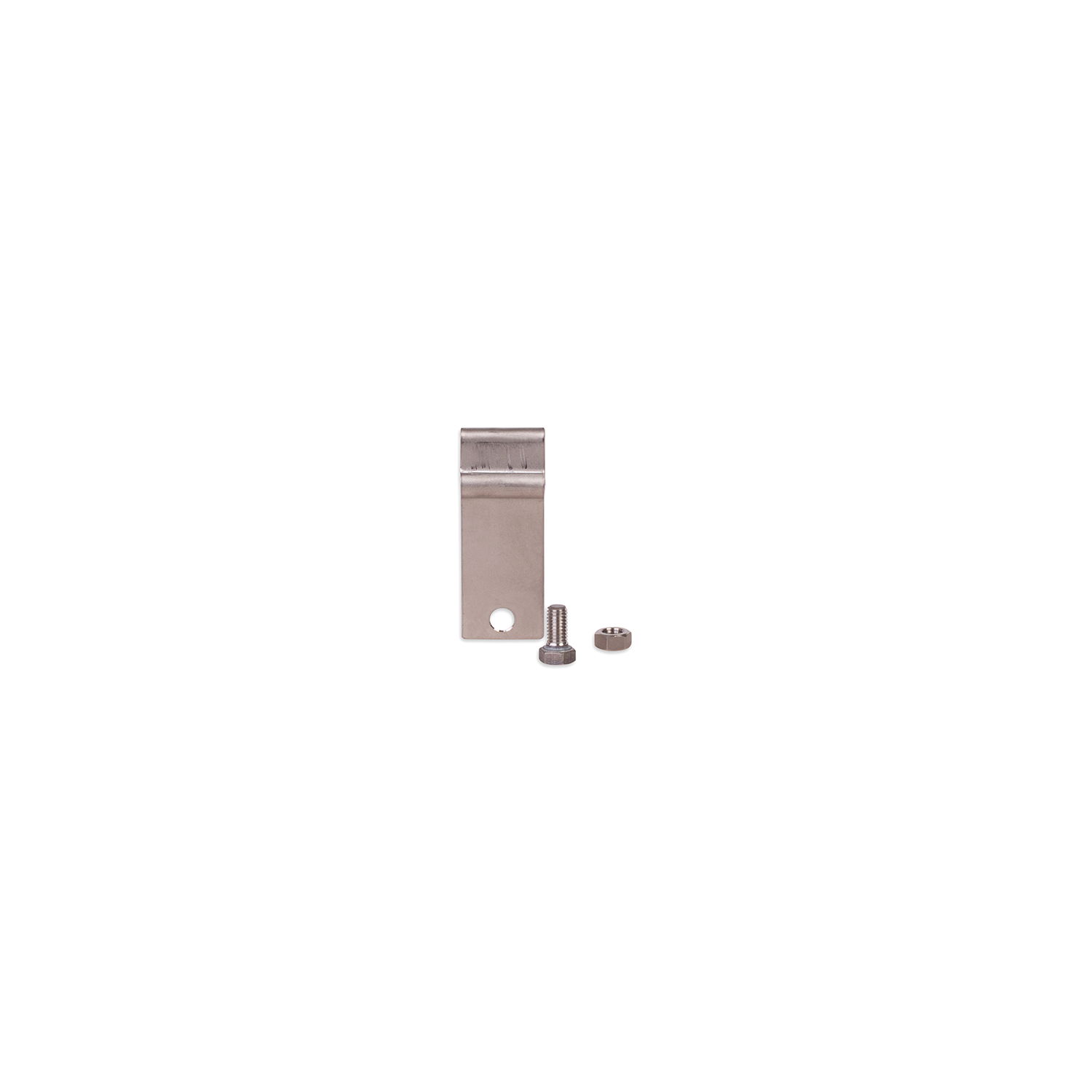

Titanium-fixation for anodes 39x20 mm with screws
€24.52*
Titanium-fixation for anodes, 39x20 mm with screws is ideal to fixate silver, nickel or copper anodes. It is suitable for Comfort II, Digital II or 1,5 liter tanks. Dimensions:39x20 mm

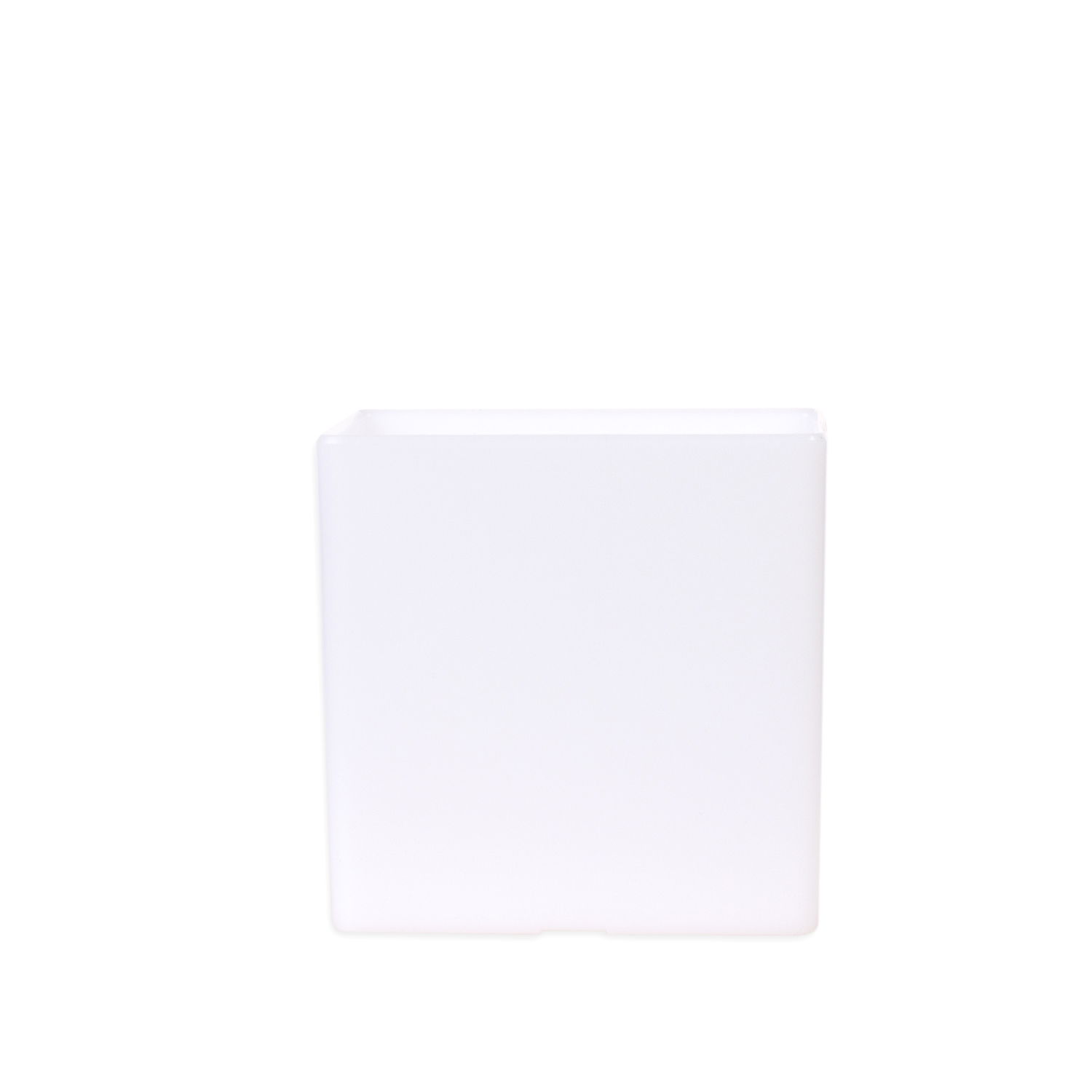

Tank PP 1,5 litres 150x100x150mm
€45.36*
Wanne-PPH 150x100x150mm aus PPH Kunststoff mit 1,5 Liter Volumen. Die Wanne eignet sich ideal für die Kleingalvanisiergeräte Comfort II und Digital II Version 2.0.

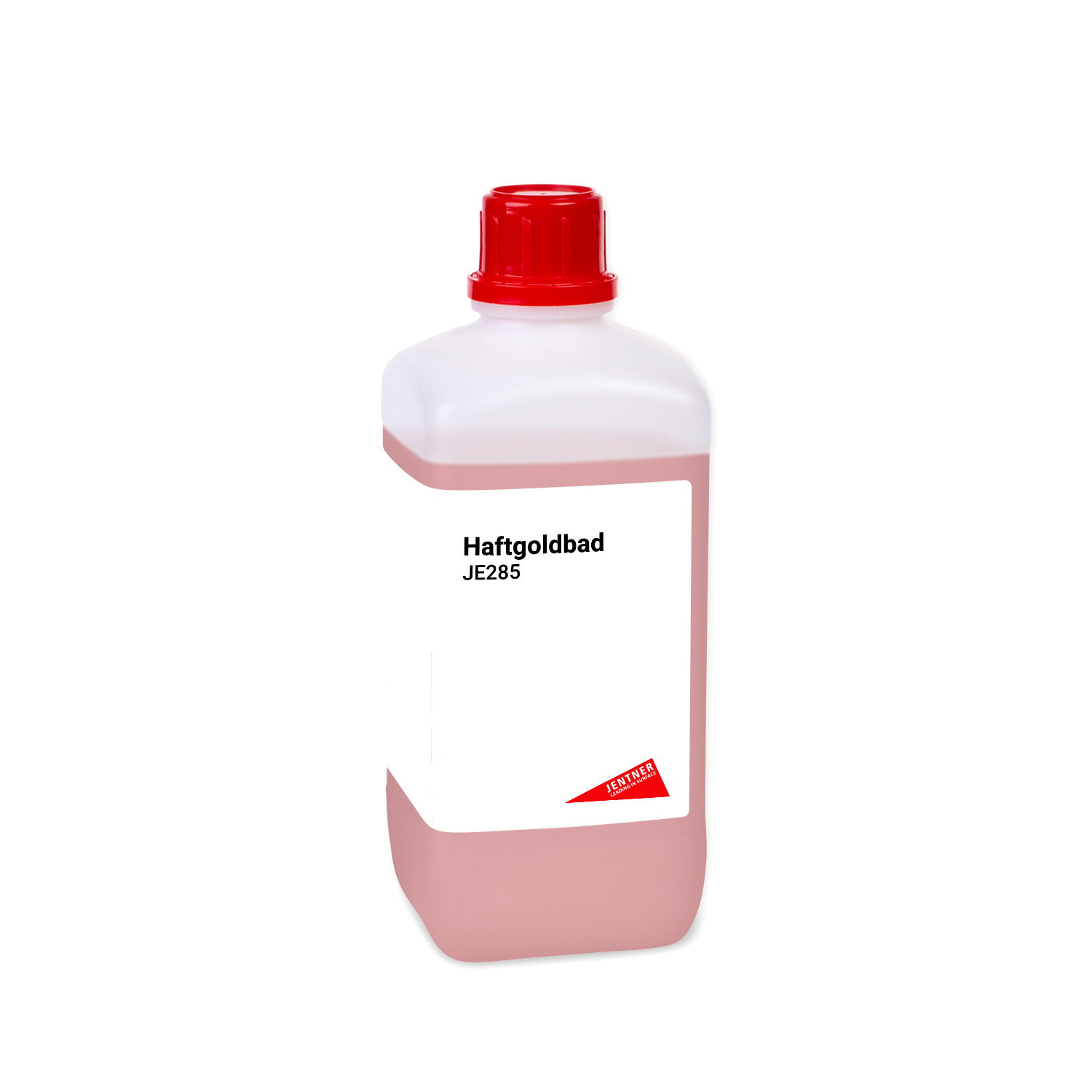

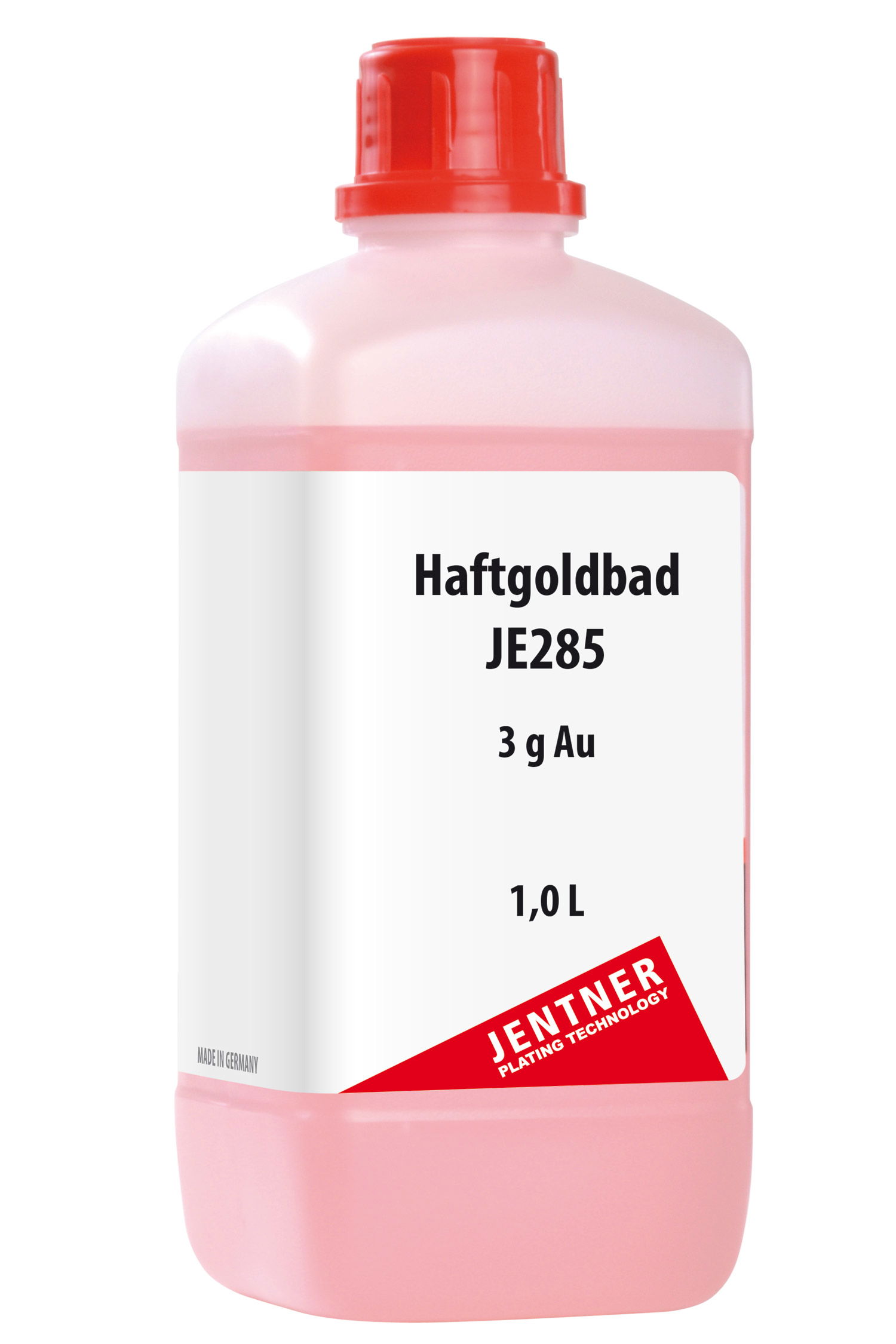

Pre-Gold Bath JE285 - 3 g/L Au
€357.40*
The pre-gold bath JE285 is ideal to plate gold directly on stainless steels, molybdenum containing steel and nickel-base alloys which are hard to activate. Because of it's highly activative impact it can be used successfully for passive material which is difficult to plate. The gold electrolyte generally improves the adhesive properties between base material and galvanic surface.Operating data:Gold content: 3 g/LSulfuric acid content: 25 g/L (20-30)
Deposition data:Hardness: approx. 165 HVLayer thickness: until 3 µmFineness of the gold coating: >99% AuOperating conditions:Voltage: 2 - 3 VBath temperature: 20 - 30 °CExposition time: 2 - 5 min. (max. 45 min.)
Anode material: Mixed oxide (MOX)
Goods movement: required
Bath filtration: From 10 liter
Anode/Cathode surface: 1 : 1Current density: 2 - 6 A/dm2
Content:
1 liter
Palladium Bath JE42 V - 2 g/L Pd
€124.09*
The palladium bath JE42 V is a weakly alkaline electrolyte which is suitable for the deposition of bright, decorative, light palladium layers up to 0,5 µm thickness. The Palladium Bath JE42 V can be used as a pre-palladium and as a diffusion barrier.Operating data:Palladium content: 2,0 g/L PdpH-value: 7,0 (6,8 - 7,2) Density: 1,080 g/ml (1,075 - 1,085)Operating conditions:Voltage: 1,8 - 2,5 VoltBath temperature: 25 - 30 °CExposition time: 3 - 8 min.Anodes: Mixed-metal-oxideAnode/Cathode surface: 1:1Agitation: requiredCurrent density: approx. 0,5 A/dm2Deposition rate: 15,6 mg/AminDeposition speed: approx. 0,07 depending on pH and current densityBath filtration: from 10 litres
Deposition data:Hardness: 230 - 250 HVLayer thickness: max. 0,5 µmFineness of the palladium layer: 99,9 % palladium
Form of delivery:Ready for use 2 g/L Pd
Content:
1 liter
Palladium Bath JE42 D - 2 g/L Pd
€124.05*
The palladium bath JE42 D is a weakly alkaline electrolyte which is suitable for the deposition of bright, decorative, light palladium layers up to 0,5 µm thickness. The palladium electrolyte can be used as a final layer for decorative applications.Operating data:
Palladium content: 2,0 g/L PdpH-value: 8,5 (8,0 - 9,0)Density: 1,075 g/ml (1,070 - 1,080)Operating conditions:Voltage: 1,8 - 2,5 VoltBath temperature: 25 - 30 °CExposition time: 3 - 8 min.Anodes: Mixed-metal-oxideAnode/Cathode surface: 1:1Agitation: requiredCurrent density: approx. 0,5 A/dm2
Deposition rate: 15,6 mg/AminDeposition speed: approx. 0,07 depending on pH and current density
Bath filtration: from 10 litresDeposition data:Hardness: 230 - 250 HVLayer thickness: max. 0,5 µmFineness of the palladium layer: 99,9 % palladium
Form of delivery: Ready for use 2 g/L Pd
Content:
1 liter
