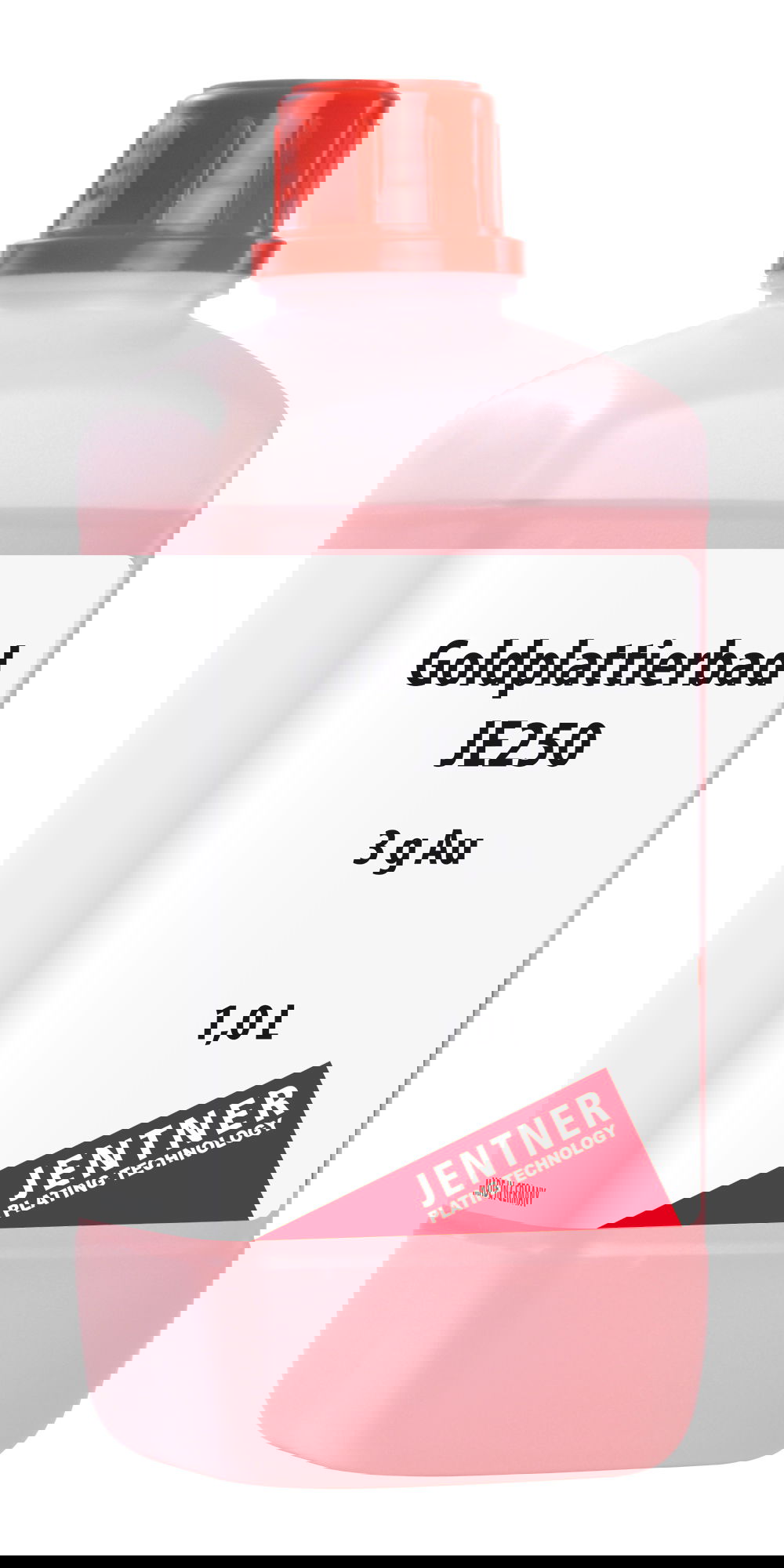

Product information "Gold Plating Bath JE250 - 3 g/L Au"
The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 10 µm. It is suitable for technical and decorative applications.
Operating data:
Gold content: 3 g/L Au
pH-value: 4,0 (3,8 - 4,2)
Density: 1,035 g/ml (1,030 - 1,050)
Operating data:
Gold content: 3 g/L Au
pH-value: 4,0 (3,8 - 4,2)
Density: 1,035 g/ml (1,030 - 1,050)
Deposition data:
Hardness: 150 - 220 HV
Layer thickness: max. 10 µm
Hardness: 150 - 220 HV
Layer thickness: max. 10 µm
Fineness of the gold layer: ca. 99,5 % Au
Operating conditions:
Voltage: 2,5 - 4 Volt
Temperature: 20 - 40 °C
Anodes: Platinized titanium
Anode/Cathode surface: approx. 1 : 1
Goods movement: required
Operating conditions:
Voltage: 2,5 - 4 Volt
Temperature: 20 - 40 °C
Anodes: Platinized titanium
Anode/Cathode surface: approx. 1 : 1
Goods movement: required
Power density: approx. 1 - 2,5 A/dm2
Bath filtration: from 10 liter
Bath filtration: from 10 liter
Deposition rate: approx. 22 mg/Amin
