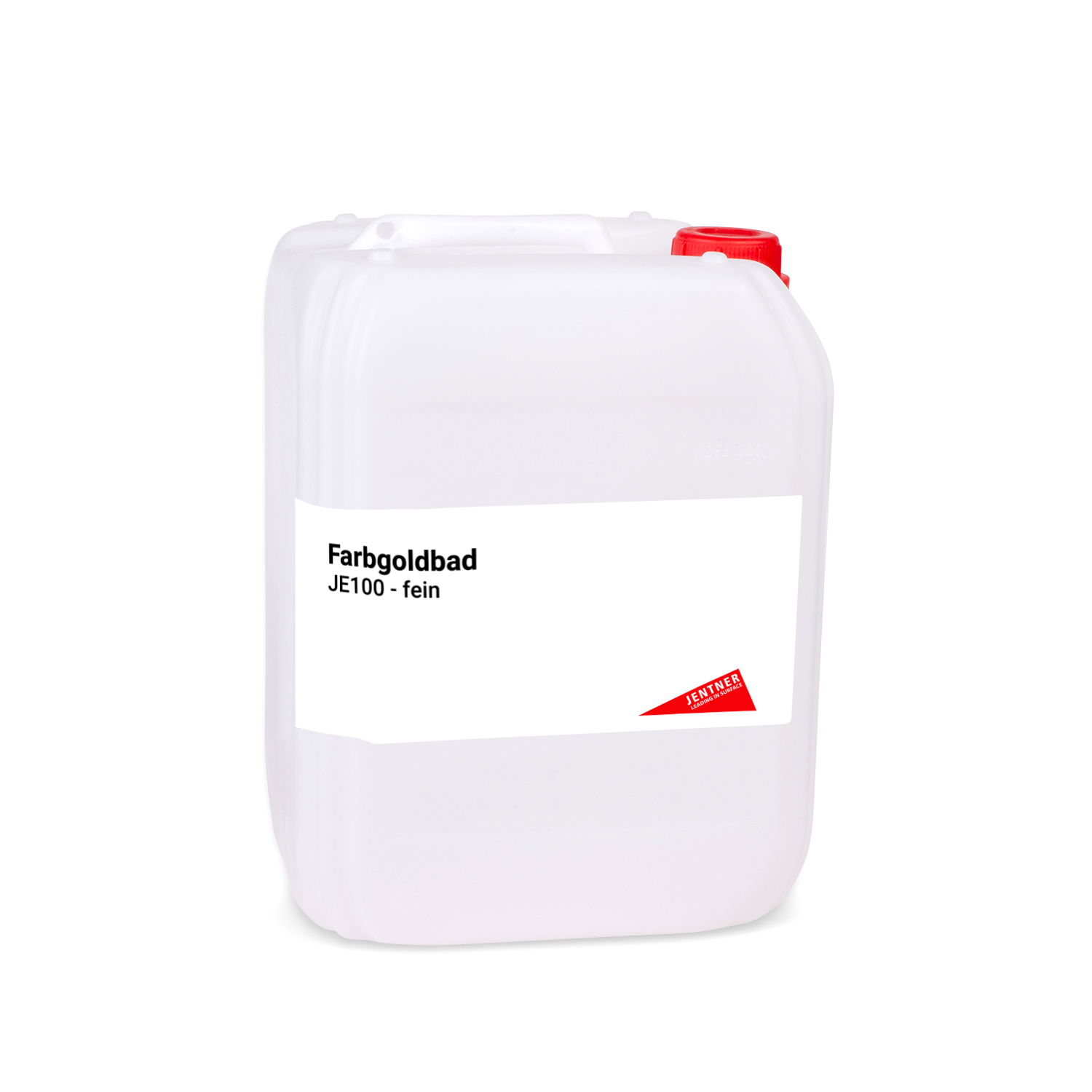

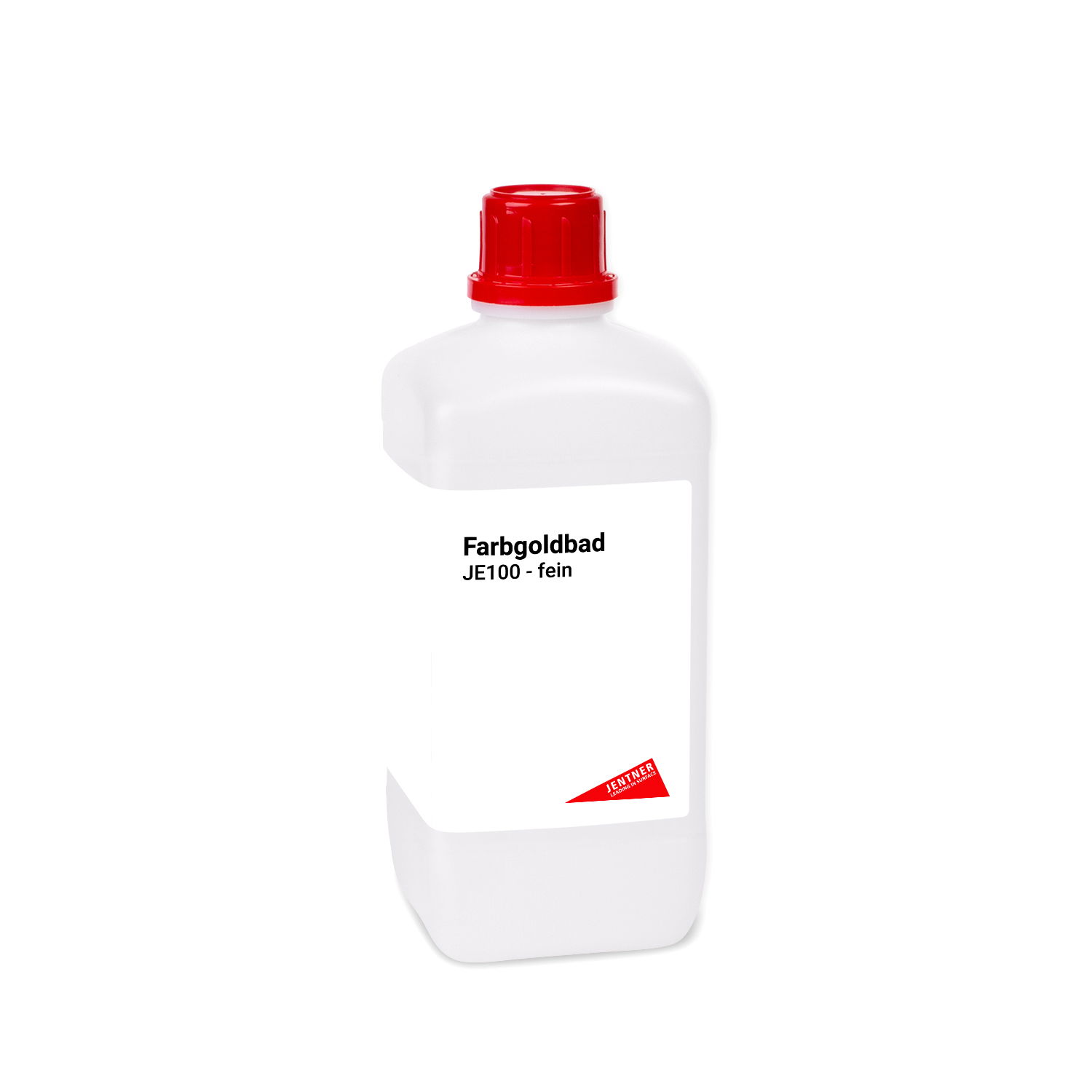

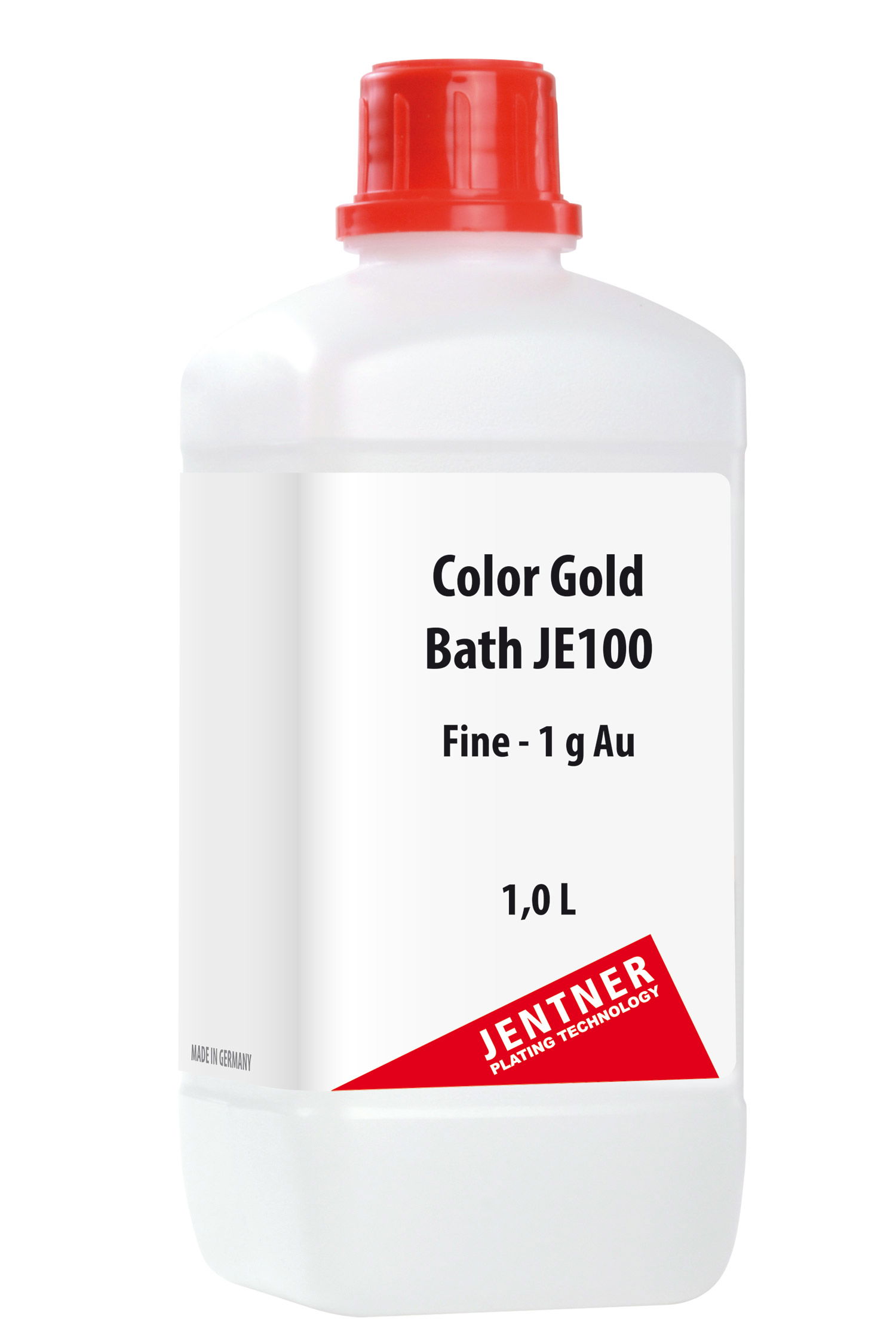

Product information "Colour Gold Bath JE100 - fine - 1 g/L Au"
The color gold bath JE100 - fine deposits decorative gold layers in fine gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.
Operating data:
Gold content: 1,0 g/L
pH-value: 10,5 (10-11)
Density: 1,035 g/ml (1,030-1,040)
Operating conditions:
Voltage: 6 Volt
Bath temperature: 60°C
Exposition time: 15-20 sec.
Anodes: Stainless steel
Goods movement: from 10 litre
Bath filtration: from 10 litre
Anode- /cathode surface: 1:1
The color of the deposite may change due to deviations in the working conditions.
Form of delivery:
-Ready for use 1 g/L Au
-Concentrate form 1 g/100ml Au for 1 litre bath
Operating data:
Gold content: 1,0 g/L
pH-value: 10,5 (10-11)
Density: 1,035 g/ml (1,030-1,040)
Operating conditions:
Voltage: 6 Volt
Bath temperature: 60°C
Exposition time: 15-20 sec.
Anodes: Stainless steel
Goods movement: from 10 litre
Bath filtration: from 10 litre
Anode- /cathode surface: 1:1
The color of the deposite may change due to deviations in the working conditions.
Form of delivery:
-Ready for use 1 g/L Au
-Concentrate form 1 g/100ml Au for 1 litre bath
Hazard warnings
H302 Harmful if swallowed.
H312 Harmful in contact with skin.
H412 Harmful to aquatic life with long lasting effects.
Safety instructions
P405 Store locked up.
P102 Keep out of reach of children.
P270 Do not eat, drink or smoke when using this product.
P301 IF SWALLOWED:
P315 Get immediate medical advice/attention.
P330 Rinse mouth.
Available downloads
Zubehör

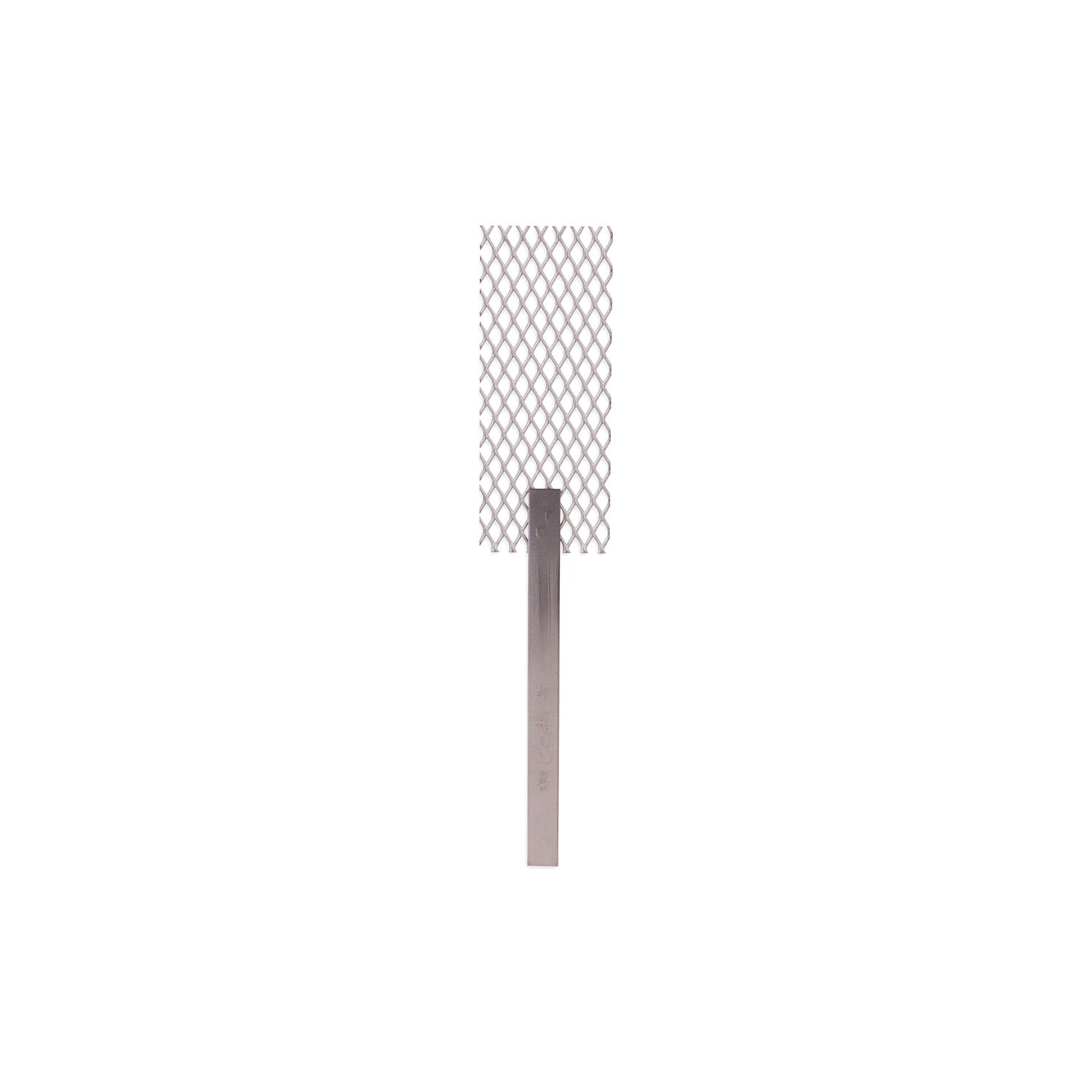

Platinized titanium anode 100x40 mm (2.5 µm Pt)
€73.40*
Suitable platinized titanium anode, 100x40 mm (2.5 µm Pt) for Comfort II, Digital II Version 2.0 or 1,5 liter tanks. These anodes can be used e.g. for rhodium, platinum and gold plating baths.

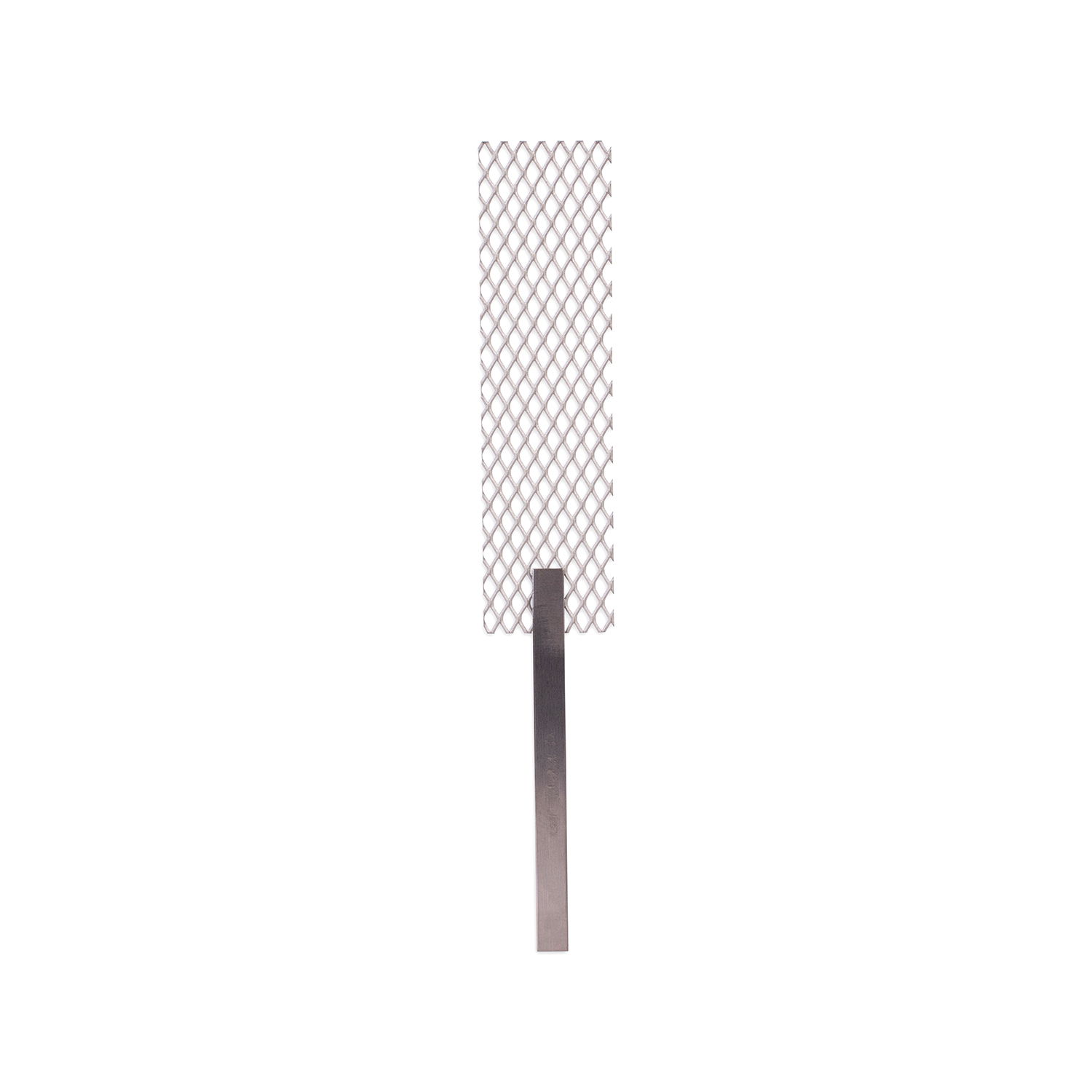

Platinized titanium anode 150x40 mm (2,5µm Pt)
€94.10*
Suitable platinized titanium anode 150x40 mm (2,5µm Pt) for Digital V or 5 liter tanks. These anodes can be used e.g. for rhodium, platinum and gold plating baths.
