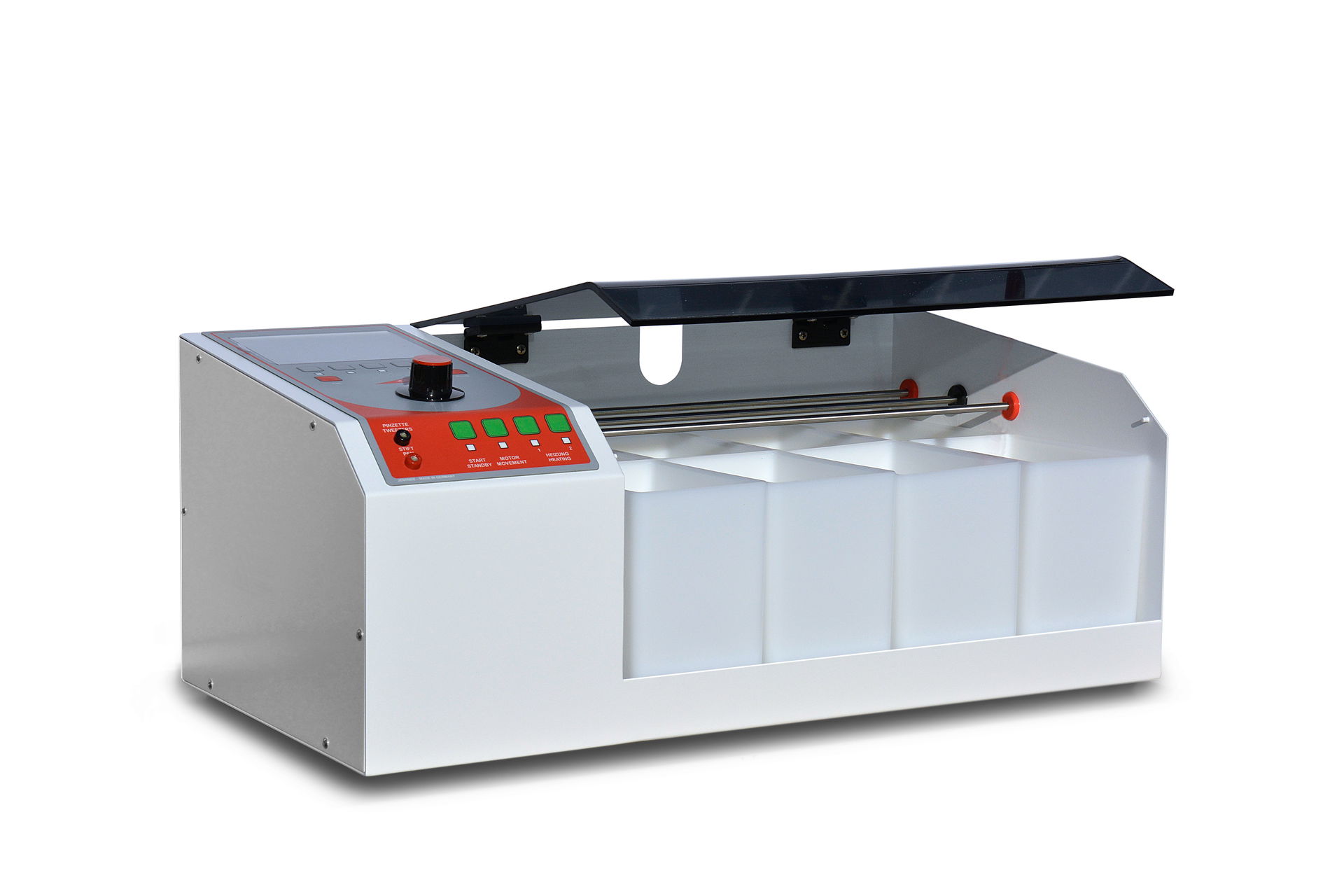

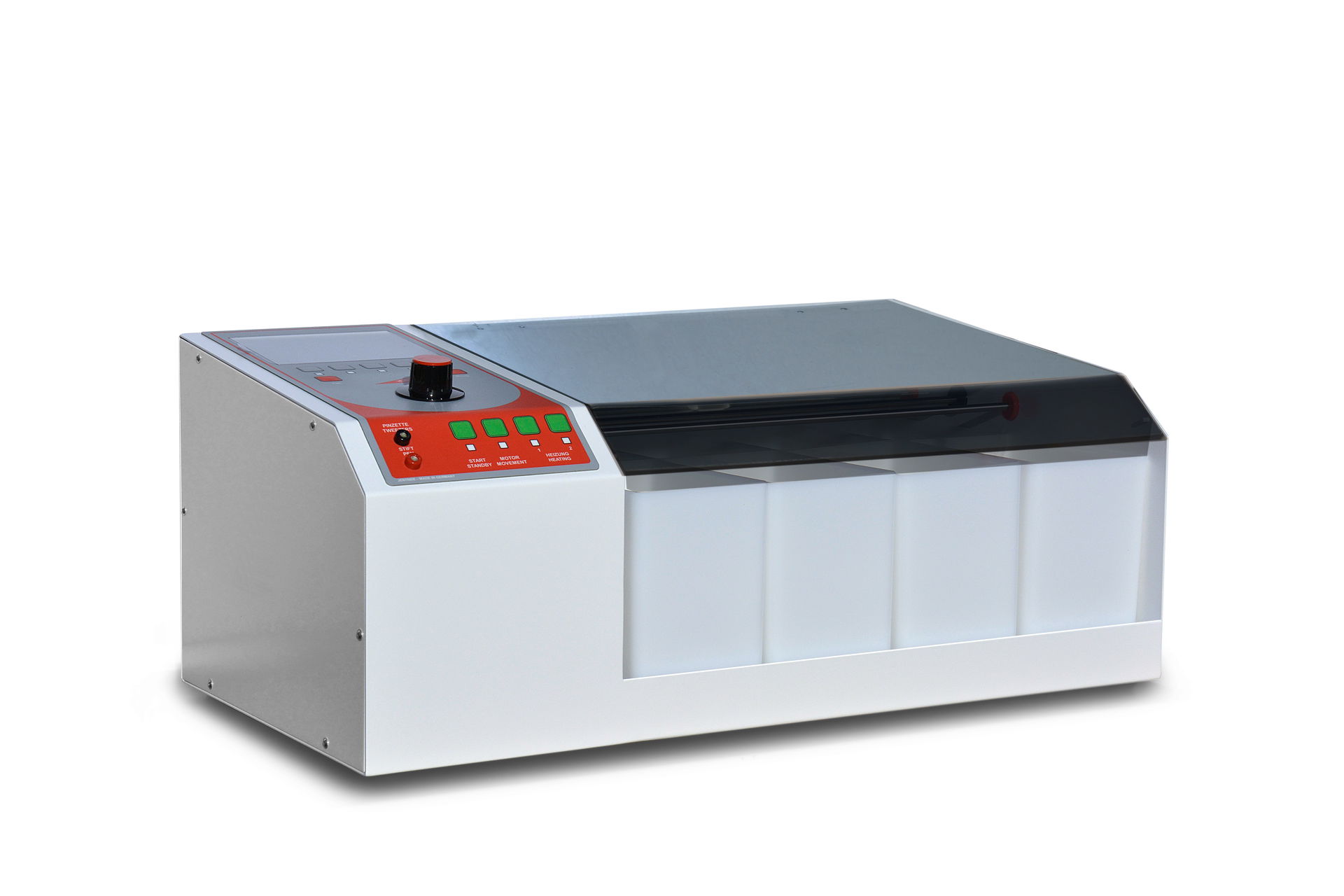

Electroplating Unit DIGITAL II version 2.0

€3,153.60*

Content: 1 Stück

Prices excl. VAT plus shipping costs

Stück

Our payment methods:

Product number: 9169.0000.W8

Delivery time: 1-3 days

Your advantages with Jentner

Fast shipping
Made in Germany
Secure DHL shipping

Product information "Electroplating Unit DIGITAL II version 2.0"

The Digital II version 2.0 is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre installed plating programs, new programs can be installed. The machine menu is available in several european languages. Digital II version 2.0 has an integrated goods movement and a pen plating connection.

Technical data:
Dimensions (WxDxH): 700x320x250 mm
Weight: 18 kg
Bath volume: 4x1,5 l working tanks + 4x 1,5 l rinsing tanks
Bath dimensions: 150x100x150 mm
Rectifier: 15V/ 15A
Controlled heating: 2x200W
Supply voltage: 230V/ 50Hz, 120V/ 60Hz
Main fuse: 2,5A slow-blow, 250V ~, 5*20 mm

Optional equipment: 2x connectable heater (2x200W)

Available downloads

Product information

Accessories

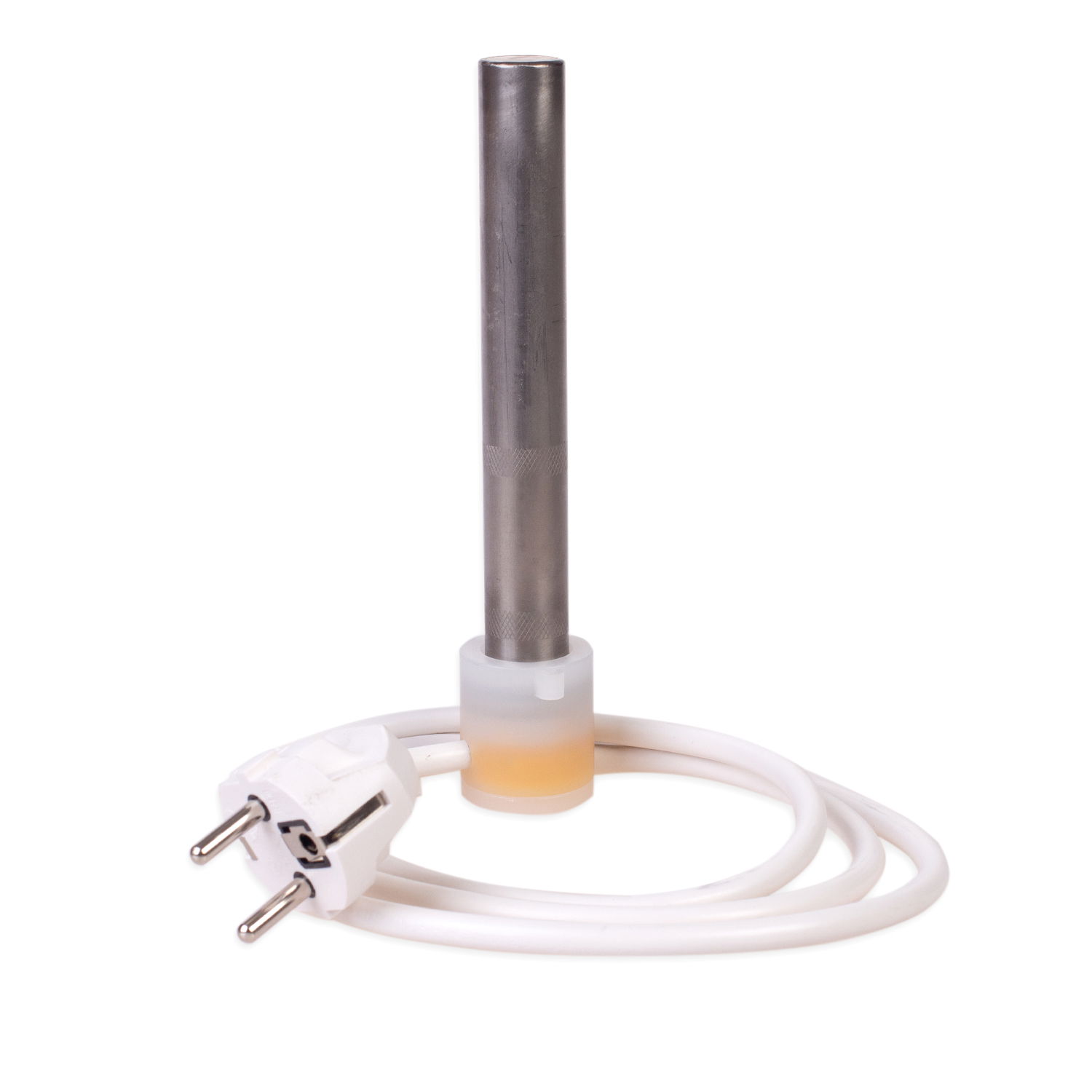

Immersion titan heater 200 W/230V

Immersion titan heater, 200 Watt/230V is suitable for heating e.g. ruthenium and nickel baths for Digital II Version 2.0 and Comfort II.Please note that the fixation is not included in the delivery. They have to be ordered separately.Dimensions:Length 150 mm.Depth of immersion 140 mm, Ø 20 mm.

€183.90*

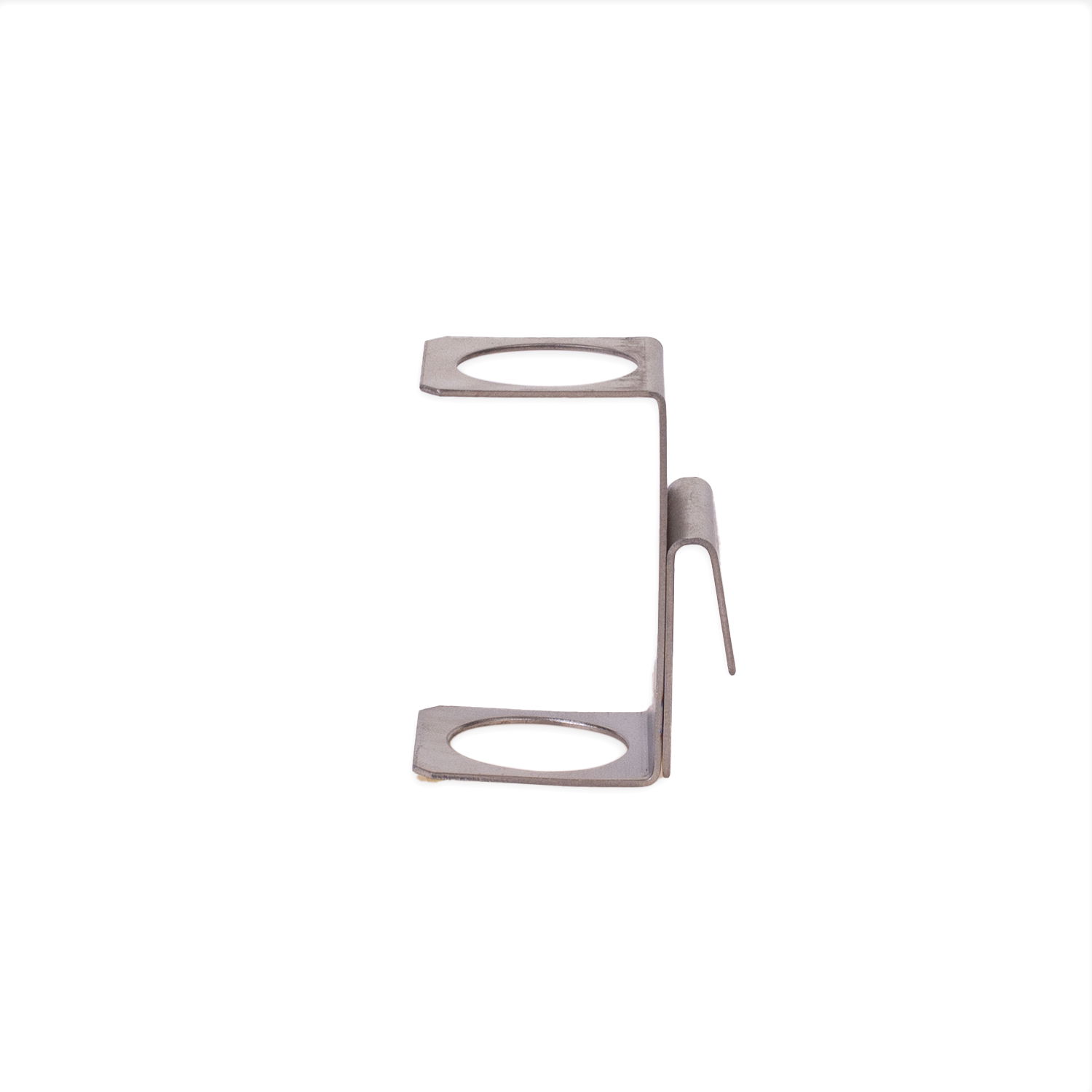

Titan Fixation for heater 200W

Titanium fixation for heater 200W/230V to fixate especially stick immersion heaters. It is suitable for Comfort II and Digital II Version 2.0.

€27.97*

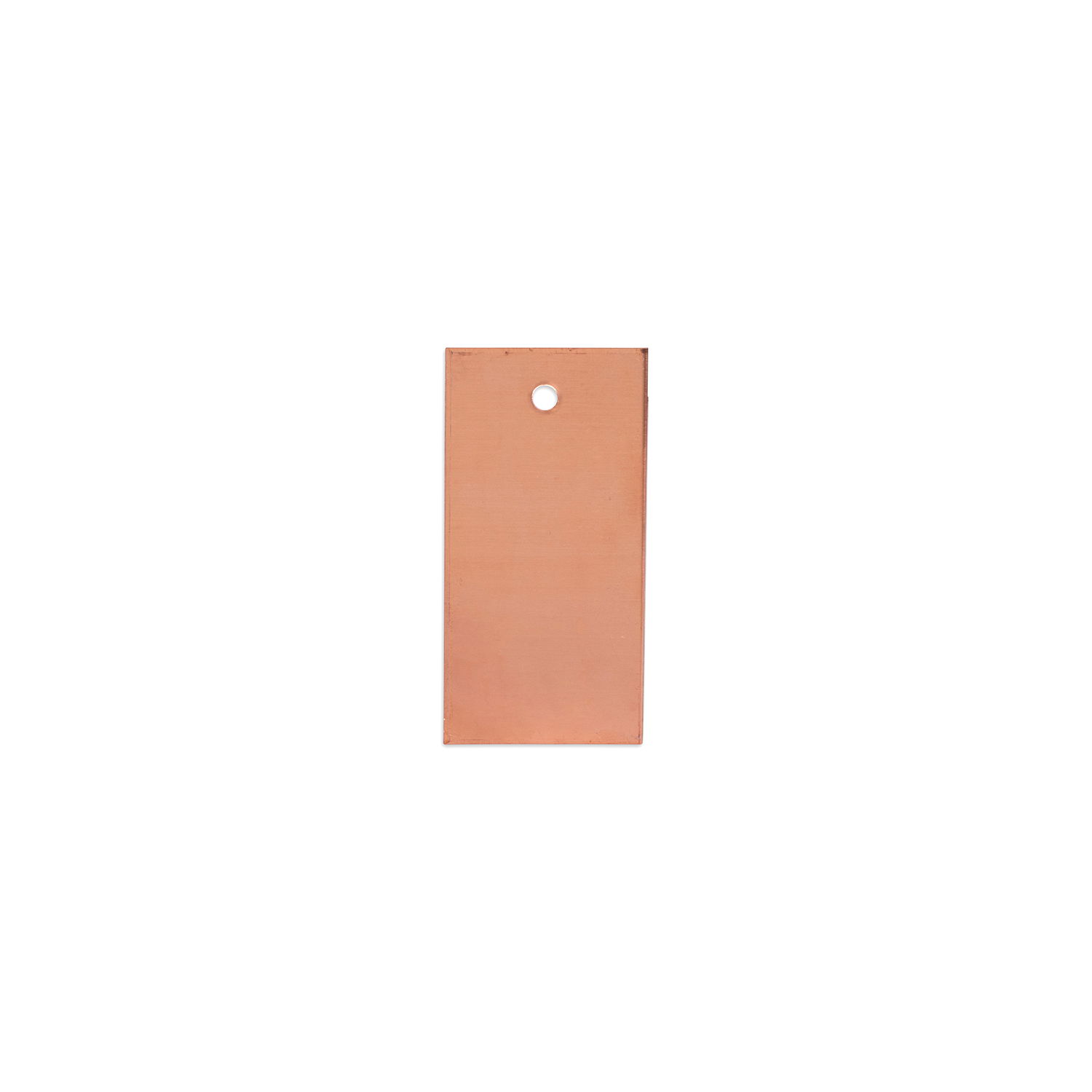

Copper anode 100x50x2 mm

The Copper anode 100x50x2 mm is suitable for our Comfort II, Digital II Version 2.0 or 1,5 liter tanks. These anodes are suitable for copper baths. Please note that the fixation is not included in the delivery. They have to be ordered separately.

Länge: 100mm

€29.16*

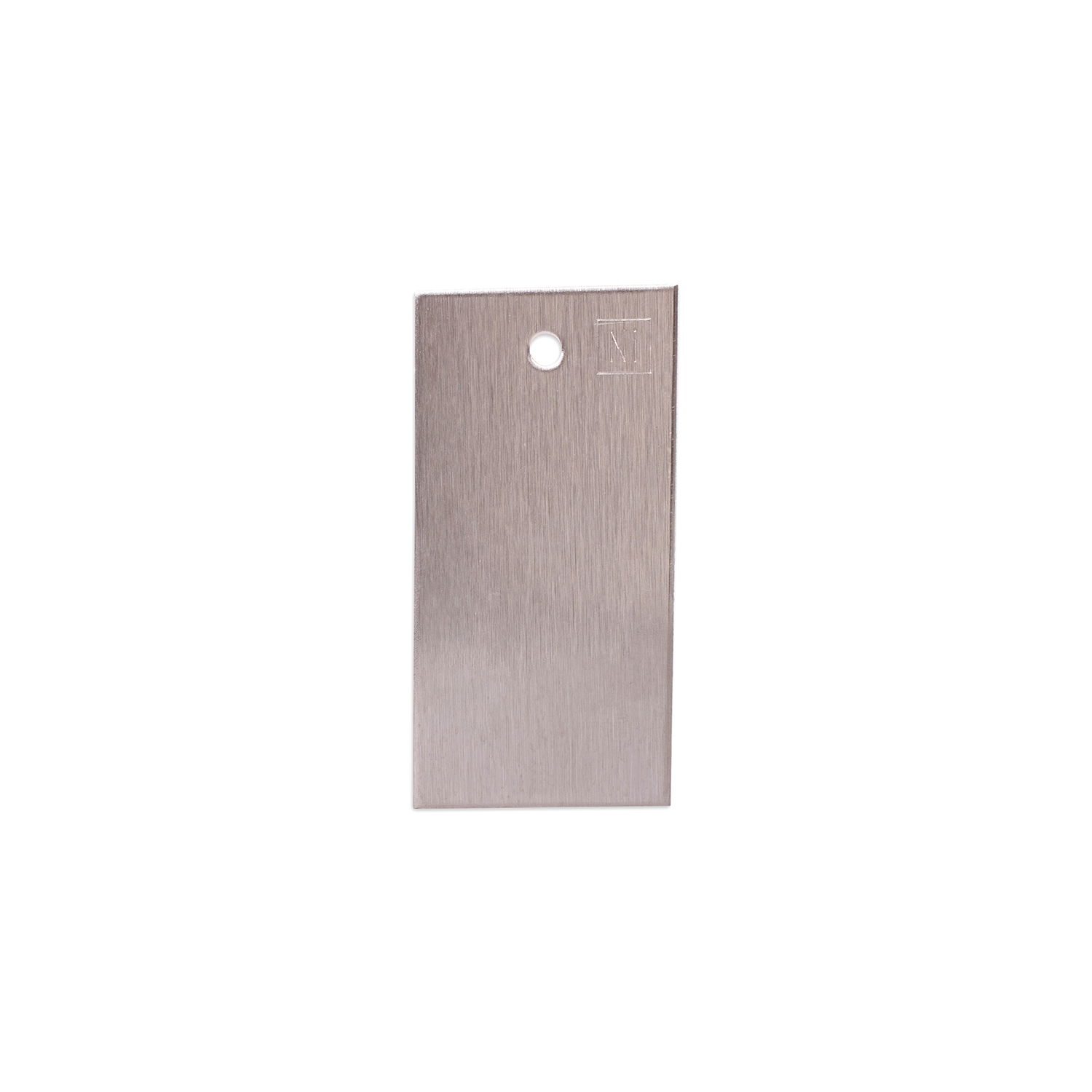

Nickel anode 100x50x2 mm

Suitable nickel anode, 100x50x2 mm for Comfort II, Digital II Version 2.0 or 1,5 liter tanks. These anodes are suitable for nickel baths. Please note that the fixation is not included in the delivery. They have to be ordered separately.

Länge: 100mm

€53.90*

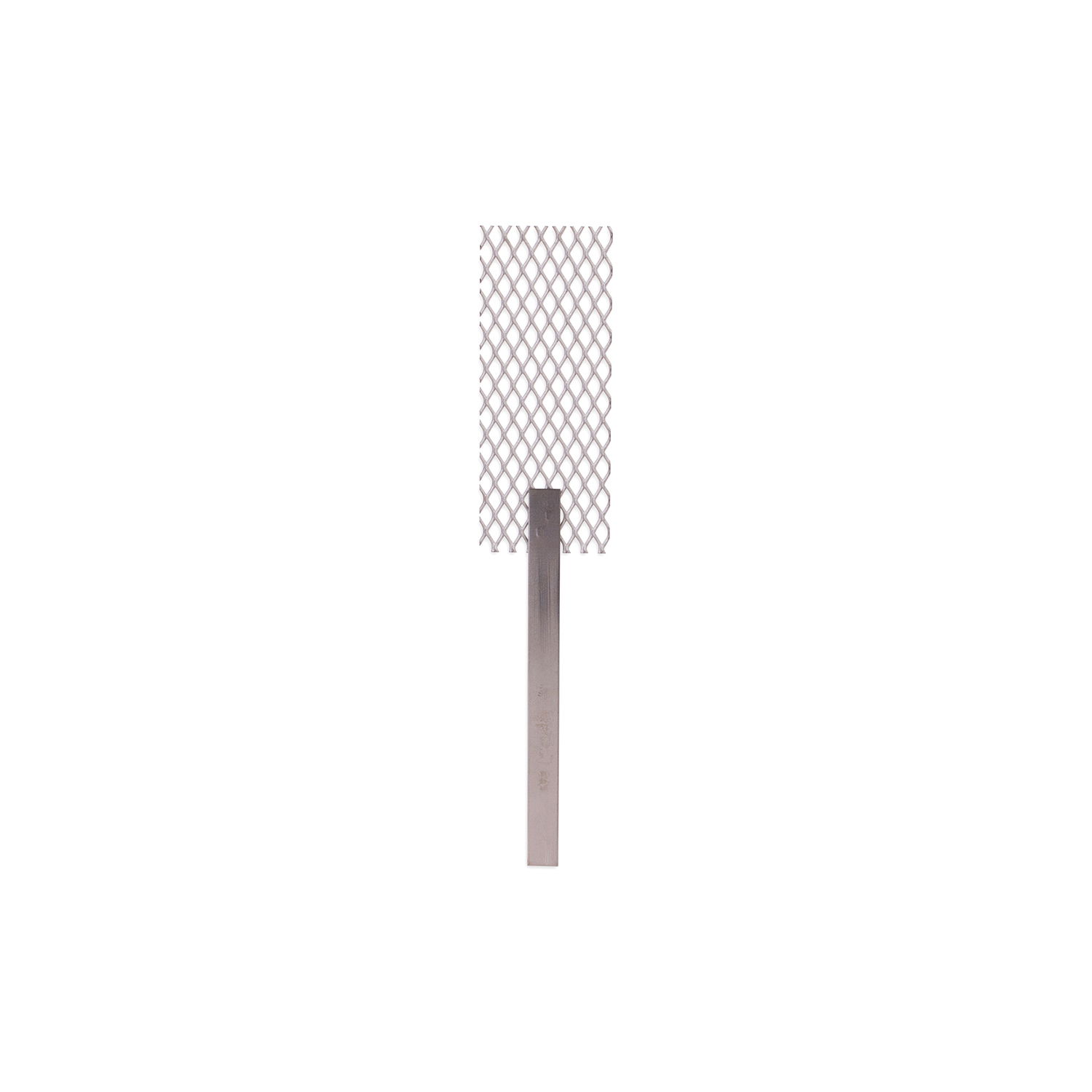

Platinized titanium anode 100x40 mm (2.5 µm Pt)

Suitable platinized titanium anode, 100x40 mm (2.5 µm Pt) for Comfort II, Digital II Version 2.0 or 1,5 liter tanks. These anodes can be used e.g. for rhodium, platinum and gold plating baths.

Länge: 100mm

€79.27*

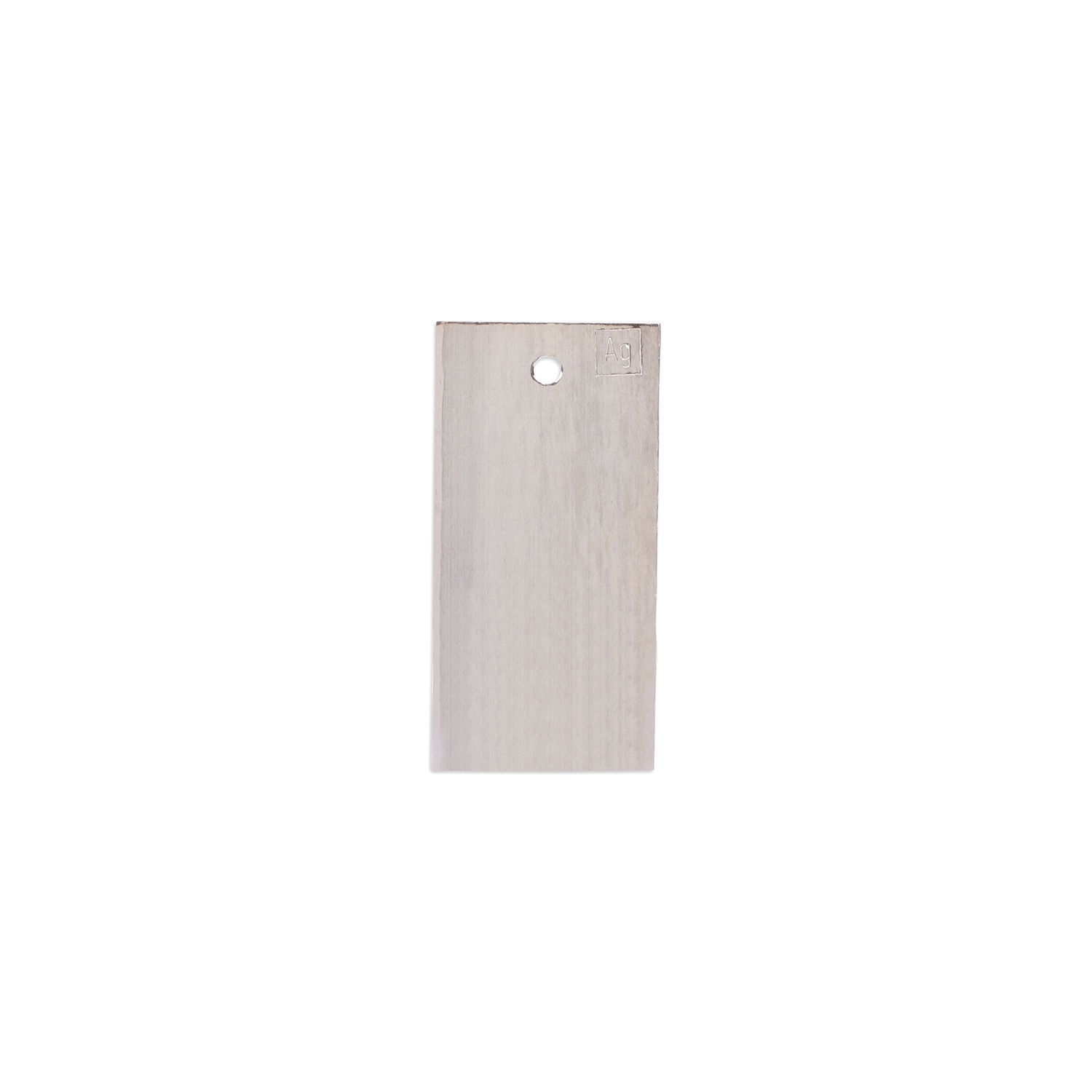

Fine-Silver anode 100 x 50 x 2 mm

Suitable fine-silver anode 100x50x2 mm for Comfort II, Digital II Version 2.0 or 1,5 liter tanks. These anodes are suitable for silver baths. Please note that the fixation is not included in the delivery. They have to be ordered separately.

Länge: 100mm

€160.18*

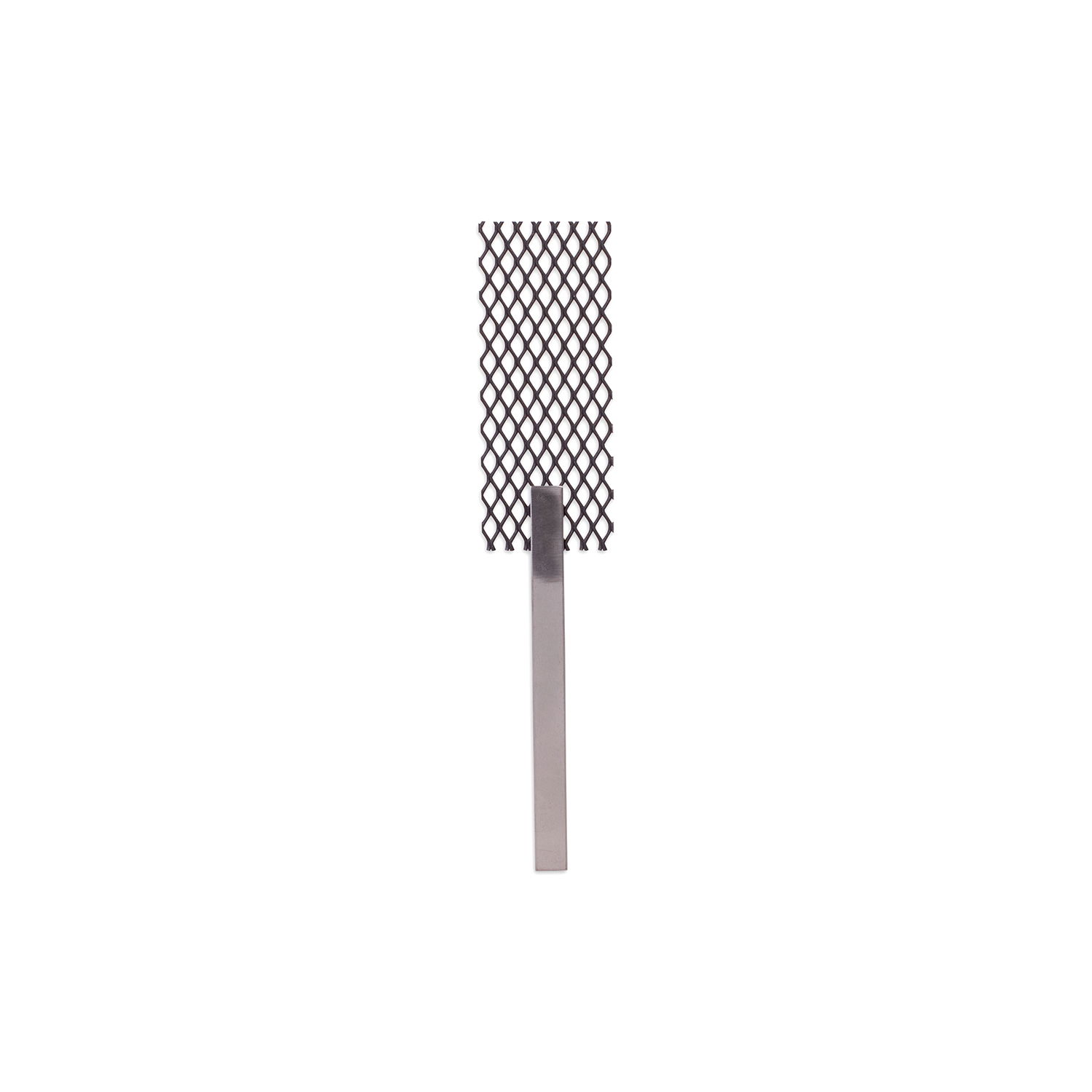

Mixed oxid anode MOX (Ir/MMO) 100x40 mm

Suitable mixed oxid anode MOX (Ir/MMO) 100x40 mm for Digital II Version 2.0 or 1,5 liter tanks. These anodes can be used e.g. for pre-gold and palladium baths.

Länge: 100mm

€76.03*

Titanium-fixation for anodes 39x20 mm with screws

Titanium-fixation for anodes, 39x20 mm with screws is ideal to fixate silver, nickel or copper anodes. It is suitable for Comfort II, Digital II or 1,5 liter tanks. Dimensions:39x20 mm

€24.52*

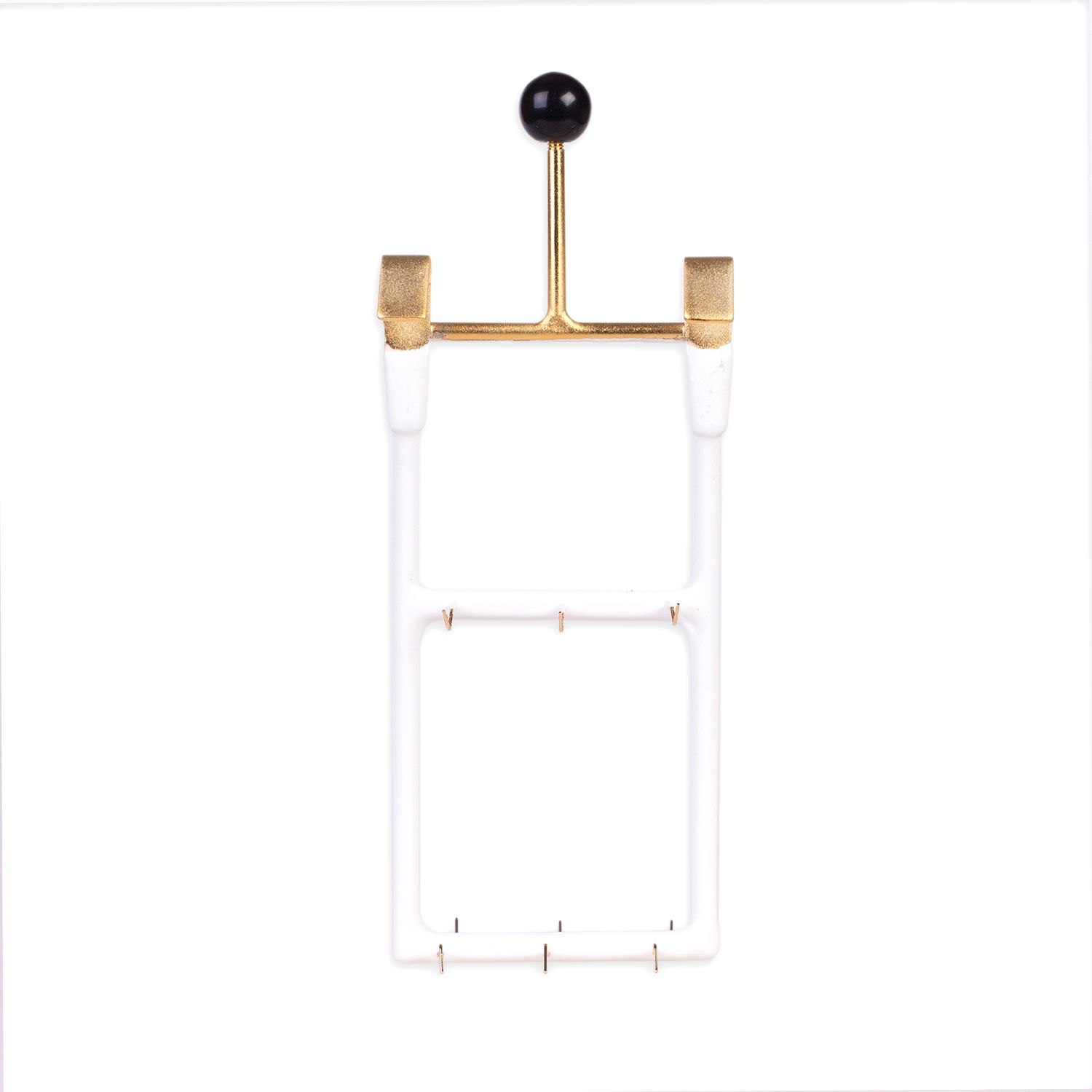

Jig with 12 hooks for chains 150x70mm (1-3 L)

Jig with 12 hooks for chains 150x70mm, which is perfectly suitable for our small size electroplating unit Comfort II, Digital II Version 2.0 or 1-3 liter tanks.

€81.76*

Jig with 12 hooks for rings 150x70mm (1-3 litre)

Jig with 12 hooks for rings 150x70 mm, which is perfectly suitable for our small size electroplating unit Comfort II, Digital II Version 2.0 or 1-3 liter tanks.

€121.93*

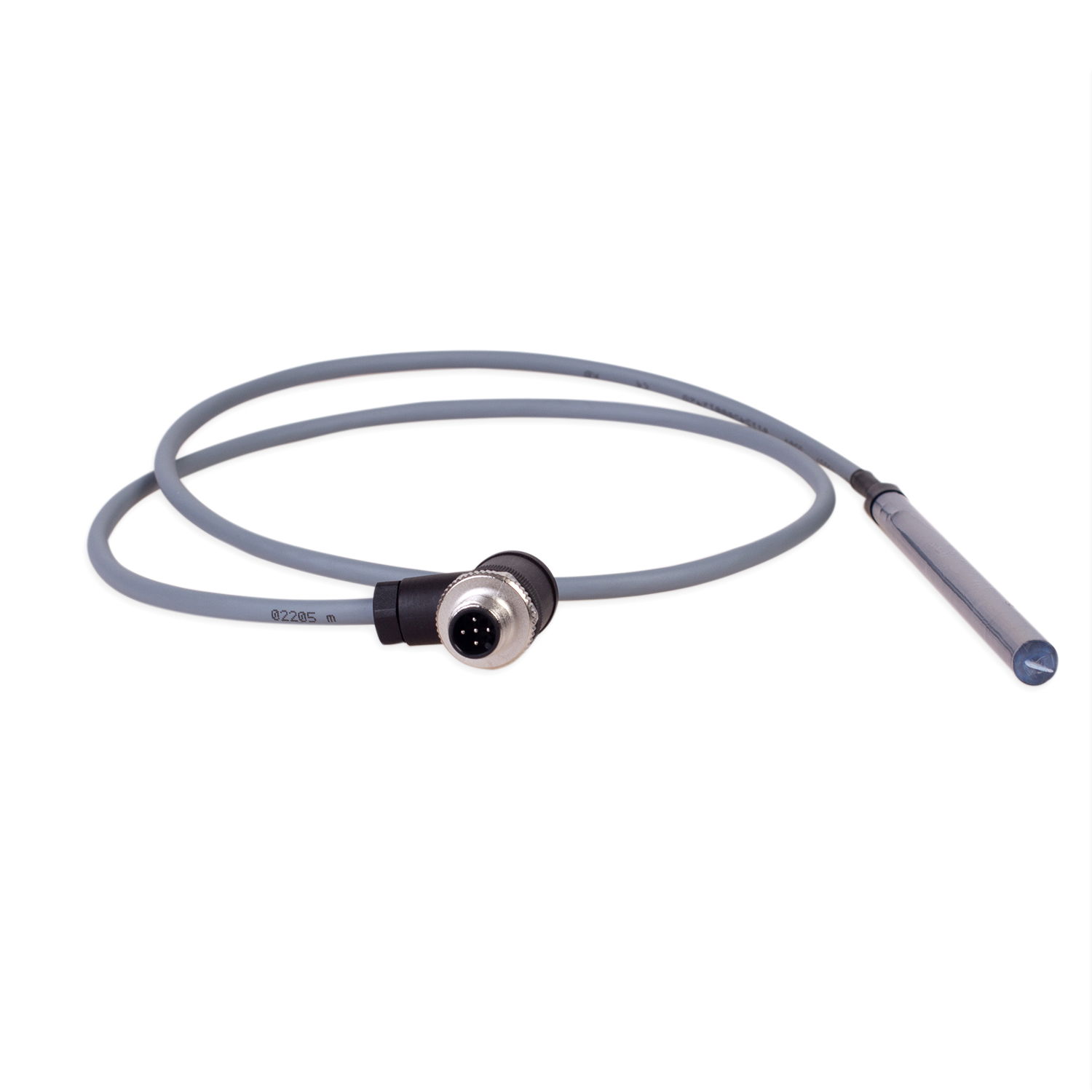

Temperature sensor for DIGITAL II + V

Sensor for temperature and level measurement.For small electroplating unit Digital II Version 2.0 and Digital V.

€188.24*

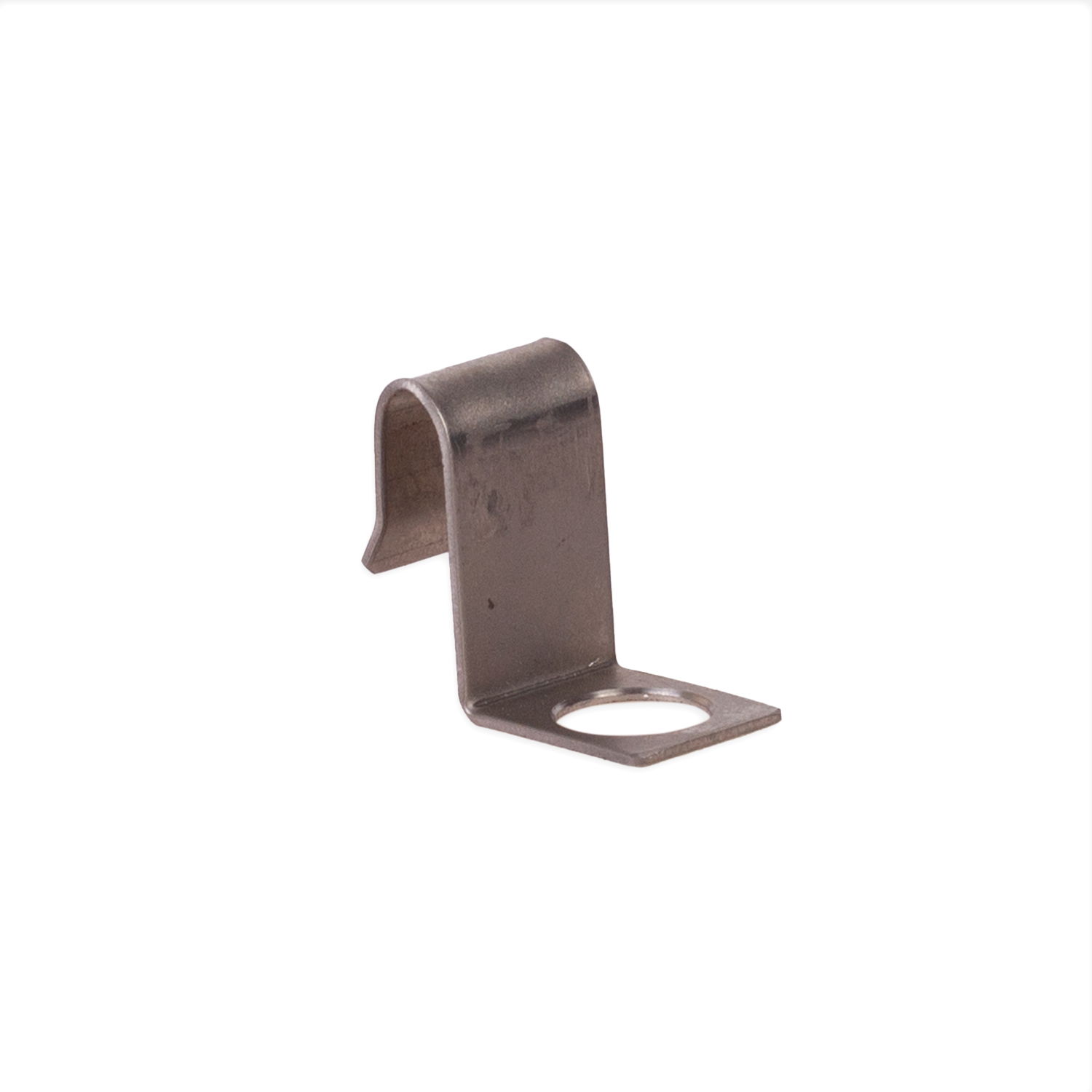

Titan fixation for temperature sensor

Matching titanium holder for attaching the temperature sensor.

€17.60*

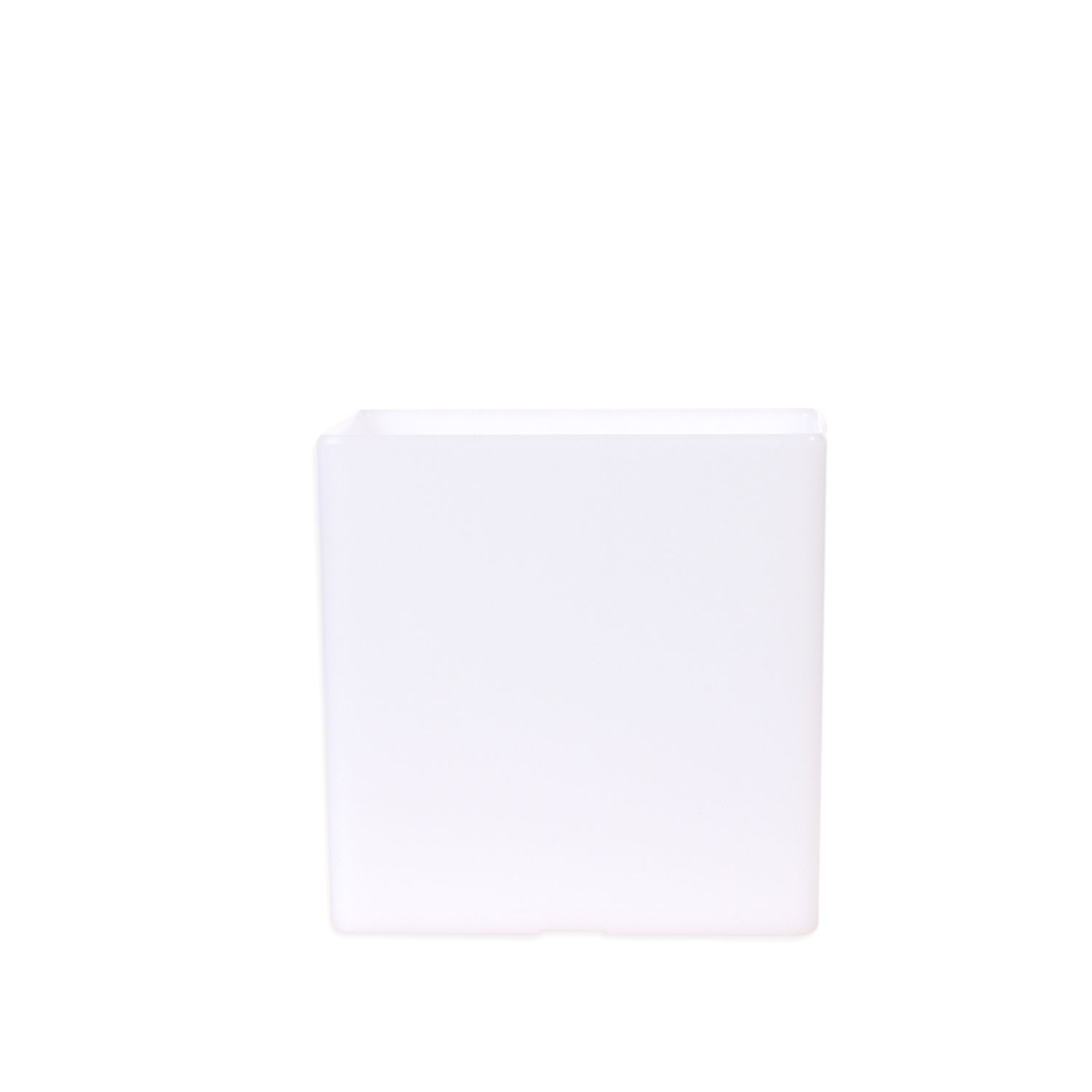

Tank PP 1,5 litres 150x100x150mm

Wanne-PPH 150x100x150mm aus PPH Kunststoff mit 1,5 Liter Volumen. Die Wanne eignet sich ideal für die Kleingalvanisiergeräte Comfort II und Digital II Version 2.0.

€45.36*

Tank lid PP for 1.5 litre tank

Plastic tank lid for 1.5 liter PPH tanks suitable of small-size electroplating units Comfort II and Digital II Version 2.0.

€26.89*
