Palladium baths

Palladium baths / palladium electrolytes for final or barrier layers

A weakly alkaline electrolyte from the series of platinum metals. It is similar in color to ruthenium or rhodium. High-gloss, white and decorative surface layers up to 0.5µm can be easily achieved with these baths. The JE42V also works extremely well as a barrier.

Palladium baths / palladium electrolytes for final or barrier layers

A weakly alkaline electrolyte from the series of platinum metals. It is similar in color to ruthenium or rhodium. High-gloss, white and decorative surface layers up to 0.5µm can be easily achieved with these baths. The JE42V also works extremely well as a barrier.

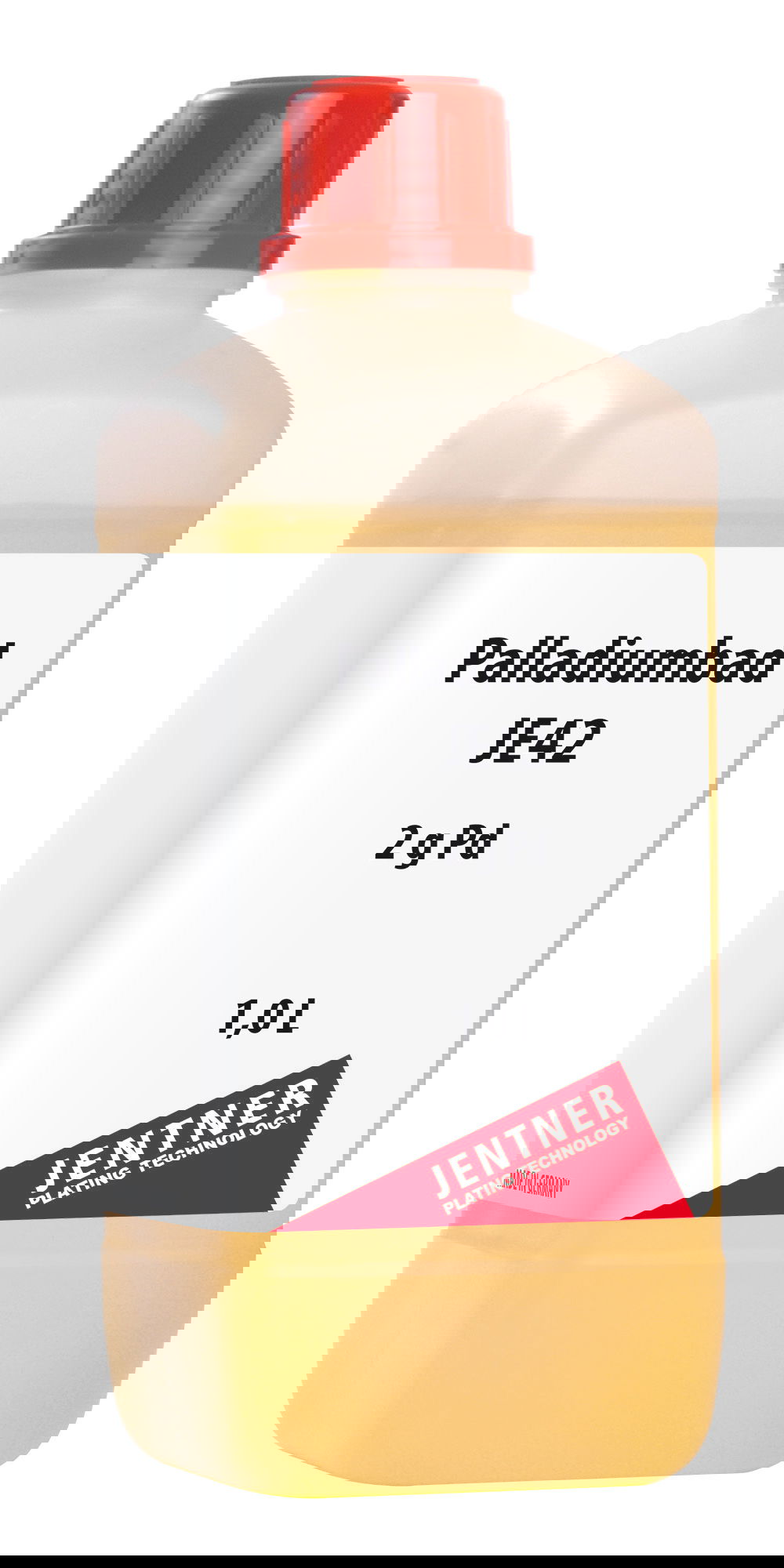

Palladium Bath JE42 D - 2 g/L Pd

The palladium bath JE42 D is a weakly alkaline electrolyte which is suitable for the deposition of bright, decorative, light palladium layers up to 0,5 µm thickness. The palladium electrolyte can be used as a final layer for decorative applications.Operating data: Palladium content: 2,0 g/l PdpH-value: 8,5 - 9Density: 1,08 – 1,09 g/cm³Operating conditions:Voltage: 1,5-2,5 VoltBath temperature: 25-30°CExposition time: 5-8 min.Anodes: Mixed-metal-oxideAnode/Cathode surface: 1 : 1Agitation: requiredCurrent density: 0,5 A/dm² (0,4 – 0,6)Bath filtration: from 10 litresDeposition rate: 0,5 A/dm² approx. 15 – 20 mg/AminDeposition data:Hardness: 230 – 250 HVLayer thickness: max. 0,5 µmLayer density: approx. 11,8 g/cm3

Content: 1 liter

€117.27*

Palladium Bath JE42 V - 2 g/L Pd

The palladium bath JE42 V is a weakly alkaline electrolyte which is suitable for the deposition of bright, decorative, light palladium layers up to 0,5 µm thickness. The Palladium Bath JE42 V can be used as a pre-palladium and as a diffusion barrier.Operating data:Palladium content: 2,0 g/l PdpH-value: 7,2 – 7,5Density: 1,08 – 1,09 g/cm³Operating conditions:Voltage: 1,5-2,5 VoltBath temperature: 25-30°CExposition time: 5-8 min.Anodes: Mixed-metal-oxideAnode/Cathode surface: 1 : 1Agitation: RequiredCurrent density: 0,25 A/dm² (0,2 – 0,3)Bath filtration: from 10 litresDeposition rate: 0,25 A/dm² approx. 14 – 16 mg/AminDeposition data:Hardness: 230 – 250 HVLayer thickness: max. 0,5 µmLayer density: approx. 11,8 g/cm3

Content: 1 liter

€117.27*
