High-quality platinum metal electrolytes for excellent coatings

The JE23GO! RS NDG black rhodium bath is a pioneering solution in electroplating. Its decisive advantage is that it does not have to be declared as a hazardous material, which enables uncomplicated international shipping. The application at room temperature minimizes the effort required for heating and simplifies the process considerably.This product is ideal for decorative coatings in the jewelry and eyewear industry. It produces dark anthracite-grey coatings that are characterized by excellent abrasion resistance, colour consistency and uniformity. The black rhodium electrolyte JE23GO! RS NDG black rhodium electrolyte offers simple bath management and user-friendly handling. It enables the precise deposition of layers down to 0.5 µm, which supports a wide range of applications in electroplating. Operating Data Rhodium content: 1,0 g/L Rh pH-Value: <1 Density: 1,02 – 1,07 g/cm3 Deposition Data Color, L-Value: 48 - 50 Hardness: 300 – 370 HV Layer thickness: max. 0,5 μm Layer density: ca. 10,5 g/cm3 Working conditions Voltage: 2,5– 3,5 Volt Bath temperature: Ca. 20°C (RT) Exposition time: 5 min. (3 – 15) Anodes: Platinised titanium or mixed-metal-oxide Anode/ Cathode: 1 : 1 Current density: 1,0 – 1,5 A/dm2 Agitation: advantageous Bath filtration: ab 10 Liter Deposition rate: 6 – 8mg/Amin Form of delivery Ready for use 1 g/L

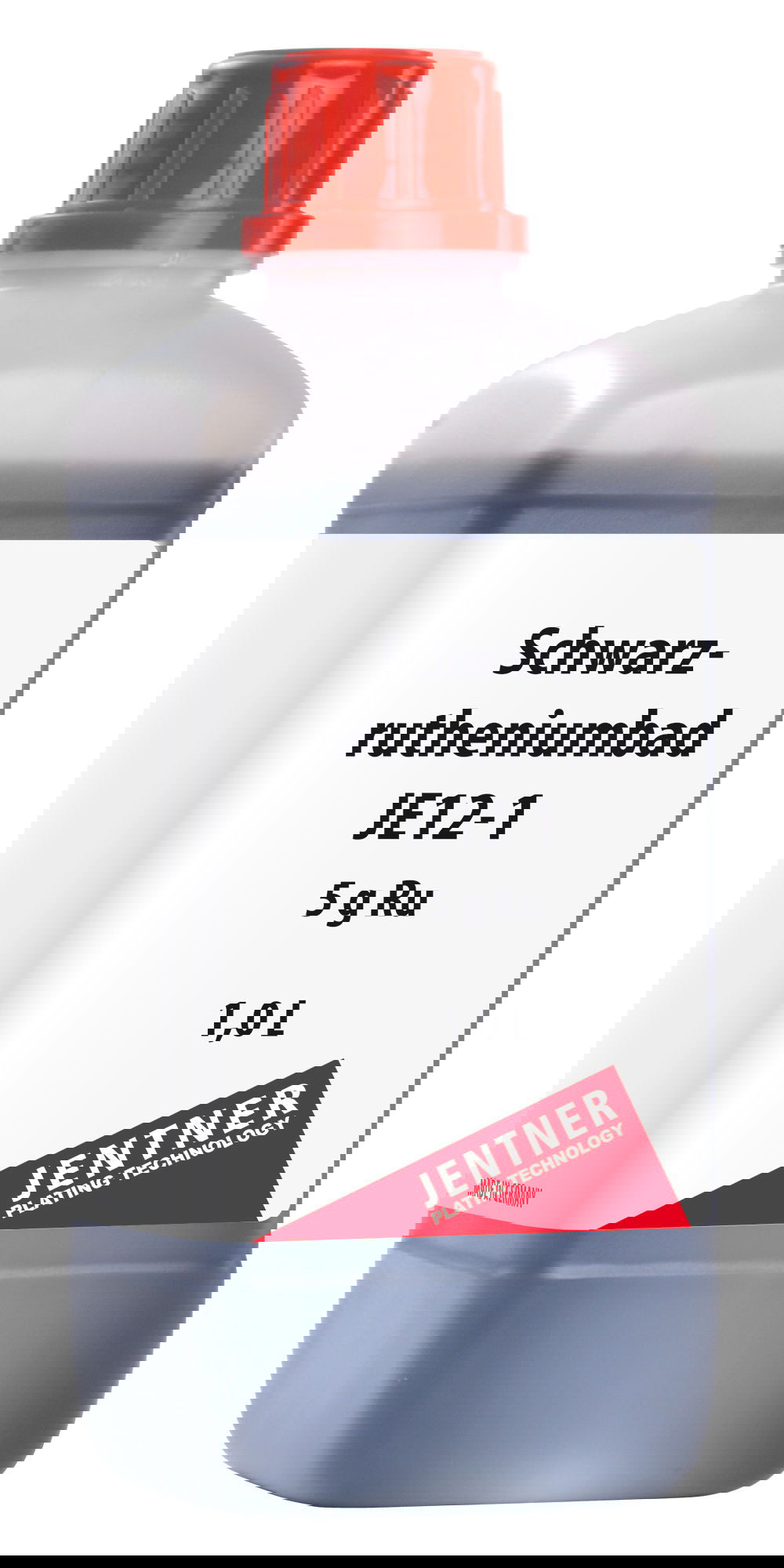

The black ruthenium bath JE12-1 deposits dark up to grey-black ruthenium coatings. The ruthenium electrolyte preserves the brightness and it can be obtained a high colour consistency. The layers have a good grip and impress through their decorative colour. Coatings up to max 0,2-0,5 µm can be deposited. When plating non-precious metals it is recommended to use a pre-gold layer or a pre-palladium layer.Operating data:Ruthenium content: 5.0 g/L RupH-value: 1.0 – 1.6Density: 1.036 g/cm3Operating conditions:Voltage: 2,2-3 VoltBath temperature: 65°C (60-70°C)Exposition time: 2 min. (2-4 min.)Anodes: Platinized titanium, mixes metal oxideAgitation: required, low speedCurrency density: 0.5 – 3 A/dm2Bath filtration: from 10 LiterDeposit rate: 1 – 3 mg/AminDeposit speed: 0.02 µm/min at 1.5 A/dm2Deposition data:Hardness: approx. 800 HVLayer thickness: max. 0.5 µmLayer density: approx. 12 g/cm3

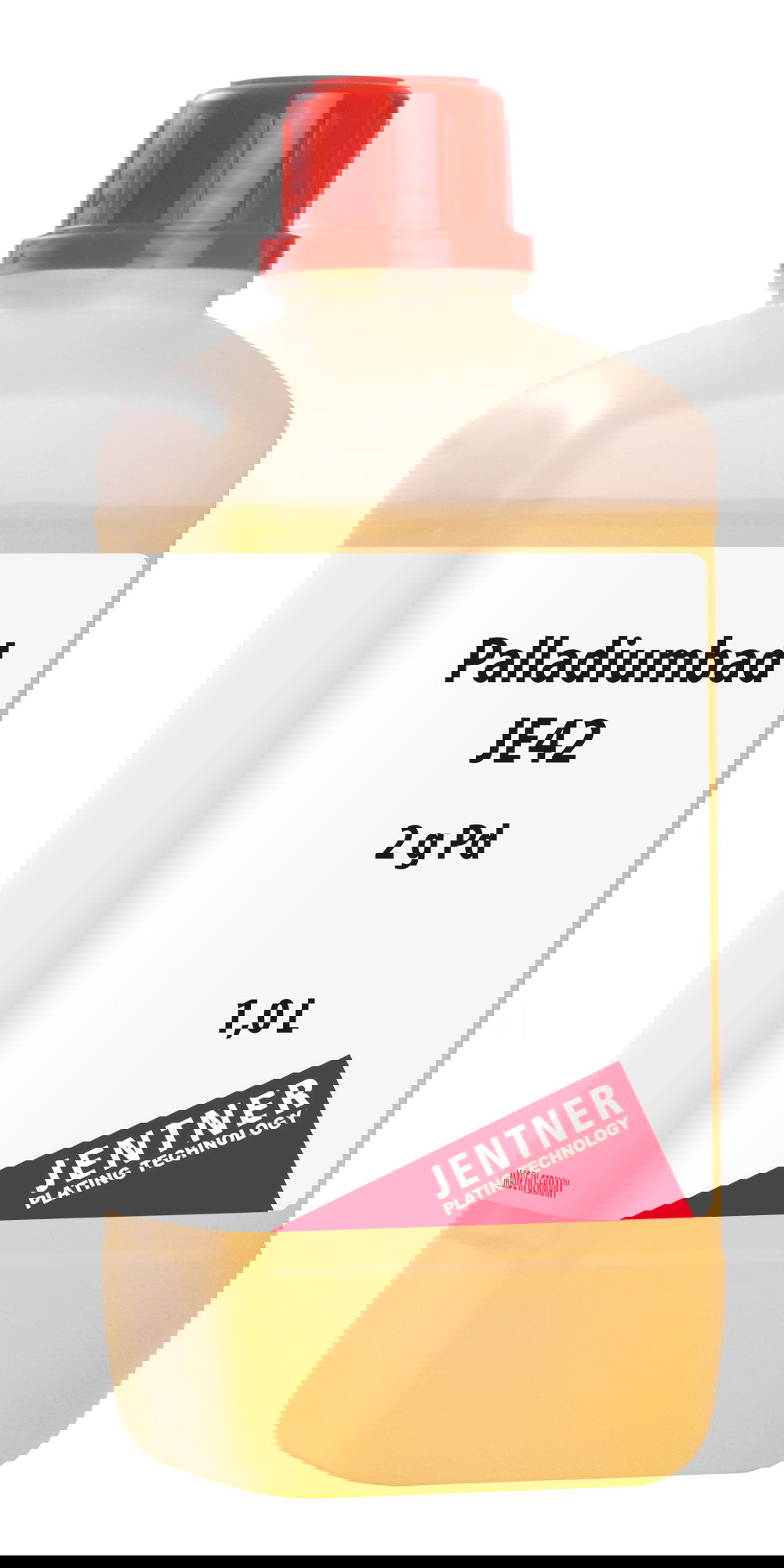

The palladium bath JE42 D is a weakly alkaline electrolyte which is suitable for the deposition of bright, decorative, light palladium layers up to 0,5 µm thickness. The palladium electrolyte can be used as a final layer for decorative applications.Operating data:  Palladium content: 2,0 g/l PdpH-value: 8,5 - 9Density: 1,08 – 1,09 g/cm³Operating conditions:Voltage: 1,5-2,5 VoltBath temperature: 25-30°CExposition time: 5-8 min.Anodes: Mixed-metal-oxideAnode/Cathode surface: 1 : 1Agitation: requiredCurrent density: 0,5 A/dm² (0,4 – 0,6)Bath filtration: from 10 litresDeposition rate: 0,5 A/dm² approx. 15 – 20 mg/AminDeposition data:Hardness: 230 – 250 HVLayer thickness: max. 0,5 µmLayer density: approx. 11,8 g/cm3

The palladium bath JE42 V is a weakly alkaline electrolyte which is suitable for the deposition of bright, decorative, light palladium layers up to 0,5 µm thickness. The Palladium Bath JE42 V can be used as a pre-palladium and as a diffusion barrier.Operating data:Palladium content: 2,0 g/l PdpH-value: 7,2 – 7,5Density: 1,08 – 1,09 g/cm³Operating conditions:Voltage: 1,5-2,5 VoltBath temperature: 25-30°CExposition time: 5-8 min.Anodes: Mixed-metal-oxideAnode/Cathode surface: 1 : 1Agitation: RequiredCurrent density: 0,25 A/dm² (0,2 – 0,3)Bath filtration: from 10 litresDeposition rate: 0,25 A/dm² approx. 14 – 16 mg/AminDeposition data:Hardness: 230 – 250 HVLayer thickness: max. 0,5 µmLayer density: approx. 11,8 g/cm3

The acid platinum electrolyte JE18 deposits shiny, bright and hard platinum layers. It is used for decorative as well as technical applications. The layers are highly resistant to corrosion and abrasion.Operating data:Platinum content: 2,0 g/LpH-value: <1Density: 1,08 g/ml, increasingOperating conditions:Voltage: 2 VoltBath temperature: 30 - 40 °CExposition time: 2 - 4 min.Anodes: Platinized titanium, Mixed oxideAnode/Cathode surface: 1 : 1Goods movement: requiredRecommended velocity: 2 - 8 cm/sec.Deposition rate: ca. 11 mg/Amin; ca. 0,5-1,5 A/dm2Bath movement: recommendedBath filtration: from 10 litresDeposition data:Hardness: 500 HVLayer thickness: max. 1,0 µmPt content: 99,9%Form of delivery:Ready for use 2 g/L Pt

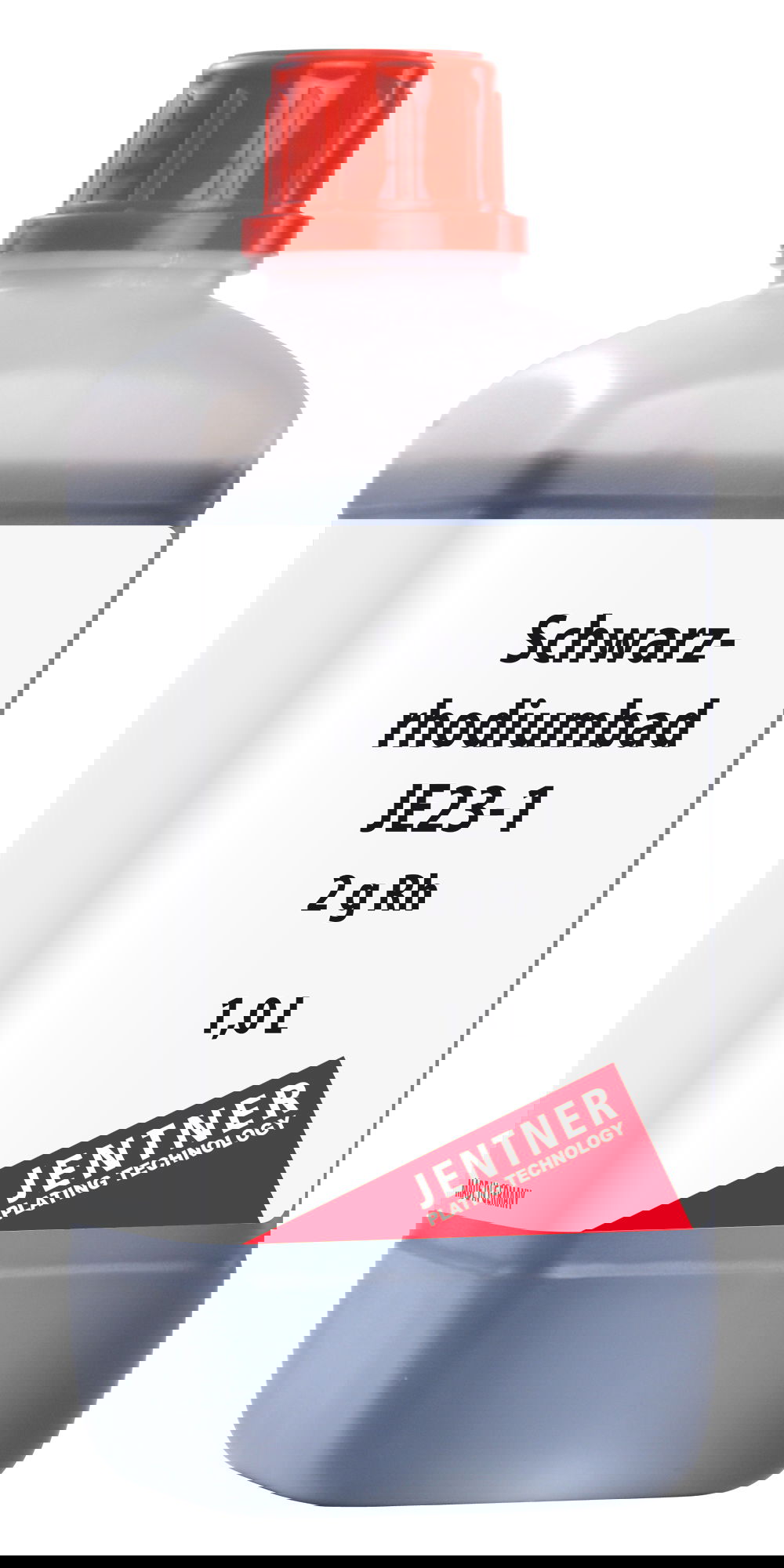

The black rhodium bath JE23-1 deposits dark anthracite-grey, particular decorative rhodium coatings. The layers are very abrasion resistant, colour consistent and uniform. The electrolyte is preferably used for decorative coatings in the jewellery and eyewear industry. JE23-1 is characterized by it's easy handling and usability. It works at room temperature so a time and energy intensive heating-up can be omitted. Coatings up to 0,5 µm can be deposited.Rhodium content: 2g Rh/lVoltage: 2-3 VoltBath temperature: 20-27°CExposition time: 2 min. (1-5 min.)Anodes: Platinized titanium, mixed-metal-oxide

The rhodium bath JE88 deposits mirror shining, brilliant white, magnificent hard and abrasion resistant rhodium layers. The color of JE88 CLEAN may vary in slight nuances as the product is produced exclusively from recycled rhodium. It is preferably used for decorative coatings in the jewellery industry. In many cases the rhodium electrolyte is used as tarnish protection for silver products. Coatings up to 1,0 µm can be deposited.Operating data:Rhodium content: 2,0 g/L RhpH-Value: <1Operating conditions:Voltage: 2-3 VoltBath temperature: 20-35°CExposition time: 2 min. (1-max. 10 min.)Anodes: platinized titanium or mixed metal oxideAnode/Cathode surface: 1 : 1Agitation: advantageousCurrent density: 0,5 - 2 A/dm2Bath filtration: from 10 litersDeposition data:Hardness: 800 - 900 HVLayer thickness: max. 1,0 µmLayer density: approx. 12,4 g/cm3Form of delivery:-Ready for use 2 g/L Rh-Concentrate form 2 g/100ml Rh for 1 litre bath

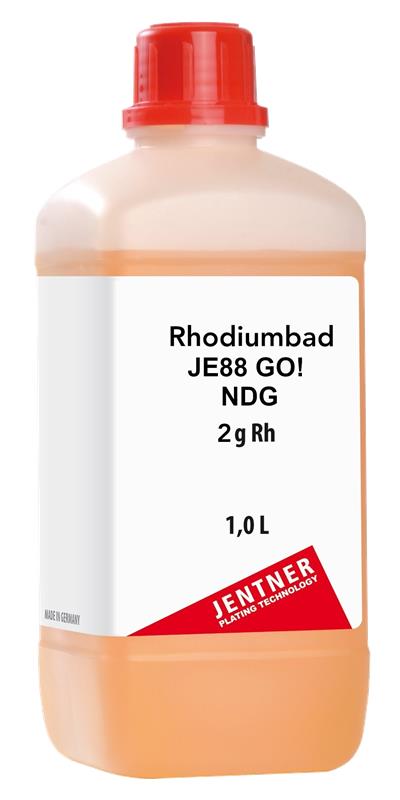

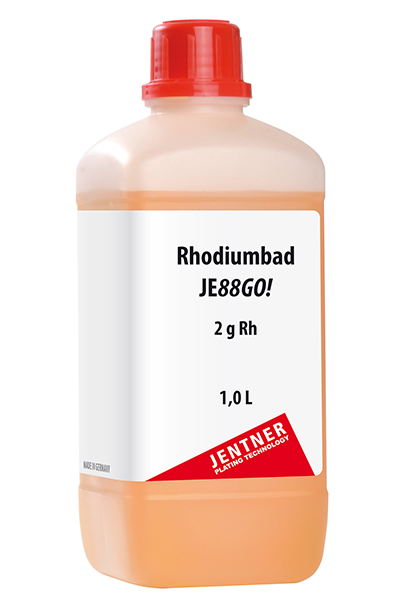

The JE88! GO NDG rhodium bath offers a decisive advantage: it is the first rhodium that does not have to be declared as dangerous goods during transportation. This innovation enables problem-free and safe worldwide shipping.The revolutionary rhodium is ideal for decorative coatings with a small electroplating process in the jewelry, eyeglass frame and watch industries. It is also frequently used as effective tarnish protection for silverware. The precise deposition of layers of up to 1.0 µm enables outstanding brilliance and durability. The versatile application makes the JE88! GO NDG rhodium bath the ideal choice for various electroplating processes.Operating Data:Rhodium content: 2,0 g/LpH-Value: <1Working conditions:Voltage: 2,0 – 3,5 VoltBath temperature: 20 - 30° CExposition time: 2 min. (1 max. 10 min)Anodes: Platiniertes Titan oder Mischoxid MOXAnode/ Cathode: 1 : 1Current density: 0,5 – 2,0 A/dm2Agitation: advantageousBath filtration: from 10 LiterDeposition rate: 6 – 8mg/AminForm of Delivery:Ready for use 2,0 g/L
