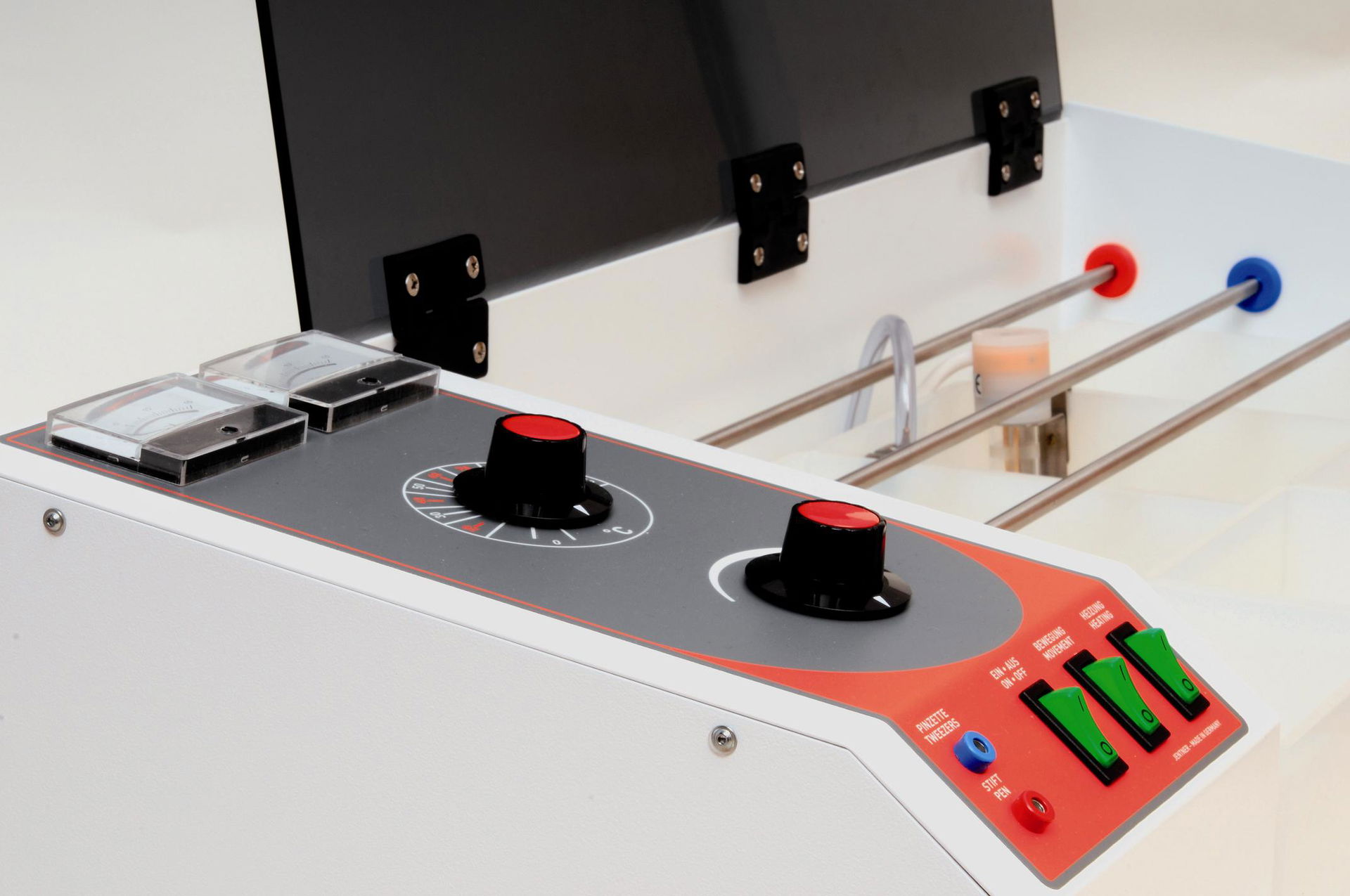

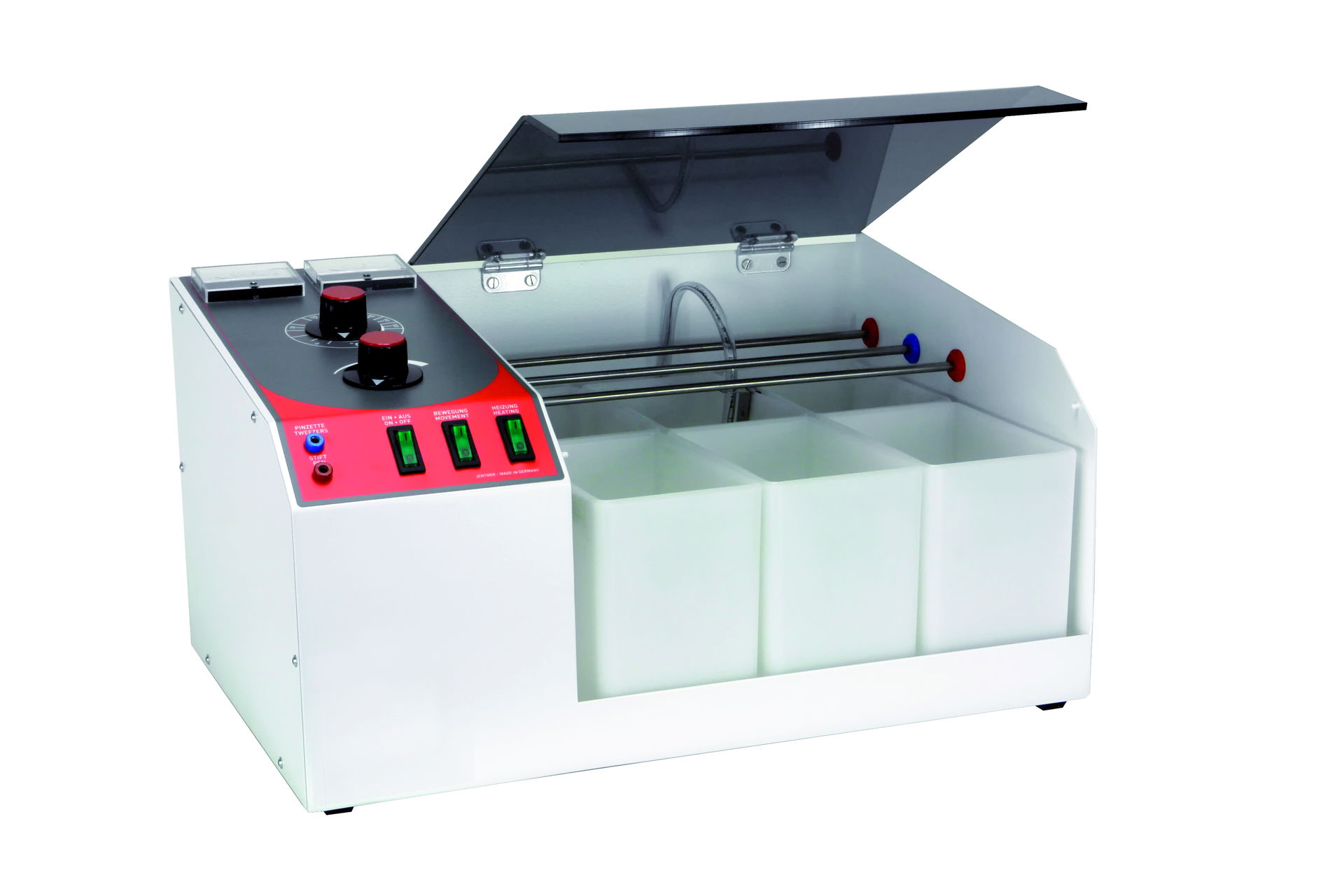

Electroplating Unit Comfort II

Product information "Electroplating Unit Comfort II"
The small-size electroplating unit Comfort II can be used for all current plating solutions. The machine guarantees an easy, efficient and secure processing. Furthermore, the Comfort II has an integrated thermostatic control unit and integrated goods movement. Additionally, it has a pen plating connection. The cover plate is transparent and can be closed all around.

Technical data:
Dimensions (WxDxH): 480x300x260 mm
Weight: 16 kg
Rectifier: 15V/ 15A
Bath volume: 3x 1,5 l working tanks + 3x 1,5 l rinsing tanks
Bath dimensions: 150x100x150mm
Controlled heating: 200W
Supply voltage: 230V/ 50Hz

Optional equipment:
1x connectable heater (200W)
Available downloads

Zubehör

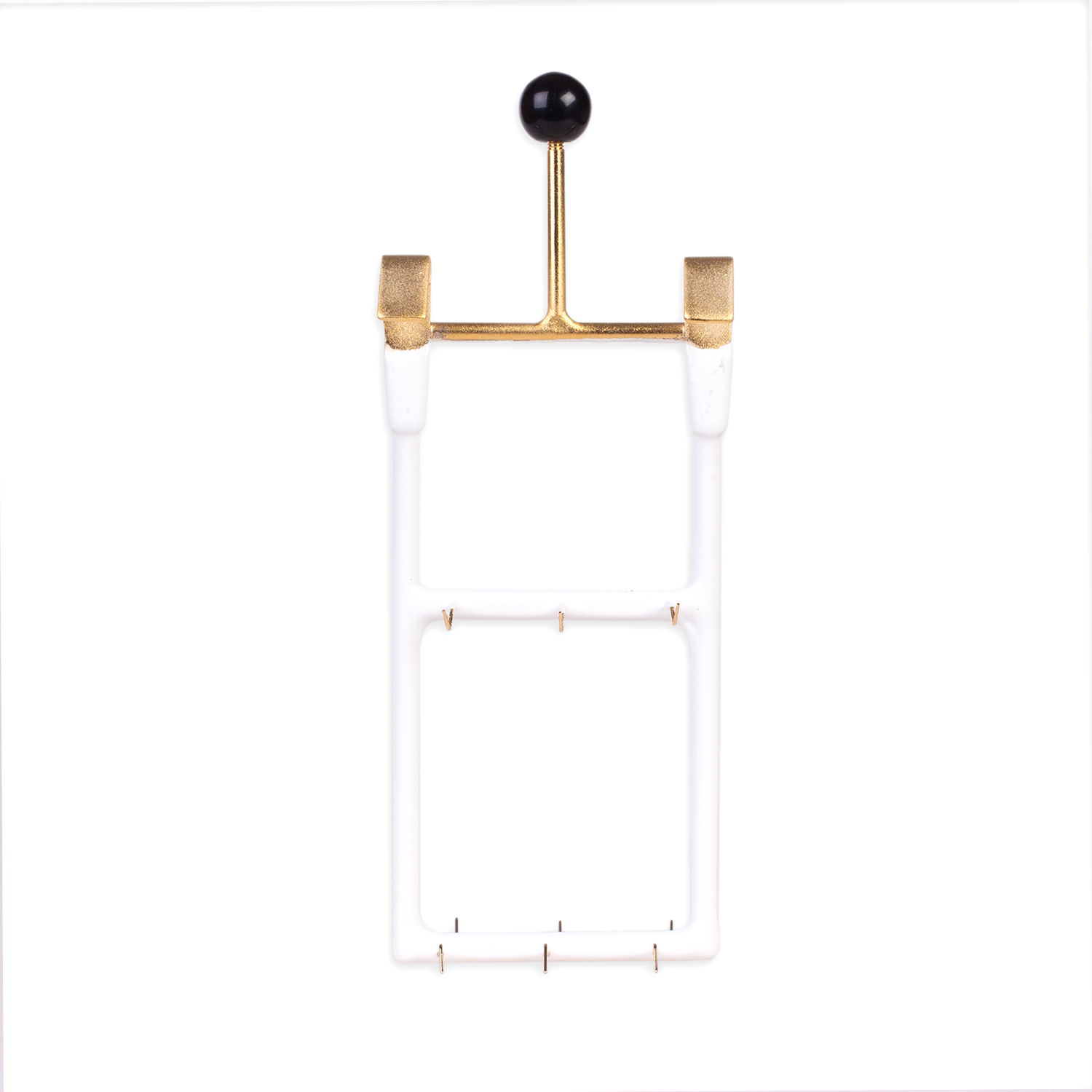

Jig with 12 hooks for chains 150x70mm (1-3 L)
Jig with 12 hooks for chains 150x70mm, which is perfectly suitable for our small size electroplating unit Comfort II, Digital II Version 2.0 or 1-3 liter tanks.

€75.70*

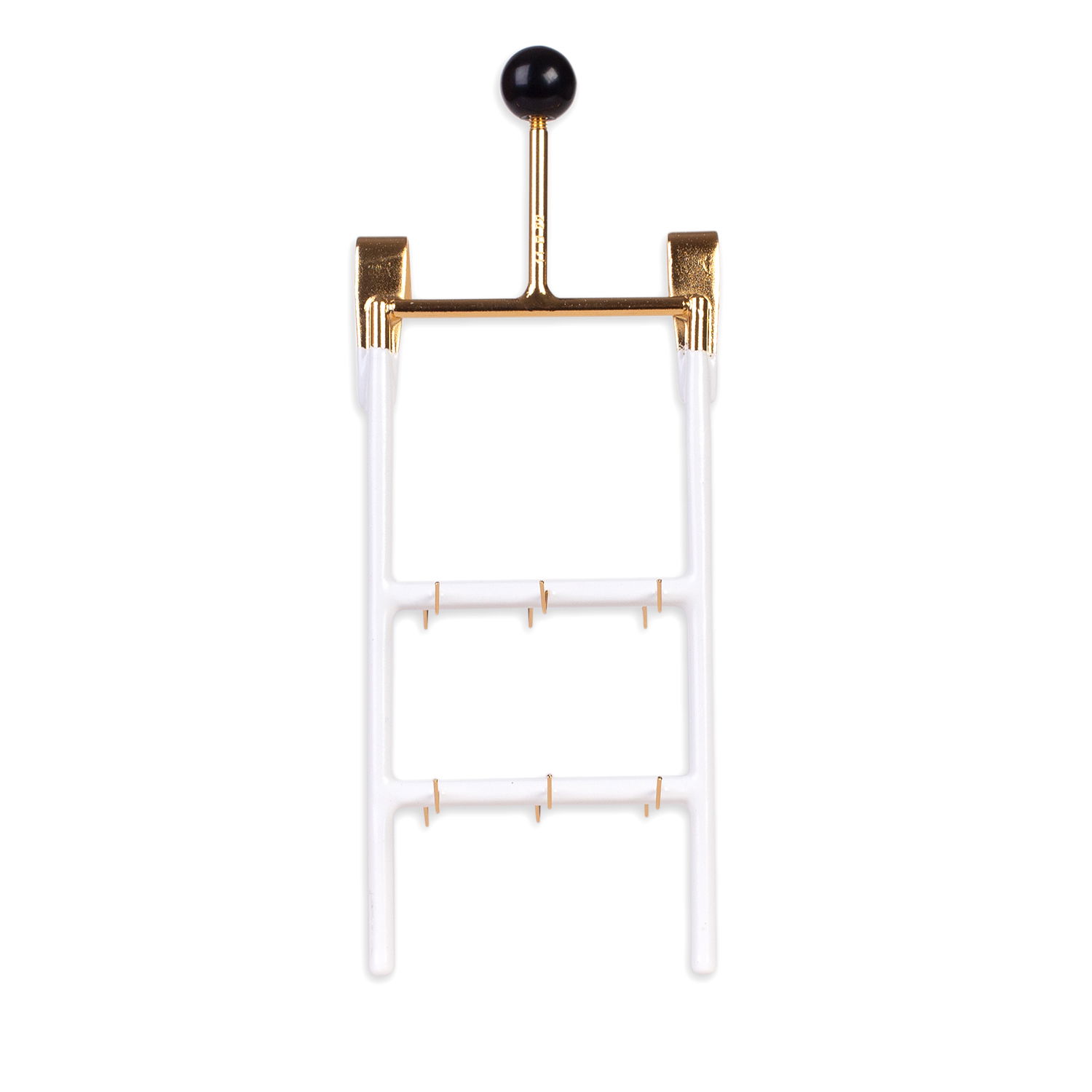

Jig with 12 hooks for rings 150x70mm (1-3 litre)
Jig with 12 hooks for rings 150x70 mm, which is perfectly suitable for our small size electroplating unit Comfort II, Digital II Version 2.0 or 1-3 liter tanks.

€112.90*

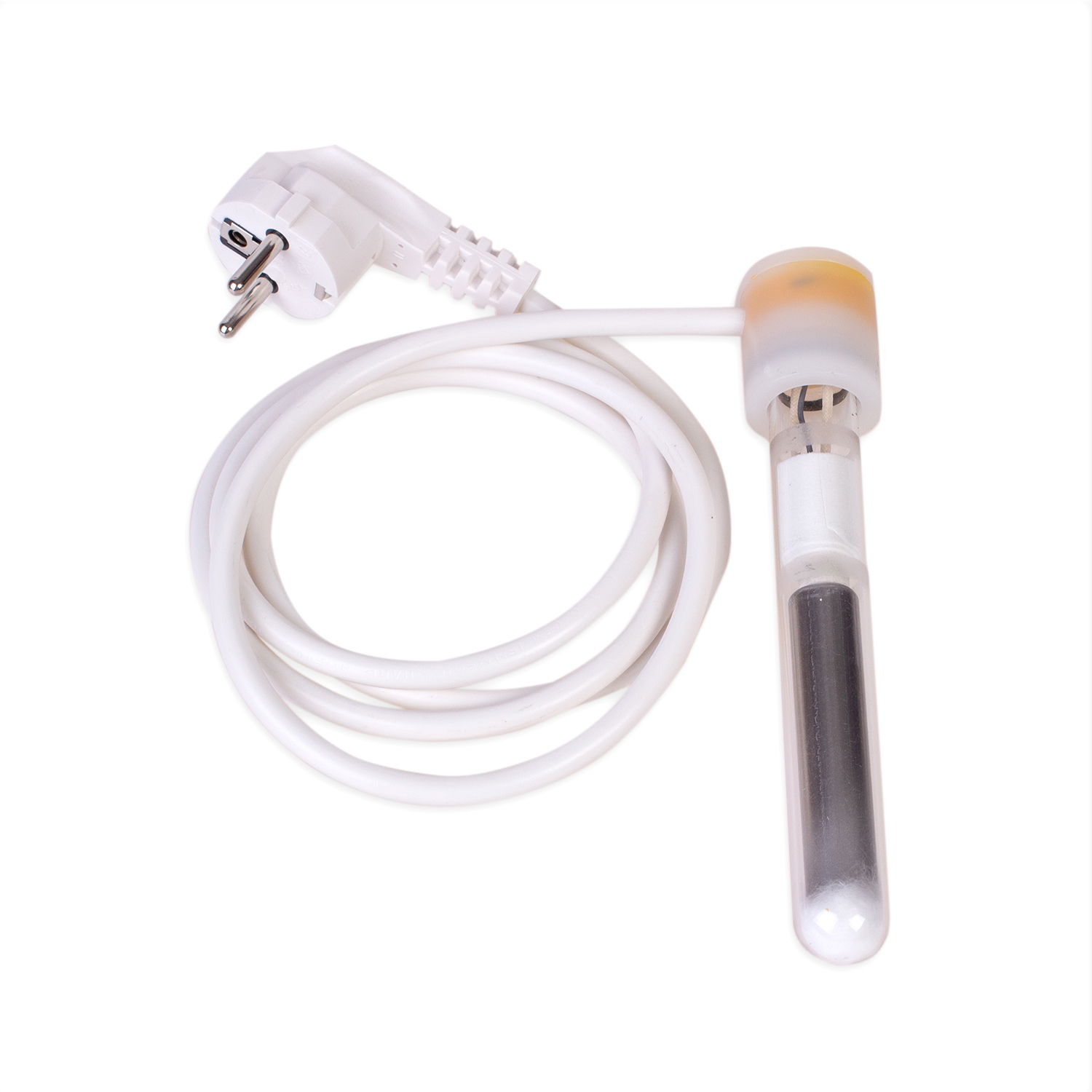

Immersion silica heater, 180 W
Stick immersion silica heater 180 watt. Depth of immersion 70mm, Ø 20mm. Suitable for Comfort II.Please note that the fixation is not included in the delivery. They have to be ordered separately.

€232.60*

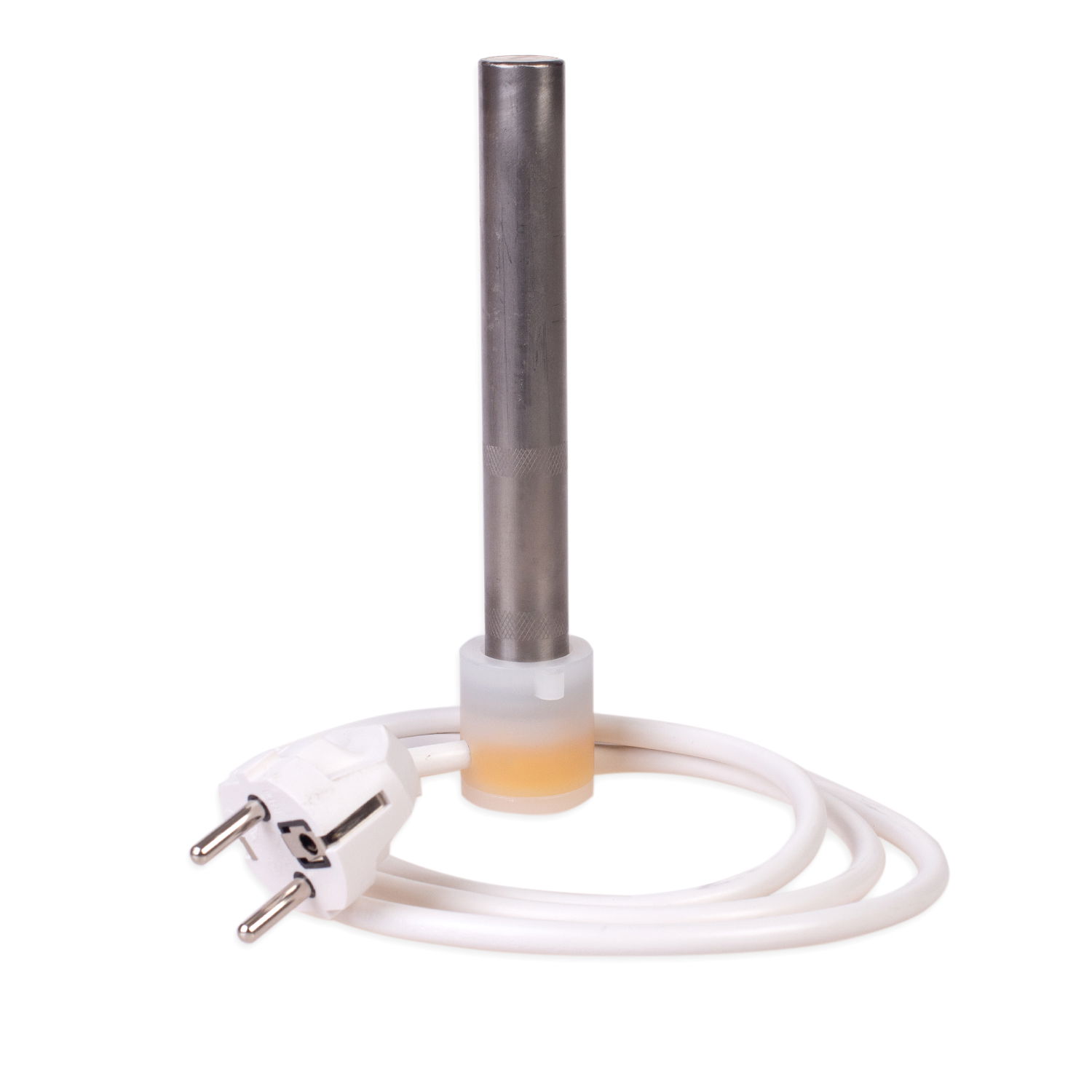

Immersion titan heater 200 W/230V
Immersion titan heater, 200 Watt/230V is suitable for heating e.g. ruthenium and nickel baths for Digital II Version 2.0 and Comfort II.Please note that the fixation is not included in the delivery. They have to be ordered separately.Dimensions:Length 150 mm.Depth of immersion 140 mm, Ø 20 mm.

€167.00*

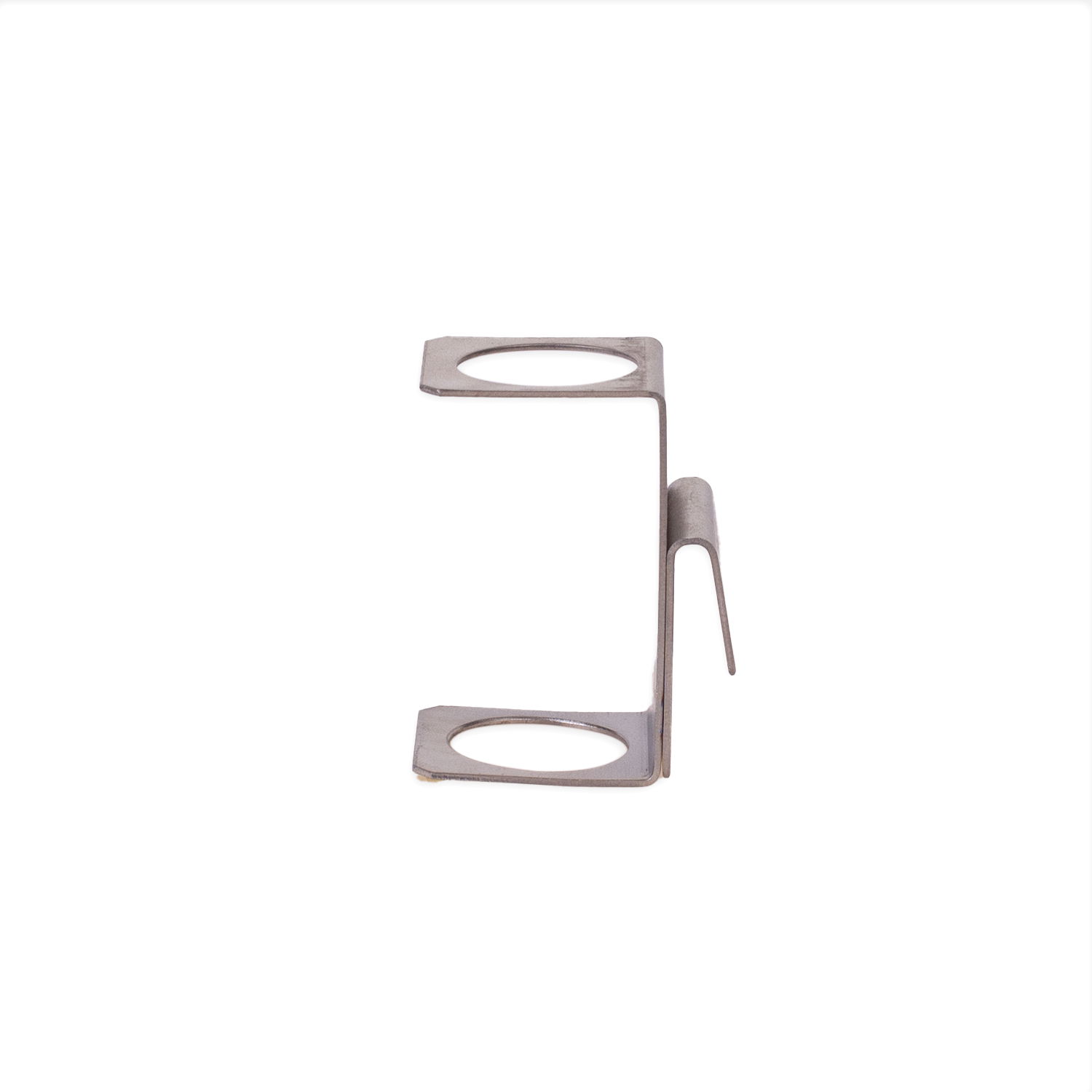

Titan Fixation for heater 200W
Titanium fixation for heater 200W/230V to fixate especially stick immersion heaters. It is suitable for Comfort II and Digital II Version 2.0.

€25.90*

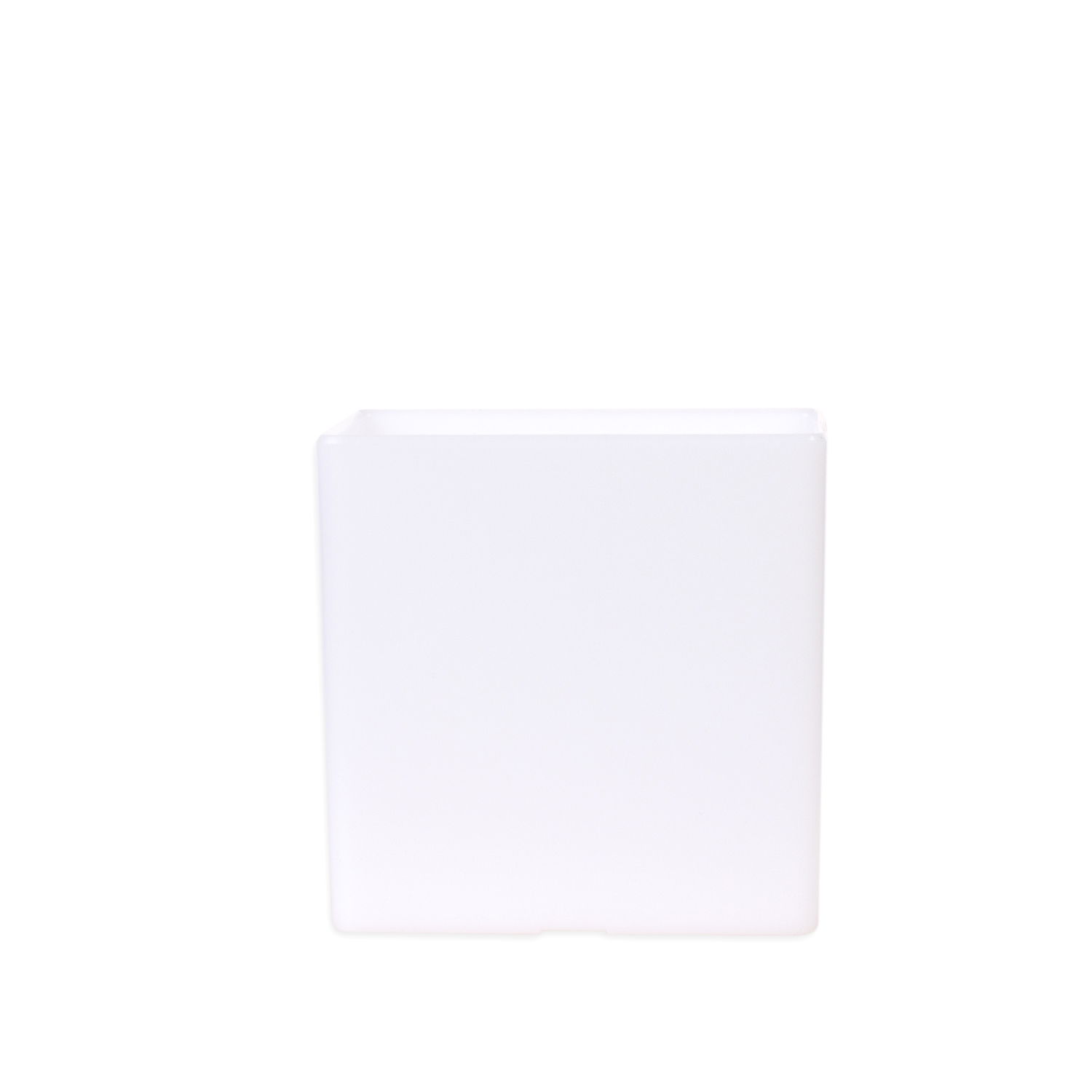

Tank PP 1,5 litres 150x100x150mm
Wanne-PPH 150x100x150mm aus PPH Kunststoff mit 1,5 Liter Volumen. Die Wanne eignet sich ideal für die Kleingalvanisiergeräte Comfort II und Digital II Version 2.0.

€42.00*

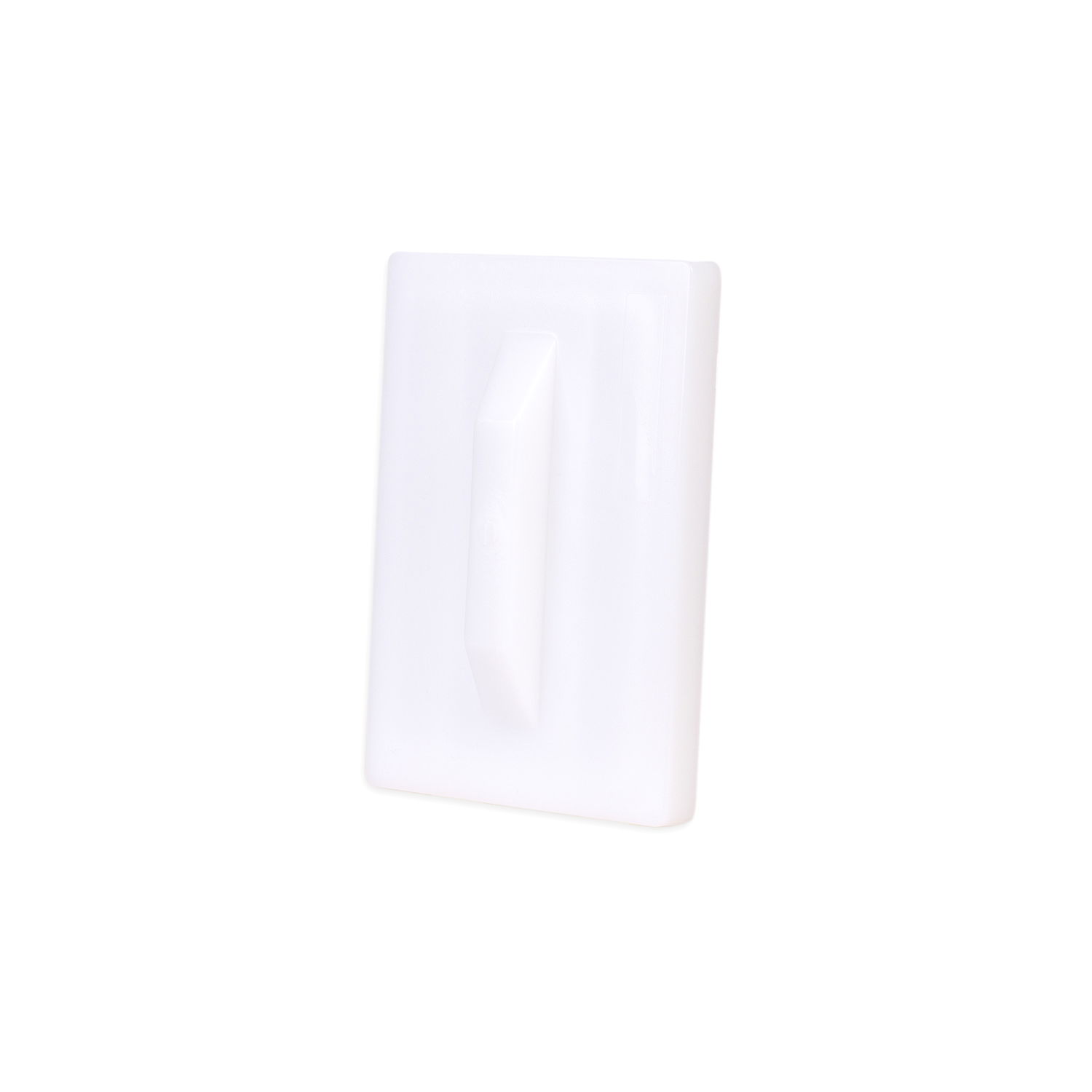

Tank lid PP for 1.5 litre tank
Plastic tank lid for 1.5 liter PPH tanks suitable of small-size electroplating units Comfort II and Digital II Version 2.0.

€24.90*
Stainless steel anode, 150x50x0.5 mm
Stainless steel anode 150x50x0,5 mm suitable for Comfort II, Digital II Version 2.0 or 1,5 liter tanks. Stainless steel anodes can be used e.g. for degreasing baths and flashgold baths.

€11.90*

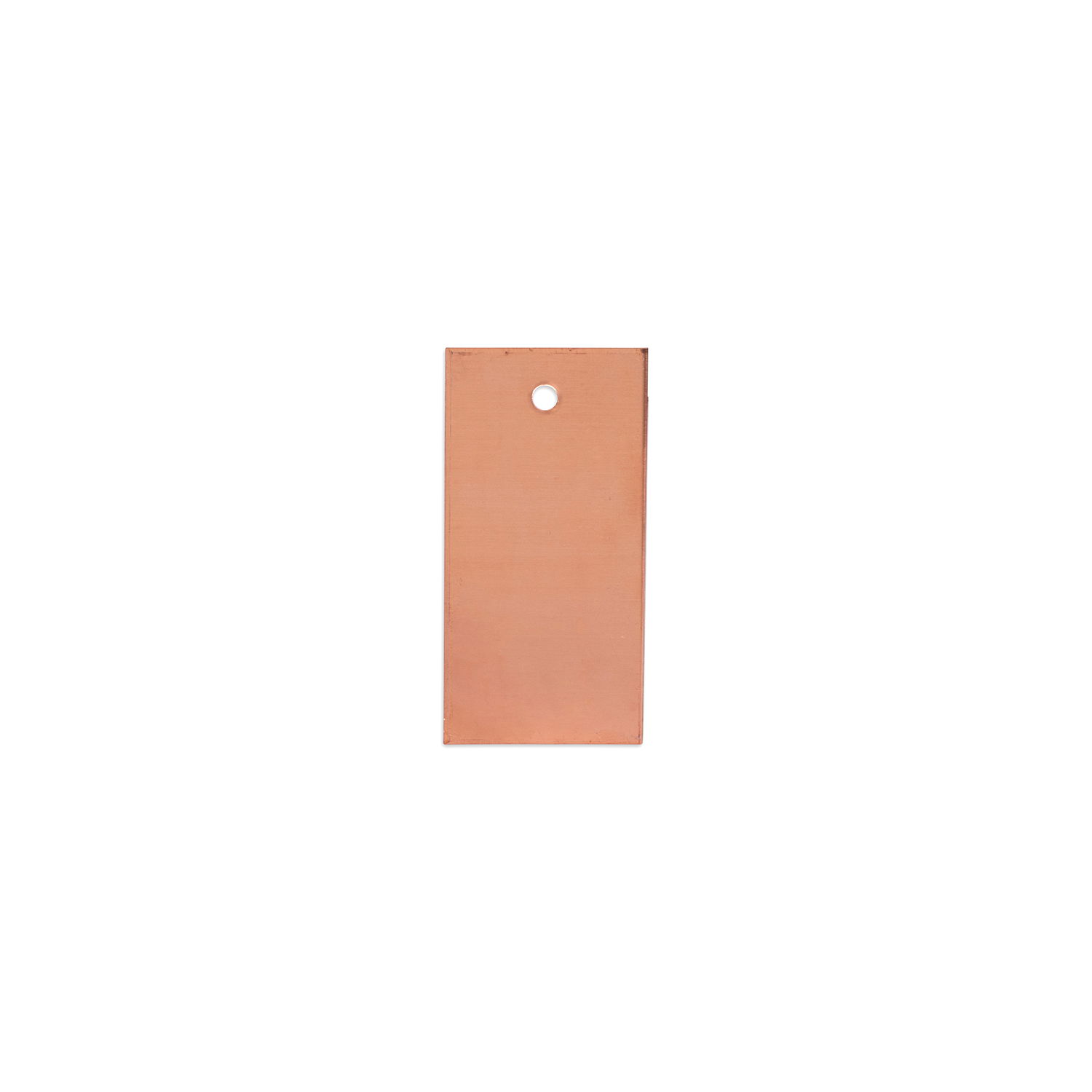

Copper anode 100x50x2 mm
The Copper anode 100x50x2 mm is suitable for our Comfort II, Digital II Version 2.0  or 1,5 liter tanks. These anodes are suitable for copper baths. Please note that the fixation is not included in the delivery. They have to be ordered separately.

€27.00*

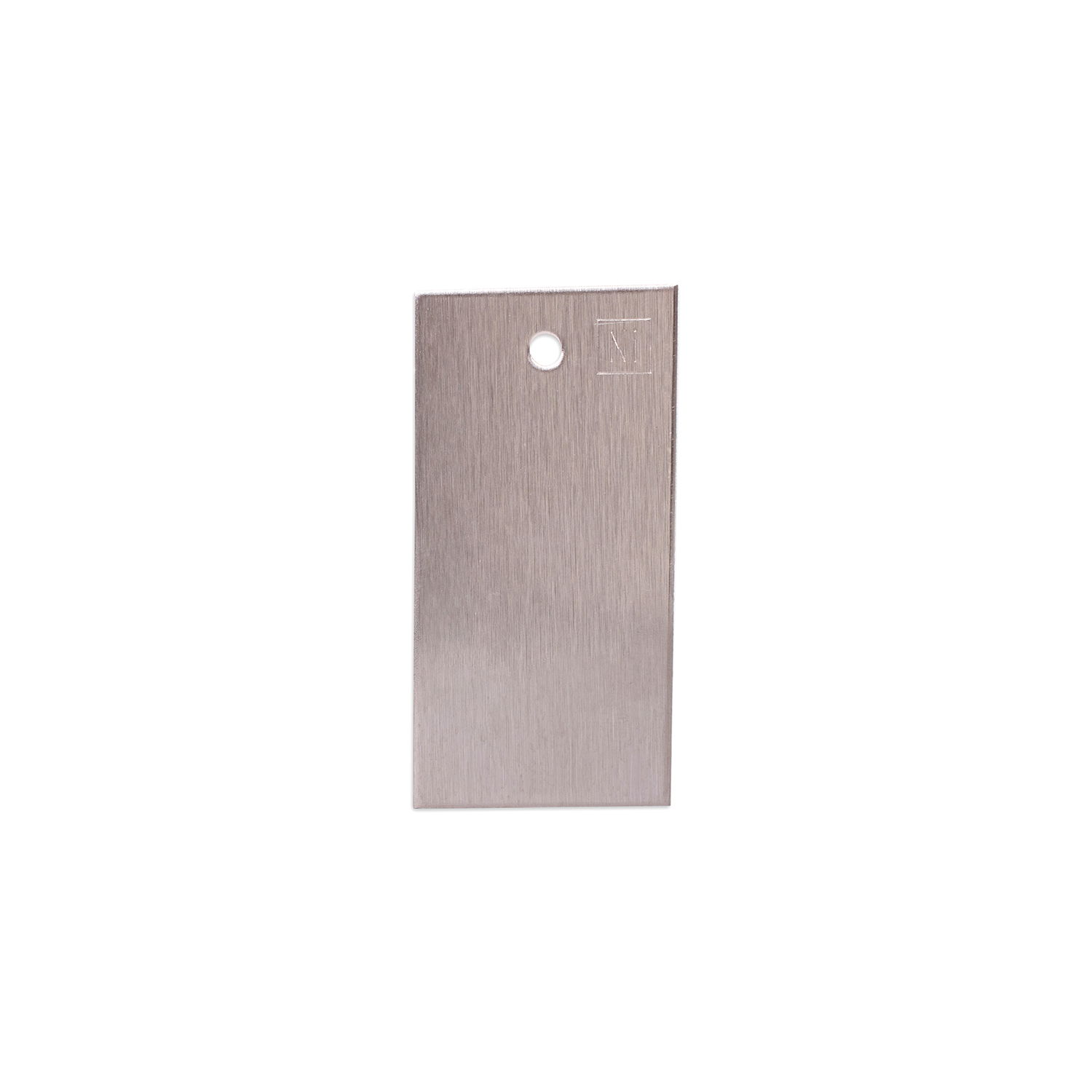

Nickel anode 100x50x2 mm
Suitable nickel anode, 100x50x2 mm for Comfort II, Digital II Version 2.0 or 1,5 liter tanks. These anodes are suitable for nickel baths. Please note that the fixation is not included in the delivery. They have to be ordered separately.

€46.50*

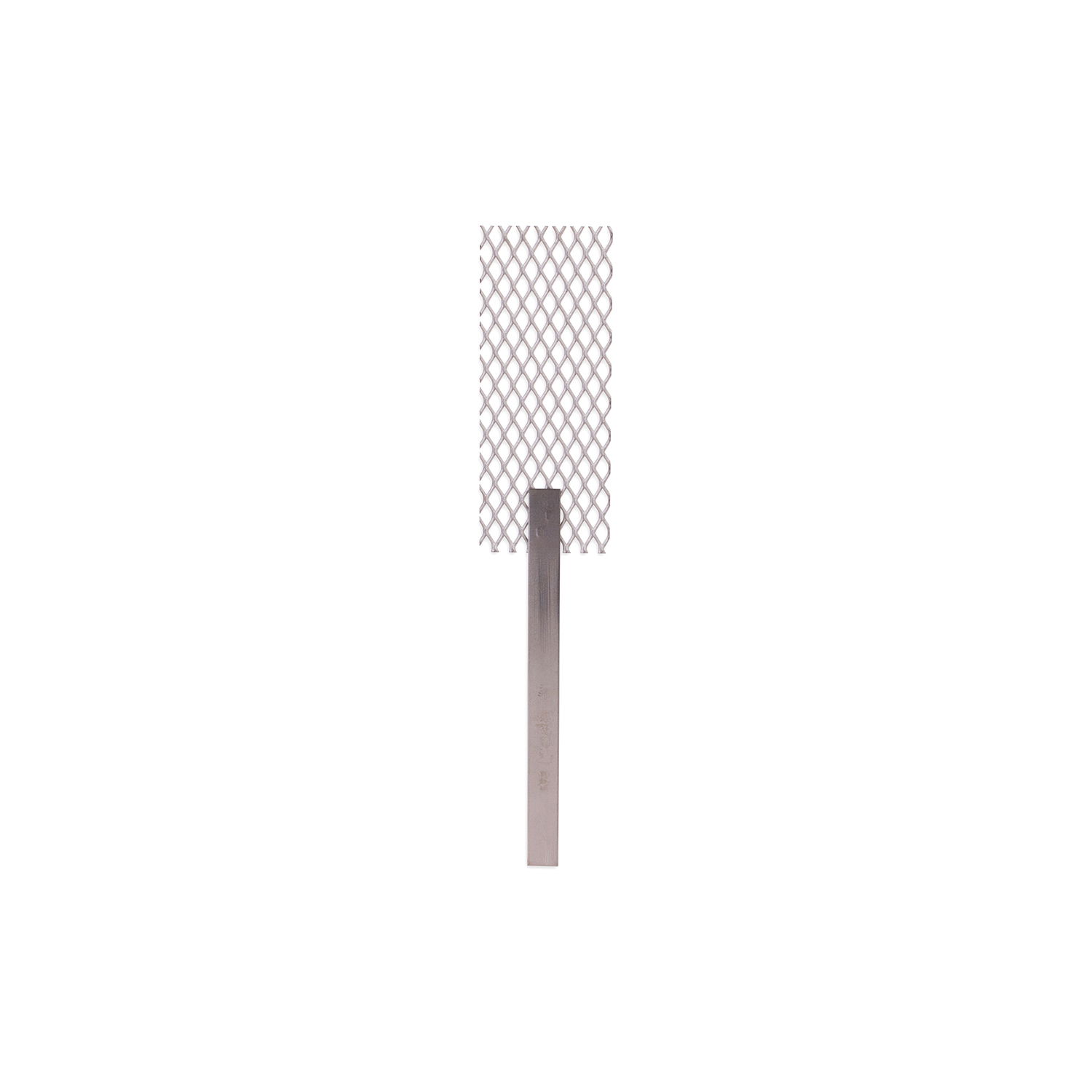

Platinized titanium anode 100x40 mm (2.5 µm Pt)
Suitable platinized titanium anode, 100x40 mm (2.5 µm Pt) for Comfort II, Digital II Version 2.0 or 1,5 liter tanks. These anodes can be used e.g. for rhodium, platinum and gold plating baths.

€73.40*

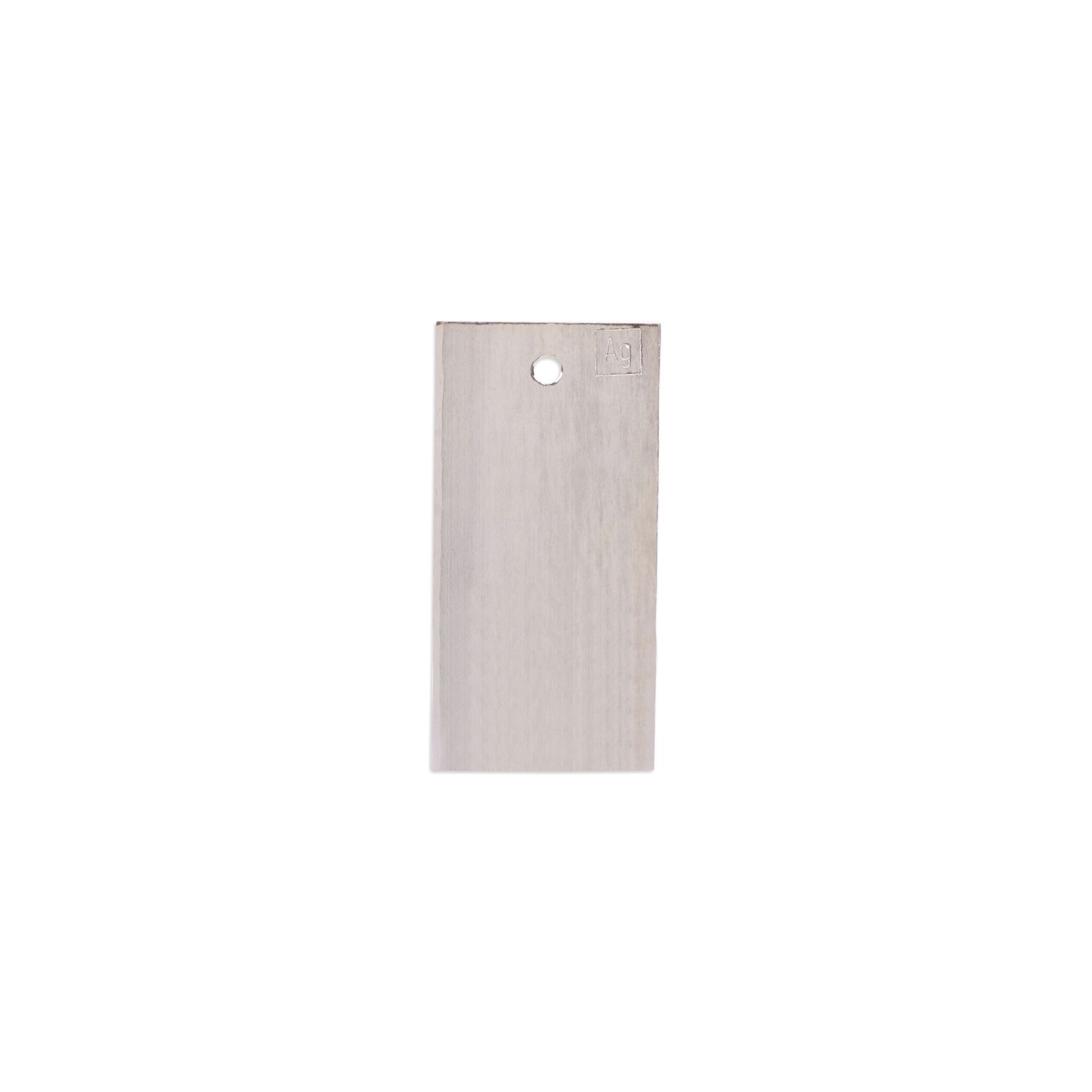

Fine-Silver anode 100 x 50 x 2 mm
Suitable fine-silver anode 100x50x2 mm for Comfort II, Digital II Version 2.0 or 1,5 liter tanks. These anodes are suitable for silver baths. Please note that the fixation is not included in the delivery. They have to be ordered separately.

€144.58*

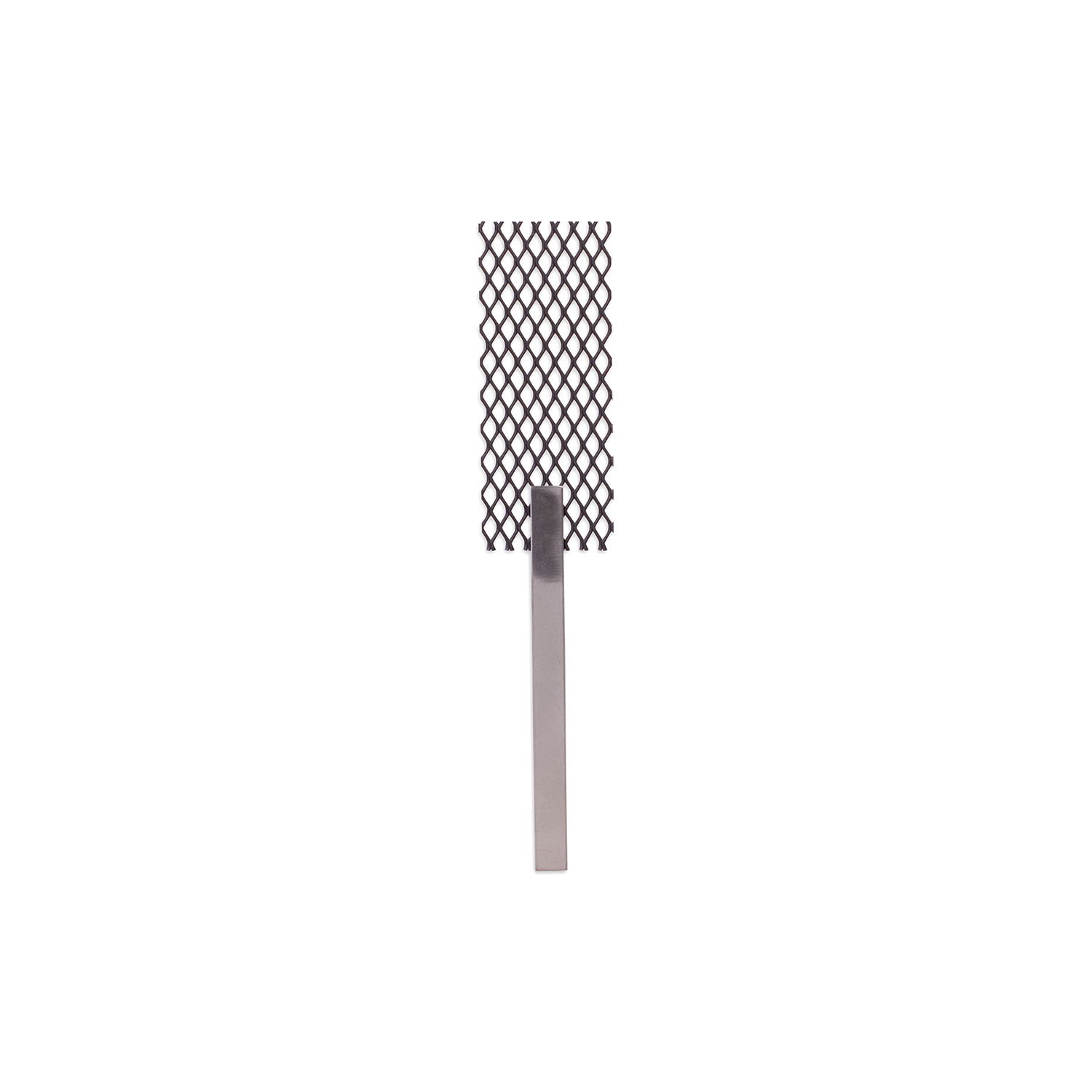

Mixed oxid anode MOX (Ir/MMO) 100x40 mm
Suitable mixed oxid anode MOX (Ir/MMO) 100x40 mm for Digital II Version 2.0 or 1,5 liter tanks. These anodes can be used e.g. for pre-gold and palladium baths.

€70.40*

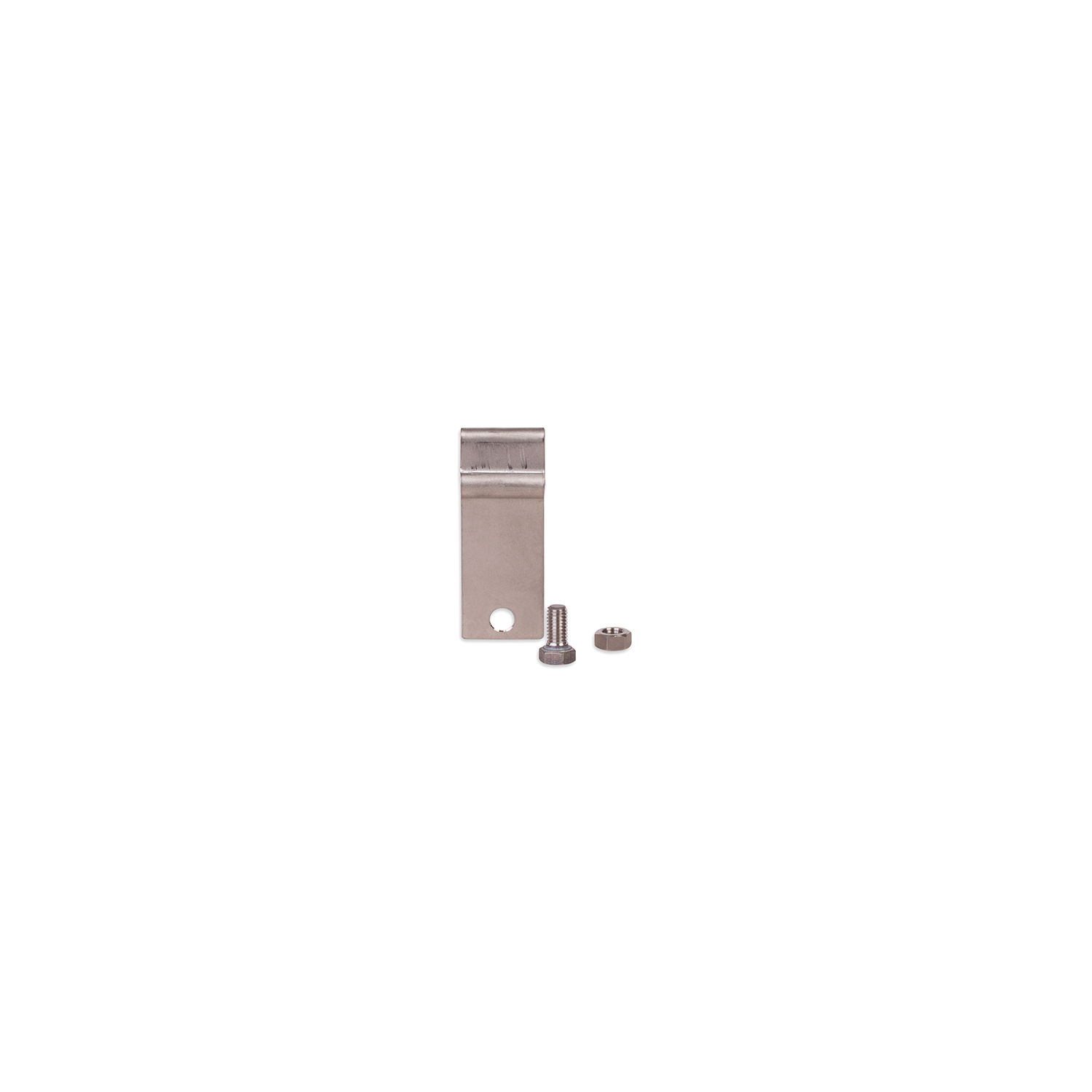

Titanium-fixation for anodes 39x20 mm with screws
Titanium-fixation for anodes, 39x20 mm with screws is ideal to fixate silver, nickel or copper anodes. It is suitable for Comfort II, Digital II or 1,5 liter tanks. Dimensions:39x20 mm

€22.70*
