Entdecken Sie unsere umfangreiche Auswahl an Goldbädern, um Ihren Neusilber-Teilen die gewünschte Farbe zu verleihen. Wir bieten Farbgoldbäder in 14 Karat, 18 Karat und 24 Karat, sowie ein Farbgoldbad in Roségold und eines in Rotgold.
Zusätzlich stehen Ihnen Goldplattierbäder und Haftgoldbäder zur Verfügung, um Ihren Teilen einen edlen Glanz zu verleihen.

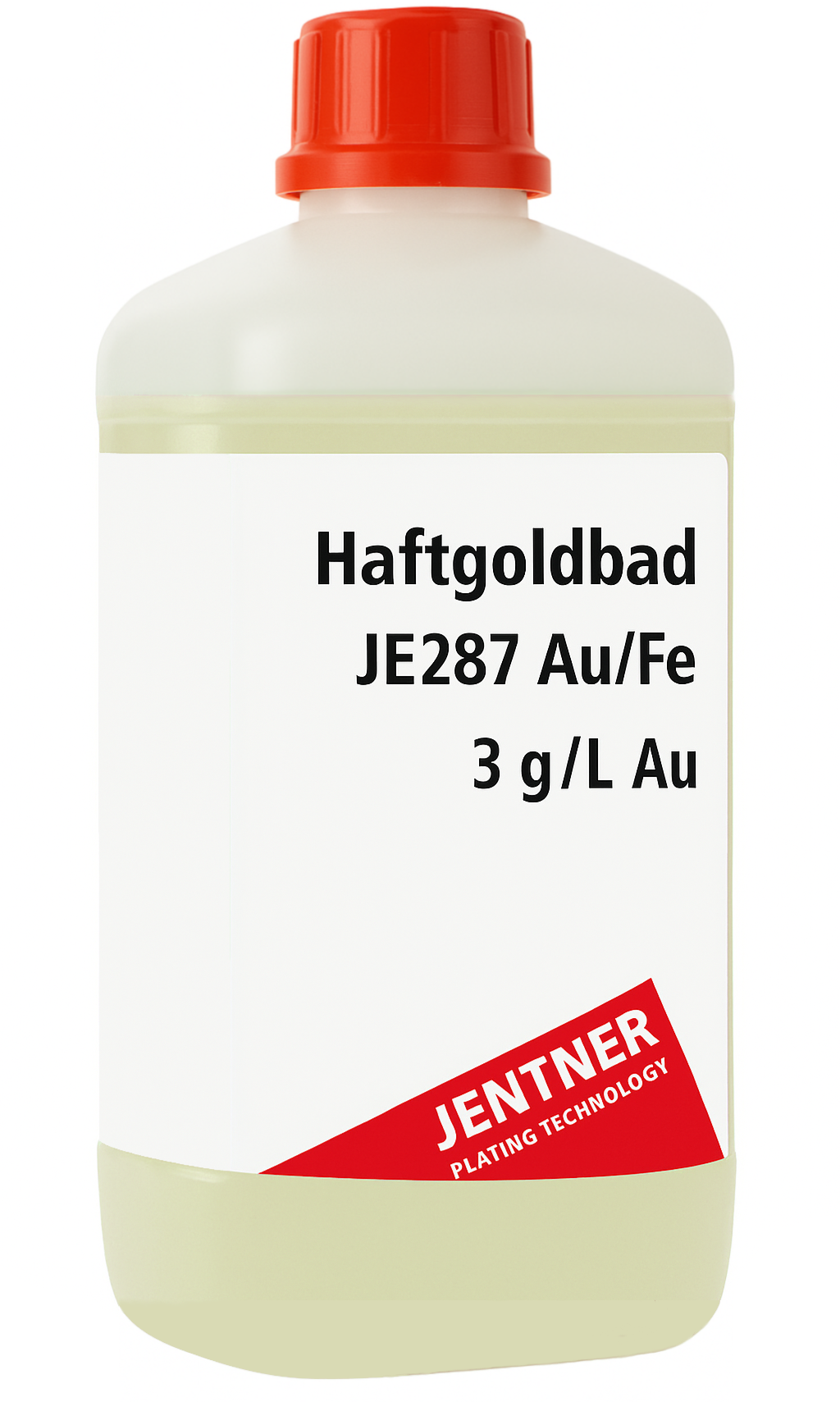

The used ready-to-use adhesion gold bath JE287 is a strongly acidic gold electrolyte required for gilding precious steels. The coatings are crack-free, ductile, corrosion-protective, and low-porosity.The bath is excellent for direct gilding of chrome-nickel steel, molybdenum-containing steel, and difficult-to-activate nickel-based alloys. The coating consists of a gold/iron alloy. Layer thicknesses of up to 3 µm are possible. Cobalt and nickel-free! Operating data:Gold content: 3 g/LSulfuric acid content: 25 g/L (20 - 30) Deposition data:Hardness: approx. 165 HVLayer thickness: until 3 µmFineness of the gold coating: > 99% AuOperating conditions:Voltage: 2 volt (2 - 3,5)Bath temperature: 20 - 30 °CExposition time: 1 min. (max. 30 min. Anode material: Mixed oxide (MOX) Goods movement: required Anode/Cathode surface: 1:1Current density: 2 - 6 A/dm2 Bath filtration: From 10 liter Form of delivery:Ready for use 3 g/L Au

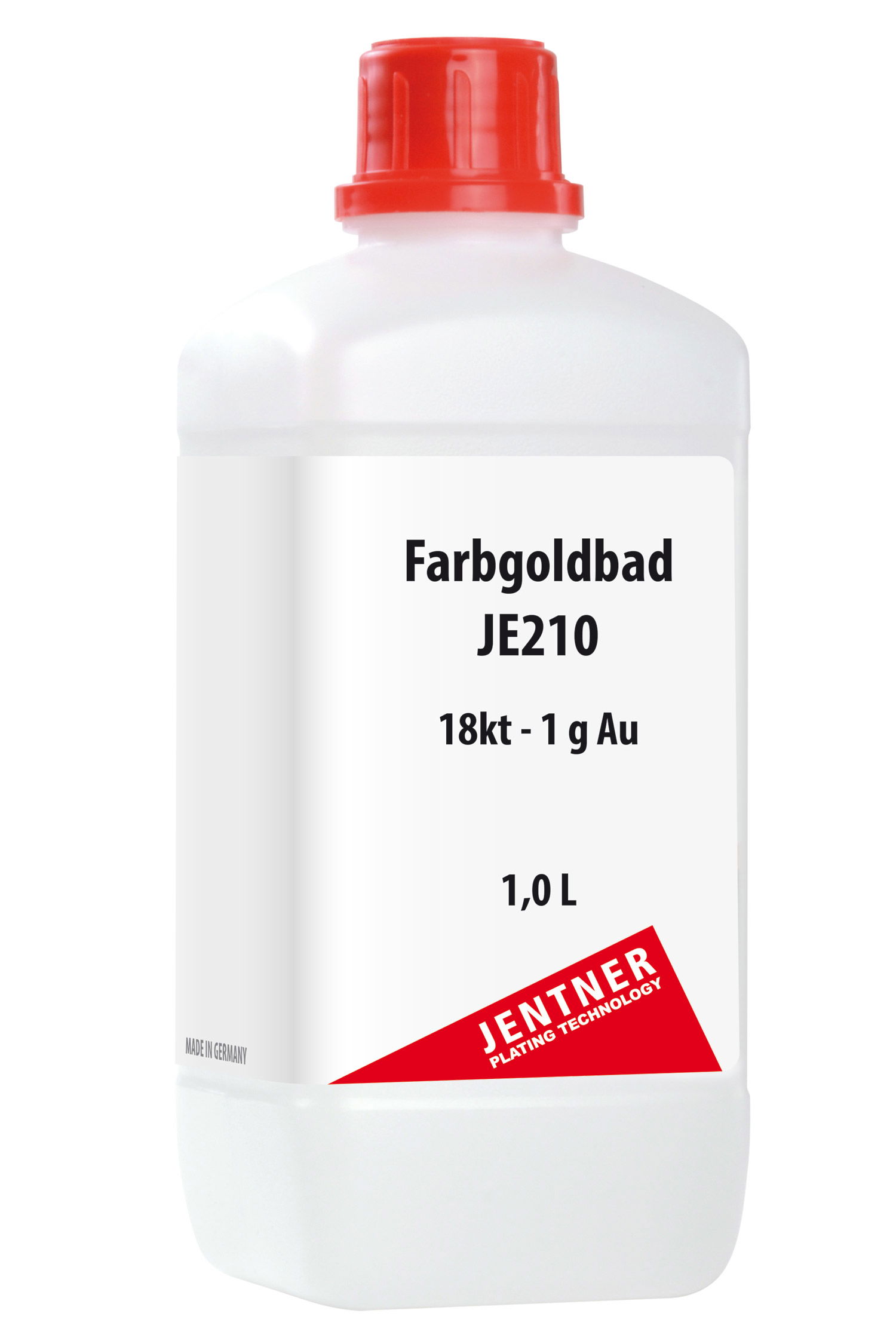

The color gold bath JE210 - 18ct deposits decorative gold layers in 18ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au
The color gold bath cold JE400 - fine deposits decorative gold layers in fine gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant colour. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11 - 12)Density: 1,065 g/ml (1,060 - 1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au
The colour gold bath cold JE411 - 14ct deposits decorative gold layers in 14ct colour. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant colour. The colour gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11 - 12)Density: 1,065 g/ml (1,060 - 1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15 - 20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

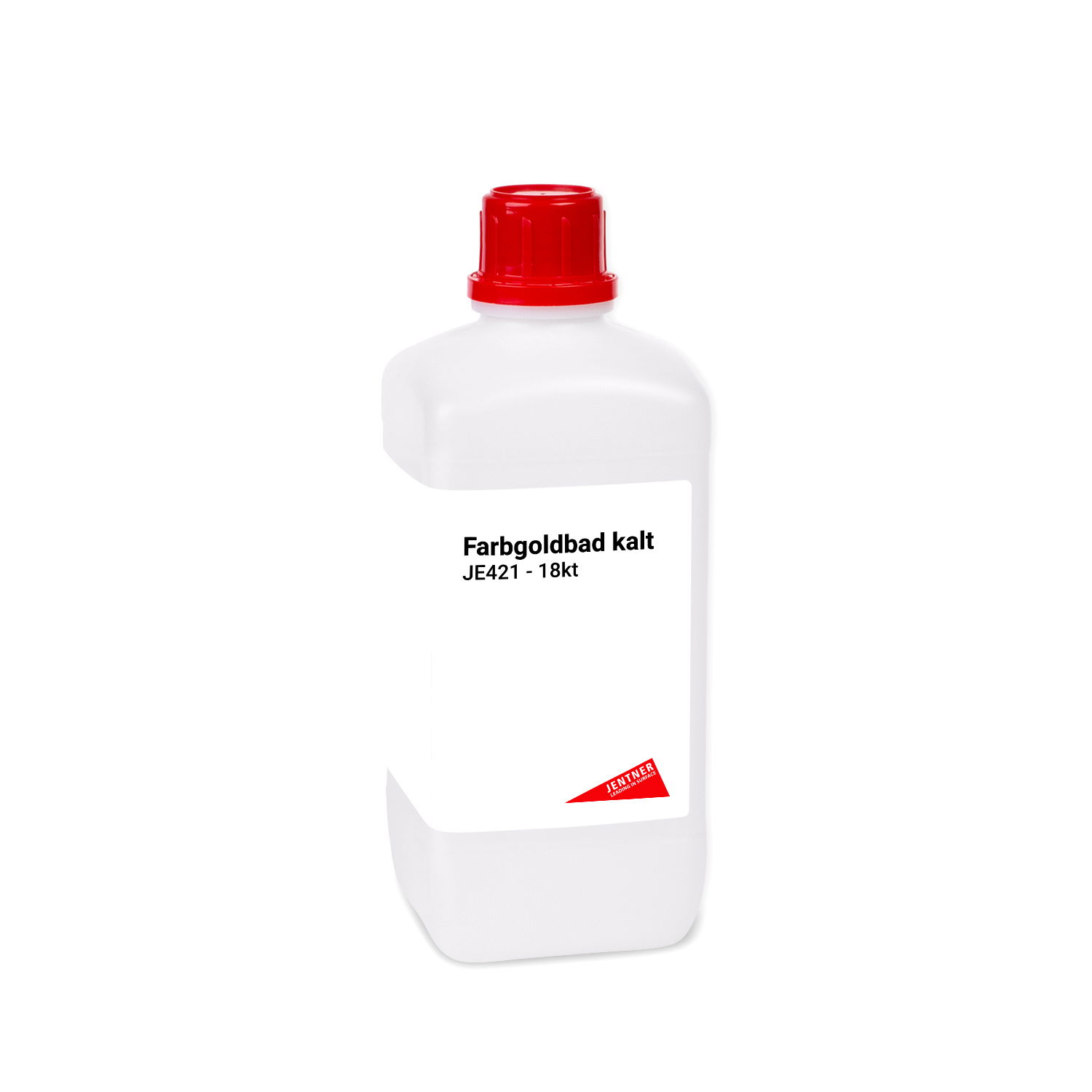

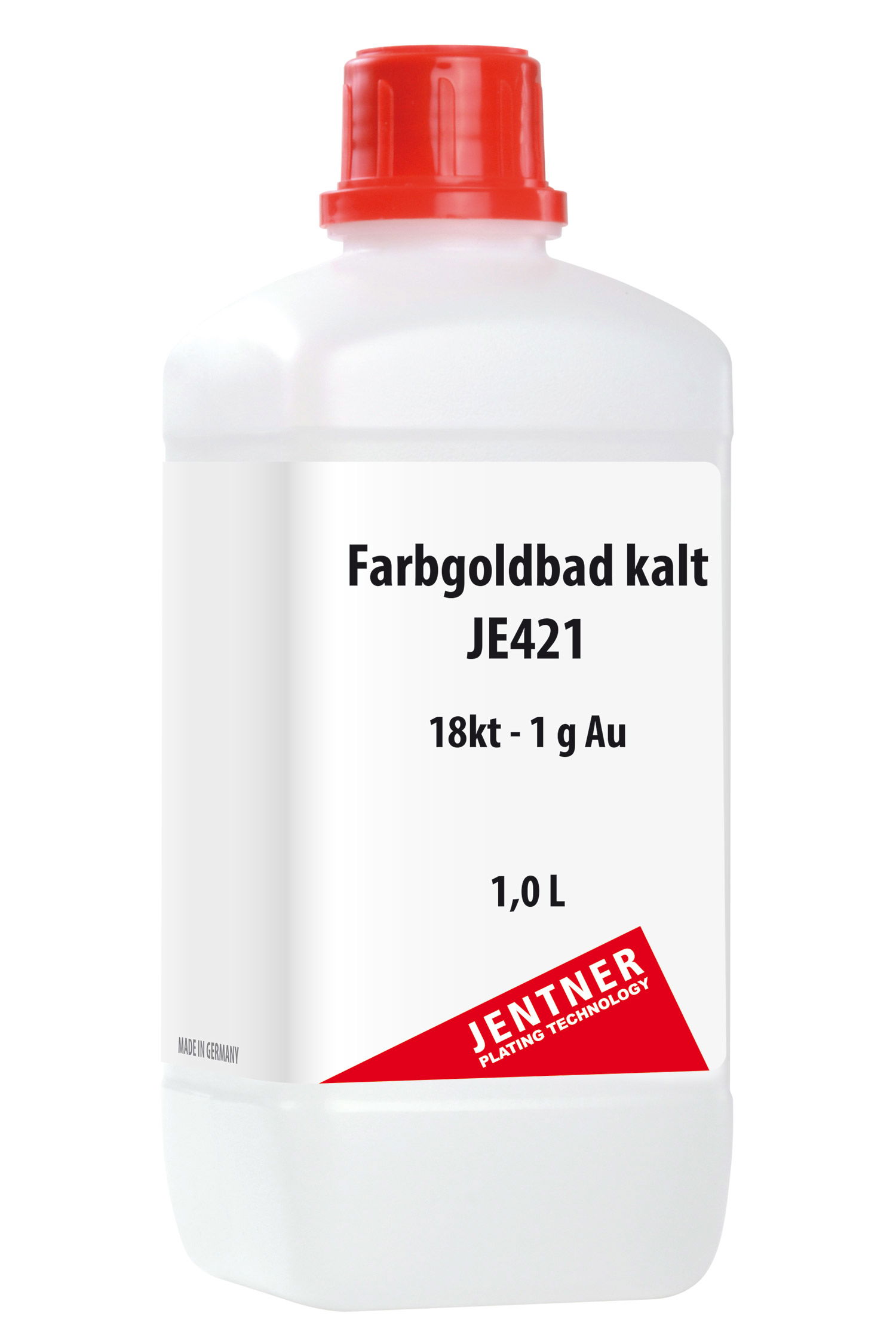

The color gold bath cold JE421 - 18ct deposits decorative gold layers in 18ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11-12)Density: 1,065 g/ml (1,060-1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au
The color gold bath cold JE431 - rosé deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/lpH-value: 11.5 (11-12)Density: 1.065 g/ml (1.060-1.070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1 The color of the deposite may change due to deviations in the working conditions. Form of delivery:Ready for use 1 g/L Au

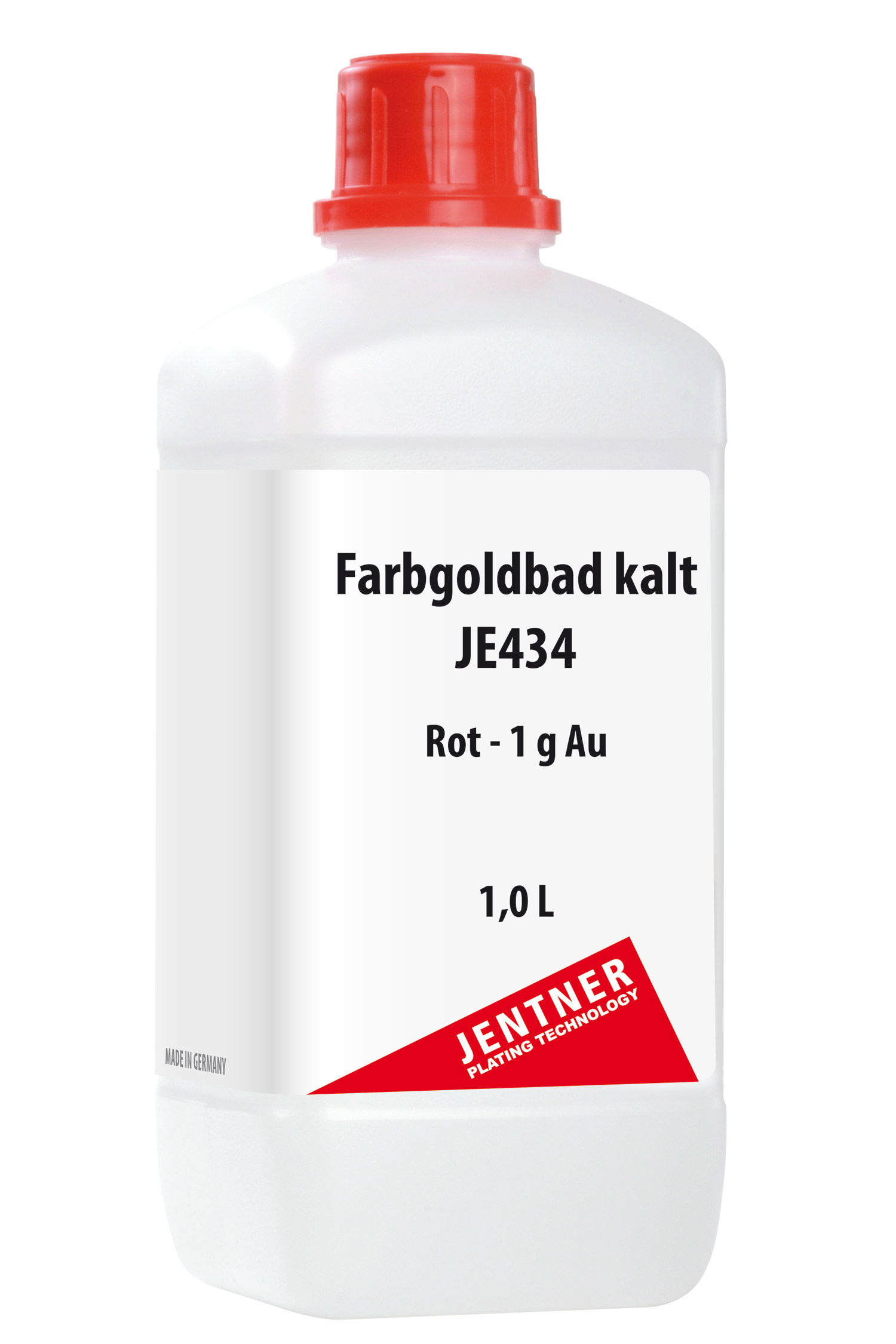

The color gold bath cold JE434 - red deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11.5 (11-12)Density: 1.065 g/ml (1.060-1.070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

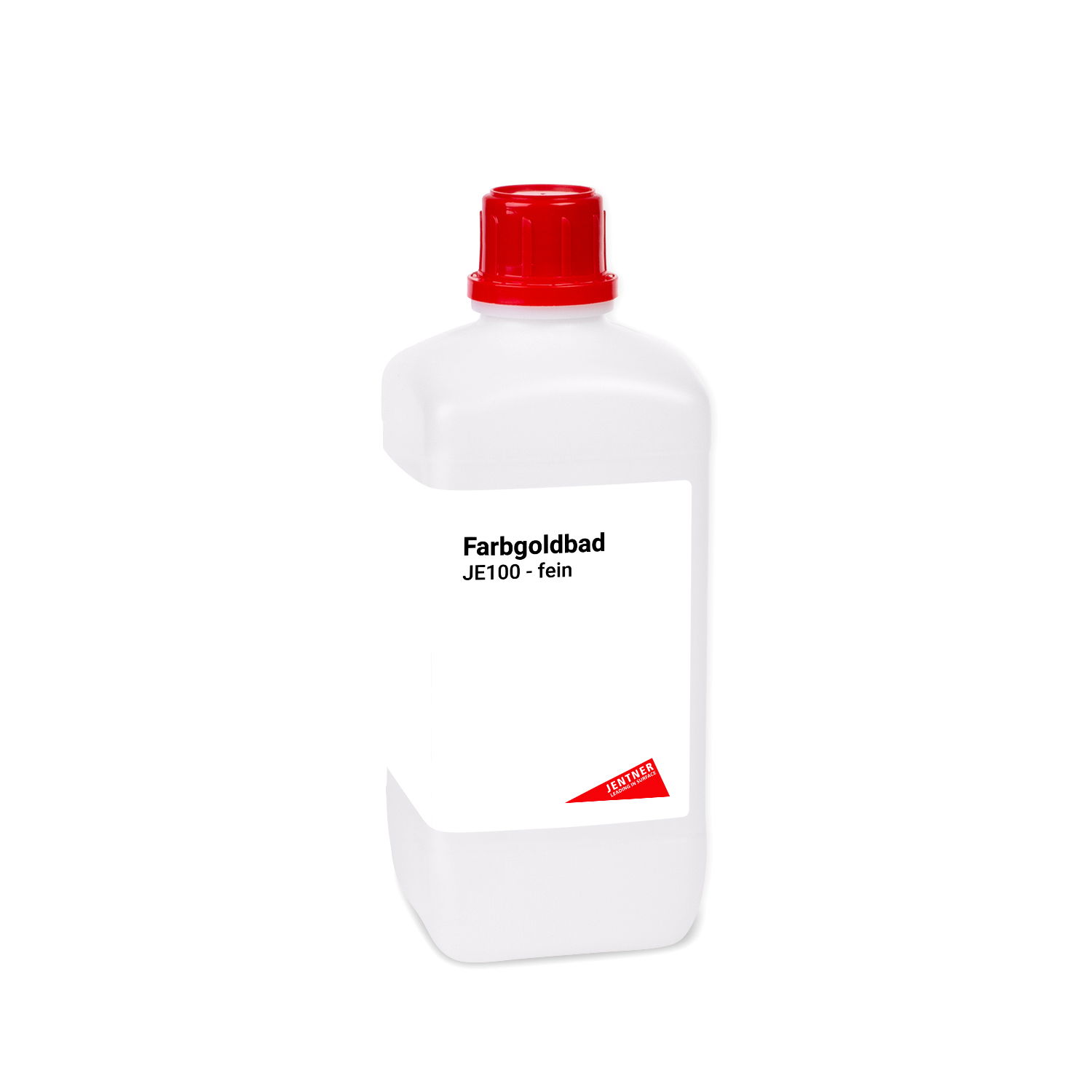

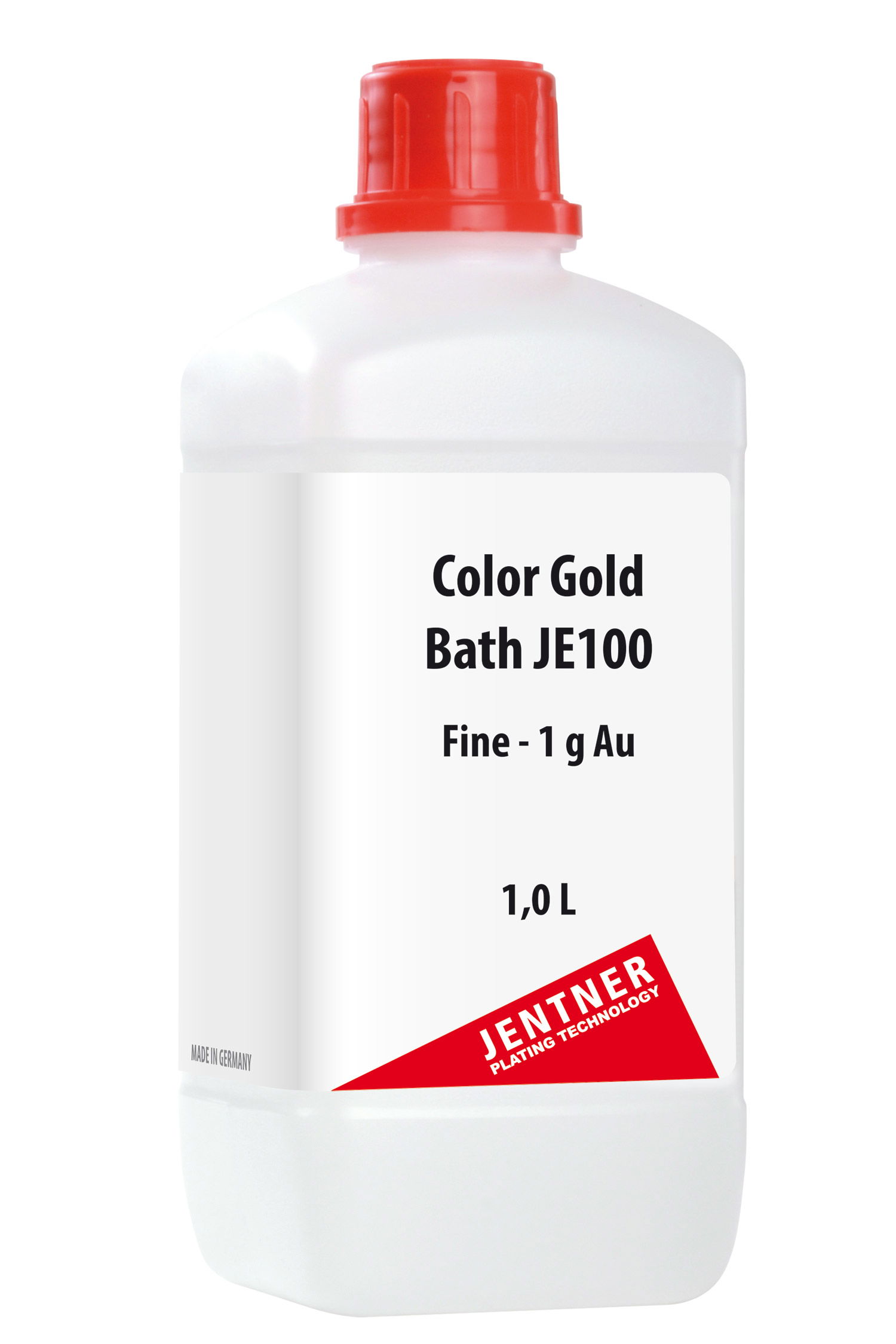

The color gold bath JE100 - fine deposits decorative gold layers in fine gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au
The color gold bath JE110 - 14ct deposits decorative gold layers in 14ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

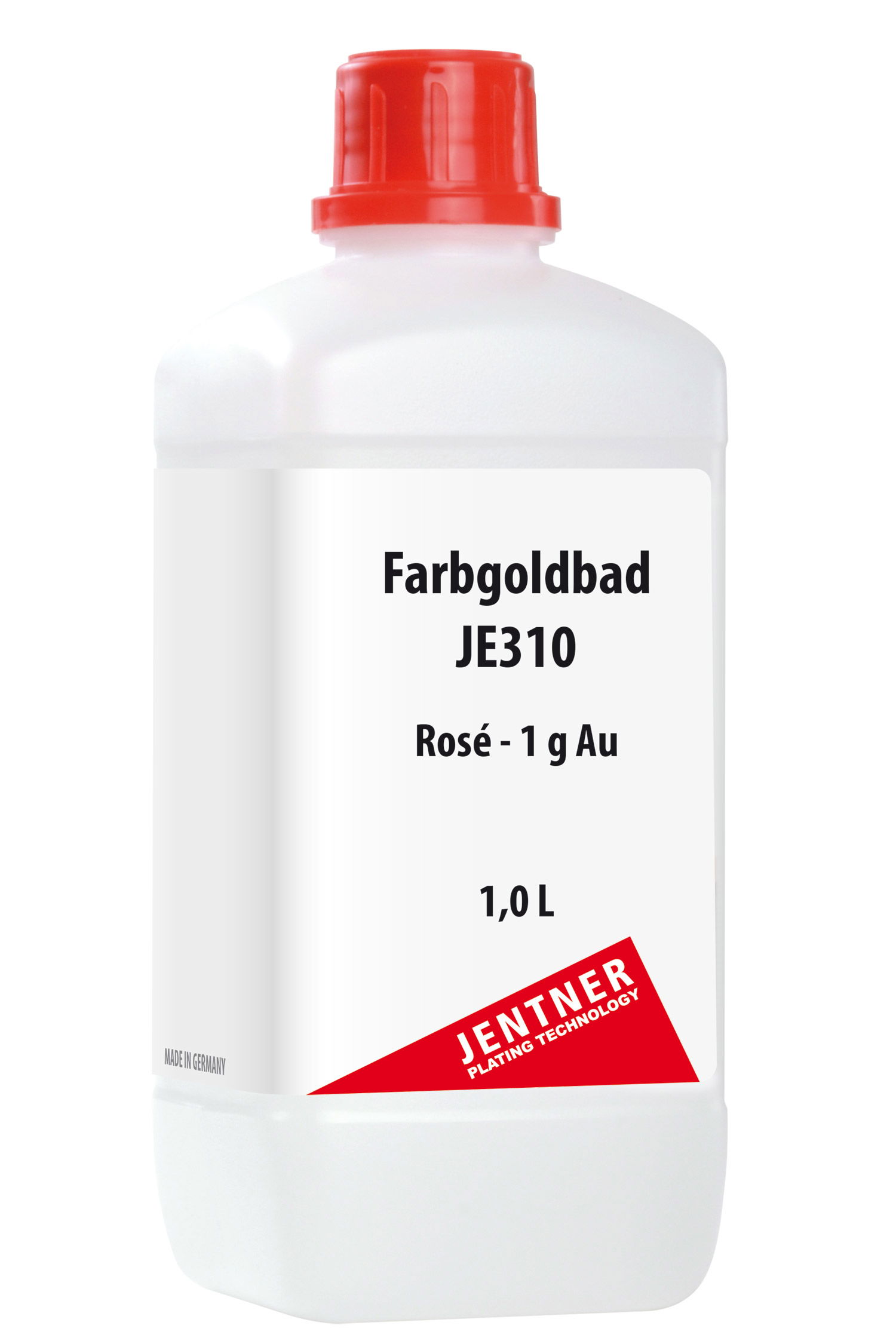

The color gold bath JE310 - rosé deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

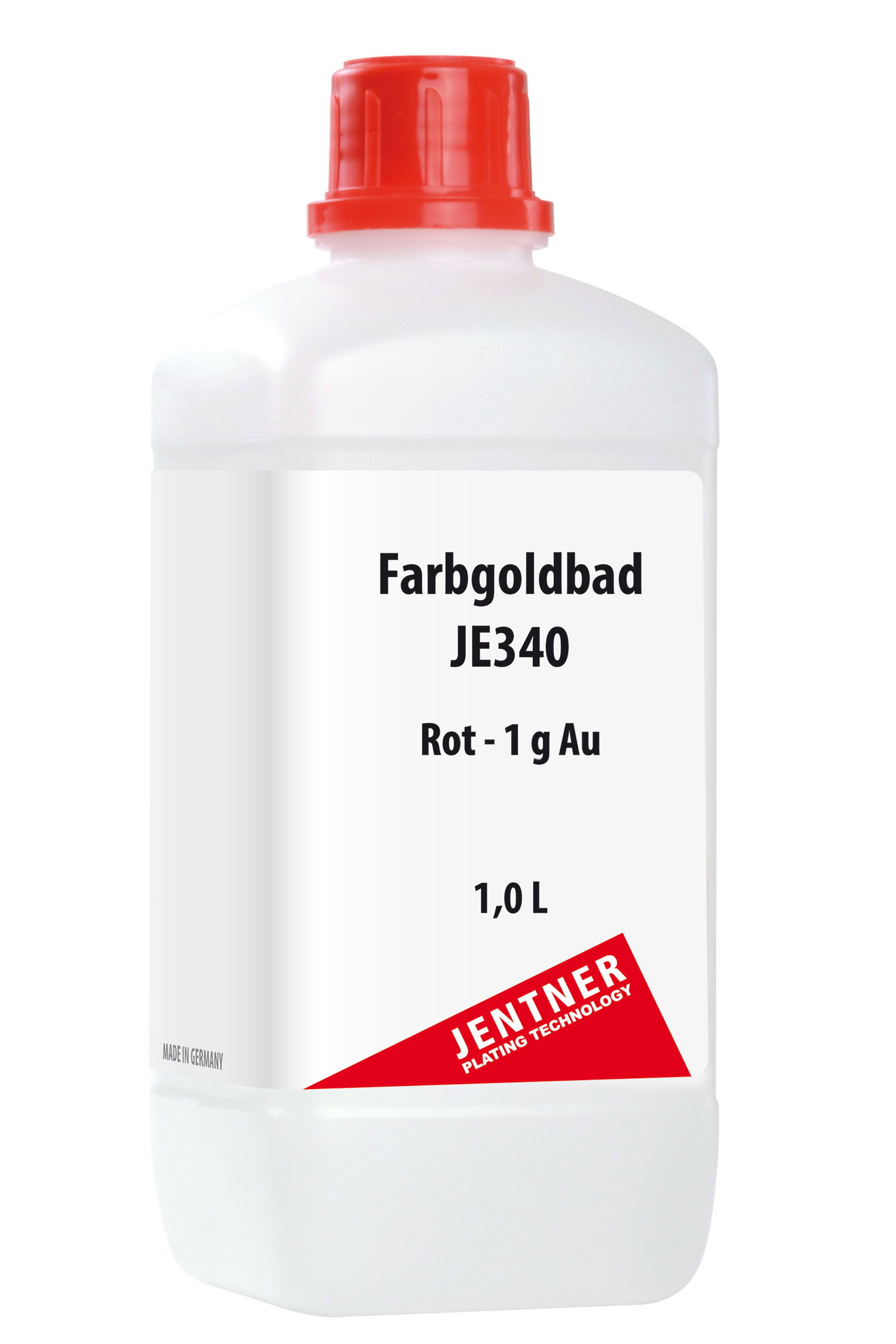

The color gold bath JE340 deposits decorative gold layers in red gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

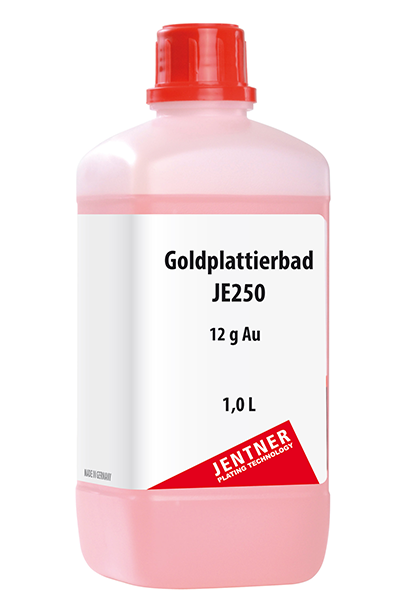

The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 8 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 12 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 8 µmFineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: requiredPower density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 literDeposition rate: approx. 22 mg/Amin

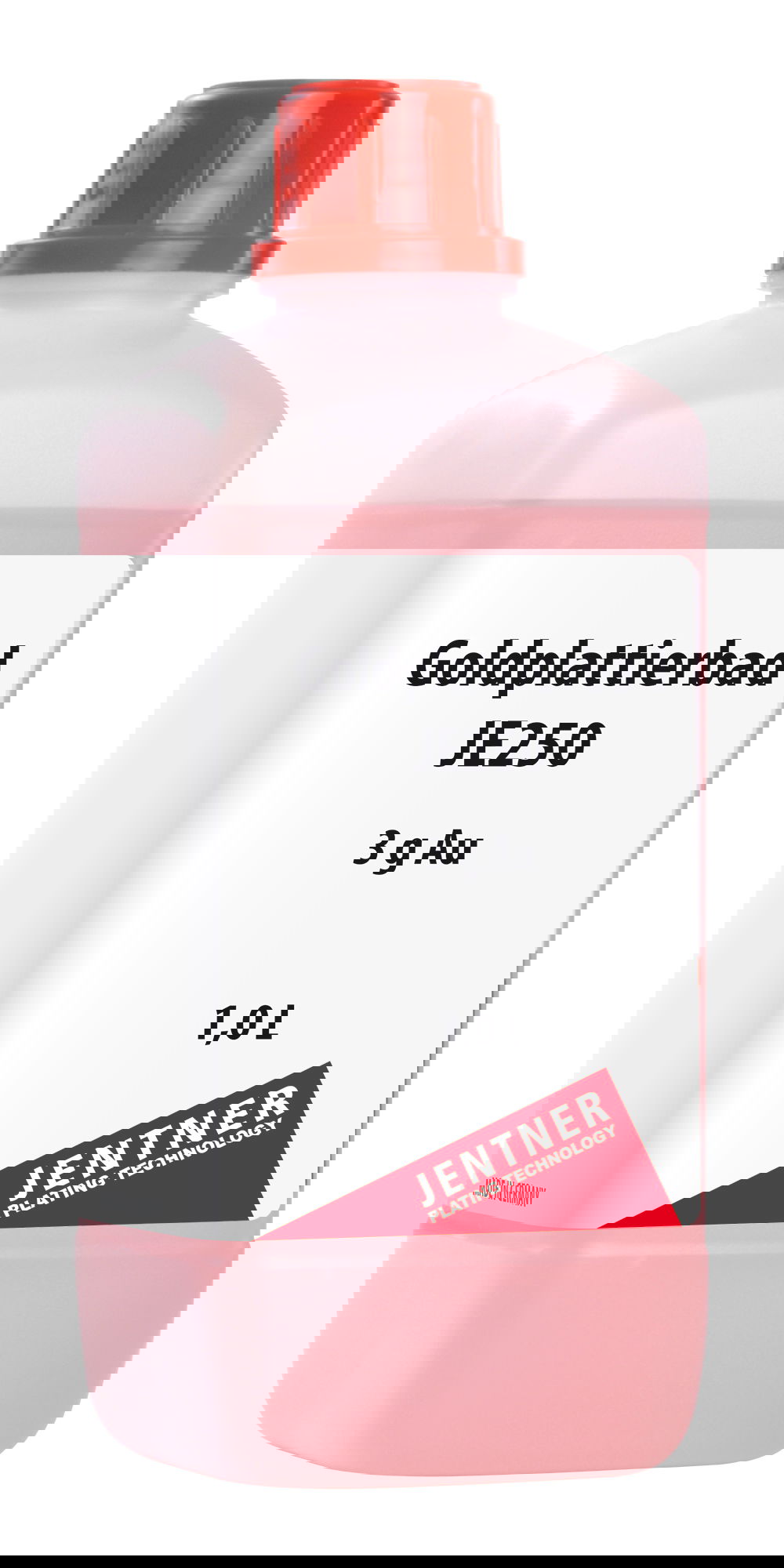

The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 8 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 3 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 8 µm Fineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: required Power density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 liter Deposition rate: approx. 22 mg/Amin

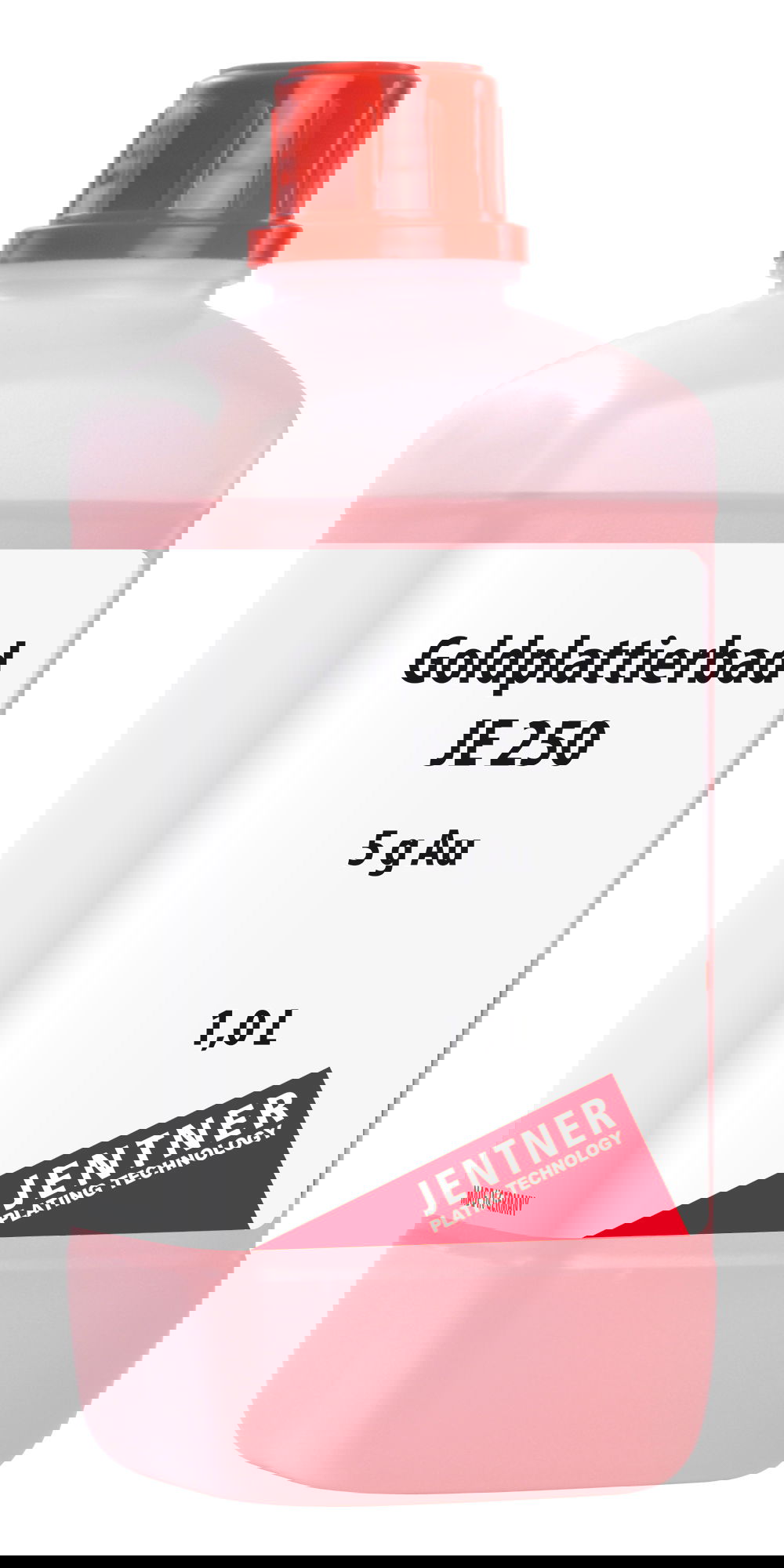

The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 8 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 5 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 8 µmFineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: requiredPower density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 literDeposition rate: approx. 22 mg/Amin
The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 8 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 8 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 8 µmFineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: requiredPower density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 literDeposition rate: approx. 22 mg/Amin

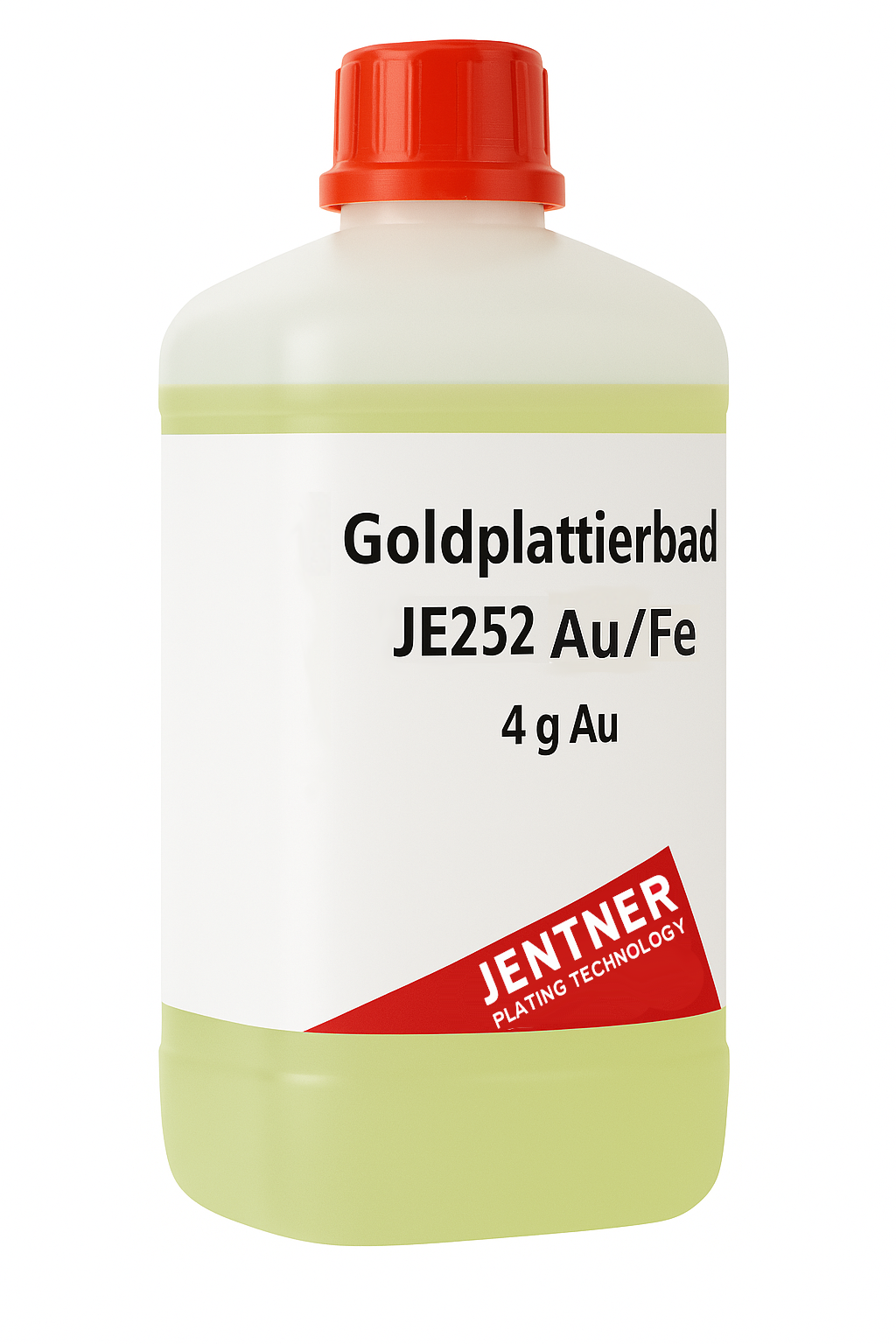

The gold plating bath JE252 is a mildly acidic hard gold electrolyte that deposits yellow, uniformly shiny hard gold coatings. It is suitable for technical and decorative applications, as the deposited layers have high corrosion and wear resistance. Under optimal conditions, highly glossy and adhesive gold layers up to a maximum thickness of 8 μm can be achieved.The coating consists of a gold/iron alloy. Cobalt and nickel-free! Operating data:Gold content: 4 g/L AupH-value: 4,0 (3,5 - 4,5)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 8 µm Fineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 volt (2 - 3,5)Temperature: 20 - 35 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1:1Goods movement: required Power density: approx. 1 - 2,5 A/dm2 Deposition rate: approx. 22 mg/Amin Bath filtration: from 10 liter Form of Delivery:Ready for use 4 g/L Au

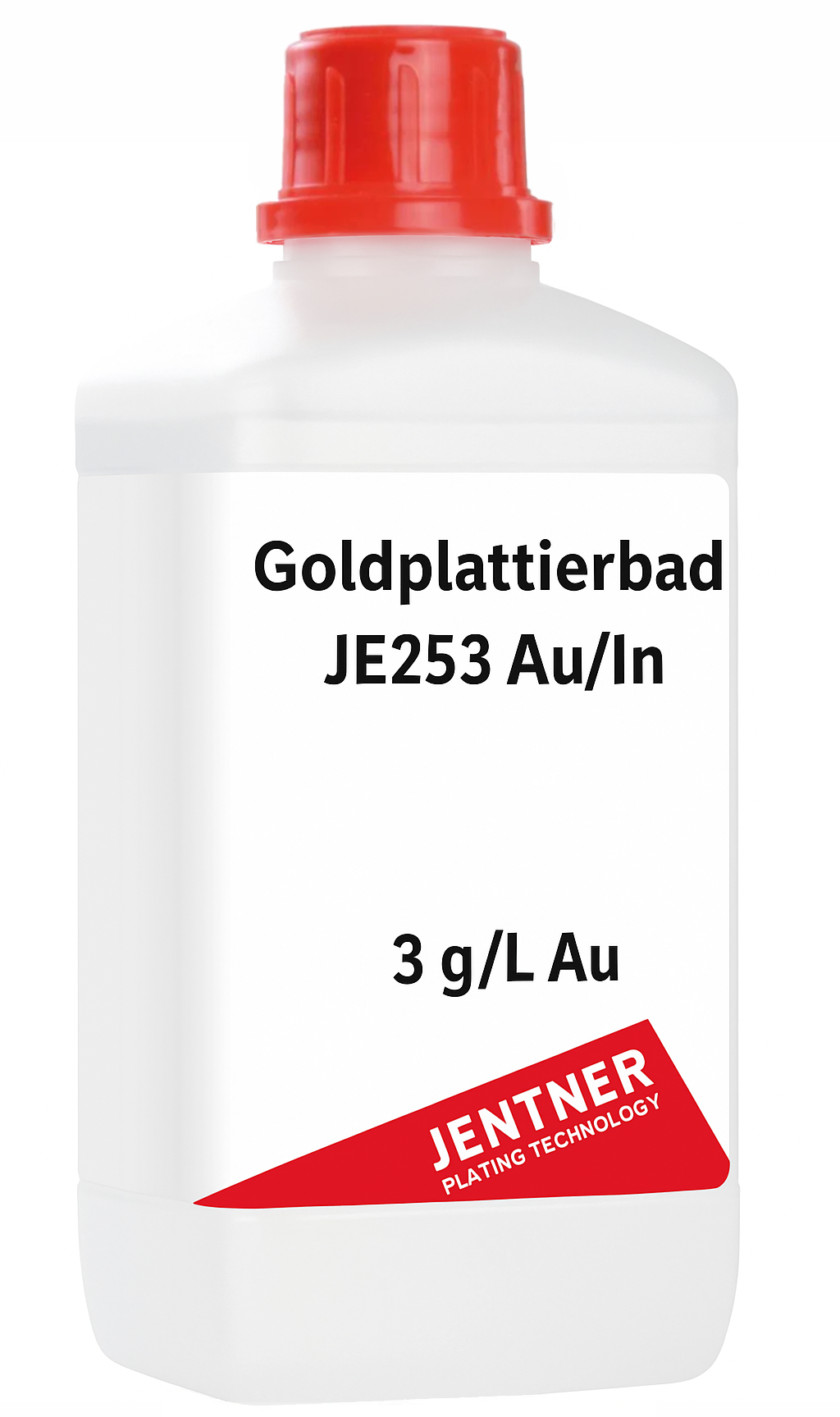

Gold Plating Bath JE253 is a mildly acidic gold electrolyte that deposits light yellow, uniformly shiny gold coatings. It is suitable for both technical and decorative applications, as the deposited layers have high corrosion and abrasion resistance. Under optimal conditions, highly glossy and adhesive gold layers up to a maximum thickness of 5 μm can be achieved. Cobalt and nickel-free! Operating Data:Gold content: 3 g/L AupH value: 2.8 (2.5 - 3.2)Density: 1.065 g/ml (1.060 - 1.070) Deposition Data:Layer thickness: max. 5 µmFine gold content of the layer: approx. 95.0% Au Working Conditions:Voltage: 2.5 V (2.5 - 3.0)Bath temperature: 20 - 35°CAnode material: Platinized titanium / MOXAnode/cathode area: approx. 1:1Workpiece movement: requiredDeposition rate: approx. 18 mg/AminCurrent density: approx. 1 - 2.5 A/dm²Bath filtration: from 10 liters Delivery Form:Ready-to-use with 3 g/L Au

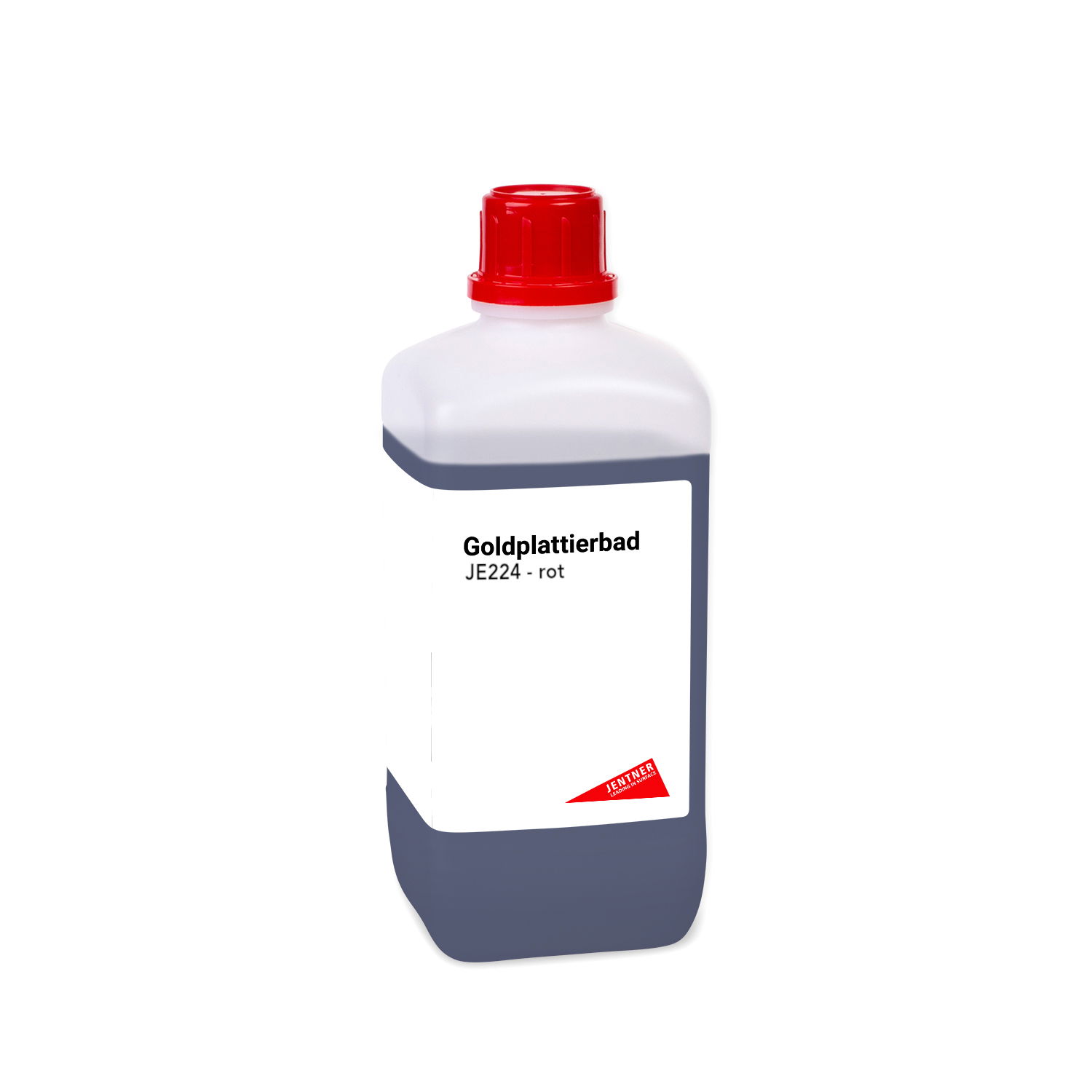

The red gold plating bath JE224 is a neutral gold electrolyte with a stable pH value that works without free cyanide. The electrolyte is used for deposition of 18-carat red gold-copper coatings. It is suitable for technical and decorative applications as the deposited layers are very hard and abrasion-resistant. Despite gold-saving coatings with a low carat, the electrolyte has very good corrosion and tarnish resistance. Under optimal conditions, high-gloss and adhesive gold layers up to max. 10 μm thickness can be achieved. Operating data: Gold content: 4 g/L (3,5-4,5) Copper content: 3 g/L (2,5-3,5) pH value:7,5 (7,2-8,0) Density: > 1,07 g/ml Operating conditions:Voltage: 1,6 V (1,4-1,8)Bath temperature: 57 °C (55-60)Anodes: Platinized Titanium / /mixed oxid Goods movement: requiredAnode-/cathode surface: 2:1Deposition rate: approx. 45 mg/AminPower density: approx. 0,3 A/dm2 (0,1-0,5)Bath filtration: from 10 Liter Deposition data:Hardness: 380 - 400 HVLayer thickness: max. 10 μm

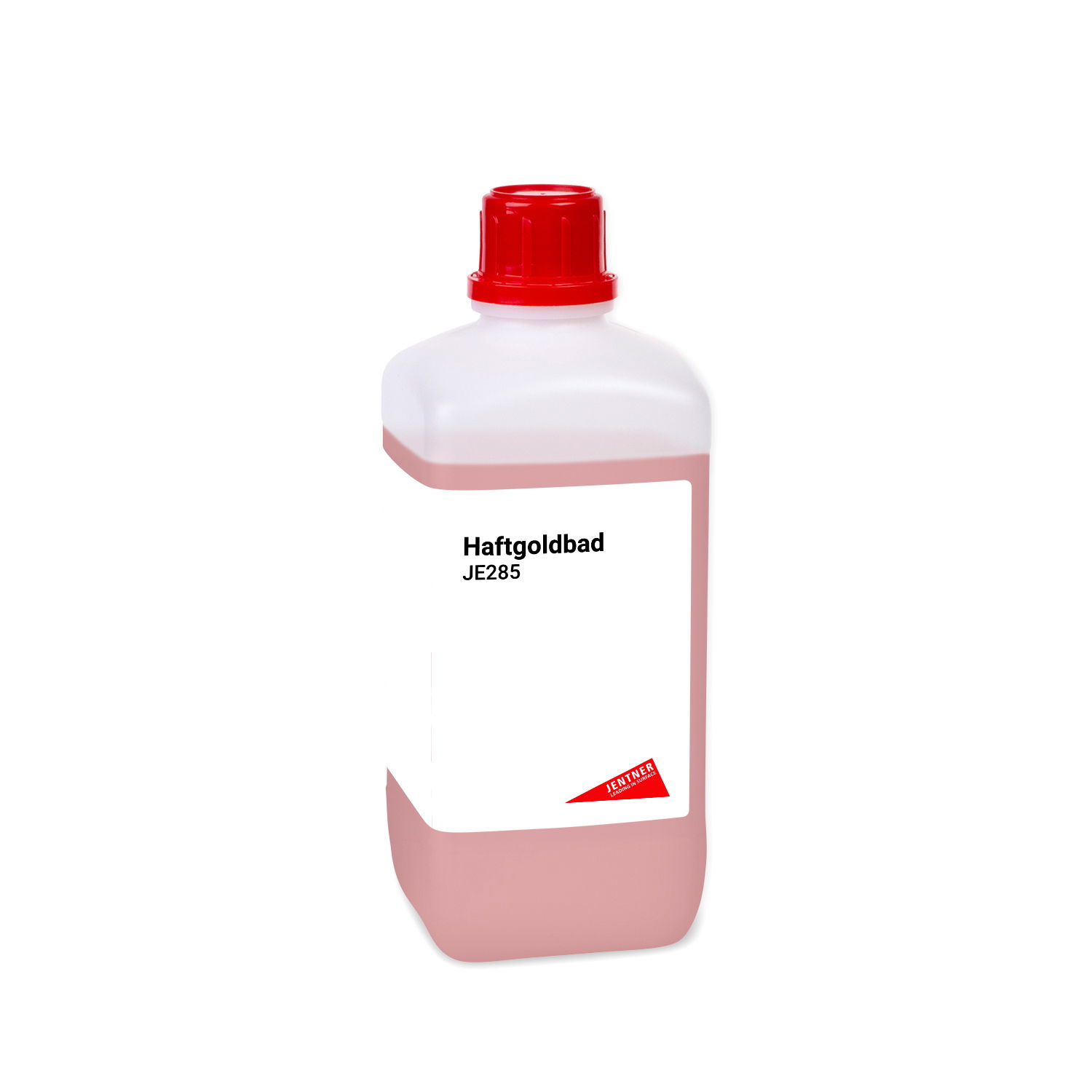

The pre-gold bath JE285 is ideal to plate gold directly on stainless steels, molybdenum containing steel and nickel-base alloys which are hard to activate. Because of it's highly activative impact it can be used successfully for passive material which is difficult to plate. The gold electrolyte generally improves the adhesive properties between base material and galvanic surface.Operating data:Gold content: 3 g/LSulfuric acid content: 25 g/L (20-30) Deposition data:Hardness: approx. 165 HVLayer thickness: until 3 µmFineness of the gold coating: >99% AuOperating conditions:Voltage: 2 - 3 VBath temperature: 20 - 30 °CExposition time: 2 - 5 min. (max. 45 min.) Anode material: Mixed oxide (MOX) Goods movement: required Bath filtration: From 10 liter Anode/Cathode surface: 1 : 1Current density: 2 - 6 A/dm2
