Electroplating equipment and accessories

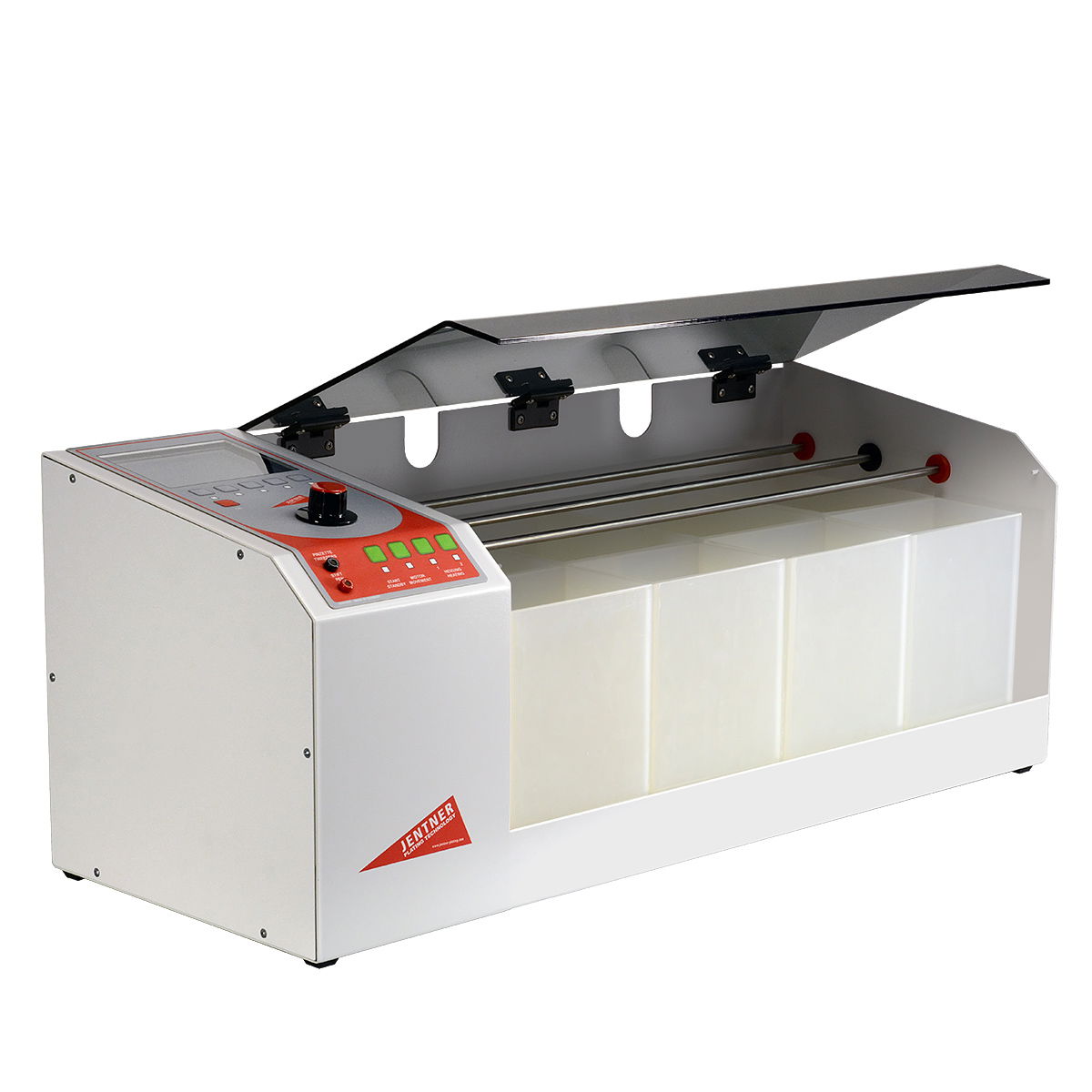

The Digital V is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre-installed plating programs, new programs can be installed. The machine menu is available in several european languages. Digital V has an integrated goods movement and a pen plating connection.Technical data:Dimensions (WxDxH): 820x350x260Weight: 30 kgBath volume: 4x5 l, 4x2 lBath dimensions: 190x150x220 mmRectifier: 15V/ 15ASupply voltage: 230V/ 50Hz, 120V/ 60HzOptional equipment: 2x connectable heater (2x 315W)

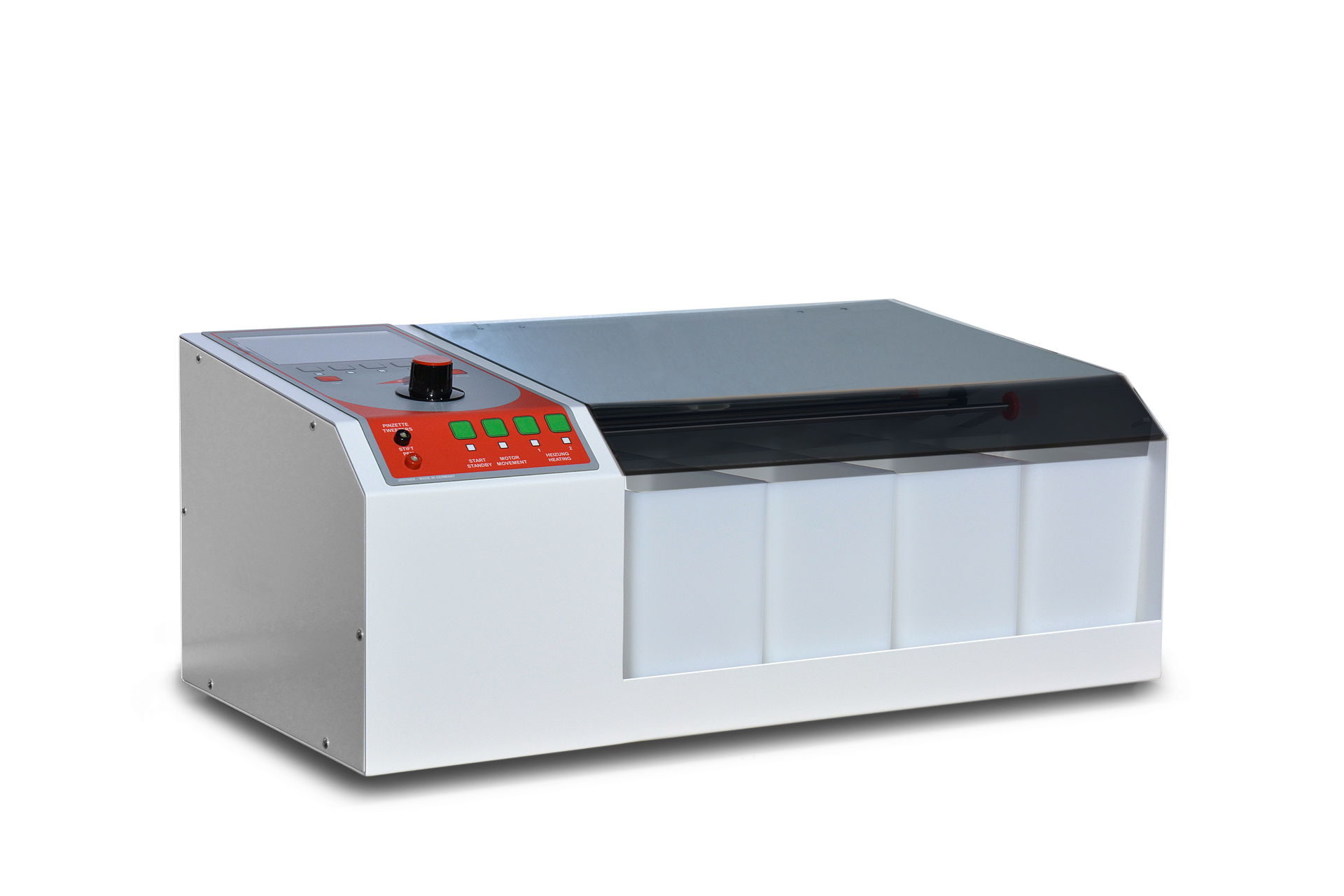

The Digital II version 2.0 is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre installed plating programs, new programs can be installed. The machine menu is available in several european languages. Digital II version 2.0 has an integrated goods movement and a pen plating connection.Technical data:Dimensions (WxDxH): 700x320x250 mmWeight: 18 kgBath volume: 4x1,5 l working tanks + 4x 1,5 l rinsing tanksBath dimensions: 150x100x150 mmRectifier: 15V/ 15AControlled heating: 2x200WSupply voltage: 230V/ 50Hz, 120V/ 60HzMain fuse: 2,5A slow-blow, 250V ~, 5*20 mmOptional equipment: 2x connectable heater (2x200W)

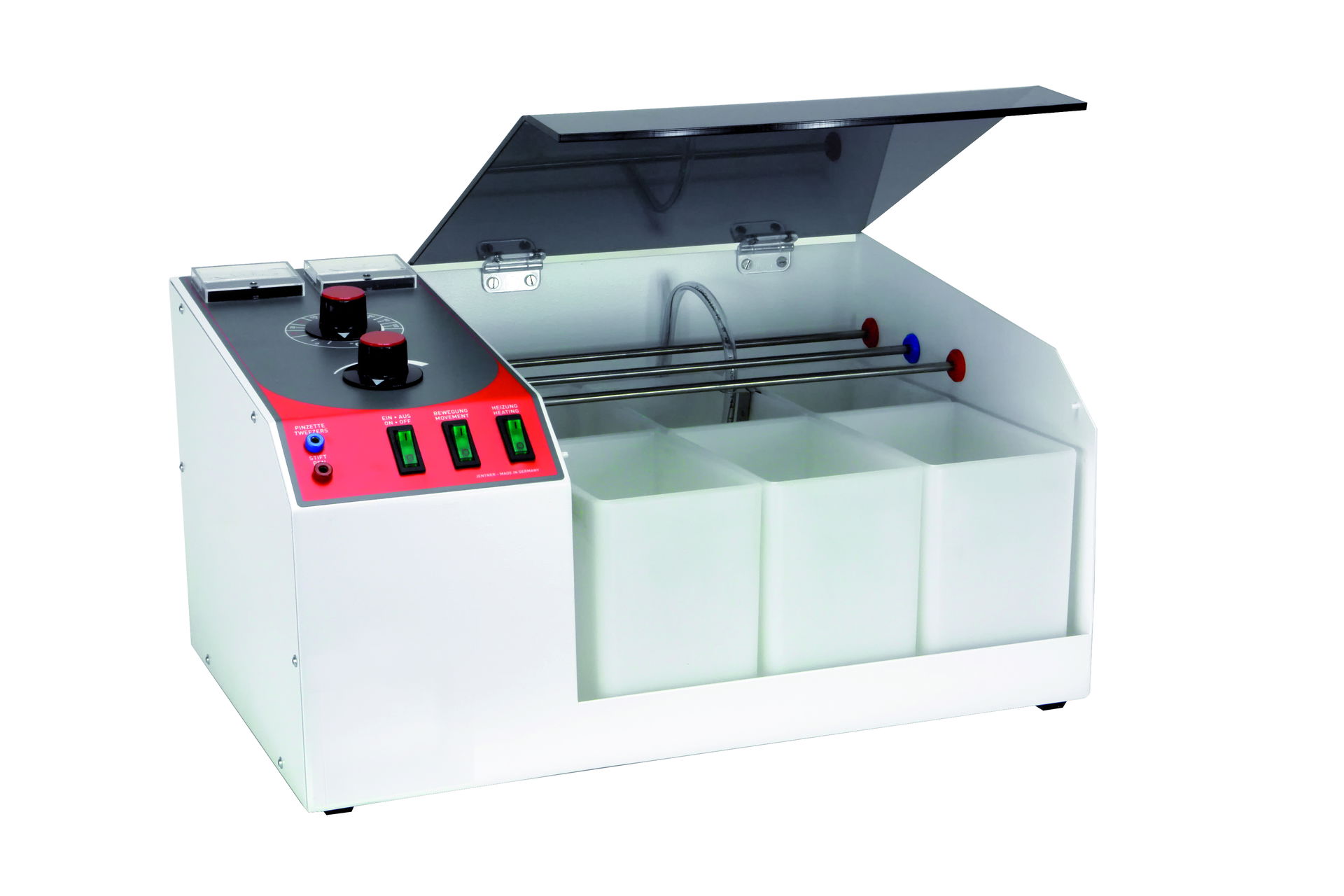

The small-size electroplating unit Comfort II can be used for all current plating solutions. The machine guarantees an easy, efficient and secure processing. Furthermore, the Comfort II has an integrated thermostatic control unit and integrated goods movement. Additionally, it has a pen plating connection. The cover plate is transparent and can be closed all around. Technical data:Dimensions (WxDxH): 480x300x260 mmWeight: 16 kgRectifier: 15V/ 15ABath volume: 3x 1,5 l working tanks + 3x 1,5 l rinsing tanks Bath dimensions: 150x100x150mmControlled heating: 200WSupply voltage: 230V/ 50HzOptional equipment:1x connectable heater (200W)

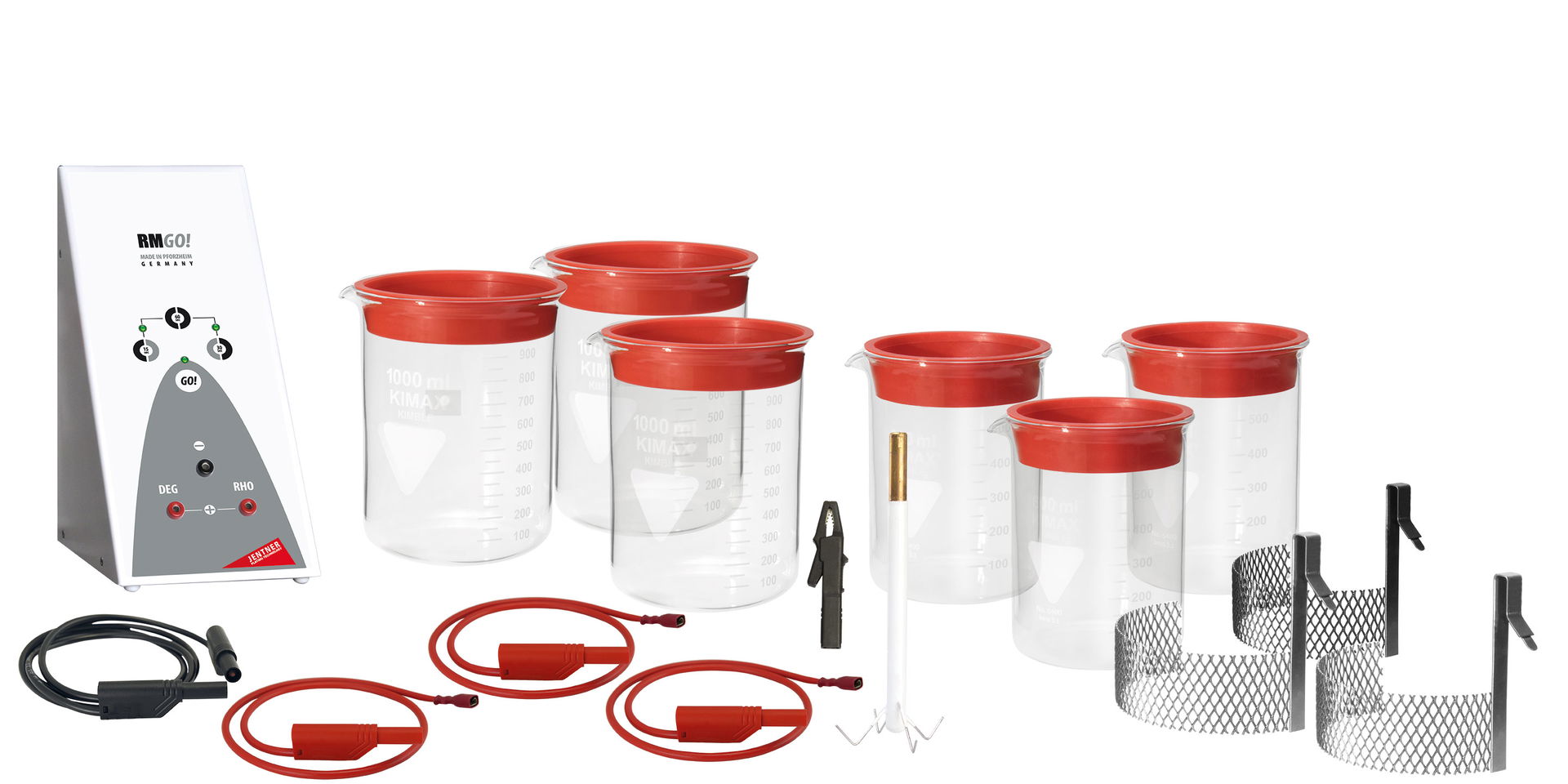

Space-saving and compact! With the new Rhodium Machine RMGo! Set 2 - for rhodium and cold gold color plating jewelry can easily be degreased electrolytically, rhodium and color plated. Pre-set processing times and voltages, together with an automatic energy cut-off, allow a professional end result. The time intervals can be selected between 15, 30 or 60 seconds. This guarantees a reliable calculation. Set processing time - GO! Key and, in conjunction with Jentner's unique electrolytes, which are already deposited perfectly at room temperature, Rinse and ready! The RMGO is so simple and user-friendly!Your advantages: Rhodium savings due to pre-settable deposition time. Optimal is a coating interval of 30-60 seconds to obtain a high-quality surface. The baths are available as concentrates or ready for use. Model calculation A deposit time of 36 seconds instead of 30 seconds will cost you 20% more of your expensive rhodium. This is a cost savings of 0.2 g of rhodium at 1000 rings when coated exactly 30 seconds. Absolutely safe process, since the voltage does not have to be adjusted - easy handling by only one GO! button. Errors are avoided, as trained employees quickly get to grips with each other. More than 1000 rings with 1 L rhodium solution JE88 and a brilliant and glossy surface. This set includes:1x RMGo! Machine3x Beaker 1000ml incl. cover3x Beaker 600ml incl. cover3x red cable1x black cable with crocodile clip2x Stainless steel anode1x Mixed oxide anode1x Jig with 4 hooks

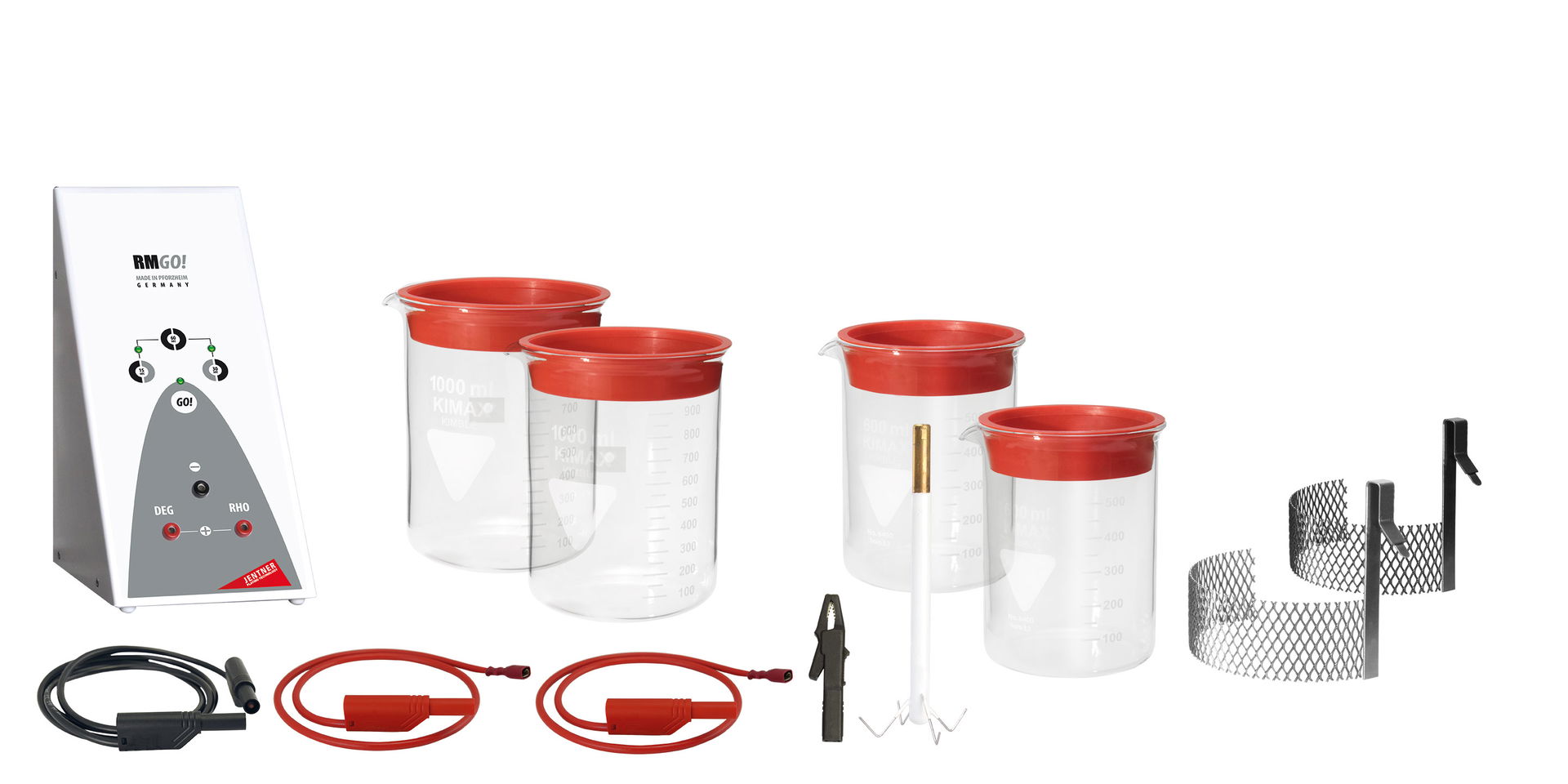

Space-saving and compact! With the Rhodium Machine RMGo! Set 1 - for rhodium plating jewelry can easily be degreased electrolytically and rhodium plated. Pre-set processing times and voltages, together with an automatic energy cut-off, allow a professional end result. The time intervals can be selected between 15, 30 or 60 seconds.This guarantees a reliable calculation. Set processing time - GO! Key and, in conjunction with Jentner's unique electrolytes, which are already deposited perfectly at room temperature, Rinse and ready! The RMGo! is so simple and user-friendly!Your advantages:Rhodium savings due to pre-settable deposition time. Optimal is a coating interval of 30-60 seconds to obtain a high-quality surface.Model calculation: A deposit time of 36 seconds instead of 30 seconds will cost you 20% more of your expensive rhodium. This is a cost savings of 0.2 g of rhodium at 1000 rings when coated exactly 30 seconds. Absolutely safe process, since the voltage does not have to be adjusted - easy handling by only one GO! button. Errors are avoided, as trained employees quickly get to grips with each other. More than 1000 rings with 1 L rhodium solution JE88 and a brilliant and glossy surface. This set includes:1x RMGo! Machine2x Beaker 1000ml incl. cover2x Beaker 600ml incl. cover2x red cable1x black cable with crocodile clip1x Stainless steel anode1x Mixed oxide anode1x Jig with 4 hooks

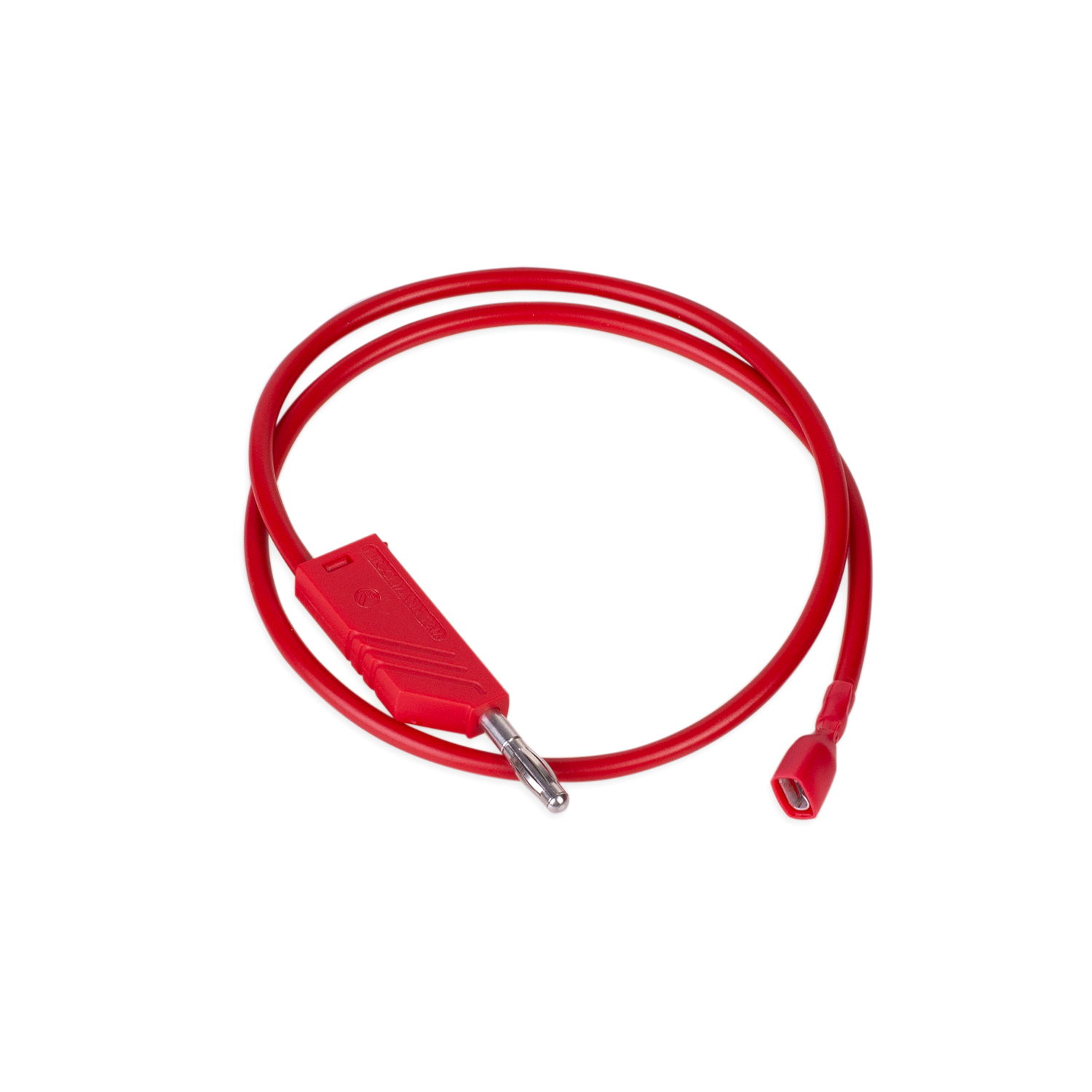

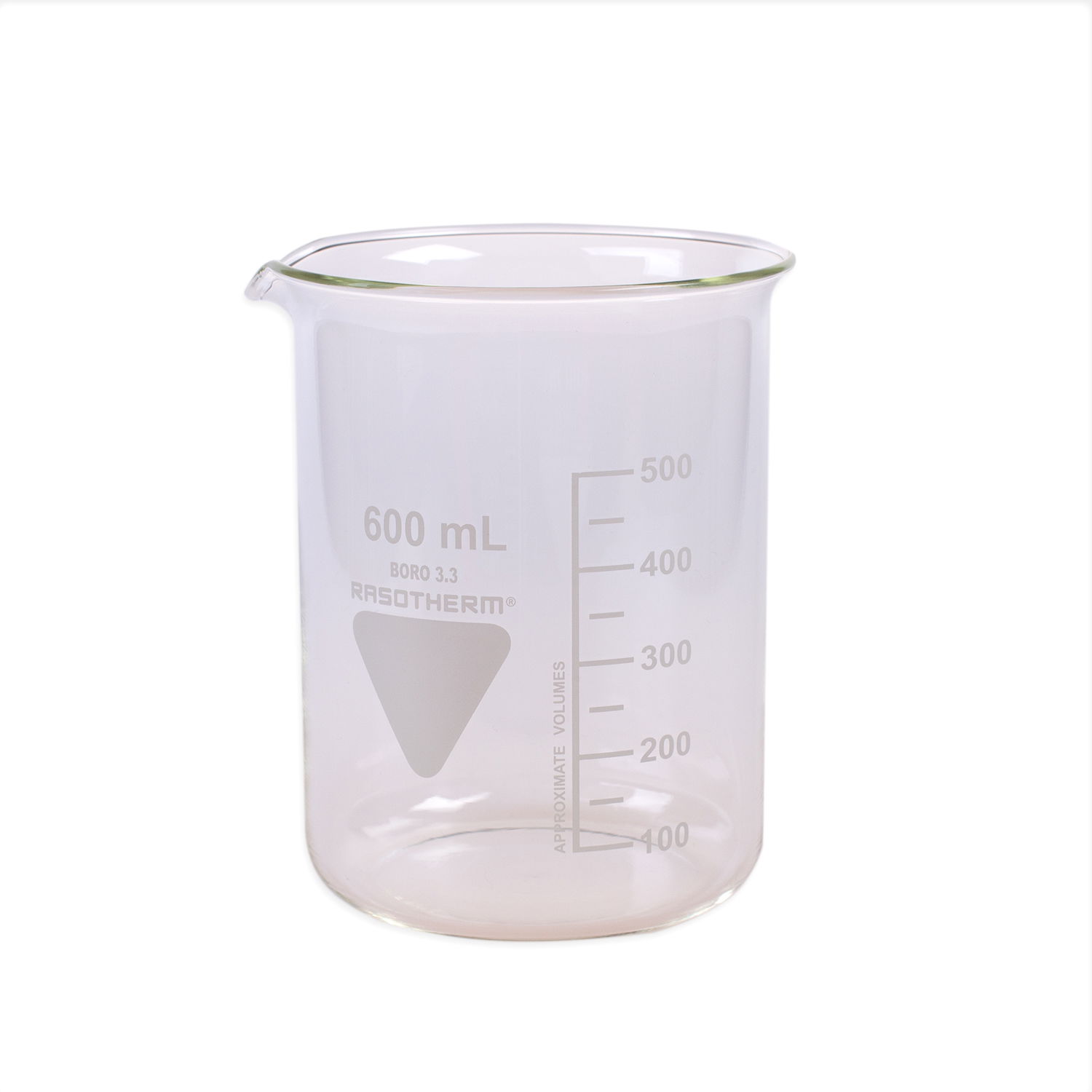

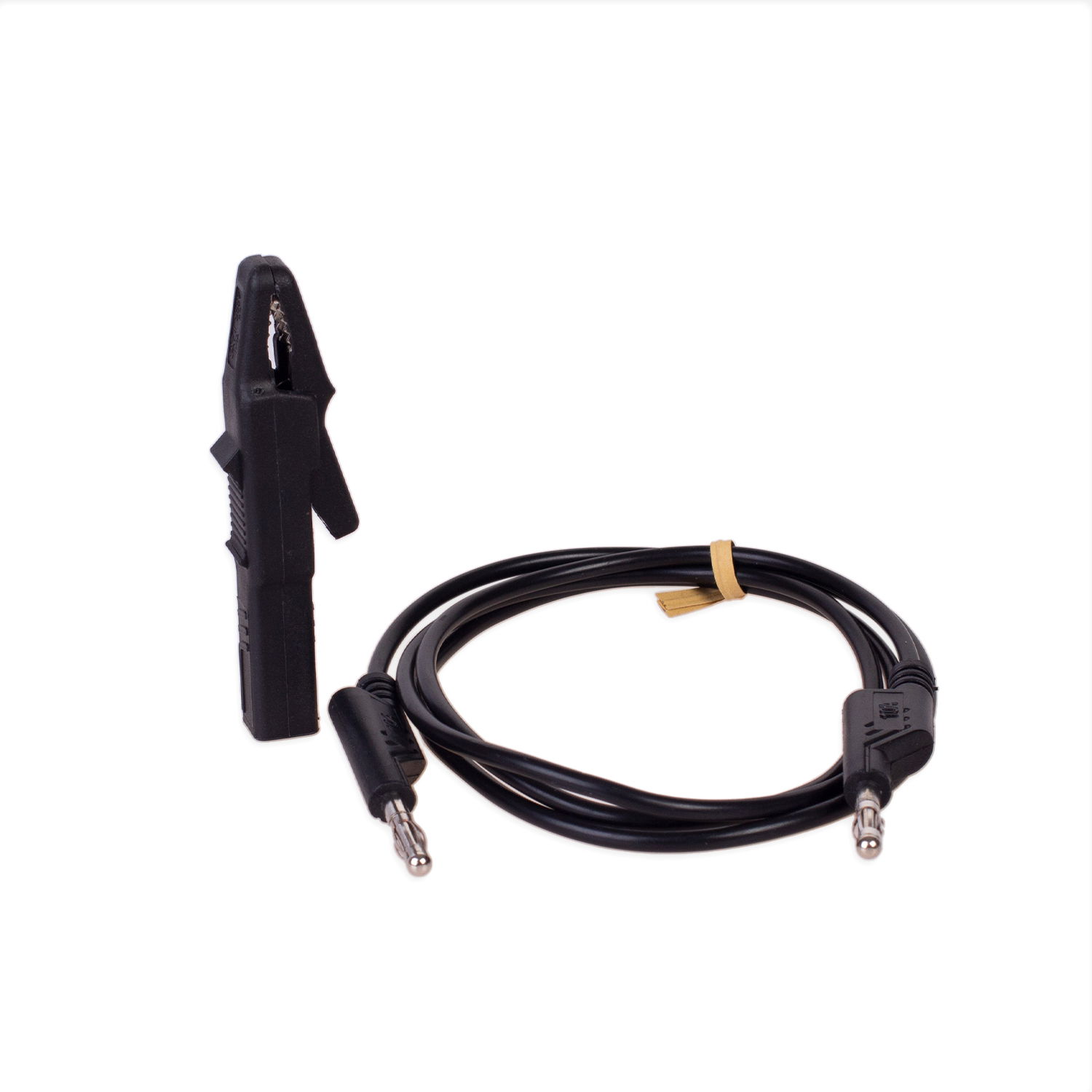

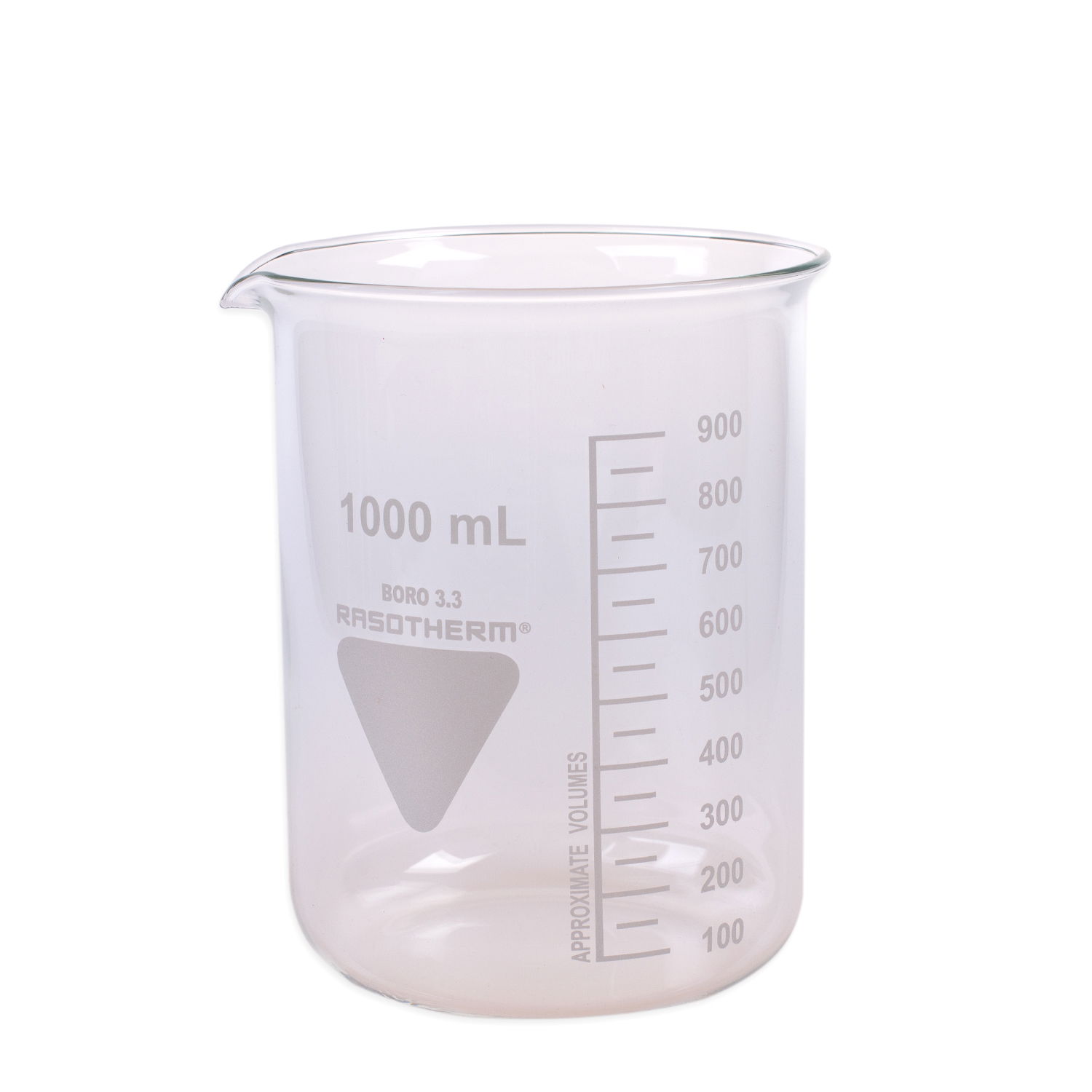

Space-saving and compact! With the new Rhodium Machine RMGo! Set 3 - for cold gold color plating jewelry can easily be degreased electrolytically and color plated. Pre-set processing times and voltages, together with an automatic energy cut-off, allow a professional end result. The time intervals can be selected between 15, 30 or 60 seconds.This guarantees a reliable calculation. Set processing time - GO! Key and, in conjunction with Jentner's unique electrolytes, which are already deposited perfectly at room temperature, Rinse and ready! The RMGO is so simple and user-friendly!Your advantages: Absolutely safe process, since the voltage does not have to be adjusted - easy handling by only one GO! button. Errors are avoided, as trained employees quickly get to grips with each other. The baths are available ready for use. This set includes: 2x Beaker 1000ml incl. cover2x Beaker 600ml incl. cover2x red cable1x black cable with crocodile clip2x Stainless steel anode1x Jig with 4 hooks

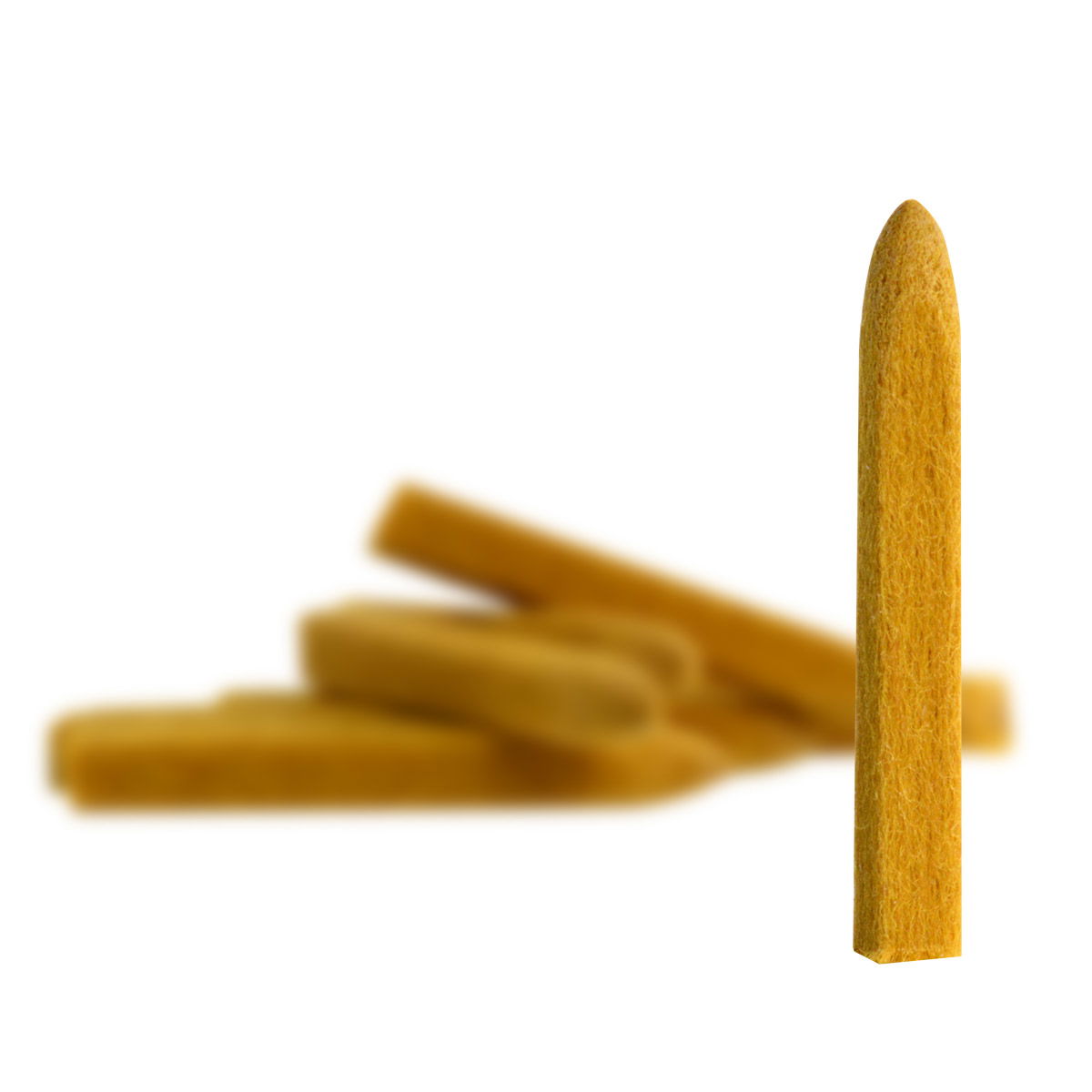

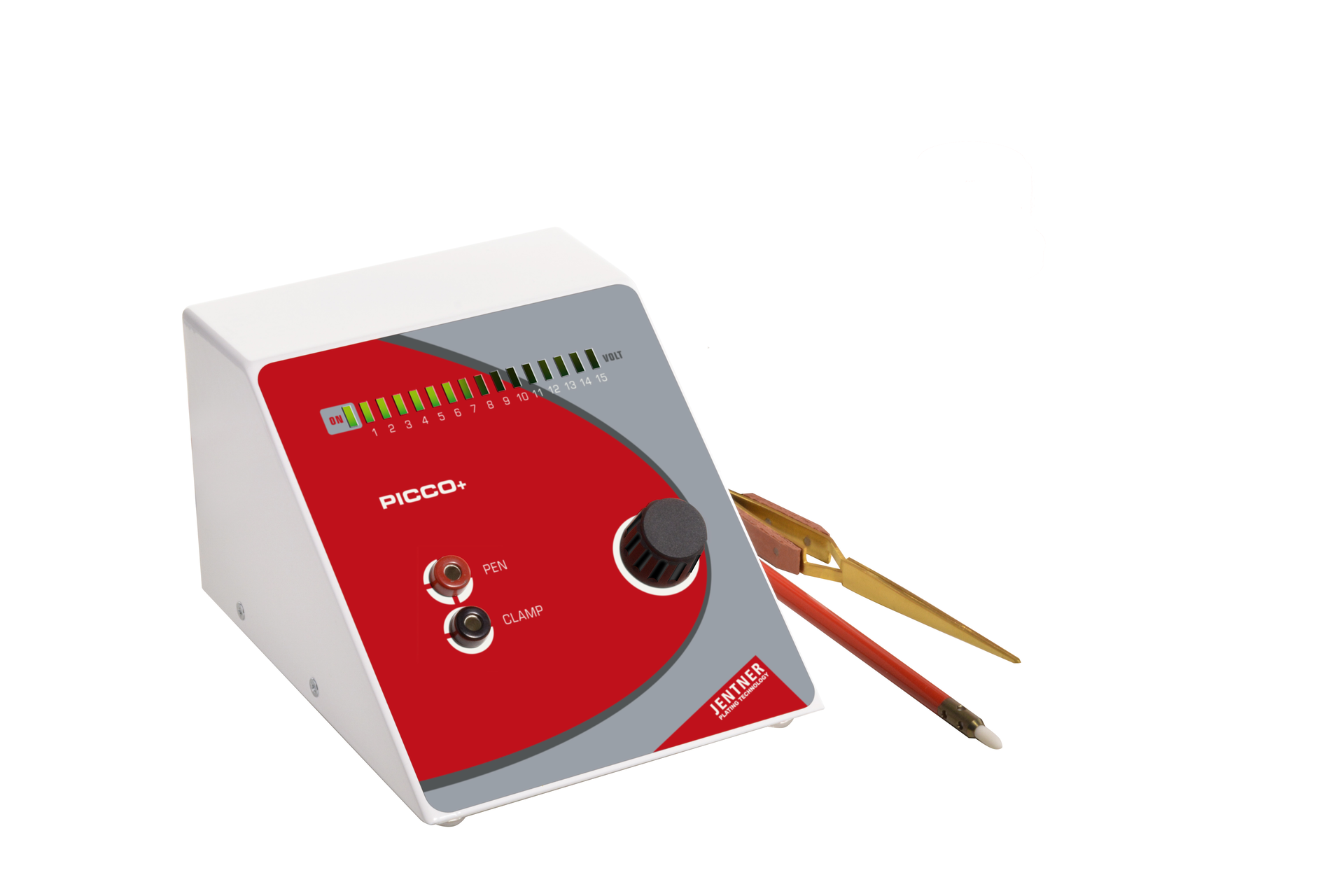

The pen plating unit type PICCO+ allows a fast and spotless application of rhodium, gold and silver on small items. The handling is easy and clear, due to a helpful LED display.Scope of delivery:1x Pen plating unit type PICCO+1x Handpiece MOX1x Tweezer1x Felt tips square, brown (10 pc)Technical data:Case: Stainless steel caseDimensions (LxDxH): 120x150x95 mmVoltage supply: 12V/ 50HzWeight: 1,5 kg

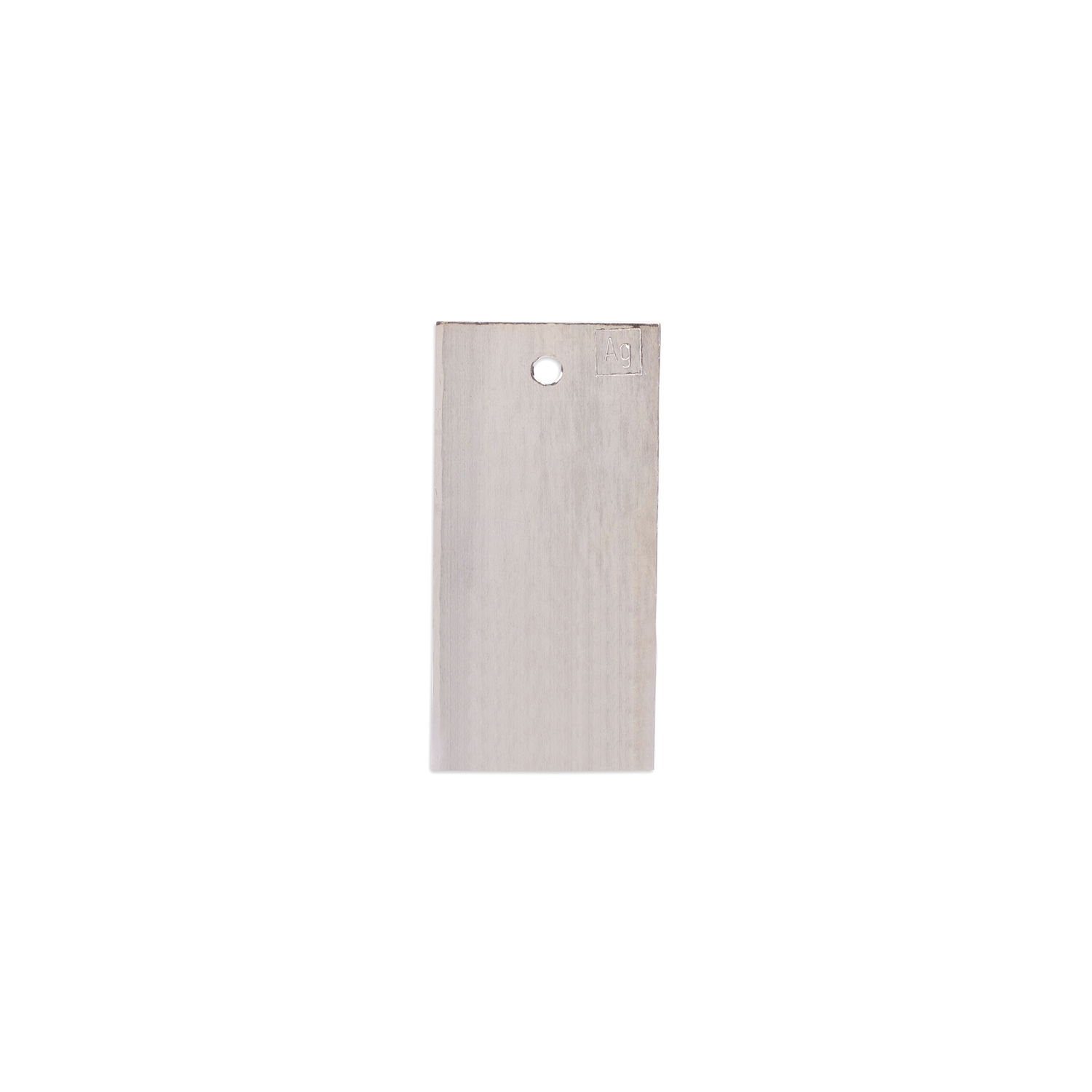

Suitable fine-silver anode 100x50x2 mm for Comfort II, Digital II Version 2.0 or 1,5 liter tanks. These anodes are suitable for silver baths. Please note that the fixation is not included in the delivery. They have to be ordered separately.

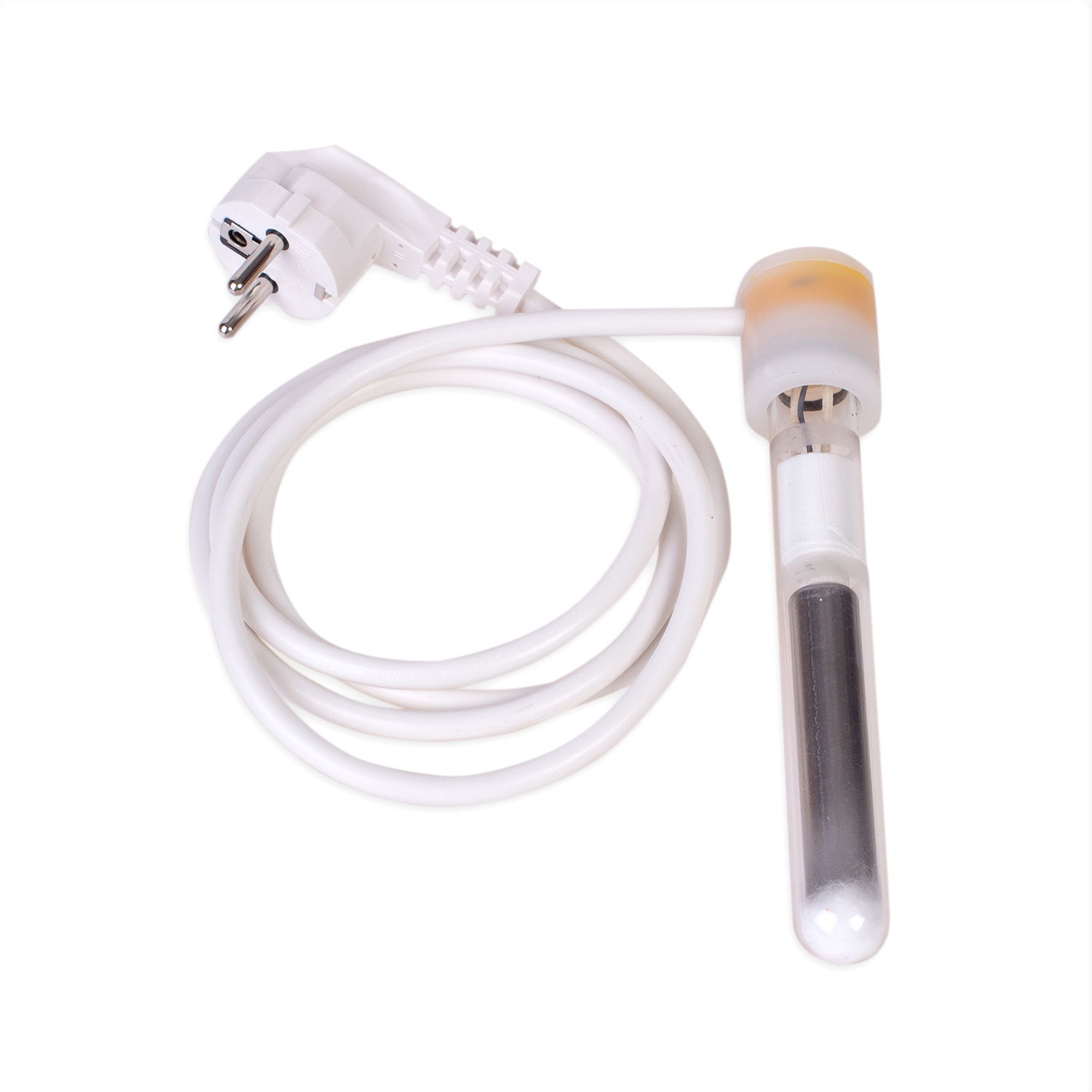

Stick immersion silica heater 180 watt. Depth of immersion 70mm, Ø 20mm. Suitable for Comfort II.Please note that the fixation is not included in the delivery. They have to be ordered separately.

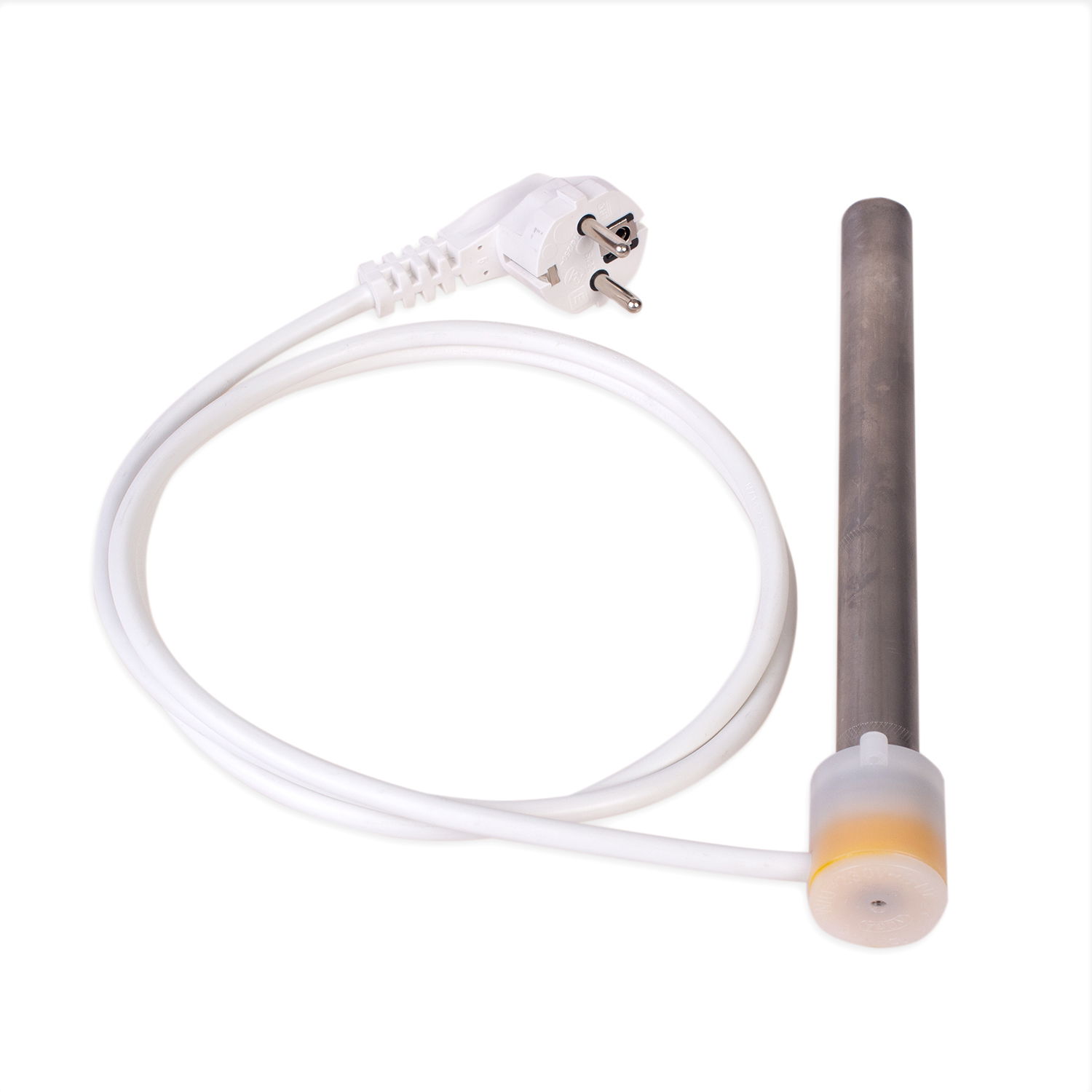

The 315 Watt/230V titanium immersion heater is suitable for heating e.g. rhodium, ruthenium and nickel baths. Suitable for the 5 liter tubs of our Digital V small electroplating units.Please note that the immersion heater holders must be purchased separately.Dimensions:Length 150 mm.Installation depth min. 200 mm, Ø 20 mm.

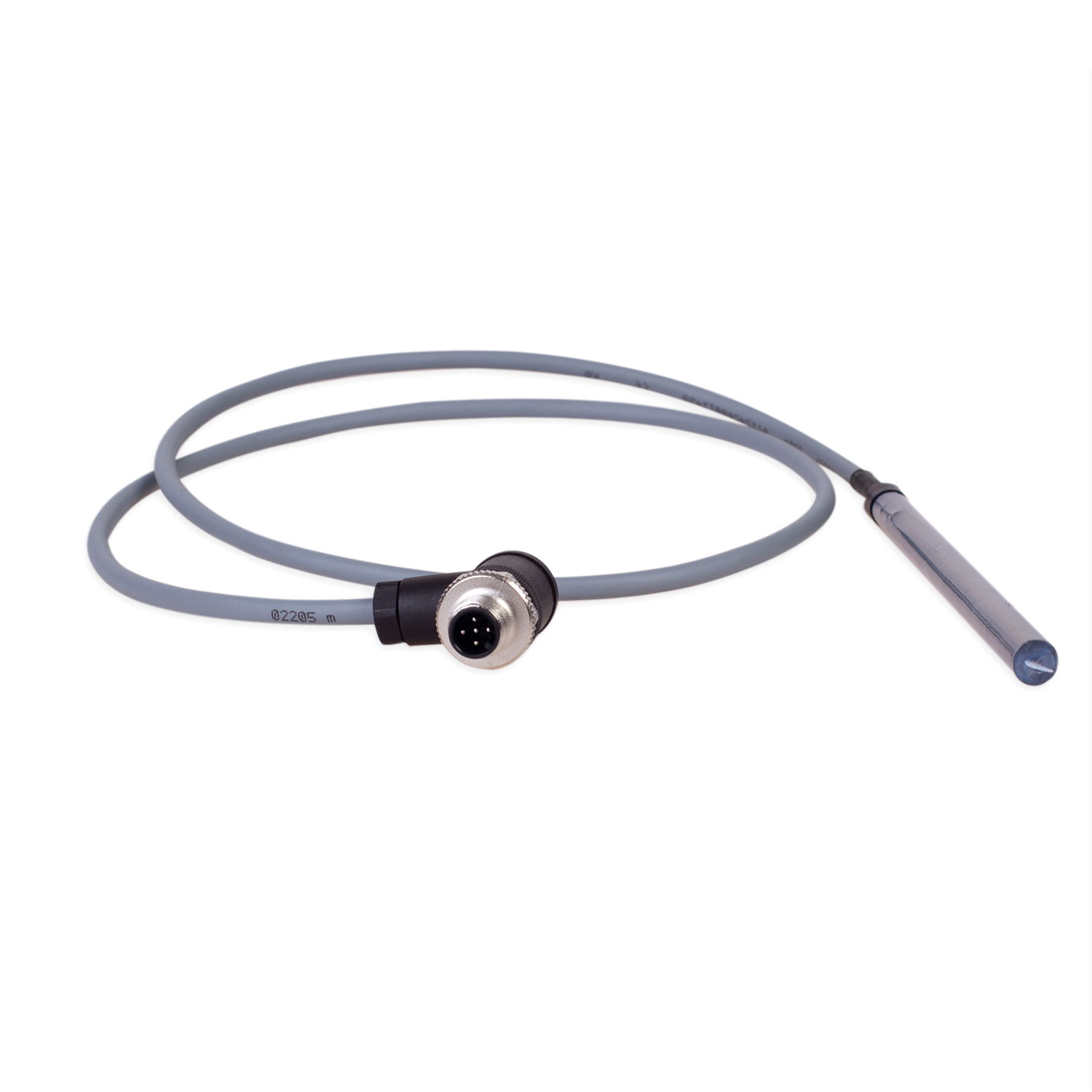

Sensor for temperature and level measurement.For small electroplating unit Digital II Version 2.0 and Digital V.

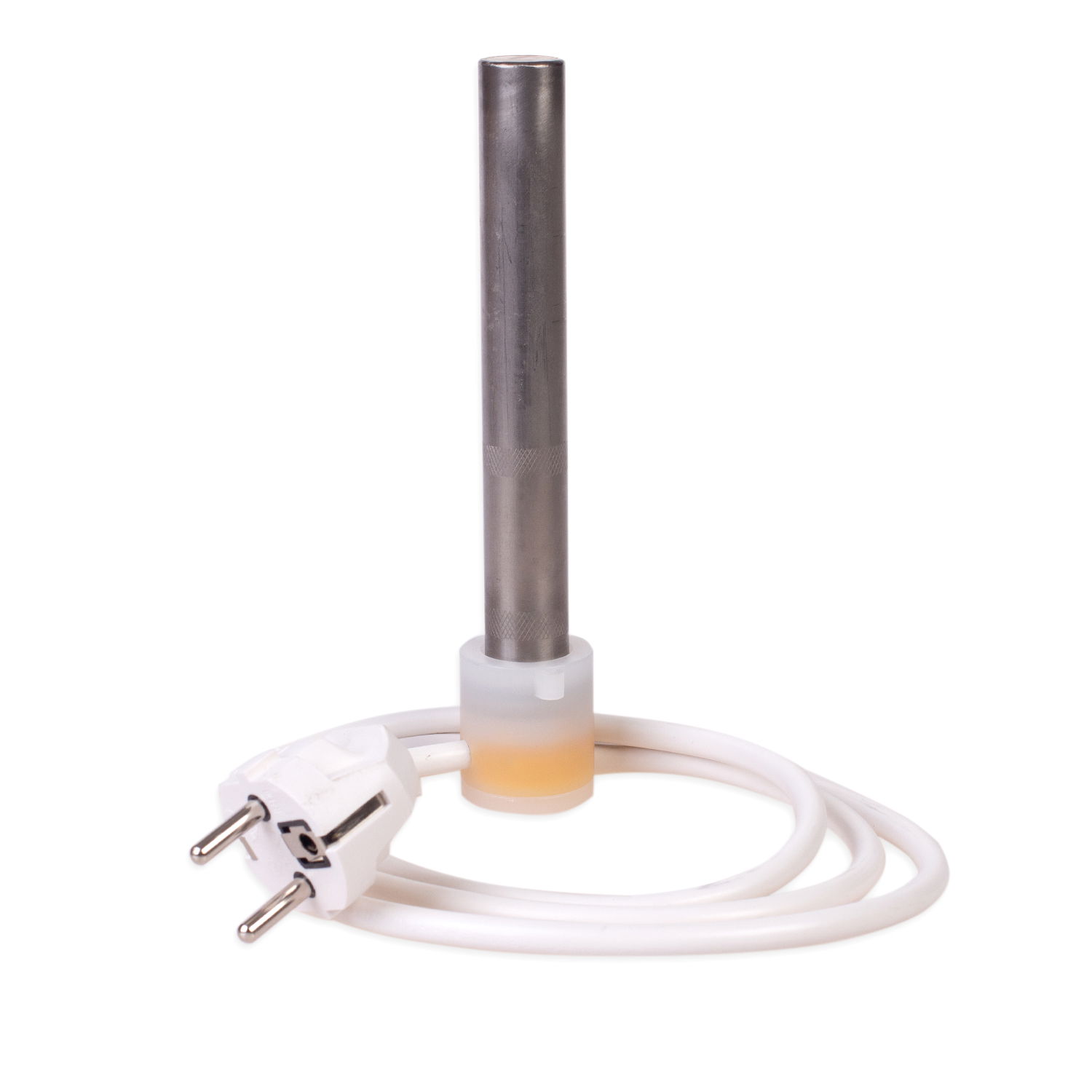

Immersion titan heater, 200 Watt/230V is suitable for heating e.g. ruthenium and nickel baths for Digital II Version 2.0 and Comfort II.Please note that the fixation is not included in the delivery. They have to be ordered separately.Dimensions:Length 150 mm.Depth of immersion 140 mm, Ø 20 mm.

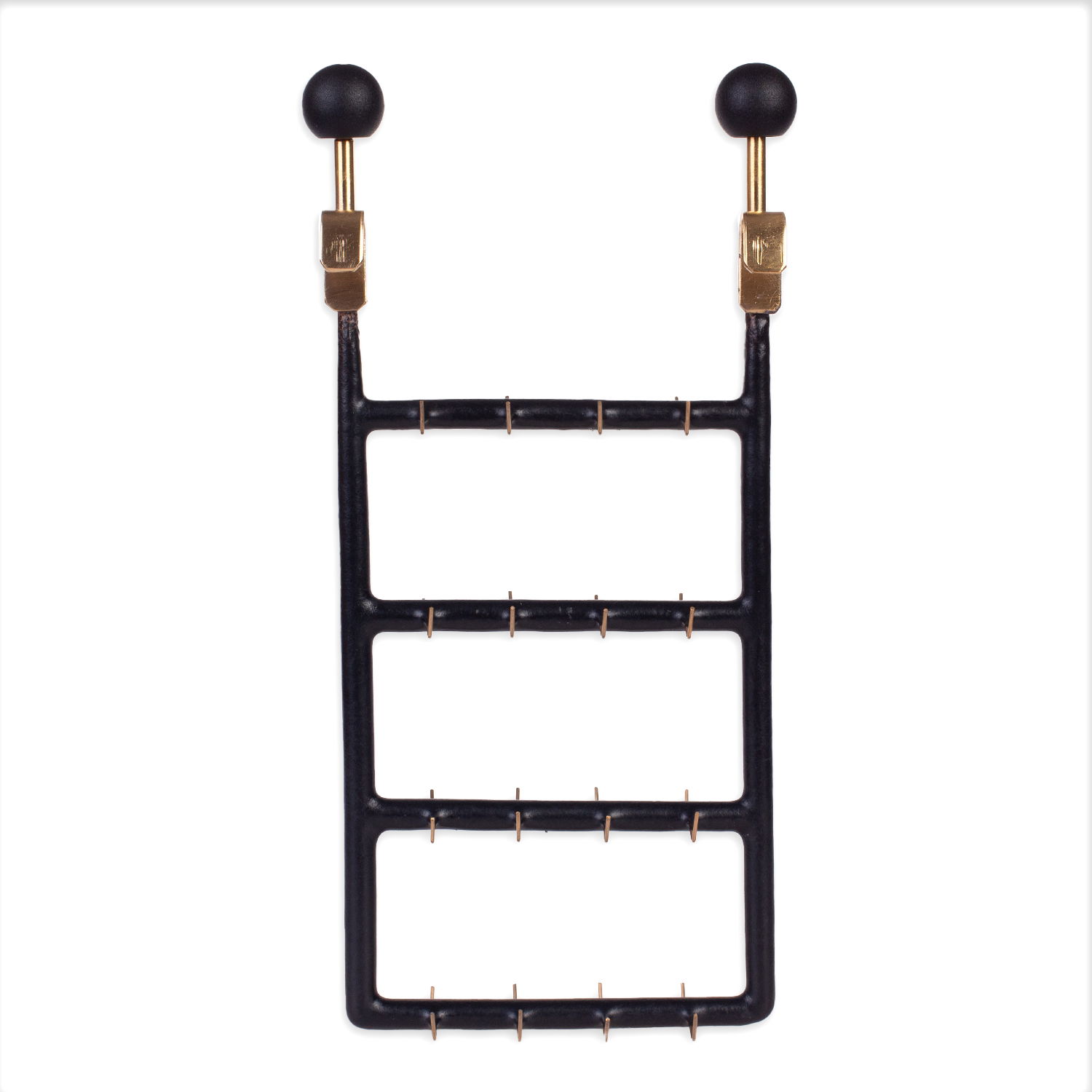

Jig with 32 hooks for rings 200x100 mm, which is perfectly suitable for Digital V.

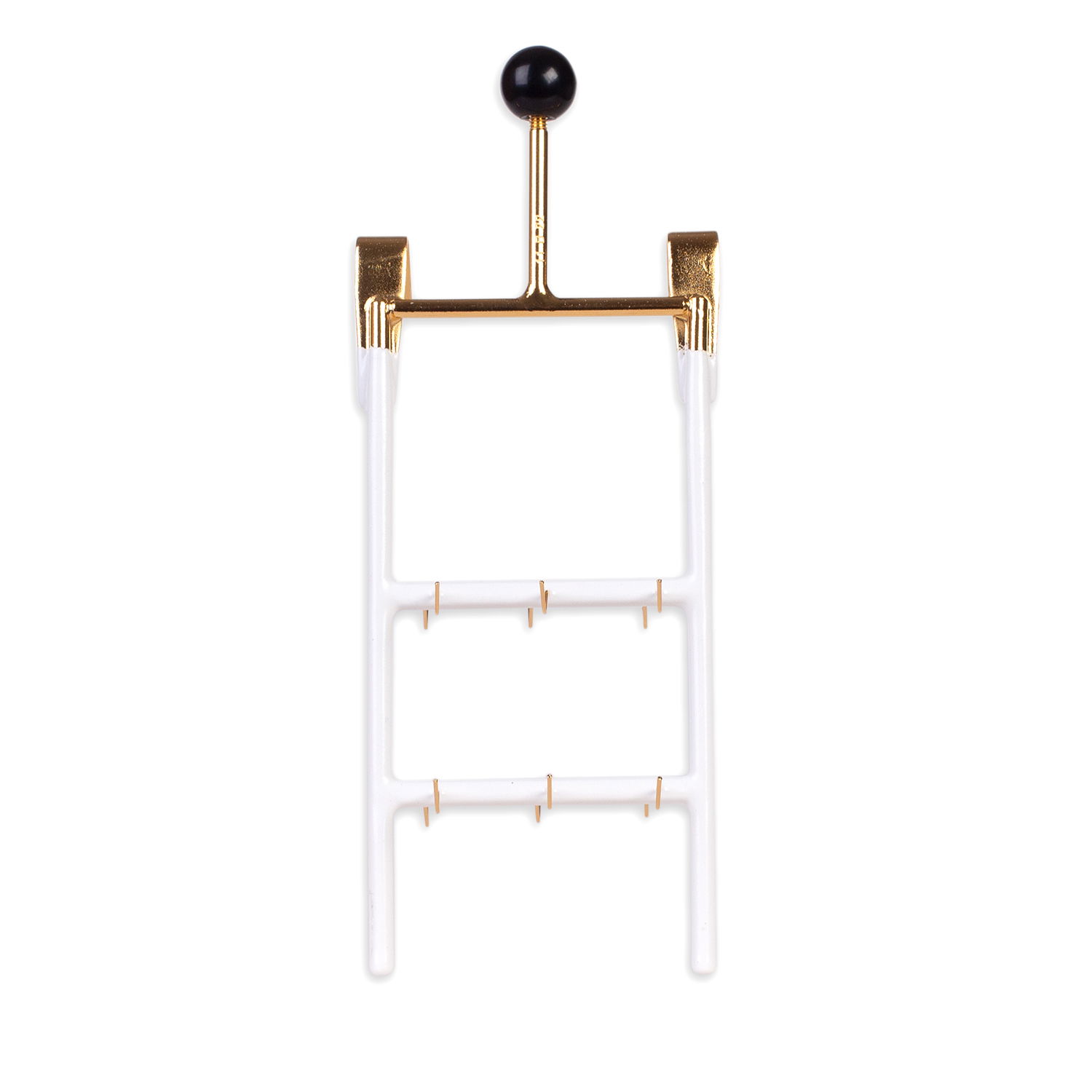

Jig with 12 hooks for rings 150x70 mm, which is perfectly suitable for our small size electroplating unit Comfort II, Digital II Version 2.0 or 1-3 liter tanks.

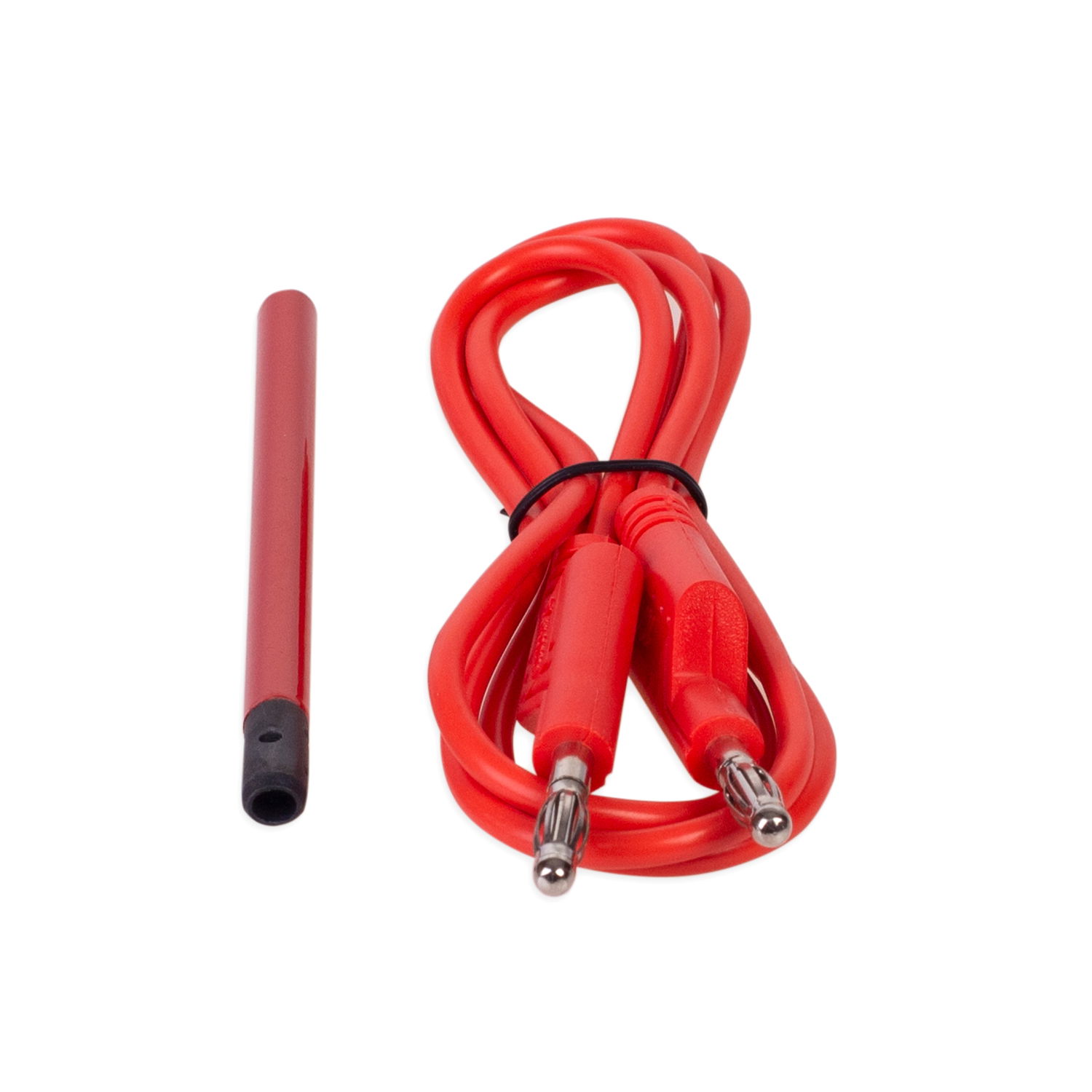

Suitable accessory for the pen plating unit type PICCO+. The handpiece consists of MOX plated titanium. It is used to use up the pen plating electrolytes. It has an excellent conductivity and therefore it can be achieved perfect plating results. Furthermore it is extremely durable and resistant.

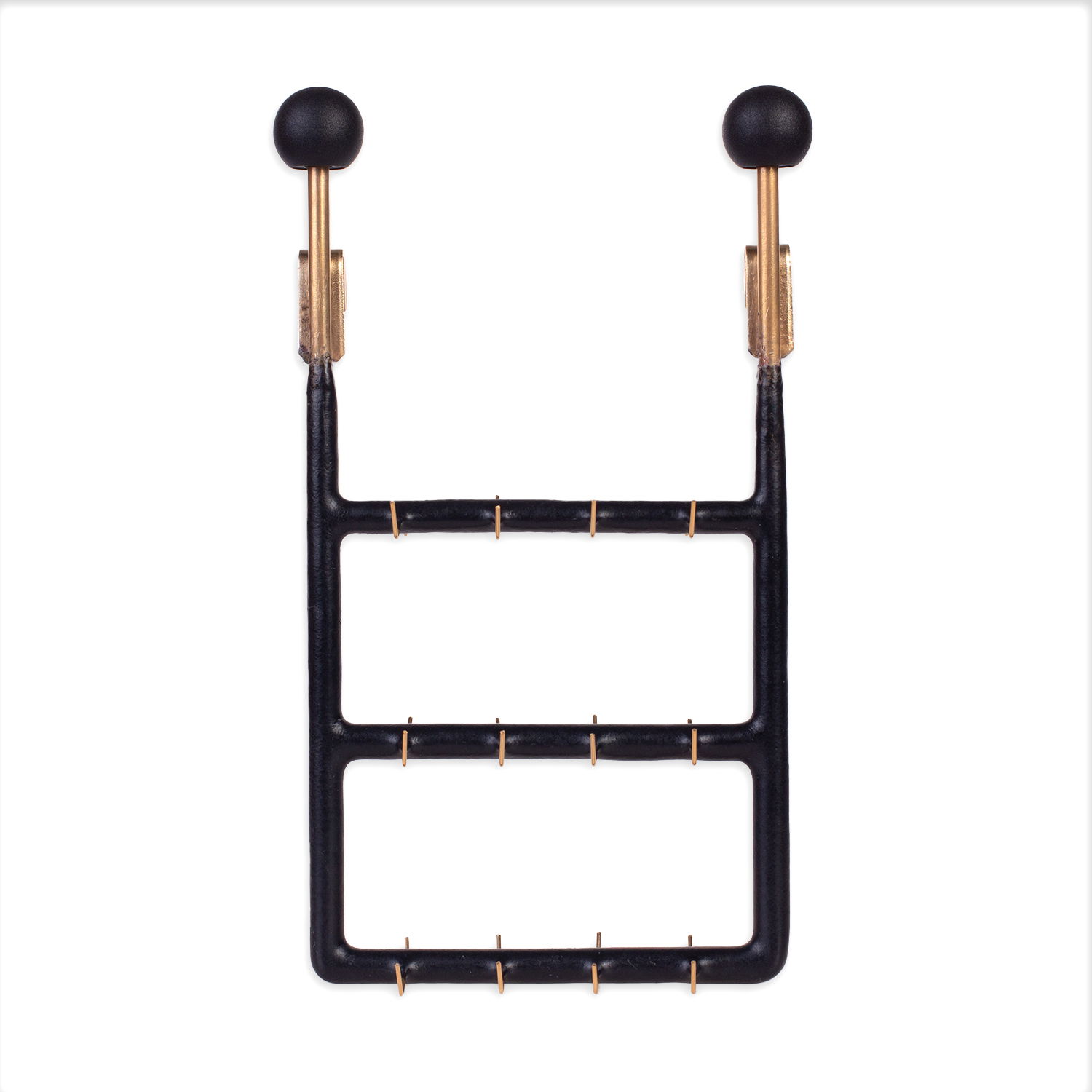

Jig with 24 hooks for rings 160x100mm, which is perfectly suitable for  Digital V.

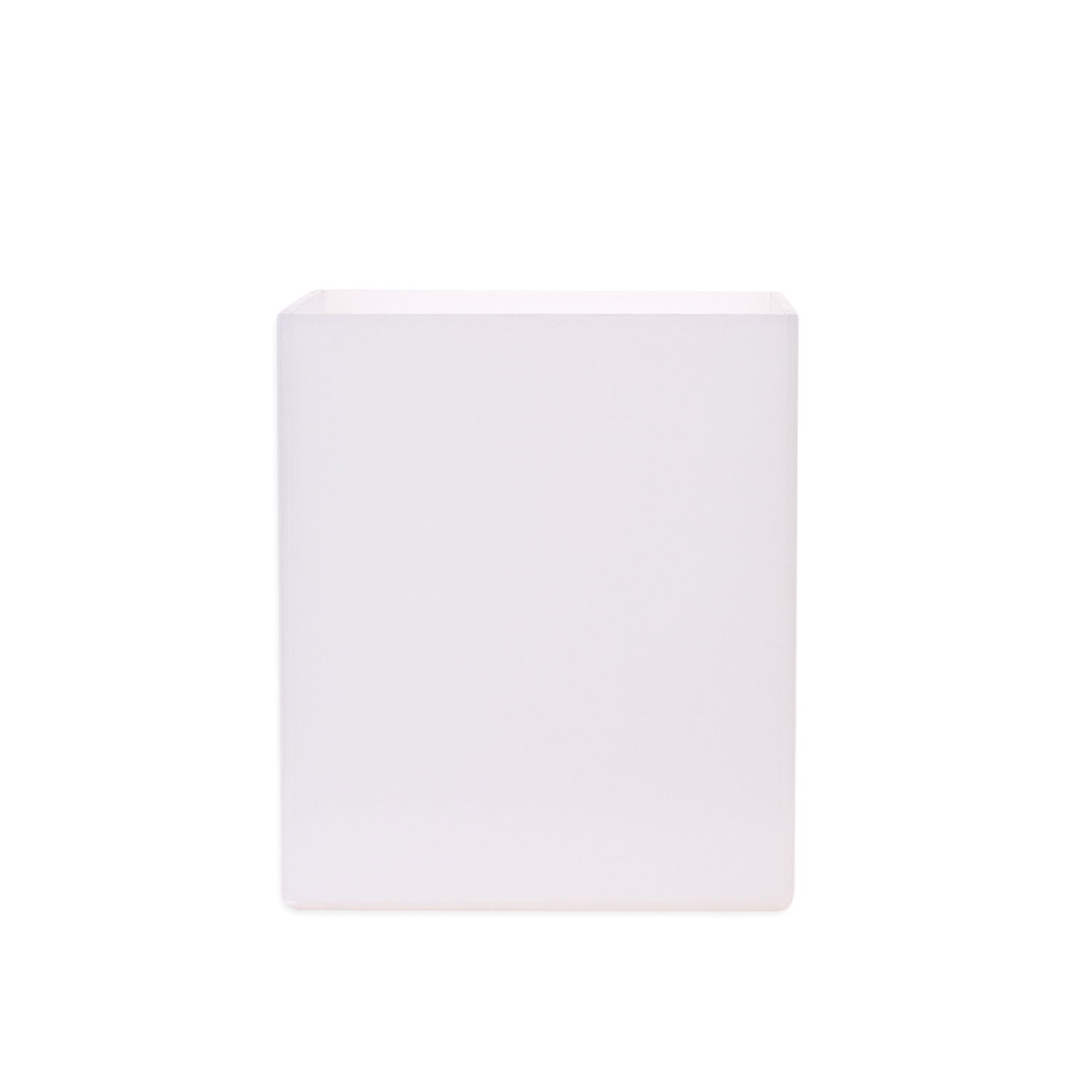

This PPH Tank 190x150x220 mm with 5 liter volume is perfectly suitable for Digital V.

Jig with 16 hooks for chains 200x100 mm, which is perfectly suitable for Digital V.

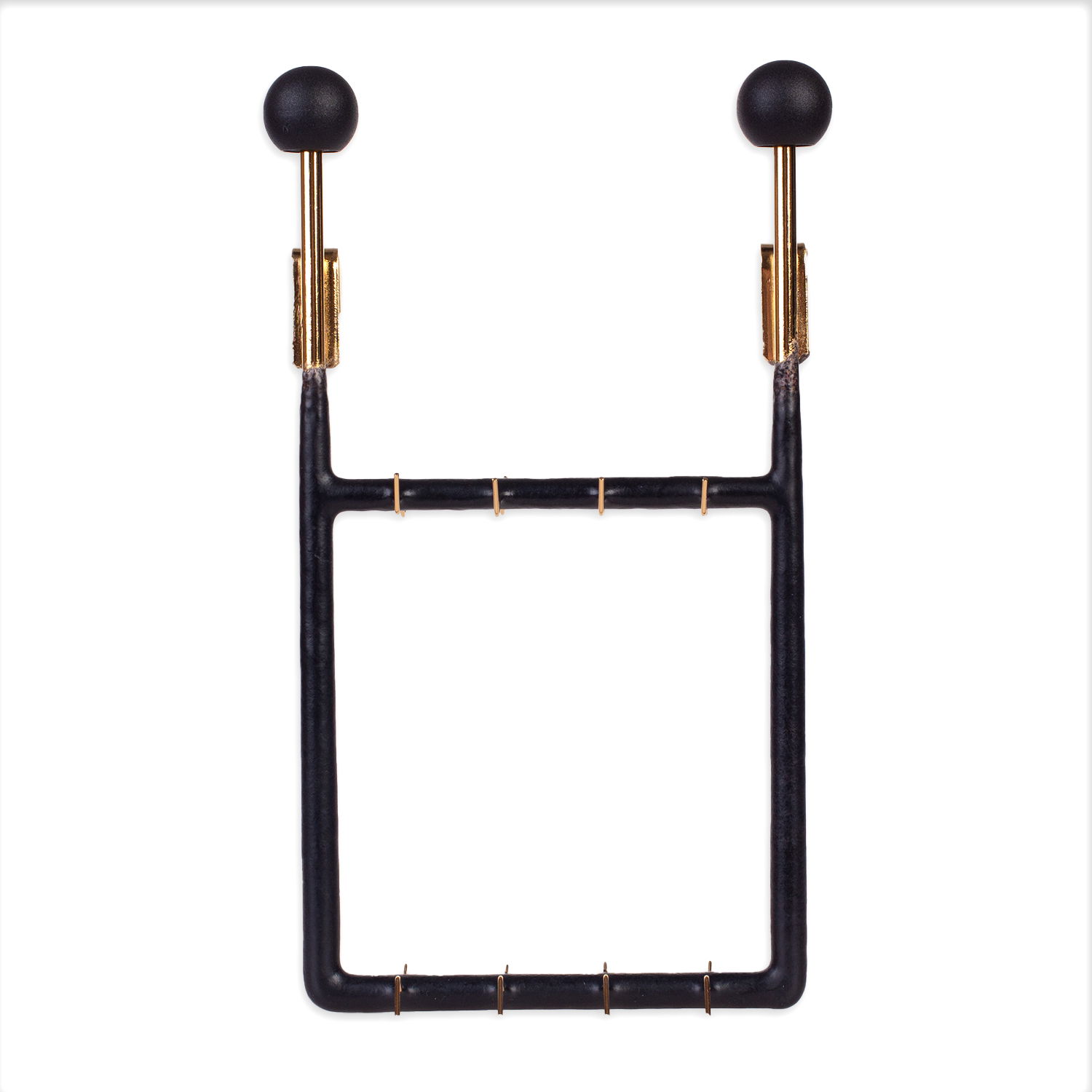

Jig with 16 hooks for chains 160x100 mm, which is perfectly suitable for Digital V and 5 liter tanks.

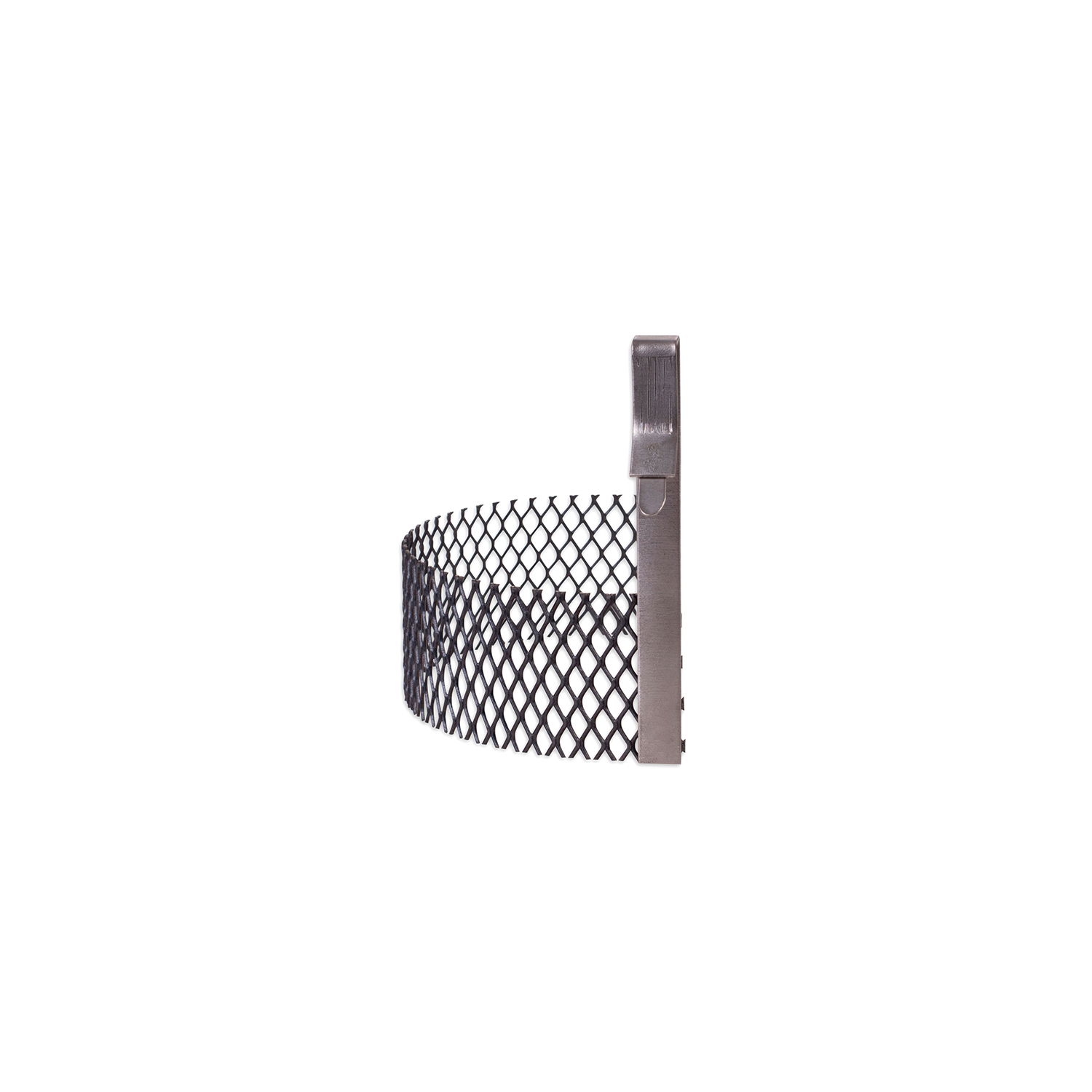

Mixed oxide expanded metal anode is suitable for the Rhodium Machine RMGo! and beakers with a rhodium baths.

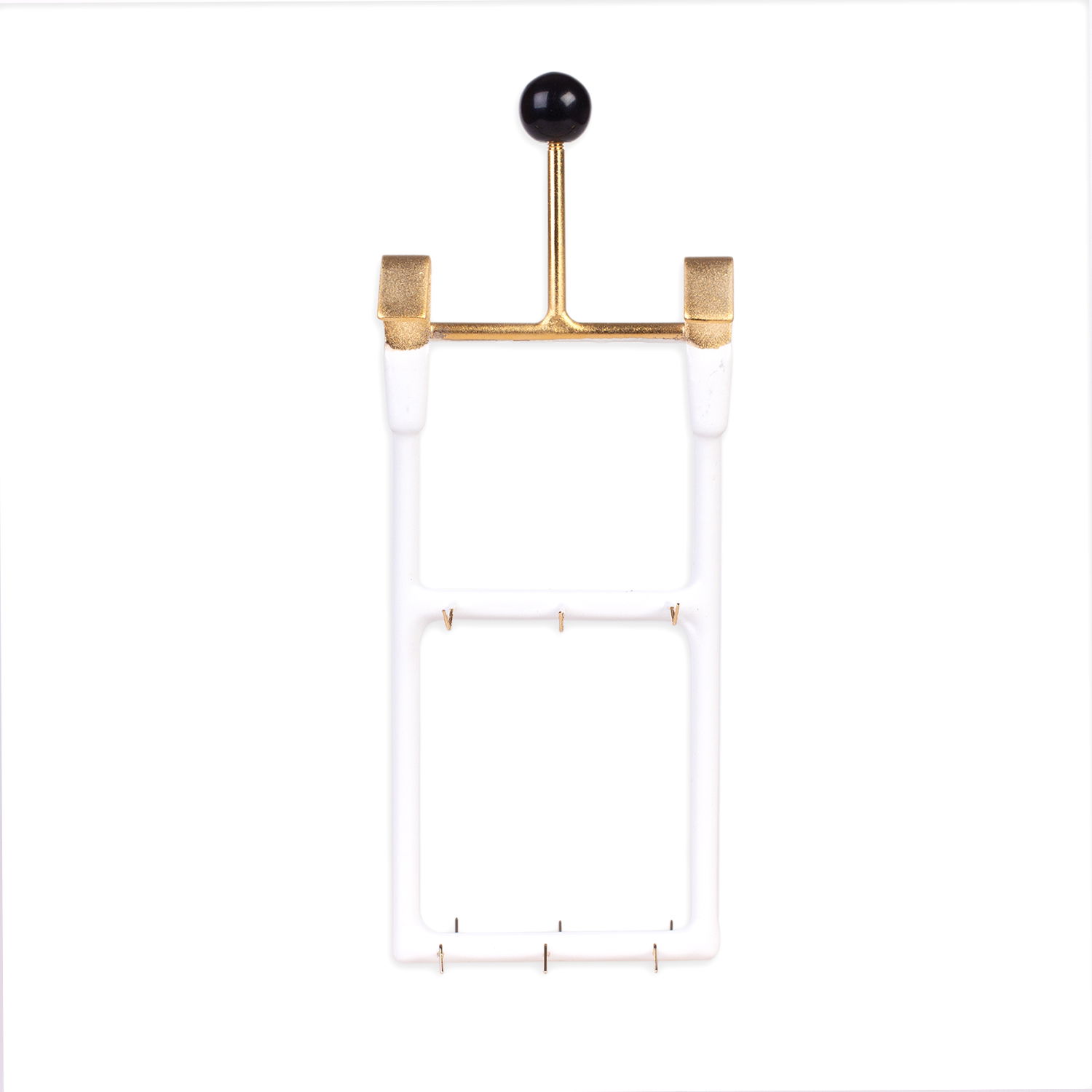

Jig with 12 hooks for chains 150x70mm, which is perfectly suitable for our small size electroplating unit Comfort II, Digital II Version 2.0 or 1-3 liter tanks.

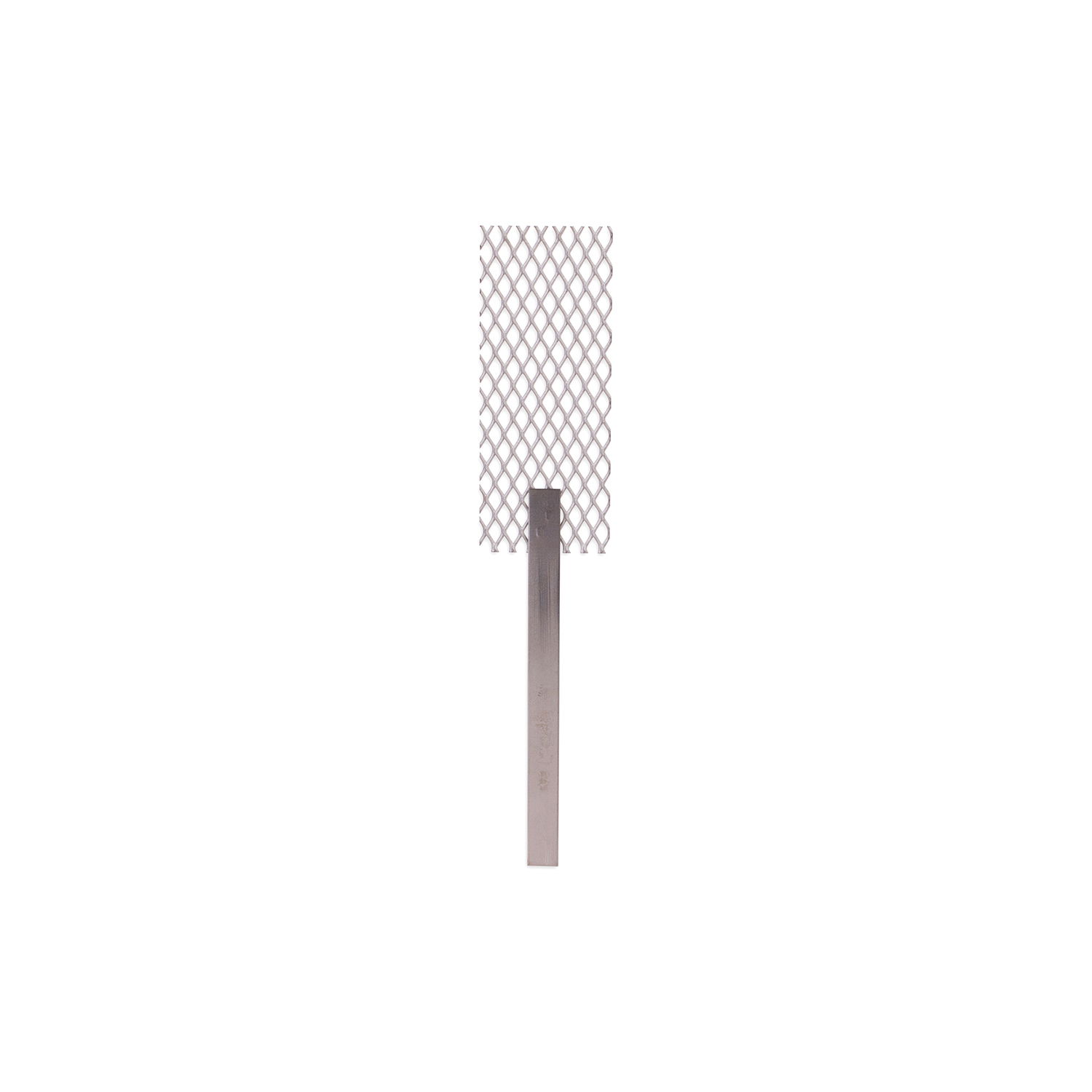

Suitable platinized titanium anode, 100x40 mm (2.5 µm Pt) for Comfort II, Digital II Version 2.0 or 1,5 liter tanks. These anodes can be used e.g. for rhodium, platinum and gold plating baths.

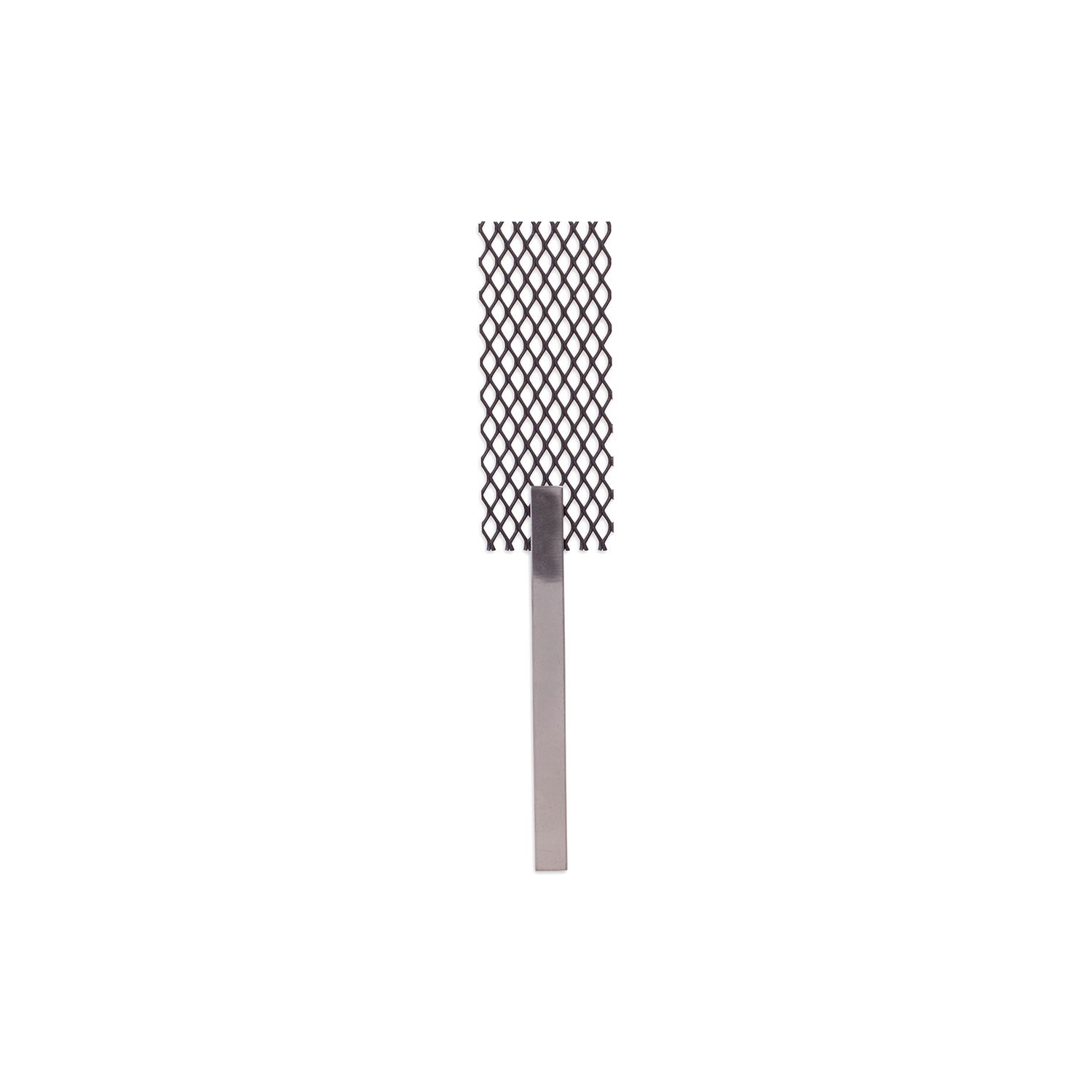

Suitable mixed oxid anode MOX (Ir/MMO) 100x40 mm for Digital II Version 2.0 or 1,5 liter tanks. These anodes can be used e.g. for pre-gold and palladium baths.

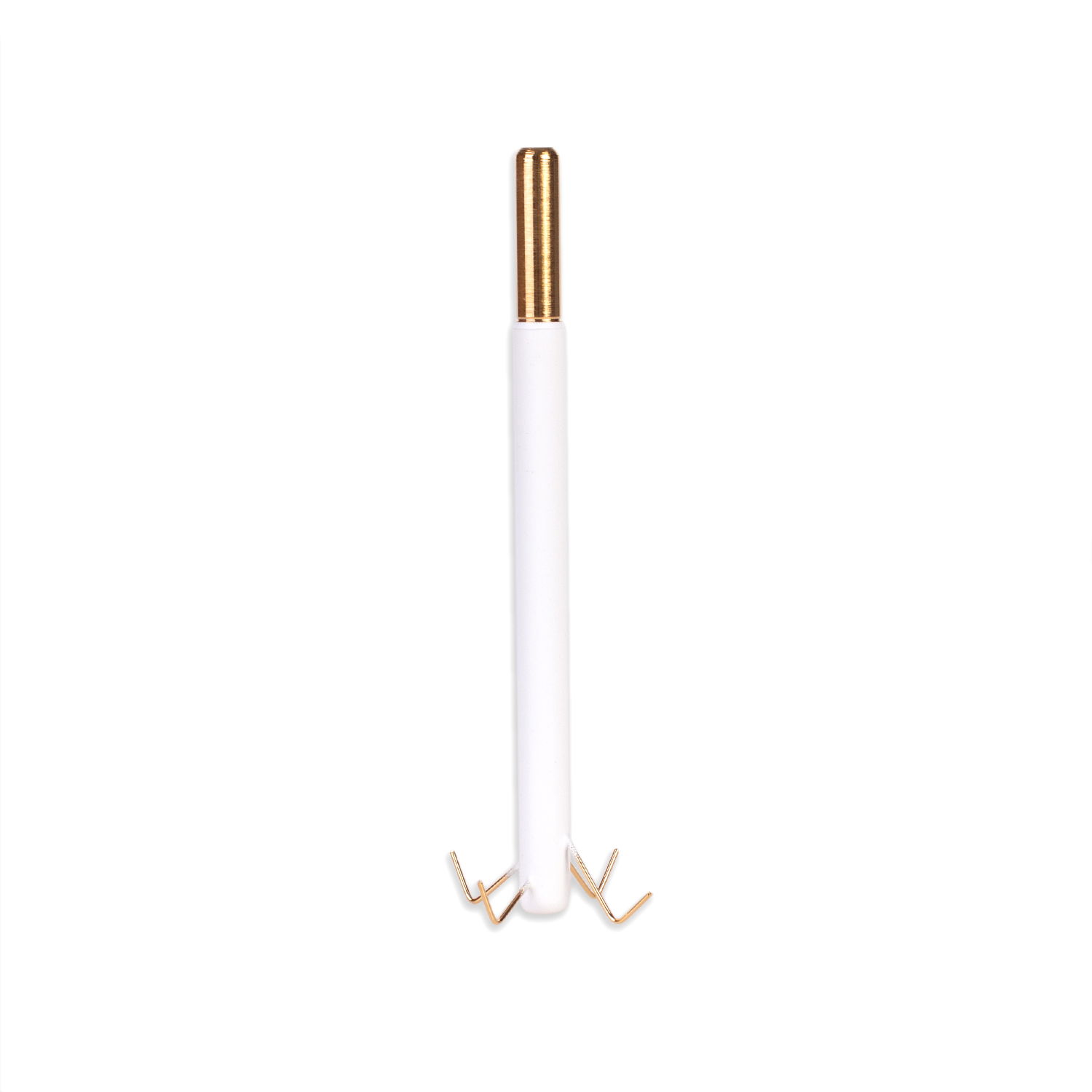

Jig with 4 hooks is a goods holder 130mm, for Rhodium Machine RMGo!
