Gold plating, colour gold plating or adhesive gold plating?

Choose between red gold tones or precise gold baths with different degrees of purity! If you would like to gold plate silverware, we recommend gold plating before any color gold plating. Please note that colored gold baths are usually only applied very thinly, with a maximum layer thickness of 0.1 µm.

Discover our gold electrolytes in various degrees of purity, including 14 carat, 18 carat and 24 carat, to meet your individual requirements.

For detailed information on our gold electrolytes and the recommended applications, take a look at the respective product descriptions.

Colour Gold Bath cold JE400 - fine - 1 g/L Au

Content: 1 liter

The color gold bath cold JE400 - fine deposits decorative gold layers in fine gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant colour. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11 - 12)Density: 1,065 g/ml (1,060 - 1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

€123.35*

Colour Gold Bath cold JE411 - 14ct - 1 g/L Au

Content: 1 liter

The colour gold bath cold JE411 - 14ct deposits decorative gold layers in 14ct colour. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant colour. The colour gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11 - 12)Density: 1,065 g/ml (1,060 - 1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15 - 20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

€123.35*

Colour Gold Bath cold JE421-18ct - 1 g/L Au

Content: 1 liter

The color gold bath cold JE421 - 18ct deposits decorative gold layers in 18ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11-12)Density: 1,065 g/ml (1,060-1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

€123.35*

Colour Gold Bath cold JE431 - rosé - 1 g/L Au

Content: 1 liter

The color gold bath cold JE431 - rosé deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/lpH-value: 11.5 (11-12)Density: 1.065 g/ml (1.060-1.070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1 The color of the deposite may change due to deviations in the working conditions. Form of delivery:Ready for use 1 g/L Au

€123.35*

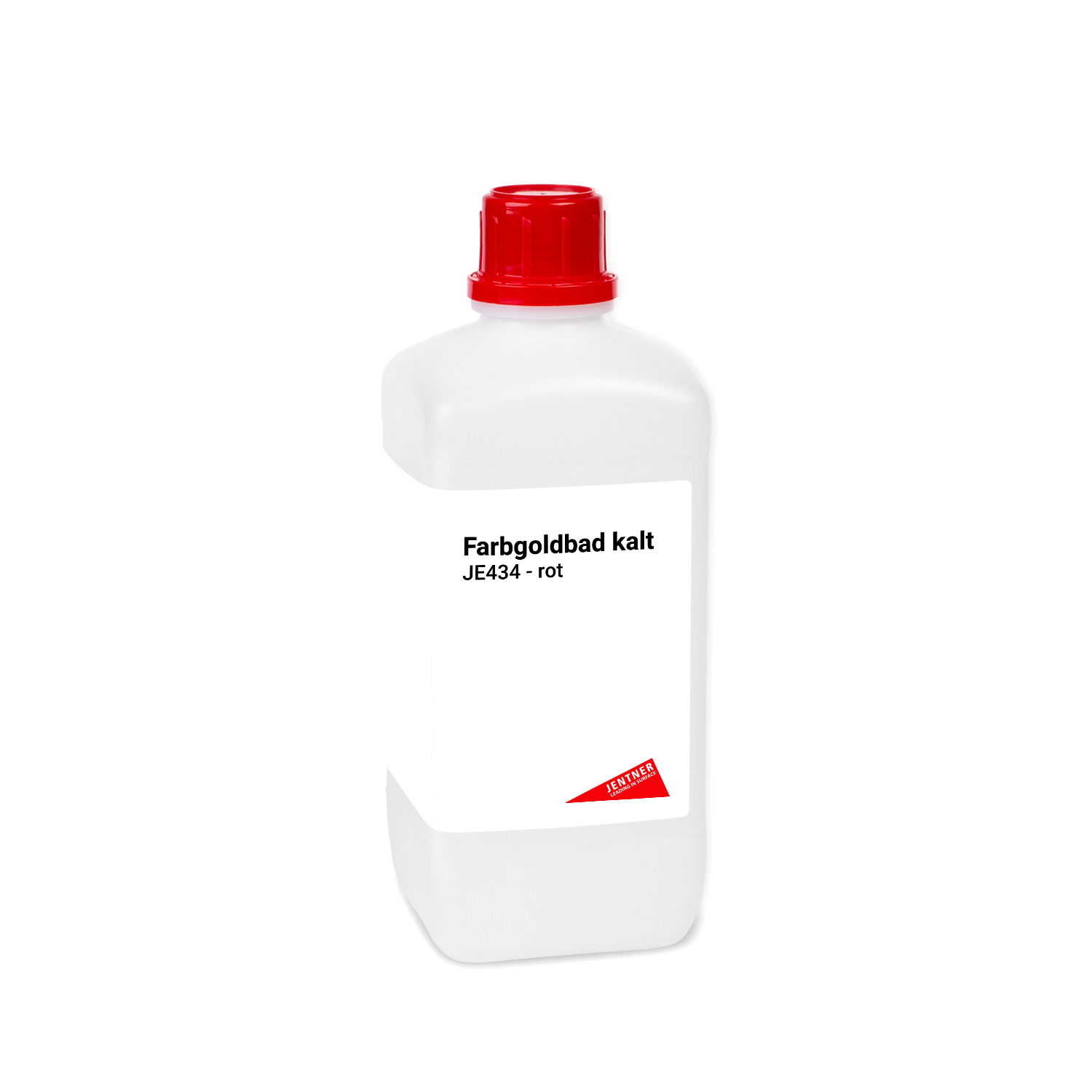

Colour Gold Bath cold JE434 - red - 1 g/L Au

Content: 1 liter

The color gold bath cold JE434 - red deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11.5 (11-12)Density: 1.065 g/ml (1.060-1.070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

€123.35*

Colour Gold Bath JE100 - fine - 1 g/L Au

Content: 1 liter

The color gold bath JE100 - fine deposits decorative gold layers in fine gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

€111.95*

Colour Gold Bath JE110 - 14ct - 1 g/L Au

Content: 1 liter

The color gold bath JE110 - 14ct deposits decorative gold layers in 14ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

€111.95*

Colour Gold Bath JE210 - 18ct - 1 g/L Au

Content: 1 liter

The color gold bath JE210 - 18ct deposits decorative gold layers in 18ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

€111.95*

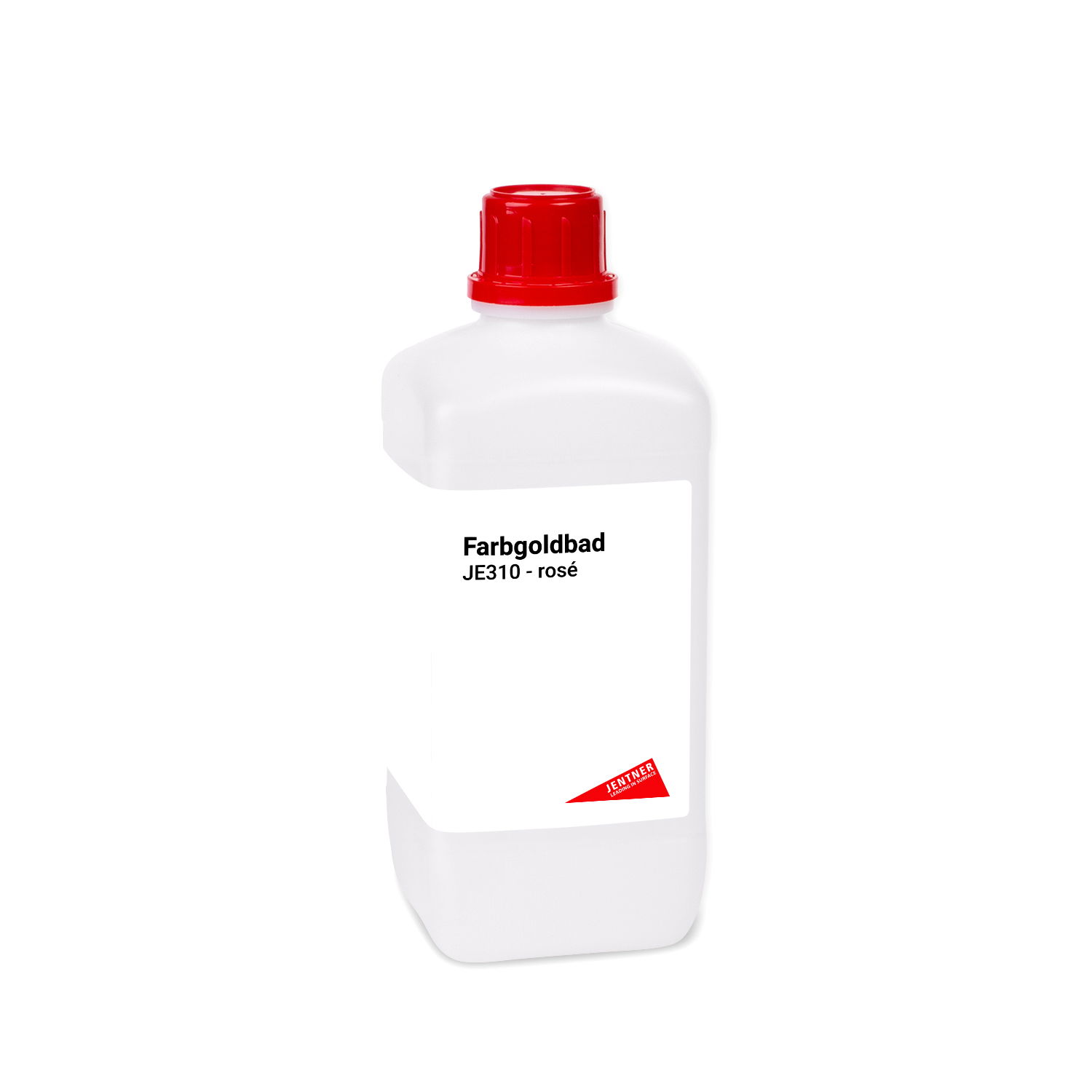

Colour Gold Bath JE310 - rosé -1 g/L Au

Content: 1 liter

The color gold bath JE310 - rosé deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

€111.95*

Colour Gold Bath JE340 - red - 1 g/L Au

Content: 1 liter

The color gold bath JE340 deposits decorative gold layers in red gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

€111.95*

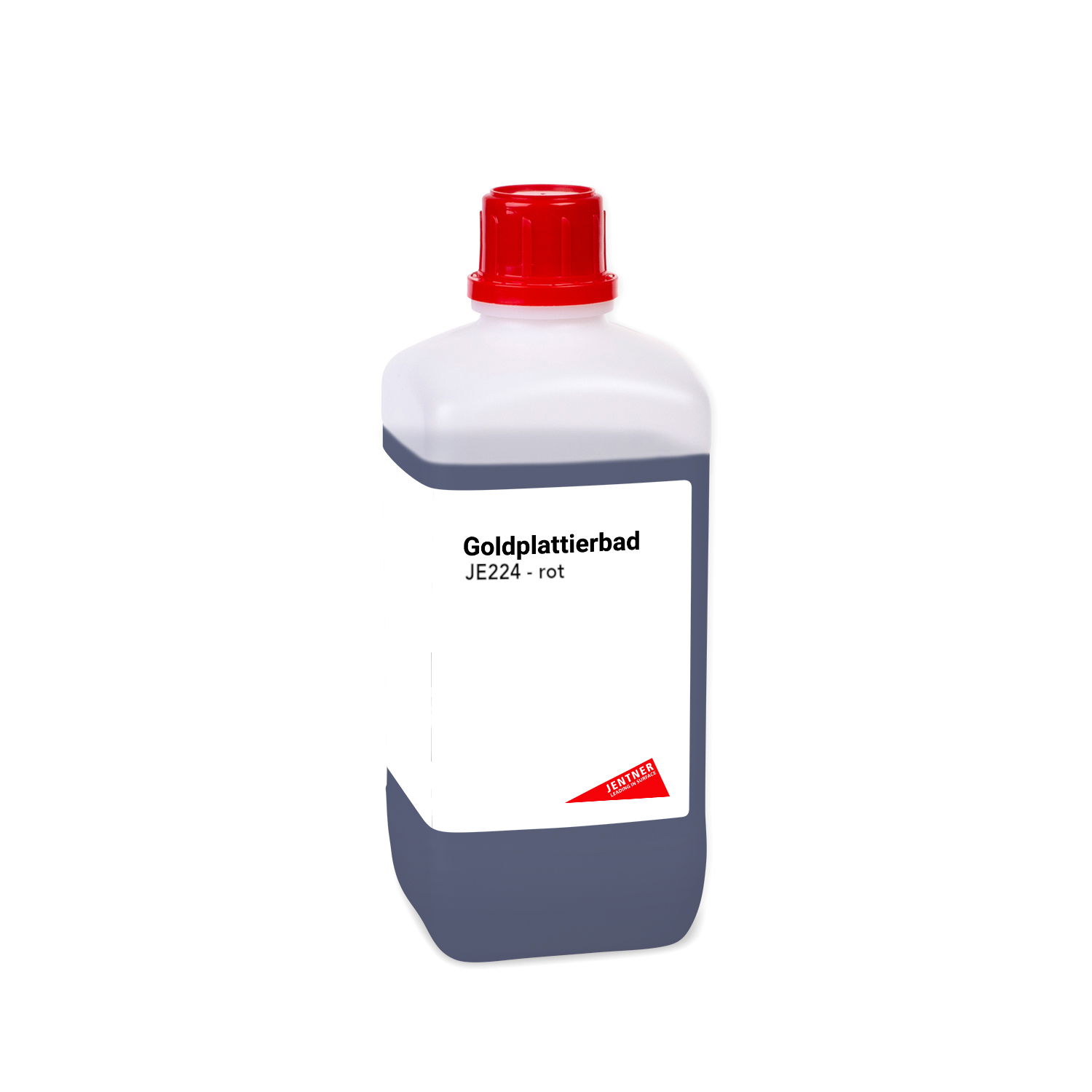

Gold Plating Bath JE224 - 4 g/L Au

Content: 1 liter

With the Gold plating bath JE224 a very bright, decorative and ductile gold layer can be deposited. A very nice shade between 4N (rose) and 5N (red) will be achieved. A uniform colour distribution and consistency are further advantages of this user-friendly gold process. The precious metal content of the gold layers is 14 - 18 ct. In this range the gold deposits have a very good resistance to tarnishing and corrosion.Gold content: 5 g/L AuVoltage: 1,1-1,6 VoltBath temperature: 60°CExposure time: up to 60 min.Anodes: Platinized Titanium

€440.89*

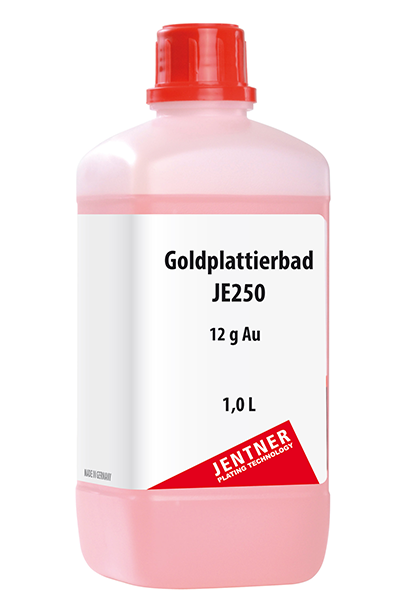

Gold Plating Bath JE250 - 12 g/L Au

Content: 1 liter

The JE250 gold plating bath is ideal for depositing shiny and robust gold alloy layers up to a thickness of 10 µm. It is suitable for both technical and decorative applications, making it very versatile.Operating data:Gold content: 12 g/L AupH value: 4.0 (3.8 - 4.2)Density: 1.035 g/ml (1.030 - 1.050)Precipitation data:Hardness: 150 - 220 HVLayer thickness: Max. 10 µmFineness of the gold layer approx. 99.5 % AuWorking conditions:Voltage: 2.5 - 4 VBath temperature: 20 - 40°CAnode material: Platinized titaniumAnode/cathode area: approx. 1 : 1Fabric movement: requiredCurrent density: approx. 1 - 2.5 A/dm2Bath filtration: from 10 litersDeposition rate: approx. 22 mg/AMin

€1,143.38*

Gold Plating Bath JE250 - 3 g/L Au

Content: 1 liter

Experience the excellent quality of our JE250 gold plating bath in the 1-liter version, ideal for the deposition of bright and hard gold alloy layers up to a layer thickness of 10 µm. This weakly acidic hard gold electrolyte produces yellow, uniformly shiny hard gold coatings and offers high corrosion and abrasion resistance. The deposited layers consist of a robust gold/cobalt alloy and are suitable for both technical and decorative applications. Operating data:Gold content: 3 g/L AupH value: 4.0 (3.8 - 4.2)Density: 1.035 g/ml (1.030 - 1.050)Precipitation data:Hardness: 150 - 220 HVLayer thickness: Max. 10 µmFineness of the gold layer approx. 99.5 % AuWorking conditions:Voltage: 2.5 - 4 VBath temperature: 20 - 40°CAnode material: Platinized titaniumAnode/cathode area: approx. 1 : 1Fabric movement: requiredCurrent density: approx. 1 - 2.5 A/dm2Bath filtration: from 10 litersDeposition rate: approx. 22 mg/AMin

€308.65*

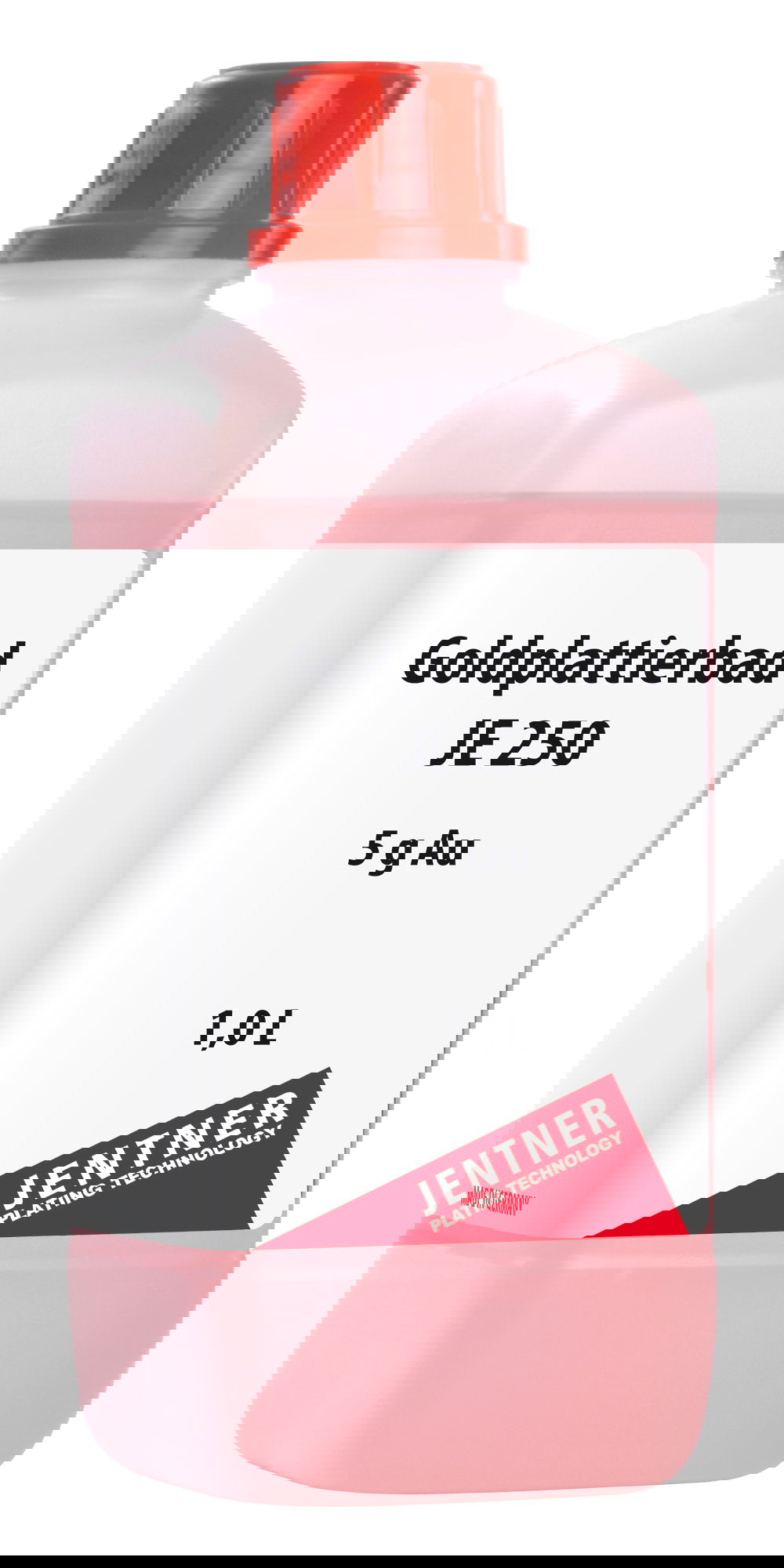

Gold Plating Bath JE250 - 5 g/L Au

Content: 1 liter

The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 10 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 5 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 10 µmFineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: requiredPower density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 literDeposition rate: approx. 22 mg/Amin

€494.14*

Gold Plating Bath JE250 - 8 g/L Au

Content: 1 liter

The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 10 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 8 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 10 µmFineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: requiredPower density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 literDeposition rate: approx. 22 mg/Amin

€772.39*

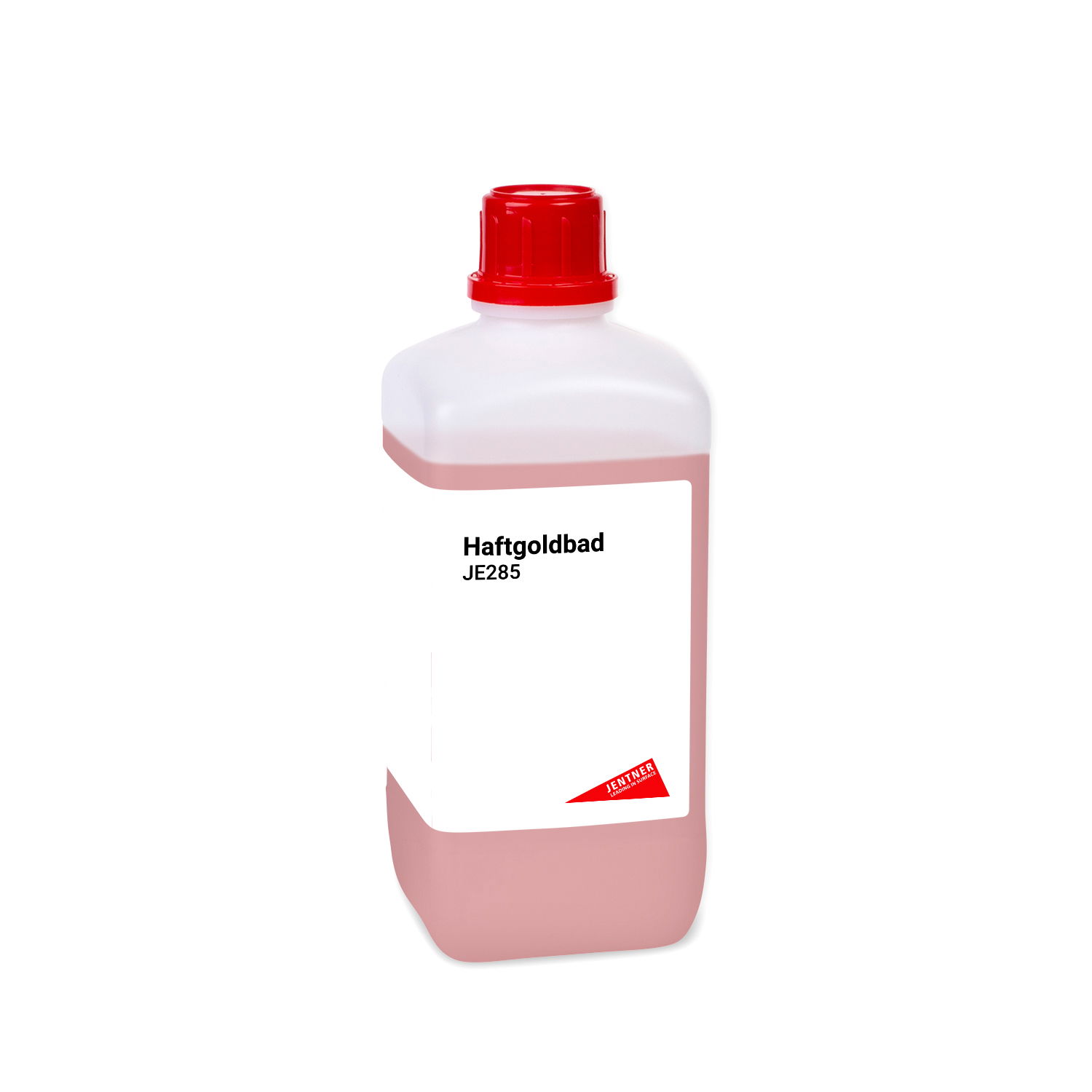

Pre-Gold Bath JE285 - 3 g/L Au

Content: 1 liter

The pre-gold bath JE285 is ideal to plate gold directly on stainless steels, molybdenum containing steel and nickel-base alloys which are hard to activate. Because of it's highly activative impact it can be used successfully for passive material which is difficult to plate. The gold electrolyte generally improves the adhesive properties between base material and galvanic surface.Operating data:Gold content: 3 g/LSulfuric acid content: 25 g/L (20-30) Deposition data:Hardness: approx. 165 HVLayer thickness: until 3 µmFineness of the gold coating: >99% AuOperating conditions:Voltage: 2 - 3 VBath temperature: 20 - 30 °CExposition time: 2 - 5 min. (max. 45 min.) Anode material: Mixed oxide (MOX) Goods movement: required Bath filtration: From 10 liter Anode/Cathode surface: 1 : 1Current density: 2 - 6 A/dm2

€308.95*
