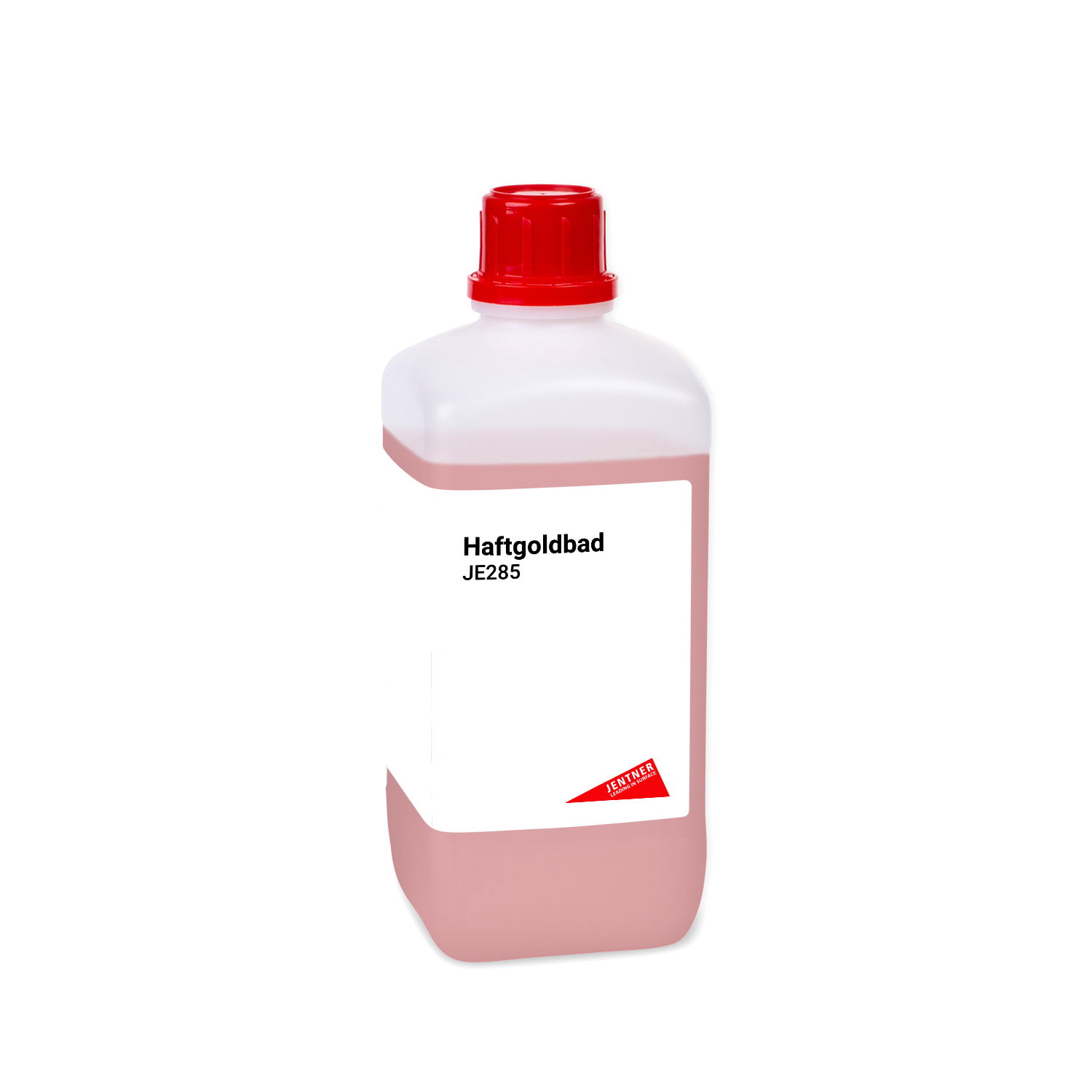

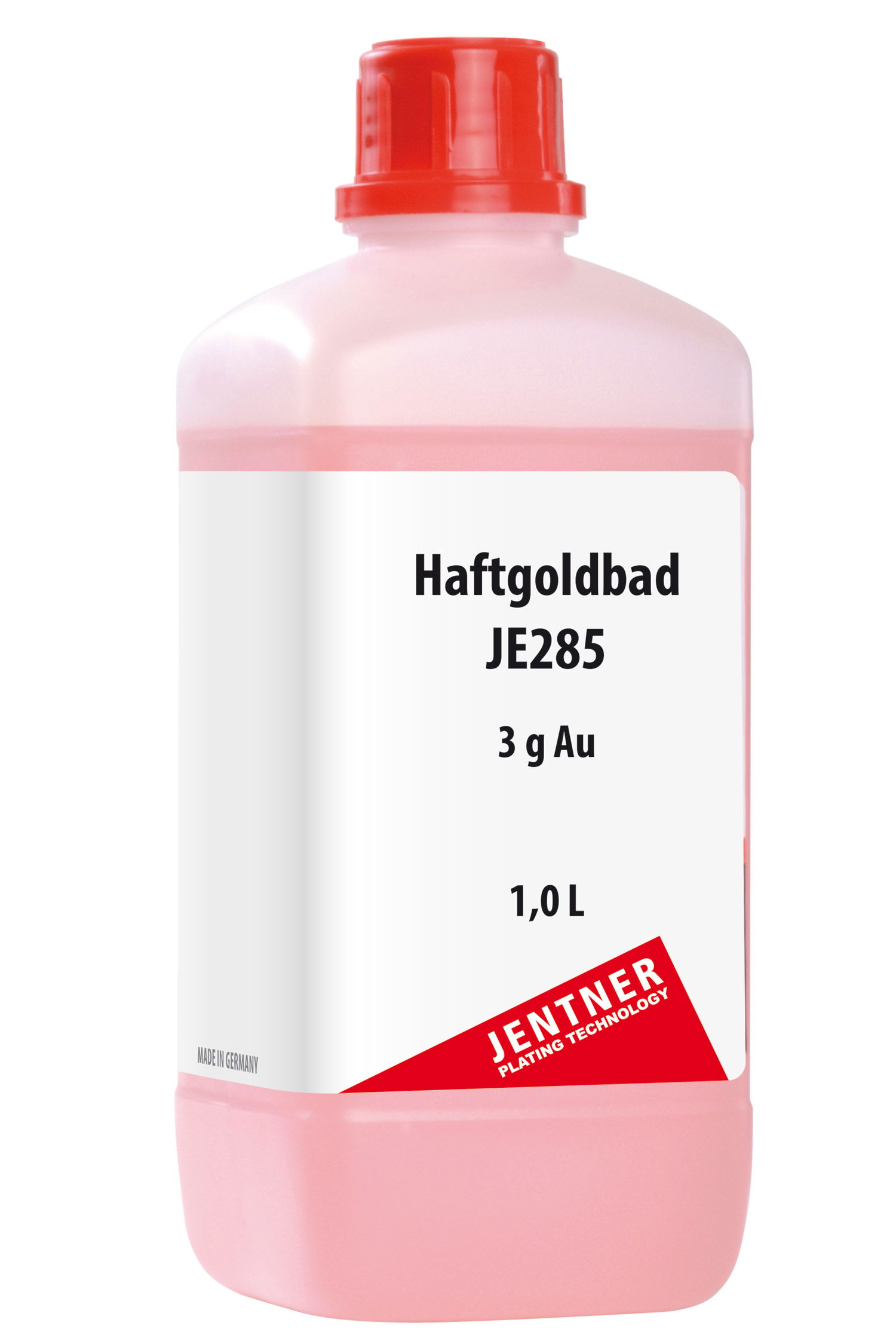

The pre-gold bath JE285 is ideal to plate gold directly on stainless steels, molybdenum containing steel and nickel-base alloys which are hard to activate. Because of it's highly activative impact it can be used successfully for passive material which is difficult to plate. The gold electrolyte generally improves the adhesive properties between base material and galvanic surface.Operating data:Gold content: 3 g/LSulfuric acid content: 25 g/L (20-30)
Deposition data:Hardness: approx. 165 HVLayer thickness: until 3 µmFineness of the gold coating: >99% AuOperating conditions:Voltage: 2 - 3 VBath temperature: 20 - 30 °CExposition time: 2 - 5 min. (max. 45 min.)
Anode material: Mixed oxide (MOX)
Goods movement: required
Bath filtration: From 10 liter
Anode/Cathode surface: 1 : 1Current density: 2 - 6 A/dm2

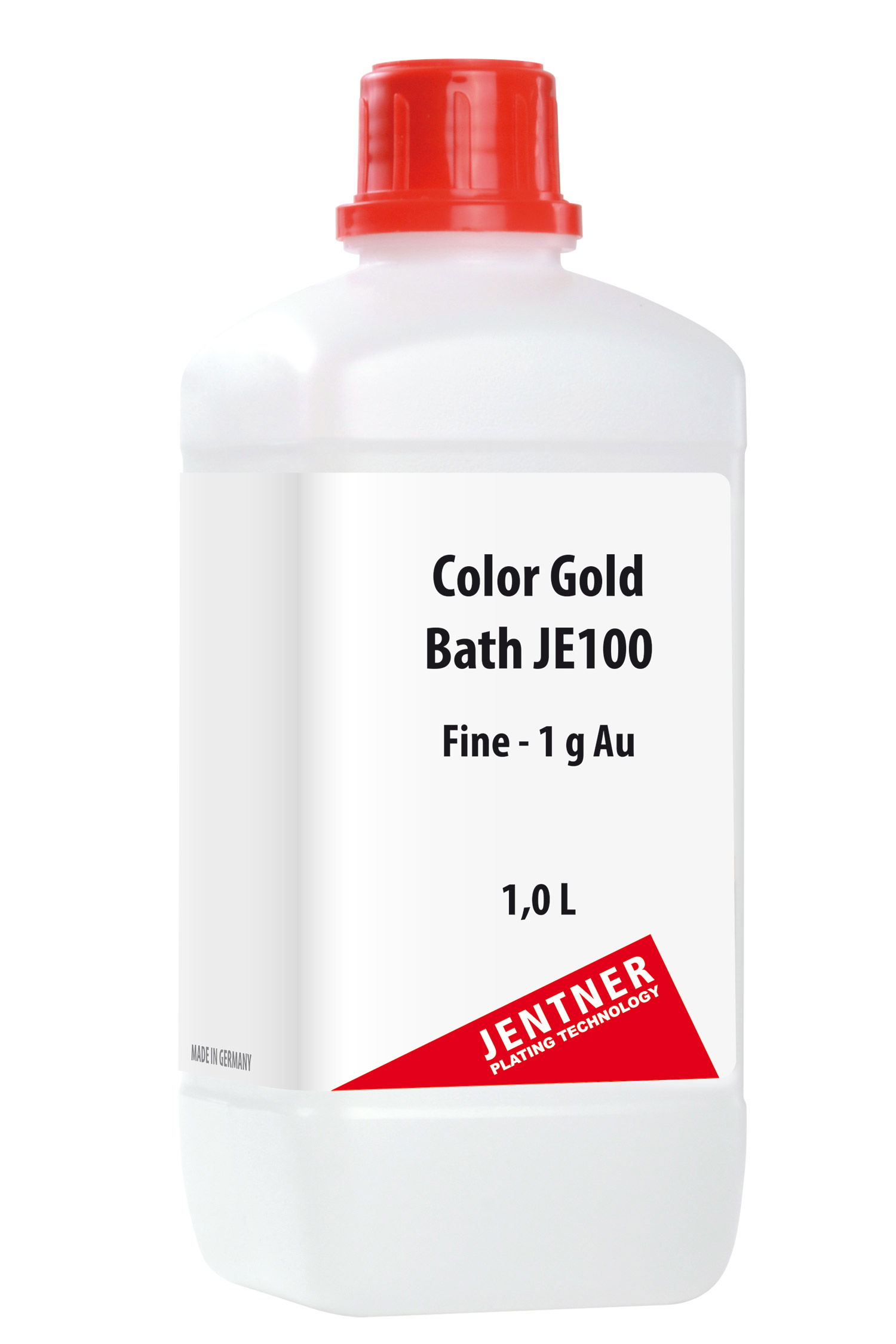

The color gold bath JE100 - fine deposits decorative gold layers in fine gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au-Concentrate form 1 g/100ml Au for 1 litre bath

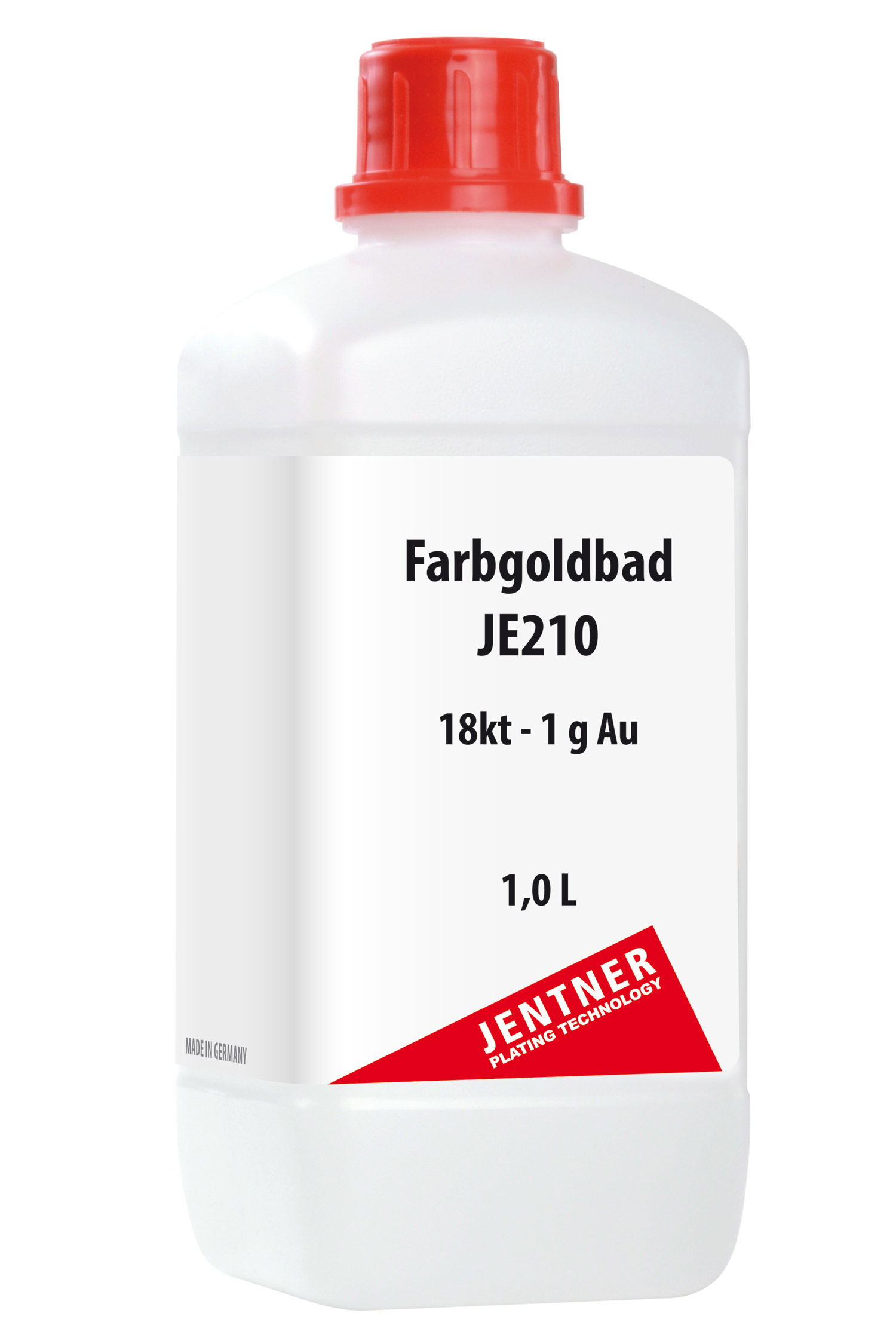

The color gold bath JE210 - 18ct deposits decorative gold layers in 18ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au-Concentrate form 1 g/100ml Au for 1 litre bath

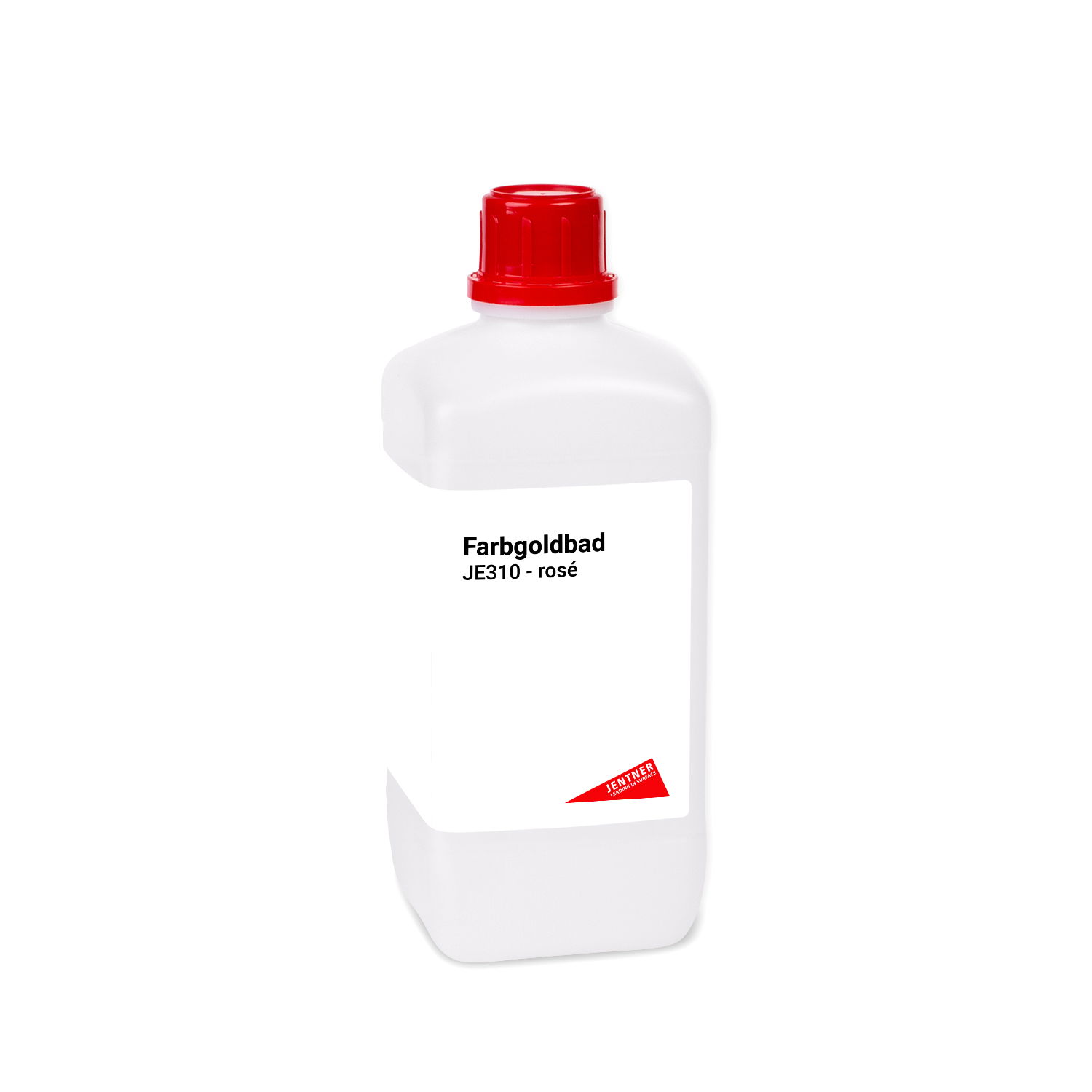

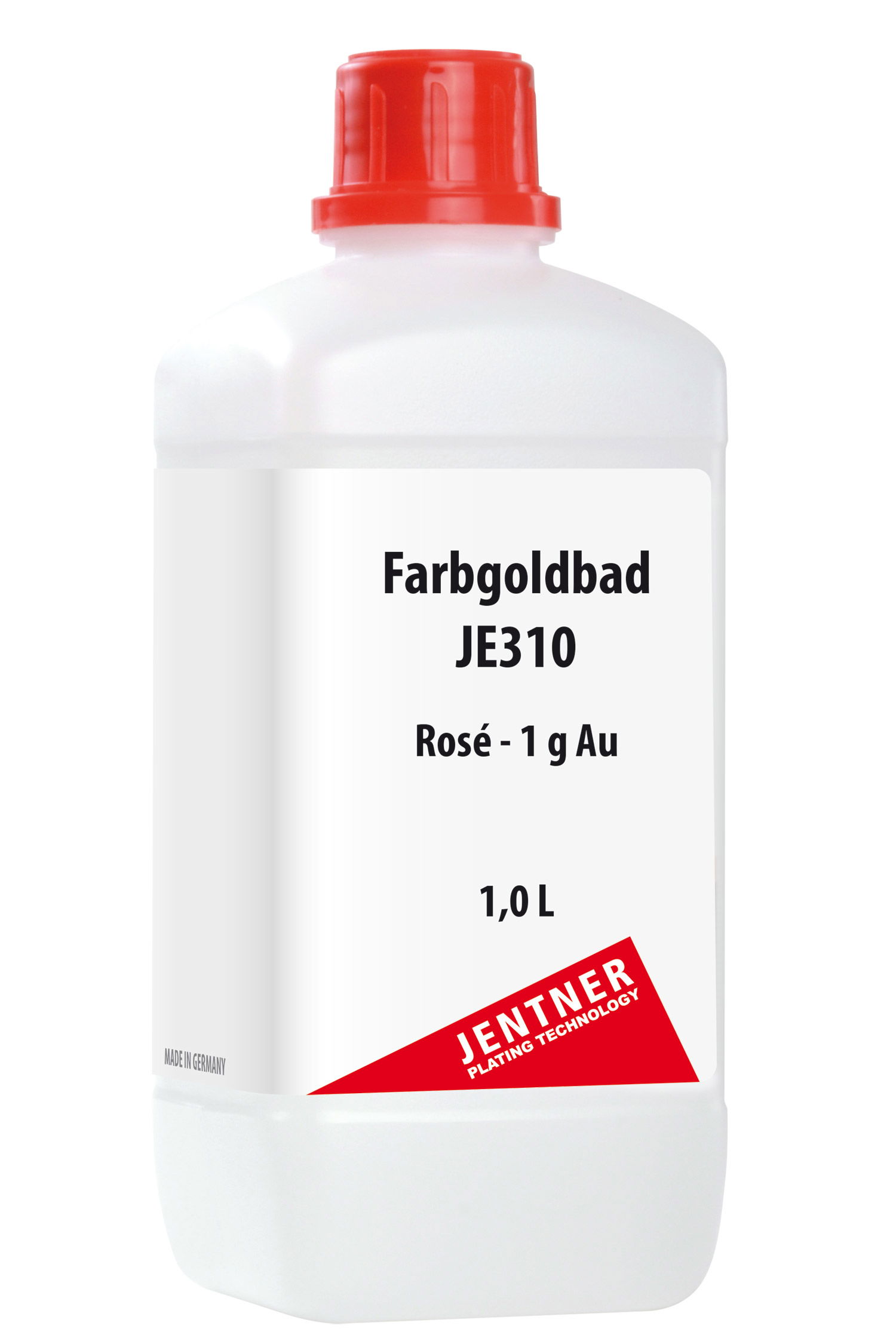

The color gold bath JE310 - rosé deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au-Concentrate form 1 g/100ml Au for 1 litre bath
The color gold bath JE340 deposits decorative gold layers in red gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au-Concentrate form 1 g/100ml Au for 1 litre bath

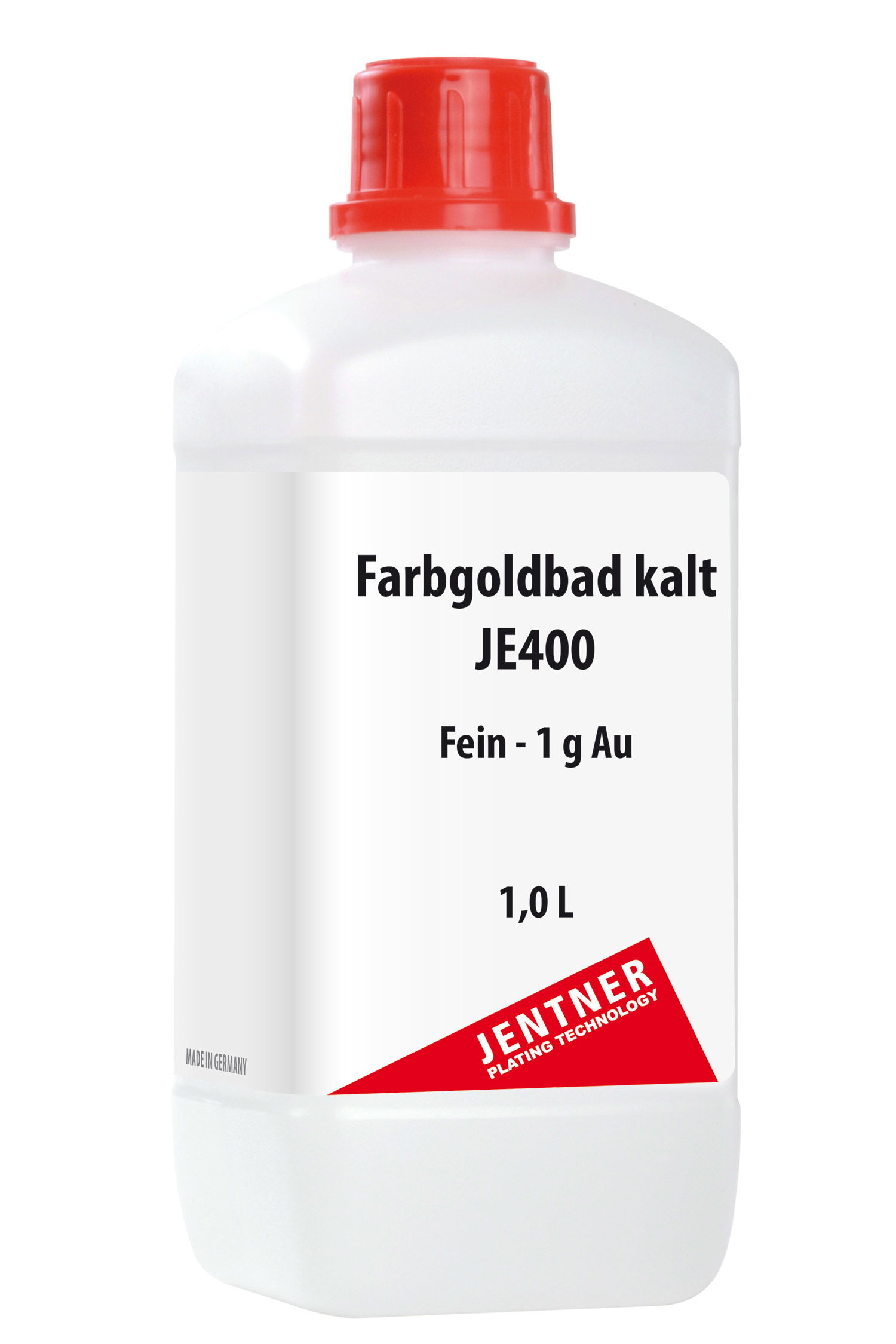

The color gold bath cold JE400 - fine deposits decorative gold layers in fine gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant colour. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11-12)Density: 1,065 g/ml (1,060-1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

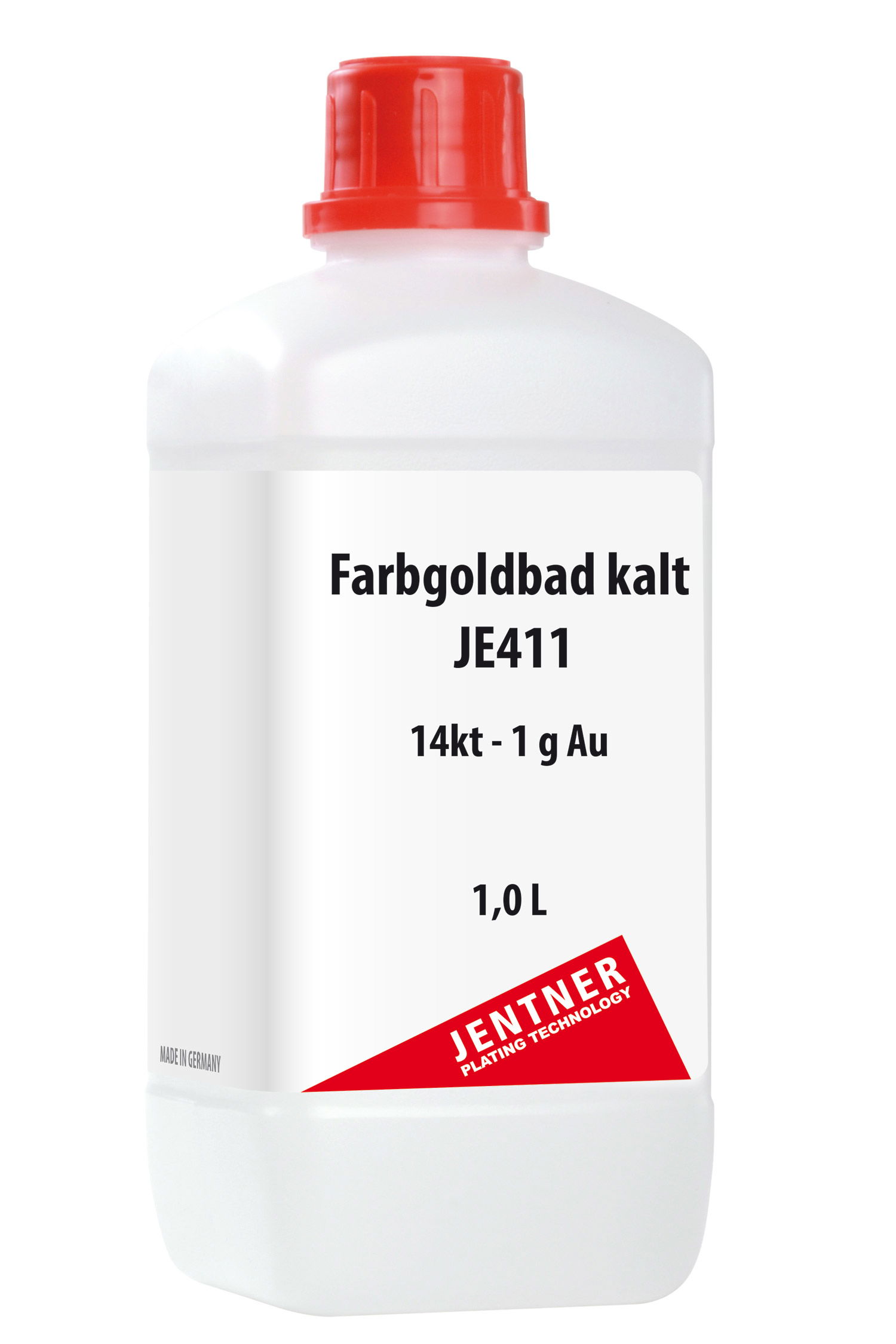

The colour gold bath cold JE411 - 14ct deposits decorative gold layers in 14ct colour. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant colour. The colour gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11-12)Density: 1,065 g/ml (1,060-1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

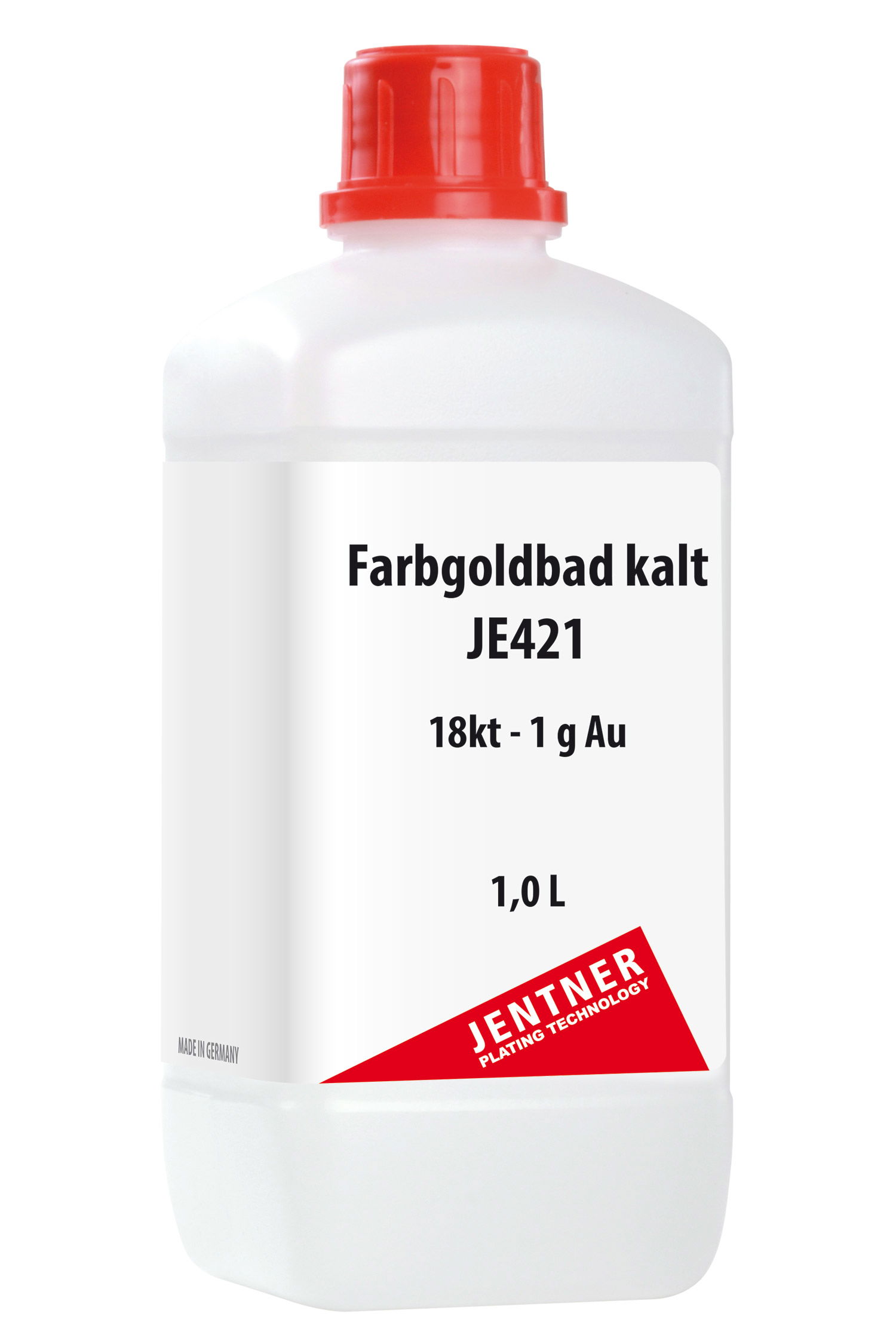

The color gold bath cold JE421 - 18ct deposits decorative gold layers in 18ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11-12)Density: 1,065 g/ml (1,060-1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

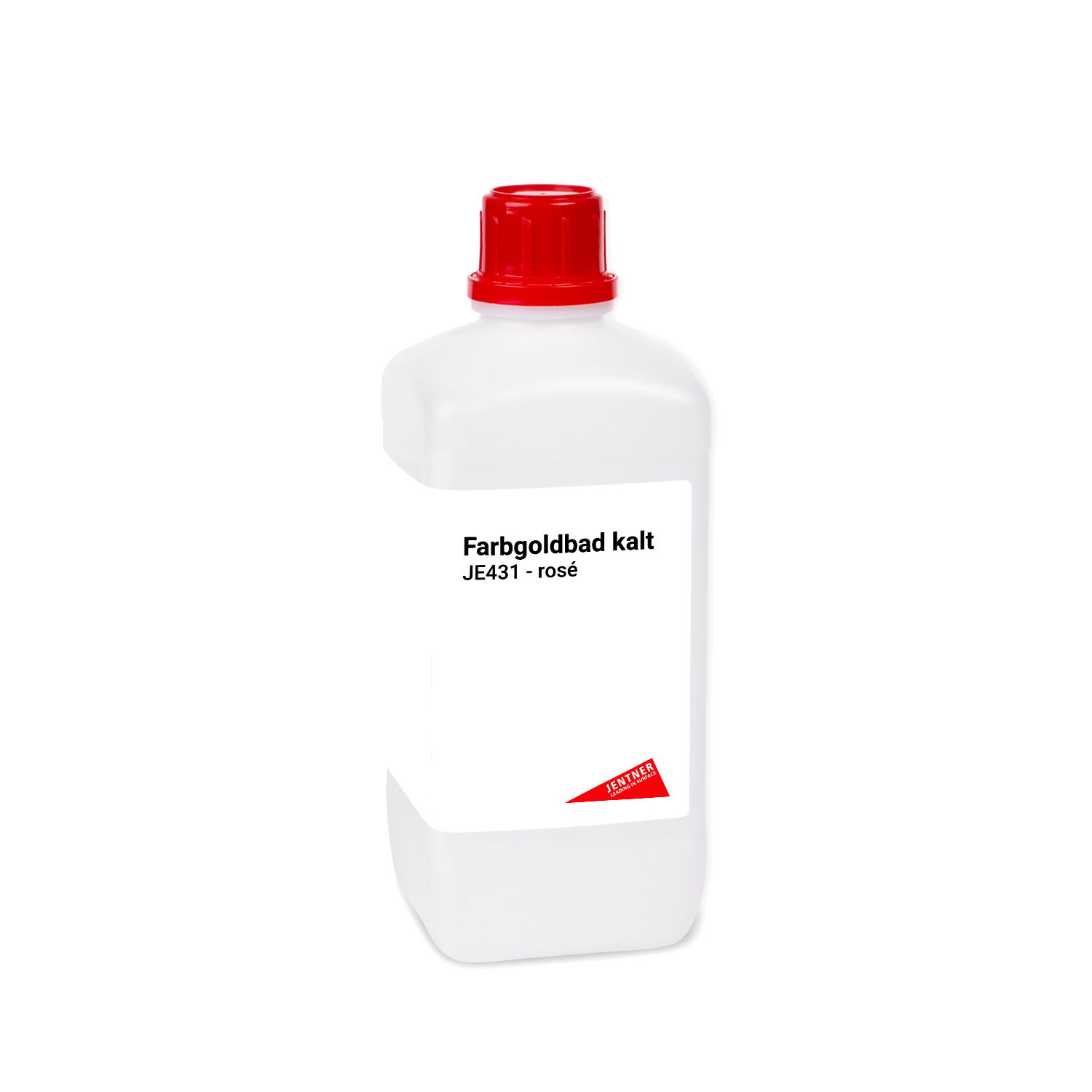

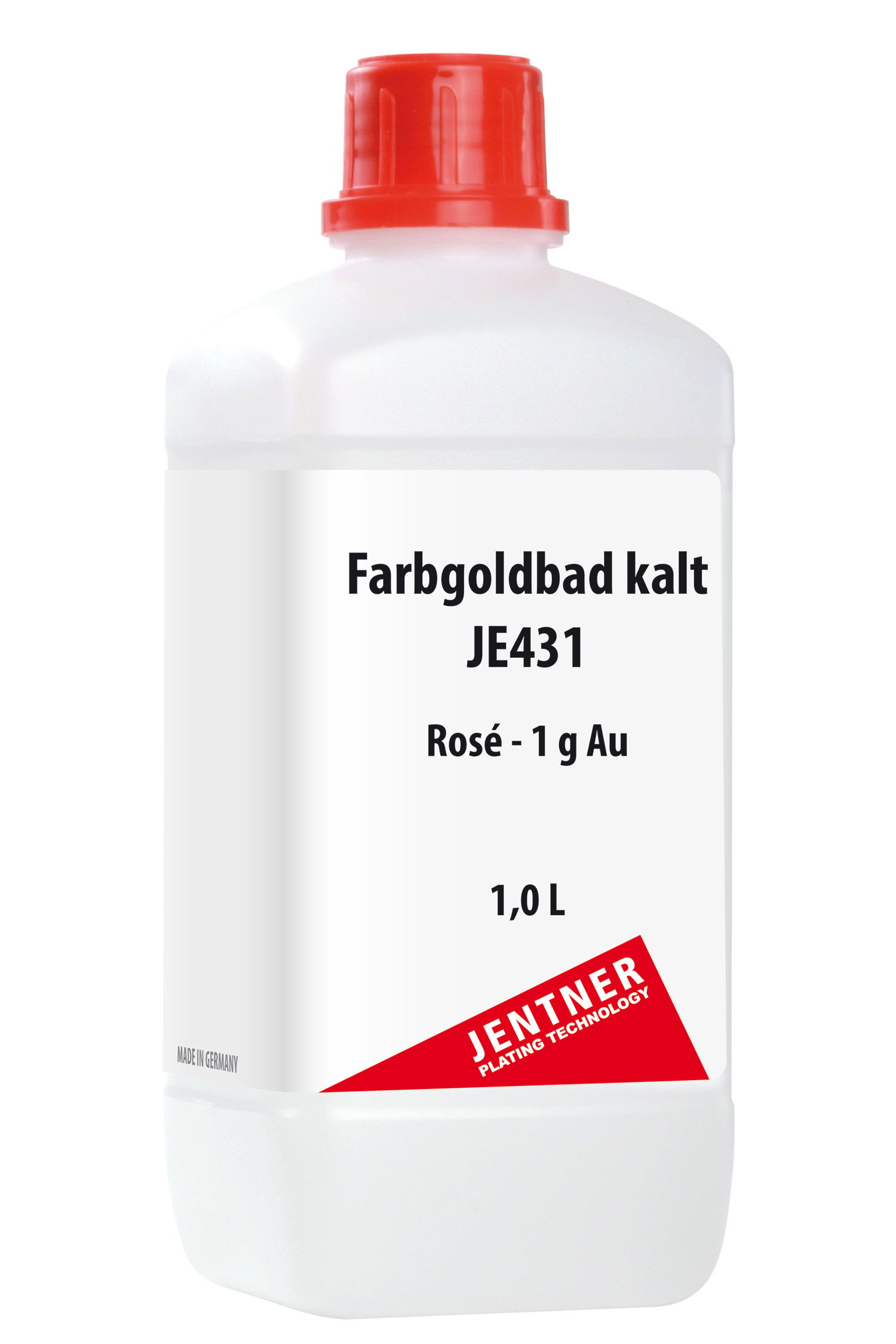

The color gold bath cold JE431 - rosé deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/lpH-value: 11.5 (11-12)Density: 1.065 g/ml (1.060-1.070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1
The color of the deposite may change due to deviations in the working conditions.
Form of delivery:Ready for use 1 g/L Au
The color gold bath cold JE434 - red deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11.5 (11-12)Density: 1.065 g/ml (1.060-1.070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

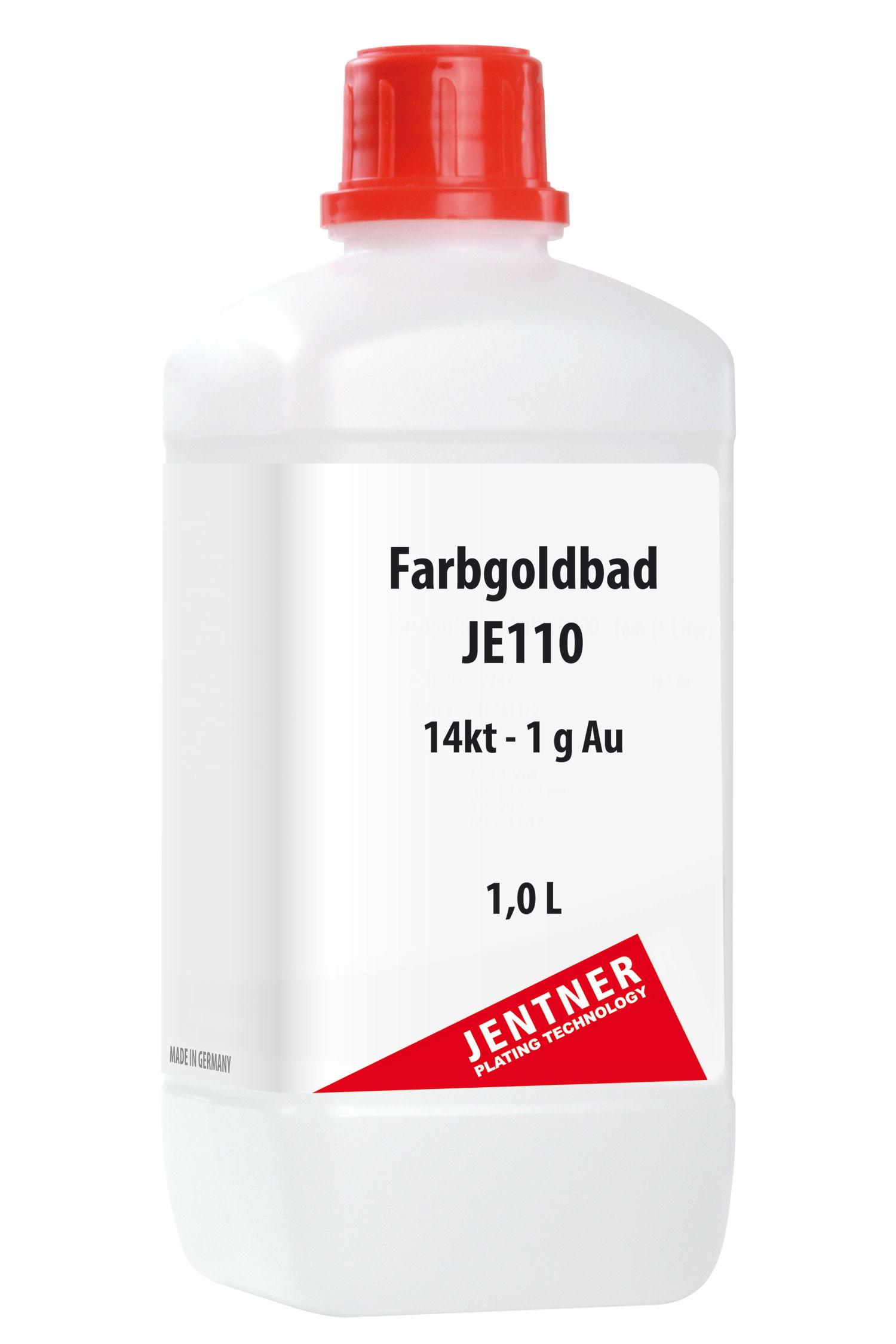

The color gold bath JE110 - 14ct deposits decorative gold layers in 14ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au-Concentrate form 1 g/100ml Au for 1 litre bath
The 50ml bottle of the gold bath JE270-1 - 14ct is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a nice 14ct gold colour. JE270-1 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 1g Au/50 mlVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration. Therefore we kindly ask you to send us the business registration in advance.
Das Stiftgoldbad JE270-1 eignet sich hervorragend zur partiellen Beschichtung mittels Stiftgalvanik, für Multicolor-Arbeiten und für Reparatur- bzw. Restaurierungsarbeiten. Die erzeugten Schichten haben eine schöne 14kt Goldfarbe. Der Elektrolyt überzeugt außerdem durch eine schnelle und gleichmäßige Abscheidung und durch seine Farbintensität.Die durch Stiftgalvanisieren erzeugte Auflageschicht ist sehr dünn. Sollten Sie eine stärkere Auflage wünschen, empfehlen wir Ihnen, die Ware im normalen galvanischen Tauchbad zu behandeln. Schmuckteile, die nicht galvanisch behandelt werden sollen, müssen Sie dann mit einem entsprechenden Lack abdecken.Goldgehalt: 2 g/100ml AuSpannung: 6-8 VoltBadtemperatur: RaumtemperaturBitte beachten Sie, dass dieses Produkt nur an Wiederverkäufer, berufsmäßige Verwender oder öffentliche Forschungs-, Untersuchungs- oder Lehranstalten abgeben werden darf.Aus diesem Grund benötigen wir vorab eine Kopie Ihrer Gewerbeanmeldung oder des HR-Auszugs.
The gold bath red JE270 - 3.2 for pen is especially suitable for partial plating, for multi-colour processing and reparation or restoration. The deposited coatings have a nice red gold colour. JE270-3.2 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 2 g/100ml AuVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration. Therefore we kindly ask you to send us the business registration in advance.
The gold bath JE270-2 is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a nice yellow gold colour. JE270-2 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 1g/50 ml Au 2g/100ml AuVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration.Therefore we kindly ask you to send us the business registration in advance.
The gold bath JE270-2 is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a nice yellow gold colour. JE270-2 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 1g/50 ml Au 2g/100ml AuVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration.Therefore we kindly ask you to send us the business registration in advance.
With the Gold plating bath JE218 a very bright, decorative and ductile gold layer can be deposited. A very nice shade between 4N (rose) and 5N (red) will be achieved. A uniform colour distribution and consistency are further advantages of this user-friendly gold process. The precious metal content of the gold layers is 14 - 18 ct. In this range the gold deposits have a very good resistance to tarnishing and corrosion.Gold content: 5 g/L AuVoltage: 1,1-1,6 VoltBath temperature: 60°CExposure time: up to 60 min.Anodes: Platinized Titanium
